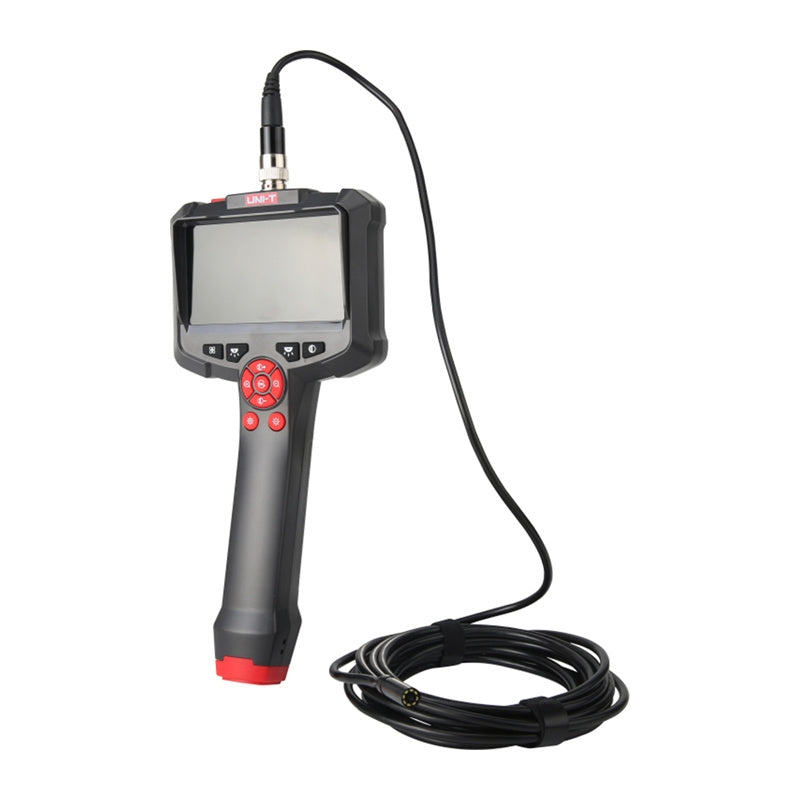

Uni-T UT665P Borescope
The Uni-T UT665P is a handheld industrial borescope designed for use in complex and hard-to-reach areas that are not directly visible. The device is equipped with a 1-meter-long flexible cable that can be bent into the desired shape, facilitating the inspection of the interiors of machines, installations, and confined spaces. Its compact design, 4.3" screen, and comfortable grip with a non-slip, shock-resistant housing make this model well-suited for daily service and technical work.
Clear image and convenient inspection control
The UT665P features a 1280 x 720 px screen, which facilitates observation of the inspected area. The 8 mm camera with a CMOS sensor provides a 70° field of view and a depth of field of 20–100 mm, allowing for convenient inspections in various conditions. Image rotation, contrast adjustment, black-and-white mode, color conversion, zoom, and screen brightness adjustment are also available, making it easier to adapt the image to a specific task.
Durable construction and readiness for harsh conditions
The device is equipped with 8 LEDs with 4-step brightness adjustment, which improves visibility when working in dark spaces. The camera meets the IP67 standard, and the 3.7 V / 2000 mAh battery provides up to 6 hours of operation, increasing convenience during longer inspections. A replaceable cable with an aviation connector, an operating temperature range of 0°C to 45°C, and a lens temperature of up to 80°C make this borescope well-suited for demanding industrial applications.
Included in the set
- UT665P borescope
- USB-C cable
- Hook, side mirror, magnet
- Mounting clamps
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT665P- |
| Type | Handheld industrial borescope |
| Screen size | 4.3" |
| System language | English |
| Screen resolution | 1280 x 720 px |
| Features | Screen rotation, contrast adjustment, black-and-white images, color conversion, zoom in/zoom out, screen brightness adjustment |
| Cable material | Replaceable cable with aviation connector |
| Cable length | 1 m |
| Lens diameter | 8 mm |
| Light sensor | CMOS |
| Field of view | 70° |
| Depth of field | 20 ~ 100 mm |
| LED light adjustment | 4 levels |
| Number of LEDs | 8 |
| Camera resolution | 300K |
| Camera protection rating | IP67 |
| Battery | 3.7V / 2000mAh |
| Operating time | 6h |
| Lens temperature | 0°C ~ 80°C |
| Device operating temperature | 0°C ~ 45°C |
| Operating humidity | <90% RH non-condensing |
| Certifications | CE, RoHS |
