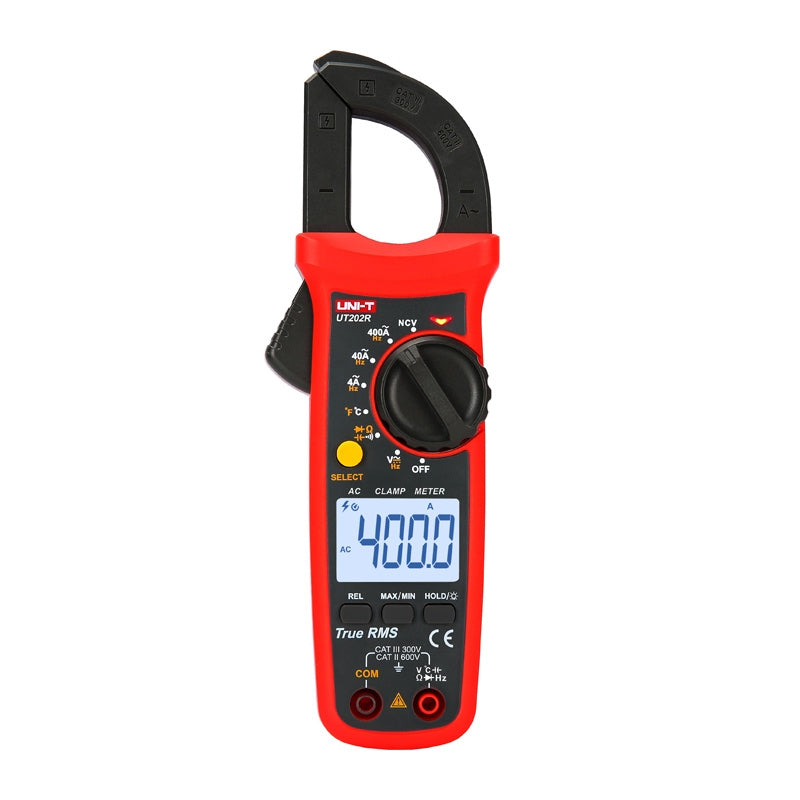

Uni-T UT202R Digital Clamp Meter
The Uni-T UT202R universal clamp meter is a practical tool for everyday electrical measurements. It is ideal for inspecting installations, diagnosing basic circuits, and measuring AC current without having to open the circuit. Thanks to its clamp design, it allows for convenient and quick measurements in the field.
Basic measurements for everyday work
The UT202R model allows for measuring AC current up to 400 A and AC and DC voltage up to 600 V, and additionally enables the measurement of capacitance and temperature. This makes it better suited for broader diagnostics of electrical and electronic devices.
User-friendly features
The multimeter is equipped with True RMS, which provides more reliable results when measuring alternating signals. Features such as NCV, diode test, continuity test, Data Hold, and Max/Min simplify daily work and speed up operation.
Clear design and safe use
The large backlit screen makes it easy to read results, and the 28 mm jaw opening allows for a comfortable grip on the wire during measurement. Compliance with safety categories CAT II 600V and CAT III 300V allows the device to be used in typical electrical applications.
Included
- Clamp meter
- Batteries x2
- Test leads
- Thermocouple
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT202R |
| Type | Clamp meter |
| AC current | 0.04~400A ±(2%+10) |
| AC frequency | 50Hz~100Hz ±(1%+5) |
| AC Voltage | 600V ±(0.8%+5) |
| AC Voltage Frequency | 10Hz~10kHz ±(1%+5) |
| DC Voltage | 600V ±(0.5%+2) |
| Resistance | 40MΩ |
| Capacitance | 4mF ±(4%+5) |
| Temperature | -40°C~1000°C ±(1.5%+5) |
| Maximum reading | 4000 |
| Functions | True RMS, NCV, diode test, continuity test, Data Hold, Max/Min, LCD backlight |
| Jaw opening | 28 mm |
| Power supply | 2x 1.5V battery (R03) |
| Safety | CAT II 600V / CAT III 300V |
| Dimensions | 215 x 63 x 36 mm |
| Certifications | CE, UKCA, cETLus |
