Beschrijving

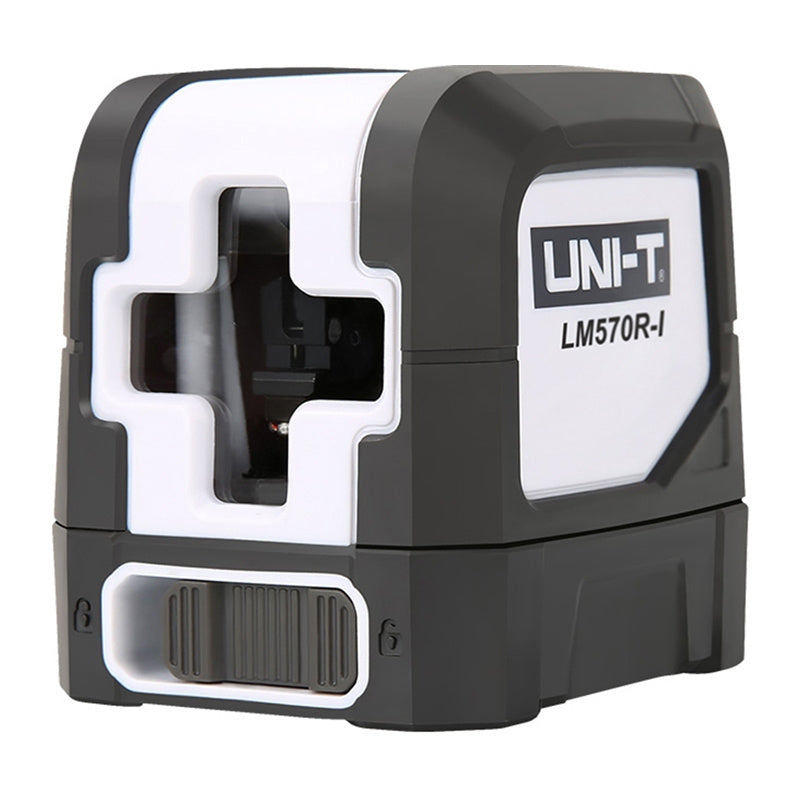

Uni-T LM570R-I Laser Level
The LM570R-I is a compact laser level designed for basic construction and finishing work where precise marking of horizontal and vertical lines is required. The device operates in a 1V1H configuration, allowing for efficient leveling in two planes, and its working range of up to 30 m makes it well-suited for indoor use and smaller installation projects. The red laser with a wavelength of 635 nm ensures clear visibility of the lines under typical working conditions.
Included
- Laser level
- Carrying case
- USB cable
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | LM570R-I |
| Type | Laser level |
| Laser configuration | 1V1H |
| Working range | 15–30 m |
| Accuracy | ±3 mm / 10 m |
| Self-leveling range | 3° ± 1° |
| Self-leveling time | 3 s |
| Laser type | Red |
| Wavelength | 635 nm |
| Laser class | 2 |
| Light source | 10 mW |
| Operating time | 12 h |
| Mounting | Tripod socket |
| Power supply | AA battery (LR6) x2 |
| Dimensions | 59 × 28 × 137 mm |
| Weight | 170 g |
| Certifications | CE, RoHS |
