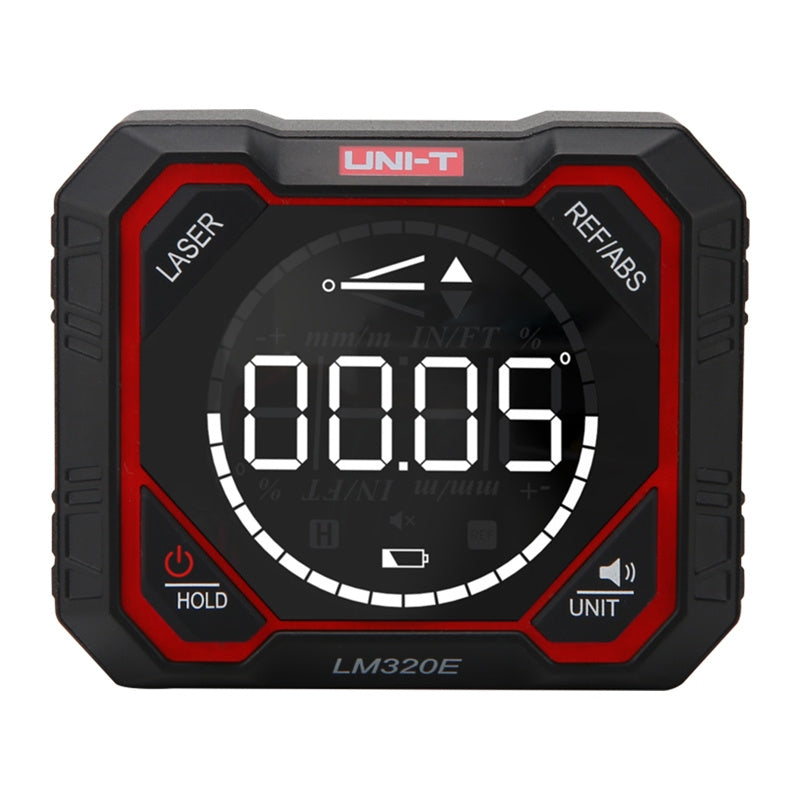

Uni-T LM320E Angle Measurer
The Uni-T LM320E Angle Measurer is an advanced angle measurement device equipped with a laser function that facilitates the establishment of reference lines. It offers measurement within a 4×90° range and features two laser lines, allowing for more precise spatial alignment of components. Support for various units and measurement modes increases its versatility, and the magnetic base ensures stable mounting. The backlit screen with auto-rotation makes it easy to read results, and the compact design makes the device well-suited for everyday use.
Included
- Angle finder
- USB-C cable
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | LM320E |
| Type | Angle finder with laser |
| Measurement range | 4 × 90° |
| Resolution | ±0.05° |
| Accuracy | ±0.2° |
| Repeatability | ±0.2° |
| Units | °, %, mm/m, in/ft |
| Laser lines | 2 |
| Laser accuracy | ±3 mm / 5 m |
| Operating time | Up to 8 h |
| Functions | Relative and absolute measurement, Data Hold, automatic screen rotation, backlight |
| Base | Double-sided magnetic |
| Power supply | 1000 mAh rechargeable battery |
| Dimensions | 83.5 x 70 x 35.5 mm |
| Weight | 180 g |
| Certifications | CE, RoHS |
