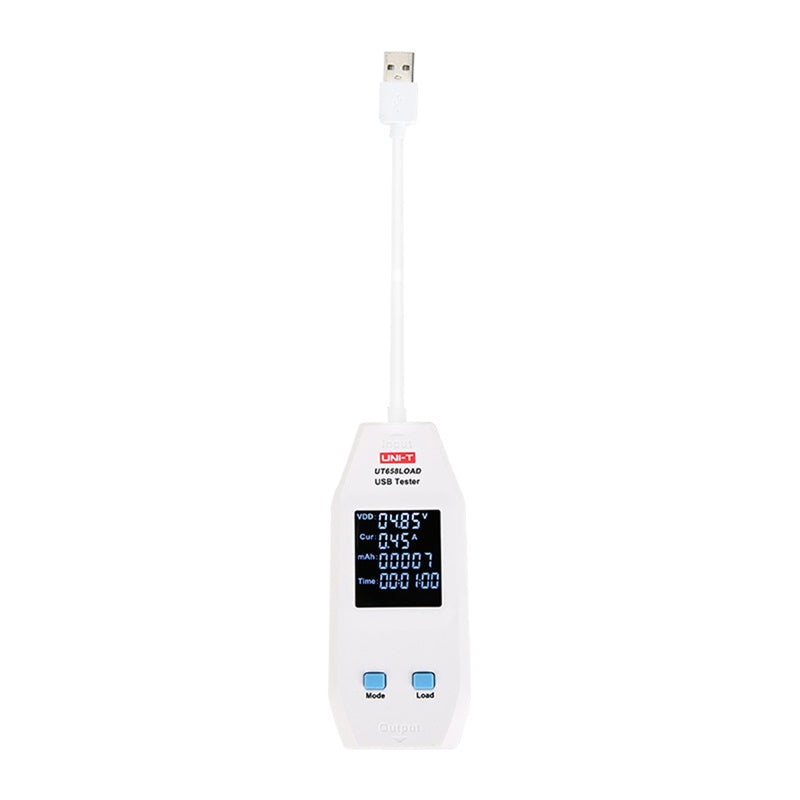

Uni-T UT658LOAD USB Tester
The Uni-T UT658LOAD is a USB tester designed to test chargers, power banks, USB Type-A cables, and other power supply devices. The device measures voltage in the range of 4–24 V DC, current from 0.05 to 3 A DC, capacity up to 99,999 mAh, energy up to 1000 Wh, equivalent circuit resistance from 1 to 480 Ω, and D+ and D- data line voltages in the range of 0–3.3 V, allowing for a thorough analysis of the operating parameters of the tested equipment. An additional advantage is the built-in electronic load of 0.5 A, 1 A, 2 A, and 3 A with a maximum power of 60 W, which enables testing of power supplies and chargers under load. The model supports USB Type-A ports, USB 2.0 and 3.0 standards, and QC 3.0 fast charging, while the easy-to-read display allows you to monitor key parameters simultaneously. The device also offers memory for 10 data sets and a measurement logging function for up to 99 h 59 min 59 s, which enhances its usefulness during diagnostics and service testing.
Included
- USB Tester
- User Manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT658LOAD |
| Type | USB Tester |
| Input and Output Ports | USB Type-A |
| Data and Charging Protocol | 2.0 / 3.0 |
| Voltage Range | 4~24V DC |
| Voltage Resolution | 0.01V |
| Current range | 0.05~3A DC |
| Current resolution | 0.01A |
| Capacity | 0~99999mAh |
| Capacity resolution | 1mAh |
| Energy | 0~1000Wh |
| Circuit equivalent resistance measurement | 1~480Ω |
| USB D+ data cable voltage | 0~3.3V |
| USB D- data cable voltage | 0~3.3V |
| Data storage | 10 sets |
| Electrical load | 0.5A / 1A / 2A / 3A |
| Maximum power | 60W |
| Maximum recording time | 99h 59min 59sec |
| Time resolution | 1s |
| Fast charging protocol | QC 3.0 |
| Color | White |
| Weight | 114.4g |
| Dimensions | 122mm x 53mm x 27mm |
| Certifications | CE, UKCA |
