Description

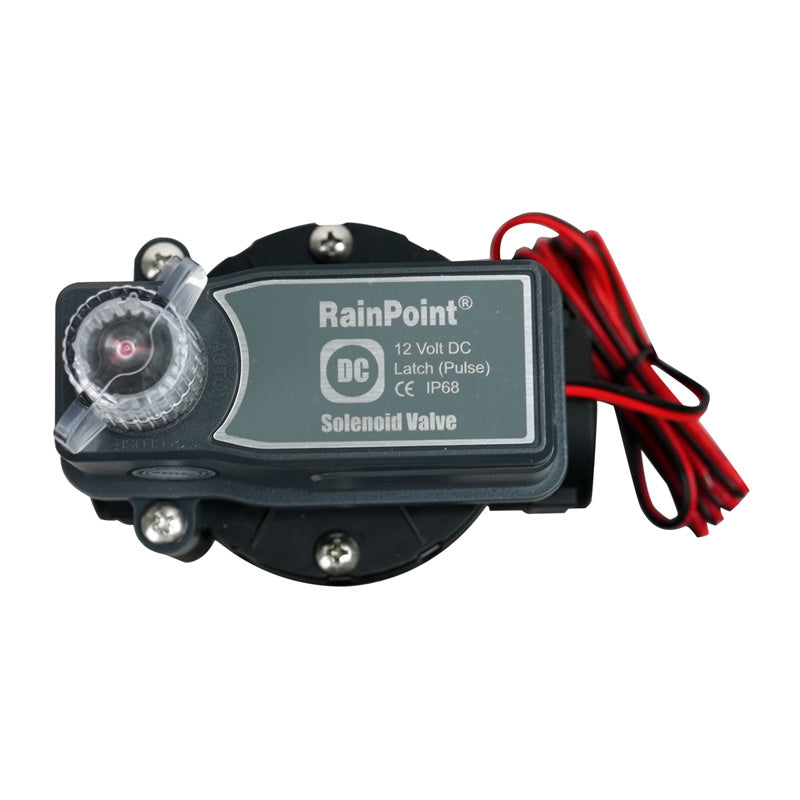

1” DC Electronic Irrigation Valve
Automate your irrigation system with the RainPoint BIV025ESC-DC solenoid valve featuring a 1” thread. The device operates at 9–24 V DC and uses latch technology, enabling efficient water flow control with minimal energy consumption. With a pressure range of 0.2–10 bar and a sealed design (IP68), the valve is ideal for demanding garden installations and automatic irrigation systems.
Precise water flow control
The valve enables precise control of water supply in the irrigation system. Thanks to the use of a pulse coil (DC Latch), opening and closing are performed via a short electrical pulse, which reduces energy consumption and increases the efficiency of the entire system. This solution is particularly useful in battery-powered installations.
Wide installation compatibility
The model is equipped with standard 1” BSP connections, allowing for easy integration with various irrigation systems. The valve can be seamlessly integrated with popular garden controllers, creating a fully automatic watering system tailored to individual needs.
Operation in demanding conditions
The robust construction and high IP68 protection rating ensure resistance to moisture and environmental conditions. The valve is designed to operate at temperatures up to 60°C and across a wide pressure range, guaranteeing stable performance even under intensive use.
Proven quality and reliability
A minimum capacitance of 4700 µF and a pulse duration of over 200 ms ensure proper operation of the control system and reliable valve switching.
| Manufacturer | RainPoint |
|---|---|
| Model | BIV025ESC-DC |
| Connection diameter | 1” |
| Operating voltage | 9–24 V DC (Latch) |
| Control type | Pulse (DC Latch) |
| Pulse duration | ≥200 ms |
| Minimum capacitance | 4700 µF |
| Operating pressure | 0.2–10 bar |
| Operating temperature | up to 60°C |
| Protection rating | IP68 |
