Description

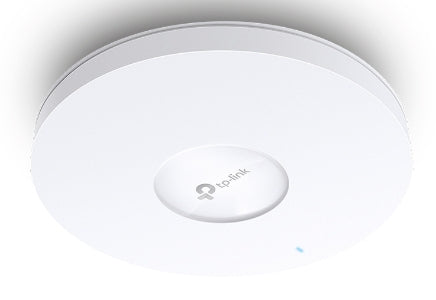

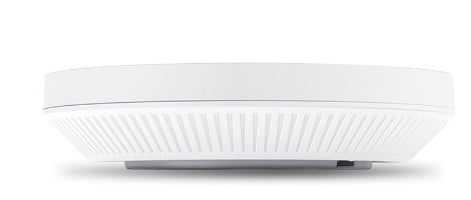

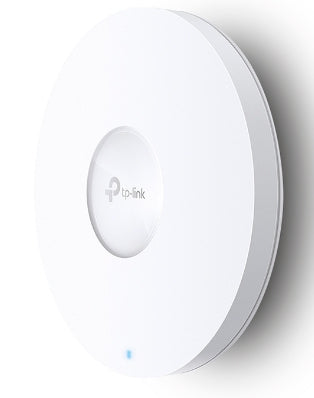

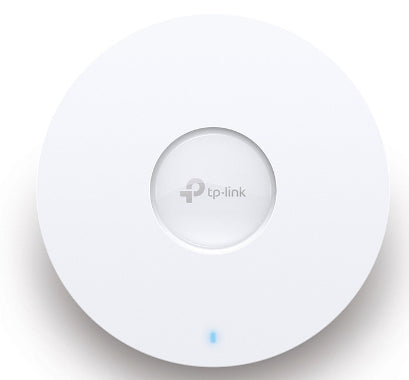

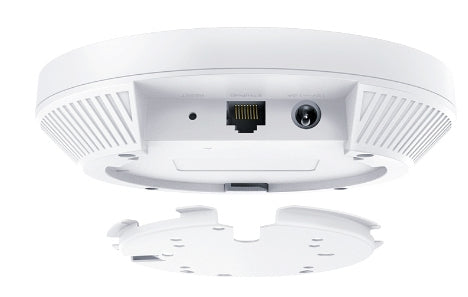

TP-Link Omada EAP653 UR, 2.4 GHz, 5 GHz, 2976 Mbps, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3, 10,100,1000 Mbps
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN: data transfer rate | 10, 100, 1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Network standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 250 user(s) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO (multiple inputs, multiple outputs) | Yes |
| MIMO type | Multi-User MIMO |
| Spectrum propagation method | OFDMA |
| Enable AP mode functions | Mesh network |
| VLAN support | Yes |
| Flow rate limitation | Yes |
| Flow control assistance | Yes |
| Band direction | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) | Yes |
| Beamforming | Yes |
| Transmission power (CE) | 27 dBm |
| Transmission power (FCC) | 22 dBm |
| Security | |
| Supported security algorithm | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Management characteristics | |
| Web-based management | Yes |
| Syslog | Yes |
| Upgradeable firmware | Yes |
| Connectivity | |
| Number of LAN ethernet ports (RJ-45) | 1 |
| Number of USB 2.0 Ports | 0 |
| DC Input | Yes |
| Power | |
| Ethernet connection, supporting power delivery via this port (PoE) | Yes |
| DC voltage range | 12V |
| Design | |
| Positioning | Ceiling, Wall |
| Product color | White |
| Reset button | Yes |
| Psychics | Yes |
| Antenna | |
| Antenna type | Internal |
| Weight and dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
| Packaging information | |
| Packaging type | Box |
| Package contents | |
| Quantity | 1 piece(s) |
| Mounting kit | Yes |
| Quick Start Guide | Yes |
| Environmental conditions | |
| Operating relative humidity (HH) | 10-90% |
| Operating temperature | 0 - 40 °C |
| Off-temperature | -40 - 70 °C |
| Relative humidity level (storage) | 5 - 90% |
