Description

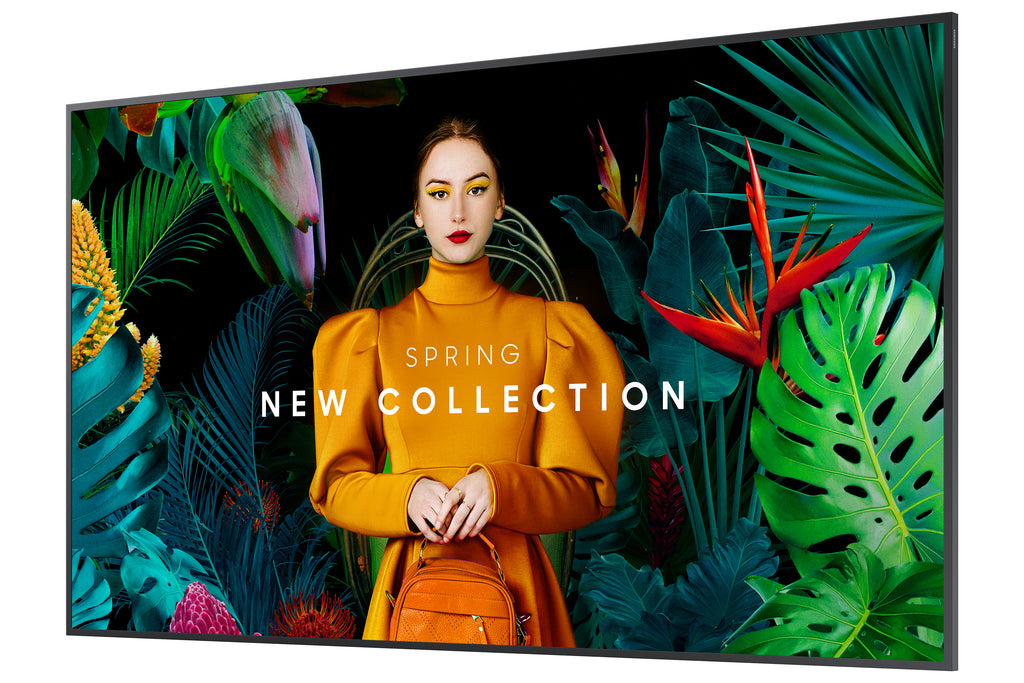

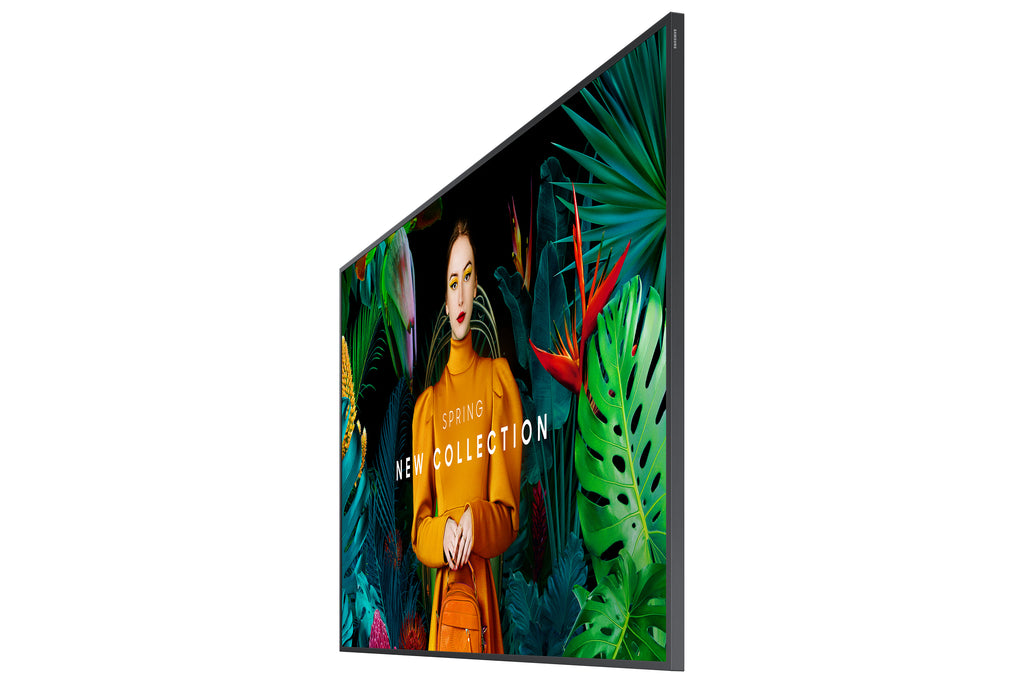

Samsung QH55C, 55" (139.7 cm) Digital Signage Flat Panel Display, LCD, 3840 x 2160 pixels, Wi-Fi, 24/7
| Screen | |
| Screen size | 139.7 cm (55") |
| Display technology | LCD |
| Screen resolution | 3840 x 2160 pixels |
| Screen brightness | 700 cd/m² |
| Type HD | 4K Ultra HD |
| Touch screen | No |
| Panel type | GO |
| Response time | 8 ms |
| Contrast ratio | 4000:1 |
| Marketing name for the dynamic contrast ratio | Mega contrast |
| Horizontal viewing angle | 178° |
| Vertical viewing angle | 178° |
| No pixel | 0.315 x 0.315 mm |
| Screen diagonal (cm) | 138 cm |
| Horizontal scanning domain | 30 - 81 kHz |
| Vertical scan frequency | 48 - 75 Hz |
| Distribution rate | 25% |
| Pixel frequency (max) | 594 MHz |
| RGB color space | NTSC |
| Color palette | 72% |

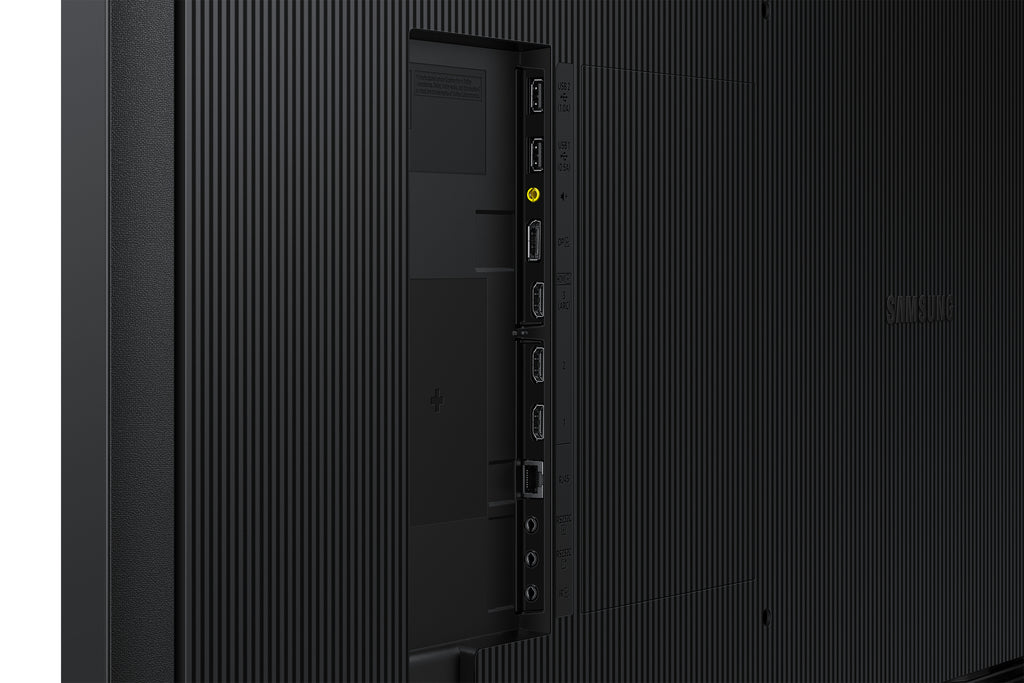

| Connectivity | |
| Number of HDMI ports | 3 |
| DVI port | No |
| Number of DisplayPort interfaces | 1 |
| USB port | Yes |
| Ethernet/LAN | Yes |
| Wi-Fi | Yes |
| HDMI version | 2.0 |
| Number of HDMI input ports | 3 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| Number of USB ports | 2 |
| Number of LAN ethernet ports (RJ-45) | 1 |
| RS-232 Interface | Yes |
| Infrared port | Yes |
| Command (IR) input | 1 |
| Design | |
| Product design | Digital signage flat screen |
| Product color | Black |
| Installation included | Interior |
| VESA mount | Yes |
| Screen shape | Flat |
| VESA standard | 200 x 200 mm |
| Frame width (at the bottom) | 1.15 cm |
| Frame width (side) | 1.15 cm |
| Frame width (at the top) | 1.15 cm |
| Frame color | Charcoal Black |
| representation / realization | |
| Utility | Universal |
| service hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Typical electricity consumption | 187 W |
| Energy consumption (in standby mode) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) for 1000 hours | 109 kWh |
| AC input voltage | 100-240V |
| AC input frequency | 50/60 Hz |
| Energy efficiency range | A to G |
| Computer system | |
| Computer system | Yes |
| Integrated into the processor | Yes |
| Type of computer system | System on Chip (SoC) |
| Operating system installed | Tizen |
| Operating system version | 7.0 |
| Weight and dimensions | |
| Display width | 1237.9 mm |
| Display depth | 28.5 mm |
| Display height | 708.8 mm |
| Display the weight | 16.9 kg |
| Packaging information | |
| Package width | 1403 mm |
| Package depth | 148 mm |
| Package height | 835 mm |
| Package weight | 21.1 kg |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Operating relative humidity (HH) | 10-80% |
| Certificate | |
| Certification | Class B 60950-1, 62368-1 |
| Other features | |
| Bluetooth | Yes |
| Flash memory | 16000 MB |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| RJ-45 input ports | 1 |
| Optional features | WMN-B50SC STN-L4355C |
| Technical details | |
| Audio output (mini jack) | 1 |
