Description

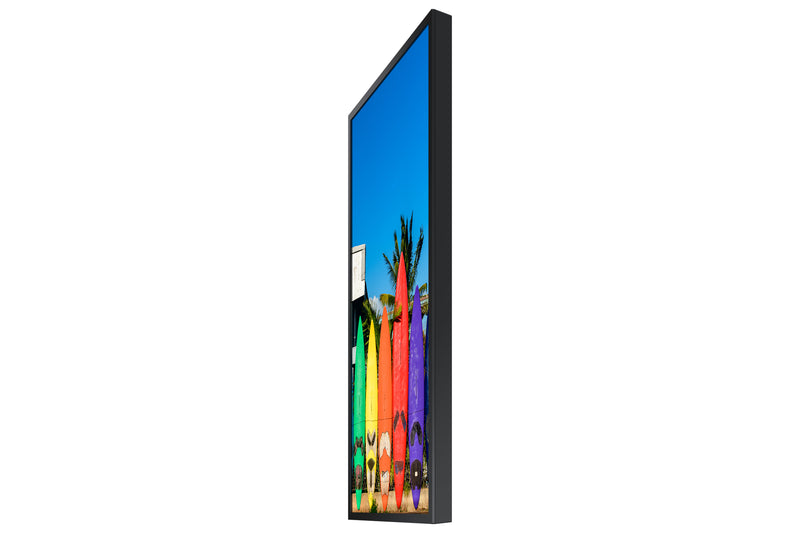

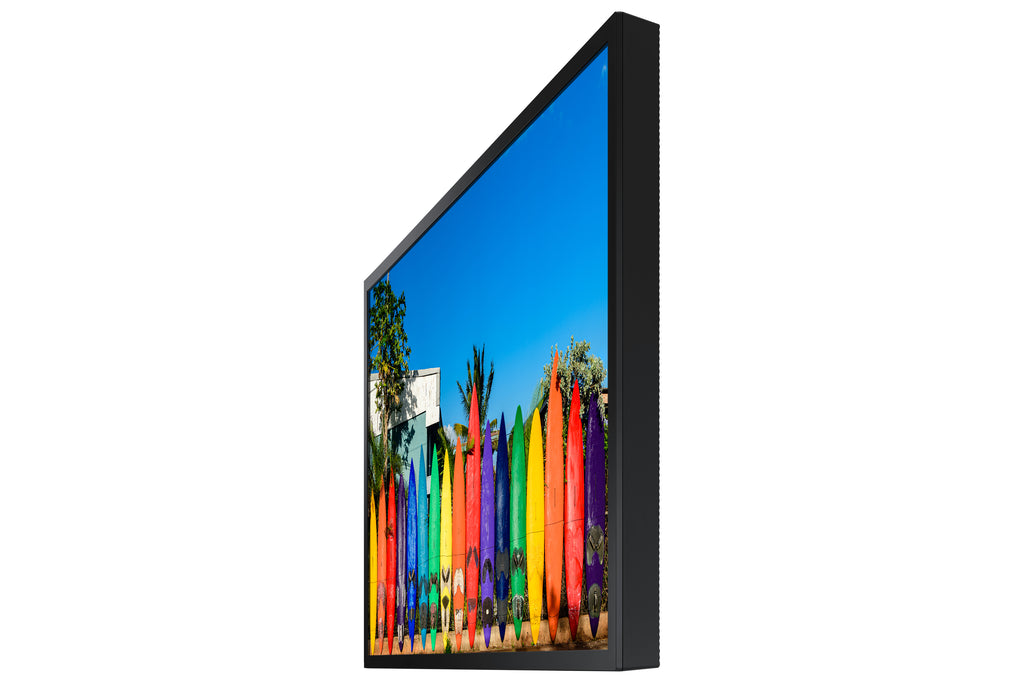

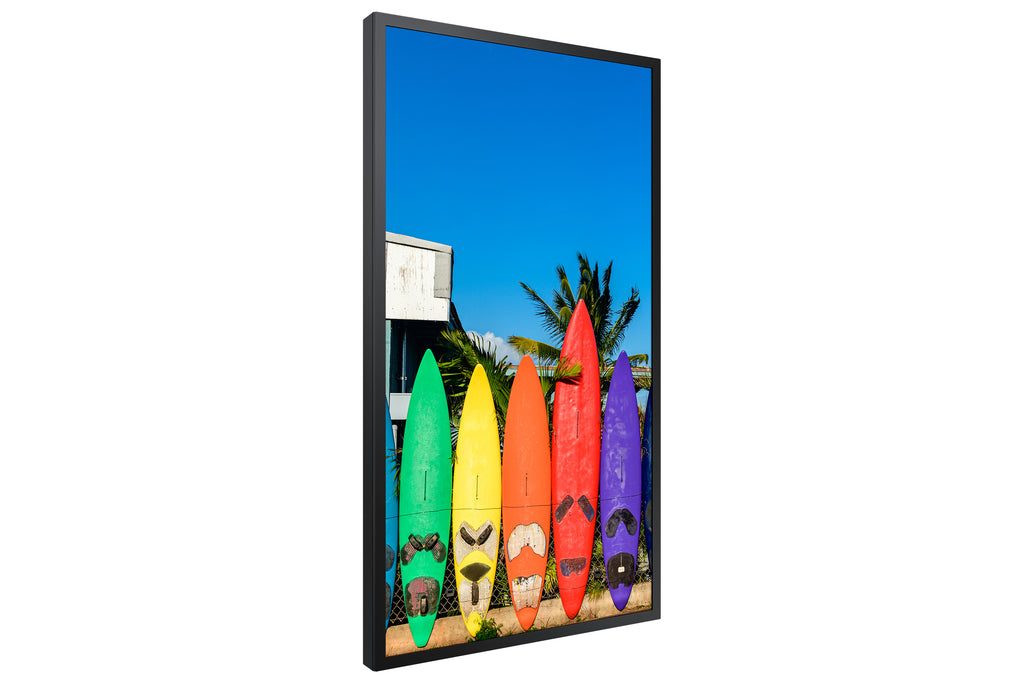

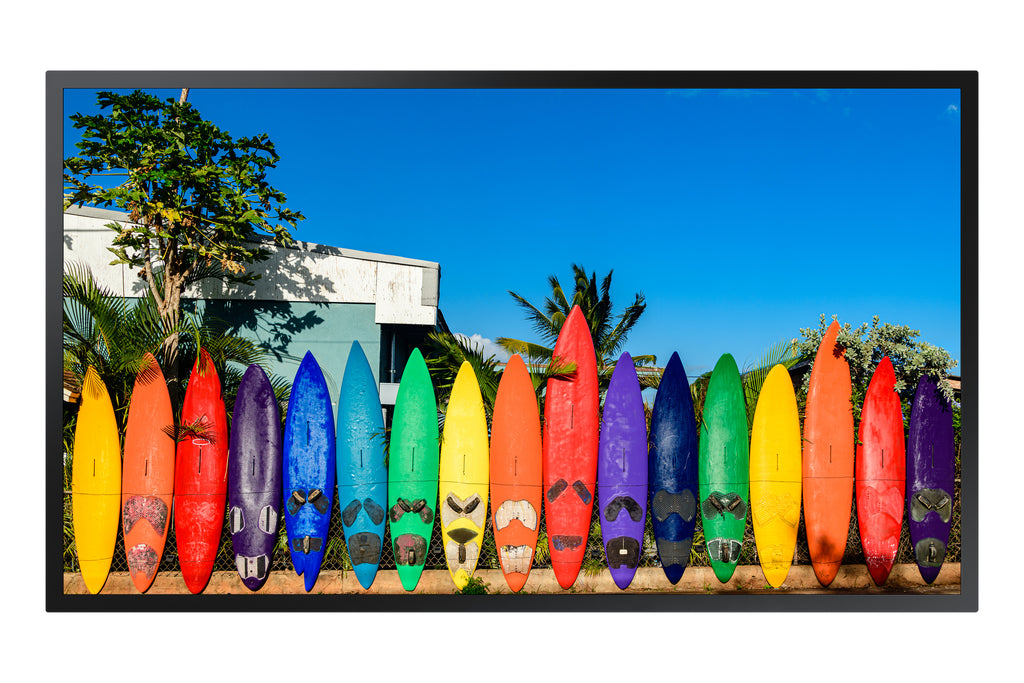

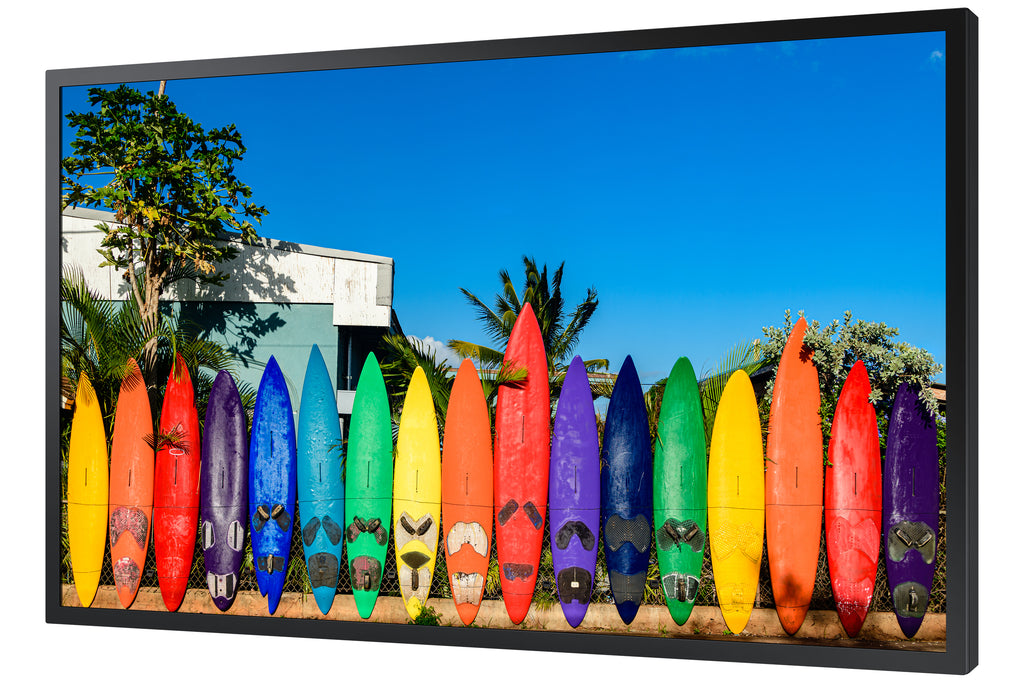

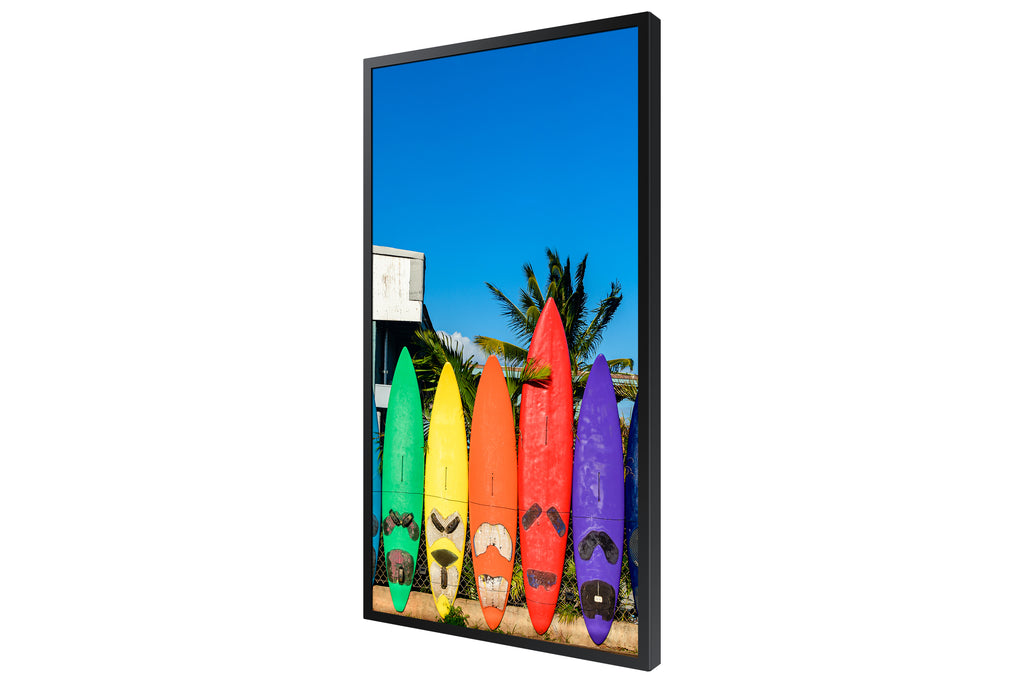

Samsung OM55B, 55" (139.7 cm) Digital Signage Flat Panel Display, LCD, 3840 x 2160 pixels, Wi-Fi, 24/7
| Screen | |
| Screen size | 139.7 cm (55") |
| Display technology | LCD |
| Screen resolution | 3840 x 2160 pixels |
| Screen brightness | 3000 cd/m² |
| Type HD | 4K Ultra HD |
| Touch screen | No |
| Panel type | ADS |
| Response time | 8 ms |
| Contrast ratio | 1200:1 |
| Marketing name for the dynamic contrast ratio | Mega contrast |
| Horizontal viewing angle | 178° |
| Vertical viewing angle | 178° |
| No pixel | 0.315 x 0.315 mm |
| Horizontal scanning domain | 15 - 135 kHz |
| Vertical scan frequency | 24 - 75 Hz |
| Distribution rate | 1% |
| Pixel frequency (max) | 594 MHz |
| RGB color space | NTSC |
| Color palette | 72% |

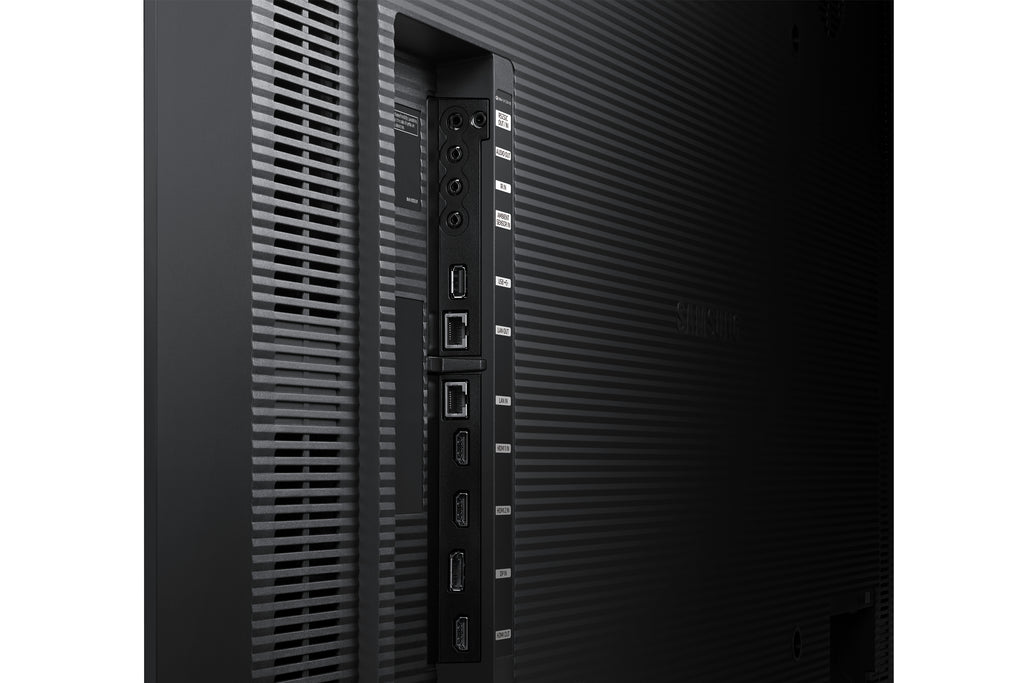

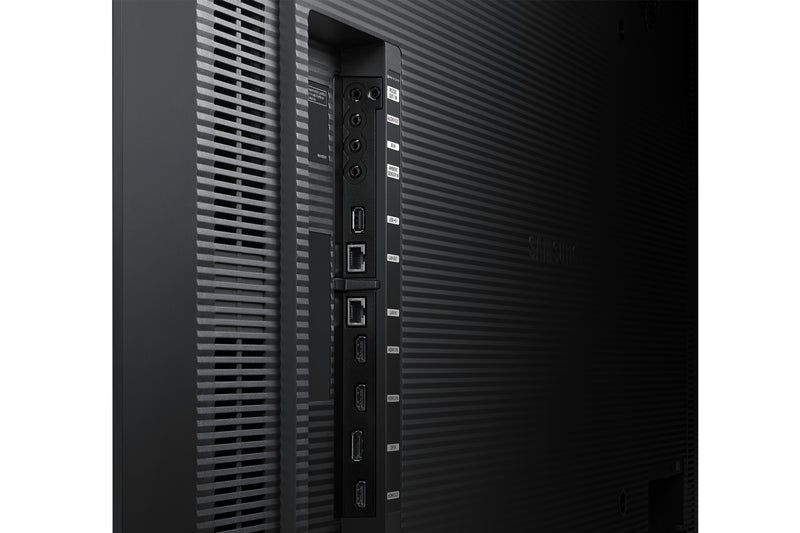

| Connectivity | |
| Number of HDMI ports | 2 |
| DVI port | No |
| Number of DisplayPort interfaces | 1 |
| USB port | Yes |
| Ethernet/LAN | Yes |
| Wi-Fi | Yes |
| HDMI version | 2.0 |
| Number of HDMI input ports | 2 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| Number of USB ports | 1 |
| Number of LAN ethernet ports (RJ-45) | 2 |
| RS-232 Interface | Yes |
| Infrared port | Yes |
| Command (IR) input | 1 |
| Design | |
| Product design | Digital signage flat screen |
| Product color | Black |
| VESA mount | Yes |
| Screen shape | Flat |
| VESA standard | 400 x 400 mm |
| Frame width (at the bottom) | 1.91 cm |
| Frame width (side) | 1.91 cm |
| Frame width (at the top) | 1.91 cm |
| Frame color | Dark Blue Gray |
| representation / realization | |
| Utility | Universal |
| service hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Typical electricity consumption | 450 W |
| Energy consumption (in standby mode) | 0.5 W |
| AC input voltage | 100-240V |
| AC input frequency | 50/60 Hz |
| Computer system | |
| Computer system | Yes |
| Integrated into the processor | Yes |
| Type of computer system | System on Chip (SoC) |
| Operating system installed | Tizen 5.0 |
| Weight and dimensions | |
| Display width | 1253.4 mm |
| Display depth | 54.5 mm |
| Display height | 724.2 mm |
| Display the weight | 23.1 kg |
| Packaging information | |
| Package width | 1420 mm |
| Package depth | 178 mm |
| Package height | 879 mm |
| Package weight | 29.1 kg |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Operating relative humidity (HH) | 10-80% |
| Certificate | |
| Certification | Class A 60950-1 |
| Features | |
| Wall mount | Yes |
| Other features | |
| Flash memory | 8000 MB |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Video Output | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Technical details | |
| Audio output (mini jack) | Yes |
| Audio input (mini jack) | No |
