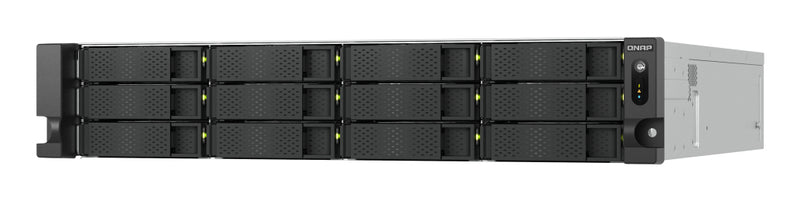

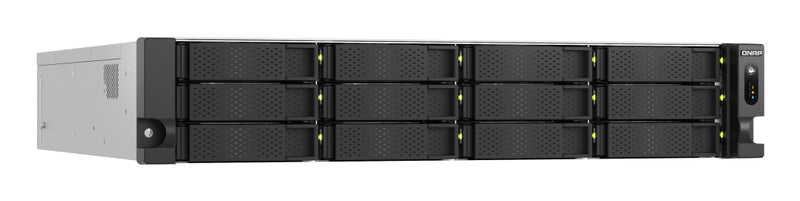

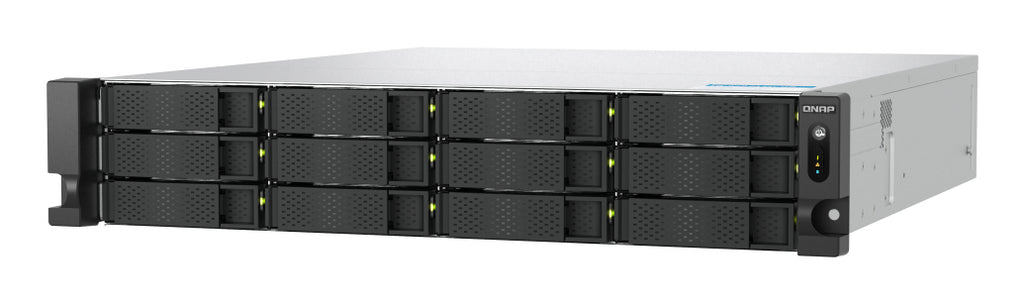

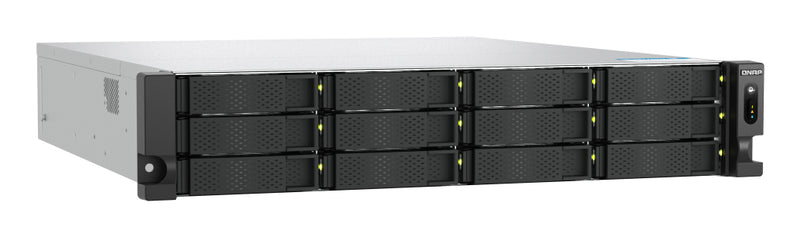

TS-h1277AXU-RP
Experience unparalleled professional performance with the power of AMD Ryzen™ 7000 series processors, DDR5, and M.2 PCIe Gen 5
Powered by AMD Ryzen™ 7000 Series processors based on AMD's industry-leading AM5 platform, the TS-h1277AXU-RP ZFS-enabled storage and backup solution unleashes superb performance and enterprise-grade potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers outstanding performance, massive bandwidth, and proven reliability for Layer 2 storage, virtualization, 4K video editing, and petabyte-scale storage applications.
Experience unparalleled professional performance with the power of AMD Ryzen™ 7000 series processors, DDR5, and M.2 PCIe Gen 5
Powered by AMD Ryzen™ 7000 Series processors based on AMD's industry-leading AM5 platform, the TS-h1277AXU-RP ZFS-enabled storage and backup solution unleashes superb performance and enterprise-grade potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers outstanding performance, massive bandwidth, and proven reliability for Layer 2 storage, virtualization, 4K video editing, and petabyte-scale storage applications.
| Storage media | |
| Installed storage drives | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage units supported | 12 |
| Type of storage drive installed | No |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | ATA Series II, ATA Series III |
| Supported storage disk sizes | 2.5, 3.5" |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID Migration | Yes |
| Online RAID expansion | Yes |
| RAID Reconstruction | Yes |
| Hot-swappable enclosure bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4 |
| Disk roaming | Yes |
| Processor | |
| Processor family | AMD Ryzen™ 7 |
| Processor manufacturer | AMD |
| Turbo processor frequency | 5.3 GHz |
| Number of processor cores | 8 |
| Number of processor threads | 16 |
| Type of bus | DMI3 |
| CPU configuration (max) | 1 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 192 GB |
| Memory locations | 4 |
| Memory support | UDIMM |
| ECC | No |
| Flash memory | 5000 MB |
| Network | |
| Ethernet/LAN | Yes |
| Ethernet LAN: data transfer rate | 10,100,1000,2500,5000,10000 Mbit/s |
| Supported Ethernet LAN transmission speed (max.) | 10000 Mbit/s |
| Copper Ethernet cabling technology | 10GBASE-T |
| DHCP Server | Yes |
| Support for Jumbo Frames | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Supported network protocols | IPv4, IPv6 |
| Dynamic DNS (DDNS) | Yes |
| Connectivity | |
| Number of LAN ethernet ports (RJ-45) | 4 |
| USB port | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| PCI Express x8 slots (Gen. 4.x) | 1 |
| Design | |
| chassis type | Rack (2U) |
| Cooling type | Active |
| Product color | Black |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| Psychics | HDD, LAN, Power, SSD, Status |
| representation / realization | |
| Kind | NAS |
| Device class | Large companies |
| Backup function | Yes |
| Backup functions | Cloud, iSCSI LUN |
| Audible alarm | Yes |
| Multilingual support | Yes |
| Image capture | Yes |
| Management protocols | SNMP V2/V3 |
| Web-based management | Yes |
| Supported security algorithm | 256-bit AES, FIPS 140-2, HTTPS, TLS |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| Integrated on/off button | Yes |
| Integrated FTP server | Yes |
| Supported browsers | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| System journal | Yes |
| Hot exchange | Yes |
| Disk analysis | Yes |
| SMART Support | Yes |
| Shared folder | CIFS/SMB |
| Software | |
| Operating system installed | QuTS hero |
| Operating system version | h5.0.0 |
| Windows operating system support | Windows 10, Windows 7, Windows 8 |
| Linux operating system support | CentOS 7.0, Ubuntu 14.04 |
| Mac operating system support | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS |
| Server operating system support | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Power | |
| Power supply location | Integrated |
| Power supply unit (PSU) capacity | 500 W |
| Number of power supplies | 2 |
| Redundant Power Supply (RPS) | Yes |
| Typical electricity consumption | 367.65 W |
| AC input voltage | 100-240V |
| AC input frequency | 50-60 Hz |
| Fan voltage | 12V |
| Weight and dimensions | |
| Width | 482 mm |
| Depth | 550 mm |
| Height | 88.6 mm |
| Weight | 13 kg |
| Package width | 567 mm |
| Package depth | 721 mm |
| Package height | 273 mm |
| Package weight | 17.6 kg |
| Package contents | |
| Cables included | Sector, LAN (RJ-45) |
| Quantity of power cables | 2 |
| Number of screws | 84 |
| Special features of the processor | |
| The available integrated options | No |
| Intel's Advanced SpeedStep Technology | Yes |
| Locking bit | Yes |
| Idle States | Yes |
| Intel® 64 | Yes |
| Intel® Enhanced Halt State | Yes |
| Intel® Security Key Technology Version | 1.00 |
| Intel® Trusted Execution Technology | Yes |
| Intel® TSX-NI | Yes |
| Intel® TSX-NI Version | 1.00 |
| Intel® Vitalization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Operating relative humidity (HH) | 5 - 95% |
| Off-temperature | -20 - 70 °C |
| Relative humidity level (storage) | 5 - 95% |
| Logistics data | |
| Harmonized System Code | 84714100 |
