Description

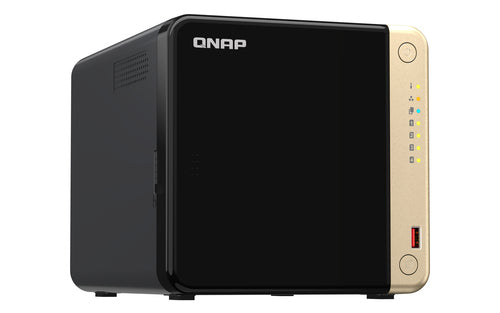

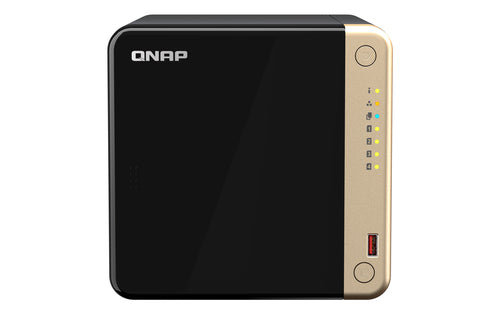

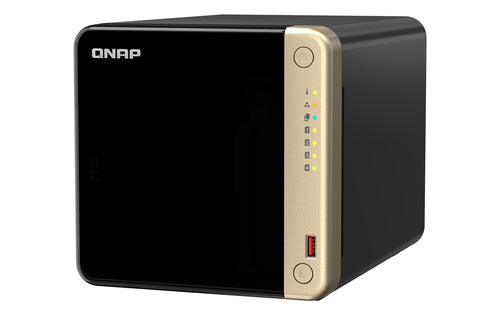

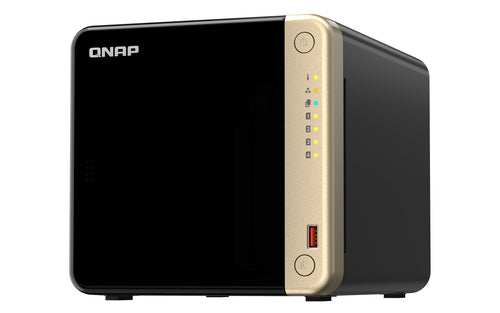

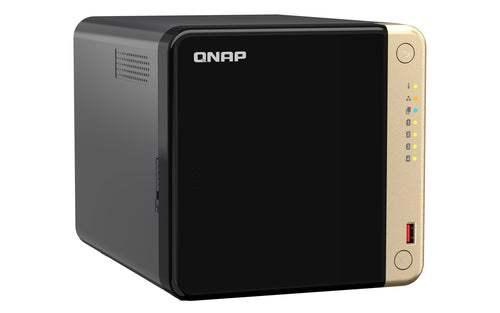

TS-464
The Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and virtualization applications.
Powered by a quad-core Intel® Celeron® N5105/N5095 processor (capable of boosting to 2.9 GHz), the TS-464 features two 2.5GbE RJ45 ports and port aggregation for a combined bandwidth of up to 5 Gbps. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-464 offers flexibility in expanding NAS functionality, allowing you to install a QM2 card for M.2 SSD caching or an Edge TPU for AI image recognition, as well as various 10/5GbE network cards. The TS-464 comes with 4 GB of RAM for running lightweight VMs and containers. In addition, it supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, as well as expandable storage capacity and feature-rich apps to operate as a cost-effective and reliable 2.5GbE NAS.
High-performance quad-core processor with up to 16GB of RAM
The TS-464 is powered by a quad-core Intel Celeron N5105/N5095 processor and supports up to 16GB of DDR4 memory, two 2.5GbE ports, and SATA 6Gb/s drives. The integrated Intel© AES-NI encryption engine also helps protect confidential data without impacting system performance.
Accelerate AI-based image recognition and caching with TPU and PCIe expansion
The TS-464 has two M.2 PCIe Gen3 slots, allowing for SSD caching or SSD storage pools to improve performance, or Edge TPU for AI image recognition.
Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
The TS-464 supports SSD caching and includes two M.2 slots that support NVMe1 M.2 PCIe SSDs with a 2280 form factor (sold separately) to boost overall NAS performance. Qtier™ technology can also be used to enhance the TS-464 with automatic tiering, which helps continuously optimize storage efficiency across all installed storage devices.
AI-based image recognition with TPU
By leveraging a Google Edge TPU on QNAP AI Core (the AI-based engine for image recognition), the TS-464 can perform rapid face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos using high-speed AI image recognition and classification, and QVR Face to analyze videos in real time for instant facial recognition.
SSD caching and automatic tiering enable 24/7 storage efficiency optimization.
With SSD capacity and performance continuing to increase, organizations can easily leverage their strengths. The TS-464 supports numerous SSD-compatible features that significantly boost NAS performance while offering high cost-effectiveness.
Simplify large file transfers and video editing with 2.5GbE

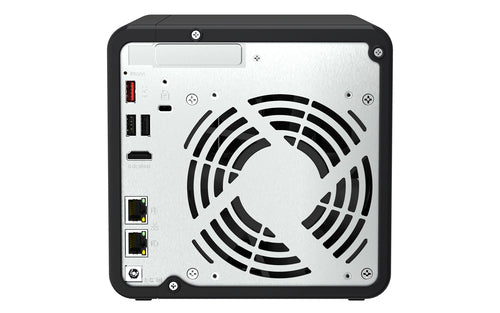

The TS-464 comes with two 2.5GbE (2.5G/1G/100M) RJ45 network ports, allowing you to use existing CAT5e cabling to upgrade network speeds from 1 to 2.5 Gigabit. These two 2.5GbE ports also support port aggregation for transfer speeds of up to 5 Gbps, improving the efficiency of bandwidth-intensive business applications such as large file transfers, fast backup/restore, and multimedia transfer and editing.
Future-proof your IT infrastructure for broadband networks
The TS-464 is a perfect match for QNAP's managed and unmanaged 2.5GbE/10GbE switches, enabling you to build scalable, secure, and high-speed network environments without exceeding your budget. QNAP also provides 2.5GbE/5GbE/10GbE PCIe cards and 5GbE USB adapters for Windows©/Linux© workstations, allowing you to easily establish a high-speed network environment for productive team collaboration.
Boost your productivity with multiple USB ports
With two USB 3.2 Gen 2 (10 Gbps) ports and two USB 2.0 (480 Mbps) ports, you can quickly back up and transfer large files to and from the TS-464. UPS and other compatible USB devices can also be connected to expand functionality and application capabilities.
Large I/O capabilities with PCIe expansion
The TS-464 has a PCIe Gen 3 x2 slot for installing expansion cards to increase application potential.
Direct 4K HDMI output for displaying multimedia content and virtual machines
The TS-464 features Intel® UHD Graphics, which supports dual-channel hardware decoding and real-time transcoding*. Its HDMI 2.0 output supports up to 4K resolution, providing exceptional advantages for applications such as video production/editing or industrial design that demand high resolution and color accuracy, as well as massive media storage, transfer, and display capabilities. By connecting the TS-464 to an HDMI display, you can directly view media content stored on the NAS or use the TS-464 as a versatile workstation by directly outputting virtual machines from Virtualization Station or Utilize Linux Station.
QTS 5, fast, smooth and easy to use!
The TS-464 comes standard with the QTS 5 operating system, offering a next-generation user experience with an updated system kernel, an optimized user interface, and advanced security features.
Sharper. Smoother. You'll love it.
When you navigate QTS 5, you'll notice more attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, a pleasing visual design, and faster access to your favorite apps.
Start with the scoreboard
During the initial setup, the display panel guides you through the configuration process. Simply follow the step-by-step instructions for a quick and easy setup.
Smooth and responsive user interface
Whether you're clicking buttons, switching apps, or resizing windows, every action is much smoother. The search bar in the main menu also helps you quickly find the apps you need.
Complete backup and disaster recovery solution
The TS-464 supports various apps that cover all your backup needs. Develop secure computing habits by regularly backing up your files and device content, making it easy to restore them if necessary.
PC/Laptop Backup
For Windows©, install NetBak Replicator to back up your PC to your QNAP NAS. In macOS©, simply configure the built-in Time Machine© to secure your data.
Remote backup for the NAS
Hybrid Backup Sync makes it easy to back up data from a TS-464 to another QNAP NAS or remote server to meet your 3-2-1 backup strategy.
VM backup
Take advantage of free backup of Vmware© and Hyper-V VMs with source-side incremental backup, global deduplication and restore compression.
SaaS Backup
Protect company cloud data by backing up/synchronizing files, emails, calendars and contacts from Google™ Workspace and Microsoft© Office 365© to the NAS.
Cloud backup for the NAS
Hybrid Backup Sync supports major cloud storage services for backing up NAS data. For backing up objects to cloud storage, VJBOD Cloud is particularly useful for reducing bandwidth usage and backup time.
QuDedup Technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, saving time and storage costs while providing efficient multi-version backups.
Multi-version snapshots reduce ransomware threats
The TS-464 supports block-based snapshots that record the system state at any given time. This helps protect data, which can be restored to a point in time, greatly reducing the threat of ransomware.
Snapshots of LUN and volume
Take snapshots in seconds and restore the entire volume/LUN to a specific point in time to prevent the loss of important data.
Restore snapshots instantly
The snapshot content can be quickly restored to a local NAS or restored based on a folder/file on a local or remote NAS, or to cloud storage. You can also easily view and restore snapshots on the client side.
Save the snapshots
Enhance your data protection by backing up snapshot files! Replicate volume/LUN snapshots from the TS-464 to a remote NAS (Snapshot Replica) by copying only the changes made. This can save you time and bandwidth, and can be performed manually or on a schedule.
All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-464, you can deploy multi-tenant environments and applications to increase management efficiency and save on hardware costs. Combined with the Network & Virtual Switch app, which enhances interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows©, Linux©, UNIX©, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without additional physical servers.
Container Station
Take advantage of the lightweight virtualization technologies of Docker©, LXD and Kata containers, download apps from the Docker Hub Registry©, import/export containers and create microservices in abundance.
Linux Station
Run Linux© applications (including apps from the Software Center) directly on the NAS and remotely access the Linux© desktop from a web browser. The open-source Linux© platform is also ideal for Internet of Things development.
Complete security and privilege settings
The TS-464 includes flexible privilege settings and security measures. In addition to IP blocking, two-step verification, and HTTPS connectivity, other applications help ensure optimal protection of the NAS against threats such as malware and hackers.
myQNAPcloud secures remote access
myQNAPcloud allows you to easily connect to the TS-464 via the internet without complex DDNS settings. To ensure the security of your remote access service, myQNAPcloud strengthens the keys on the 2048-bit SSL certificates.
Simplified privilege settings
The TS-464 supports comprehensive access rights settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACLs to help IT staff efficiently manage user accounts and access rights across multiple NAS systems.
Protection with QuFirewall
Supports IPv6, firewall access lists and GeoIP filtering to restrict access based on geographic location to enhance NAS network security.
Superior security with QVPN
A virtual private network (VPN) secures access to network resources and services over public networks. QVPN supports the creation of a VPN client, using the TS-464 as a VPN server and the WireGuard© VPN service with a user-friendly interface for setting up a secure connection.
SD-WAN QuWAN
To facilitate digital transformation, multi-site expansion, and remote work, QuWAN SD-WAN helps automatically mesh multi-site VPNs. It includes IPsec encryption and cloud-based management, enabling the security of multi-site networks, including QNAP NAS and VMware ESXi platforms.
Security Counselor
A security portal allows the TS-464 to scan for vulnerabilities and provide recommendations for improving NAS security. It also includes antivirus and anti-malware scanning software.
Malware Remover
Regularly scan your TS-464 using the latest malware definitions. If infected files are detected, they will be immediately deleted to ensure the security of your NAS data.
The best file storage and collaboration center
The TS-464 integrates a wealth of applications for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols to simplify file sharing across Windows©, Mac©, and Linux©/UNIX©. Furthermore, it offers the most intelligent NAS solution for managing your files professionally.
Intelligent monitoring solution for 24/7 security
QVR Elite is QNAP's intelligent subscription-based surveillance solution that allows you to easily deploy a surveillance system with a lower total cost of ownership and greater scalability. Recordings are saved as MP4 files, making them playable on virtually any device. Furthermore, QVR Elite integrates QNAP's AI solutions to establish intelligent facial recognition for retail and door access systems with the QNAP NAS. You can organize dedicated, independent storage space for surveillance data on the TS-464 and benefit from simplified camera management, storage allocation, live camera viewing, and playback.
Flexible and economical storage expansion
QNAP offers simple ways to increase your storage capacity. Here are several ways to expand the storage on your TS-464 as needed, to accommodate data and business growth.
Connecting QNAP expansion enclosures
Connect expansion enclosures to the TS-464, then manage the NAS storage expansion with the user-friendly Storage and Snapshots Manager app.
Set up cloud storage or remote file servers
Set up cloud storage or remote file servers to increase the capacity of the TS-464 while also centralizing file management across the NAS, cloud storage, and remote devices.
Migrate to a new NAS
Install your NAS hard drives on a larger QNAP NAS and retain all your existing data and configurations.
Upgrade RAID capacity
Hot-swap smaller capacity drives with larger capacity drives to increase your NAS capacity so it can grow alongside your business.
More apps to boost productivity
The TS-464 provides an App Center that includes feature-rich apps to expand the potential of your NAS!
QuObjects
Run a high-performance S3-compatible development environment on your TS-464 to streamline service development workflows from testing to production. You can also move cold data from the cloud to a local QuObjects to reduce cloud storage costs.
Notification Center
Consolidates all system events, alerts and notifications for simple and seamless NAS management, keeping you always informed of your NAS status.
Proxy server
By using a high-capacity TS-464 as a proxy server, it is possible to efficiently access online resources with greater economy and productivity, while simultaneously improving network security.
QmailAgent
The best email backup solution that allows you to easily back up/restore and manage multiple email accounts in their native format with enhanced security and data integrity.
Qcontactz
Centralize the management of all your contacts, import contacts from Google™, import/export contact information using CSV or vCard files and benefit from a contact information database that is always online.
QuFTP
The TS-464 can function as an FTP server equipped with SSL/TLS encryption, QoS bandwidth controls, and authorization settings to efficiently and securely transfer large amounts of data. FTP client functionality is also supported.
An integrity check for your hard drives
Hard drives are at the heart of your NAS, and ensuring their long-term integrity and reliability is absolutely crucial. QNAP offers various tools and methods to help you monitor hard drive health, enabling you to make proactive decisions to protect your data and files.
SMART and analysis of defective blocks
If any of the SMART values are reported as abnormal, or bad blocks are detected, you can take preemptive action and replace the disks before any potential data loss occurs.
DA Drive Analyzer
The DA Drive Analyzer leverages ULINK's cloud-based AI to predict the estimated lifespan of drives, helping you plan future drive replacements to protect against NAS downtime and data loss.
Seagate© IronWolf™ Health Management
When you use supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
