Description

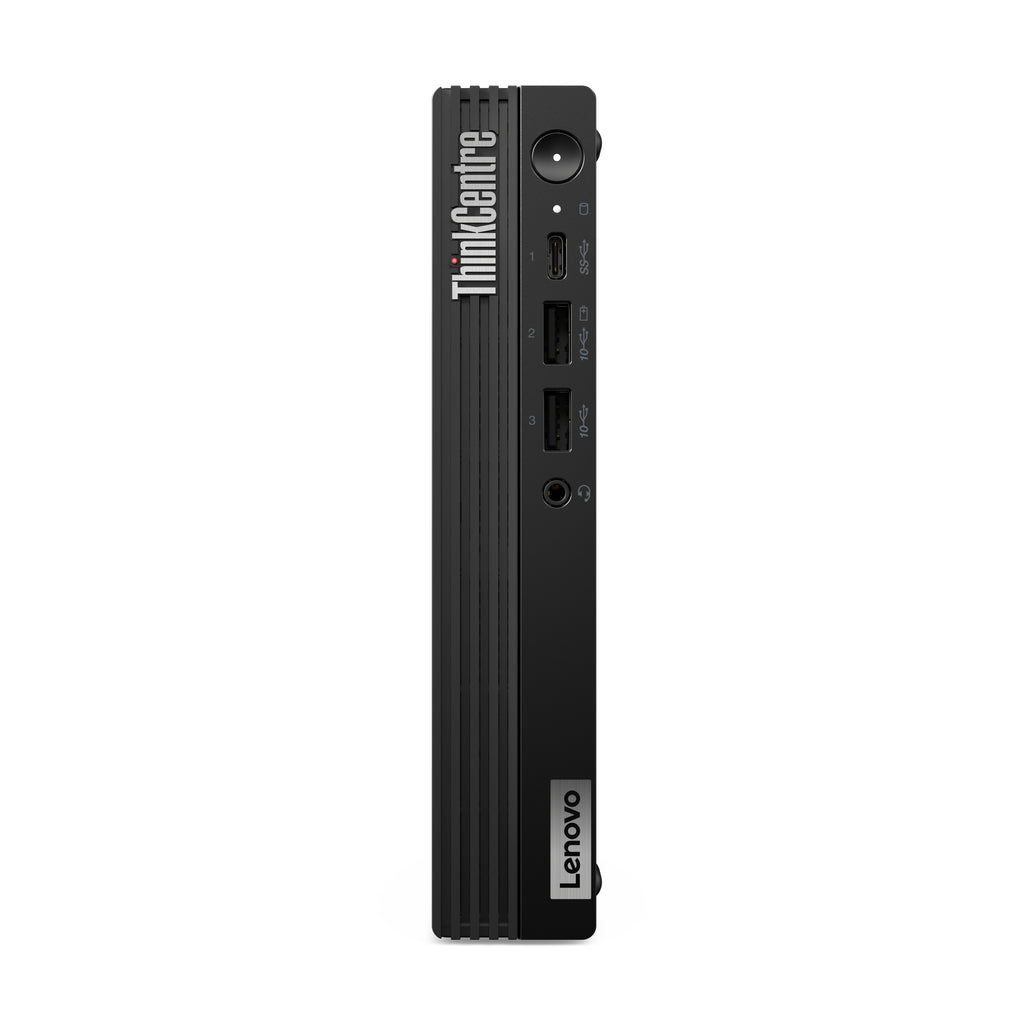

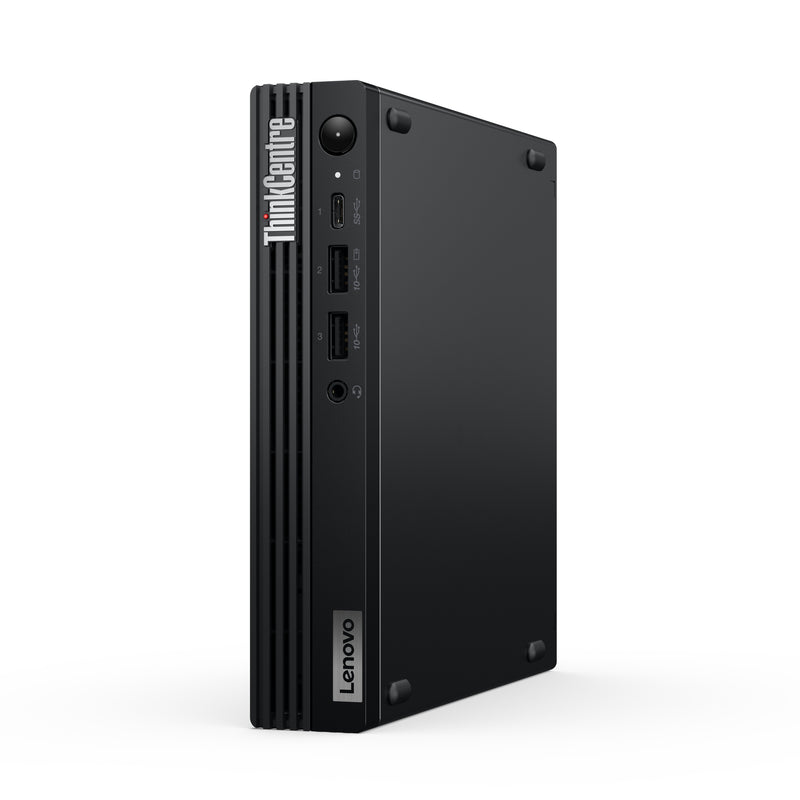

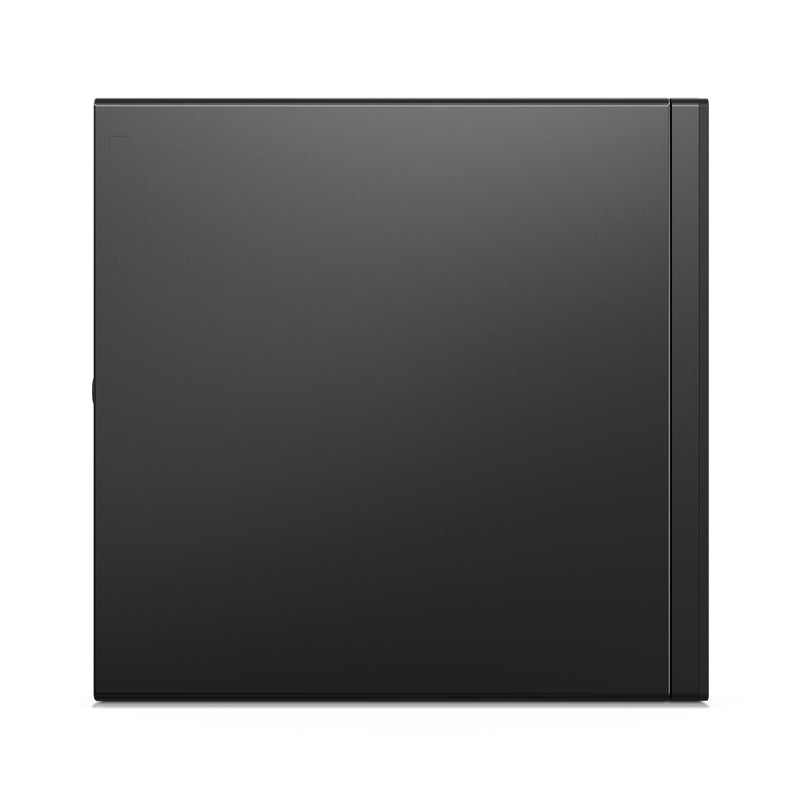

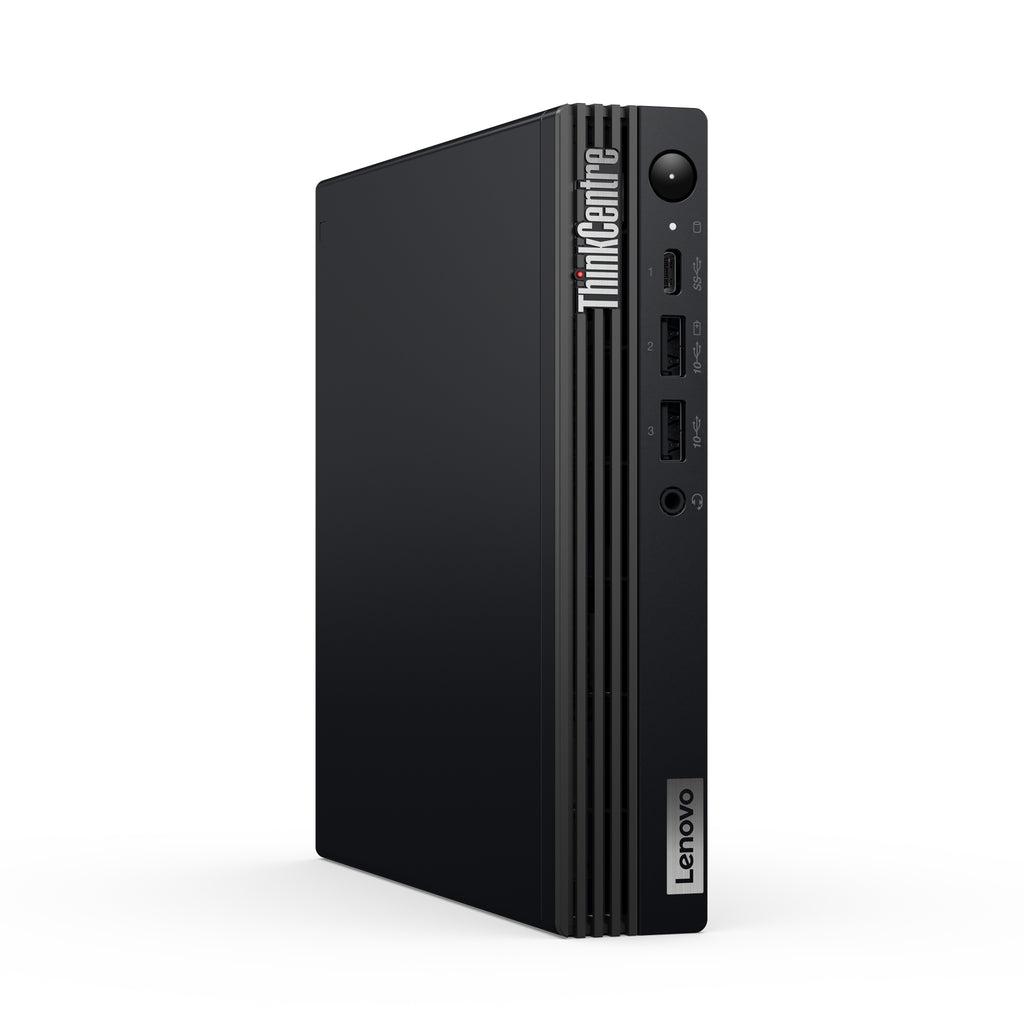

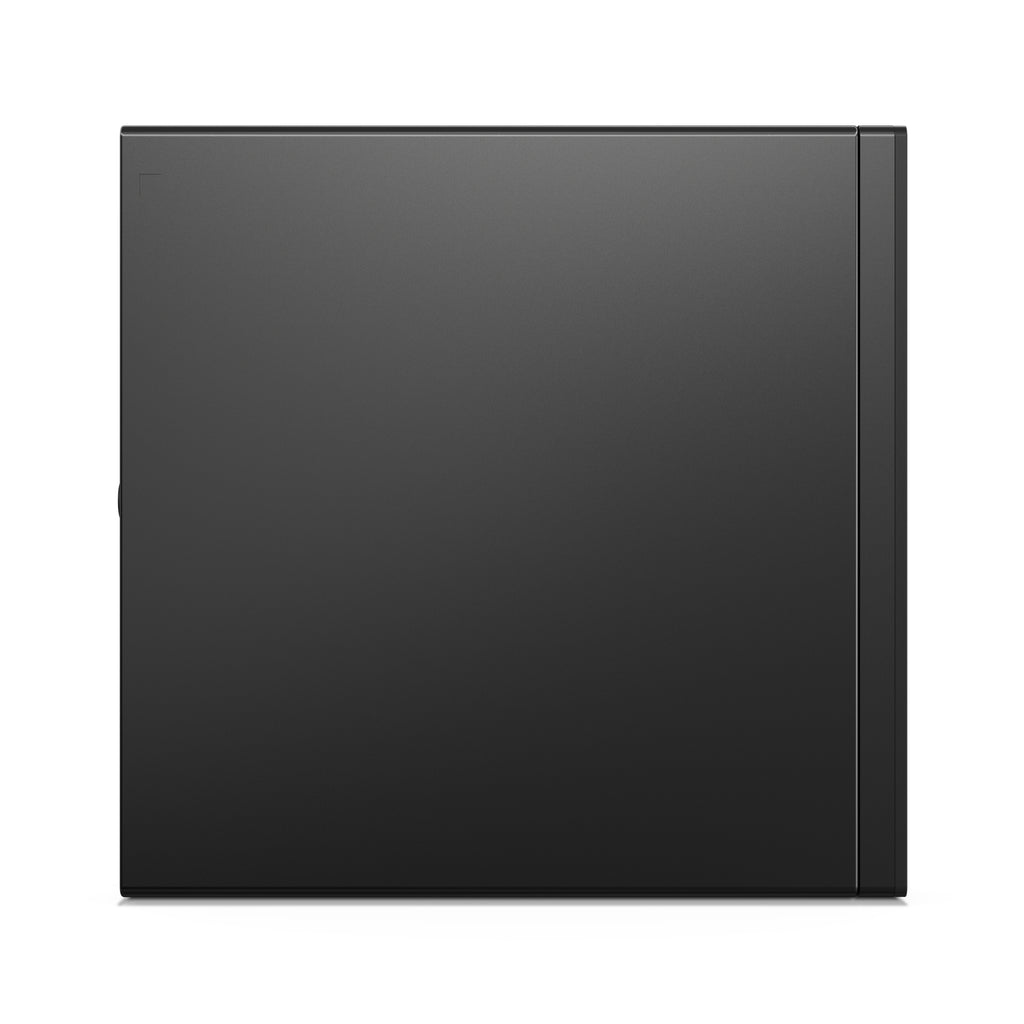

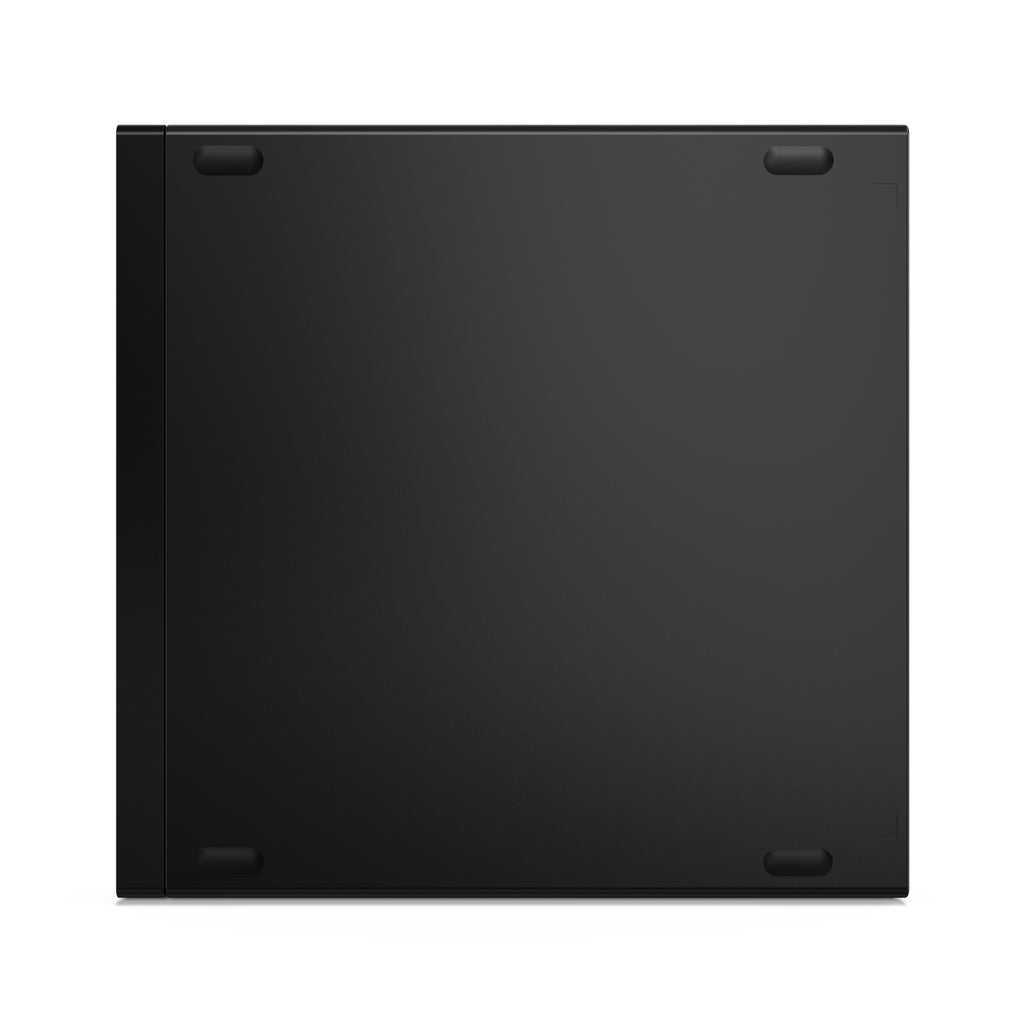

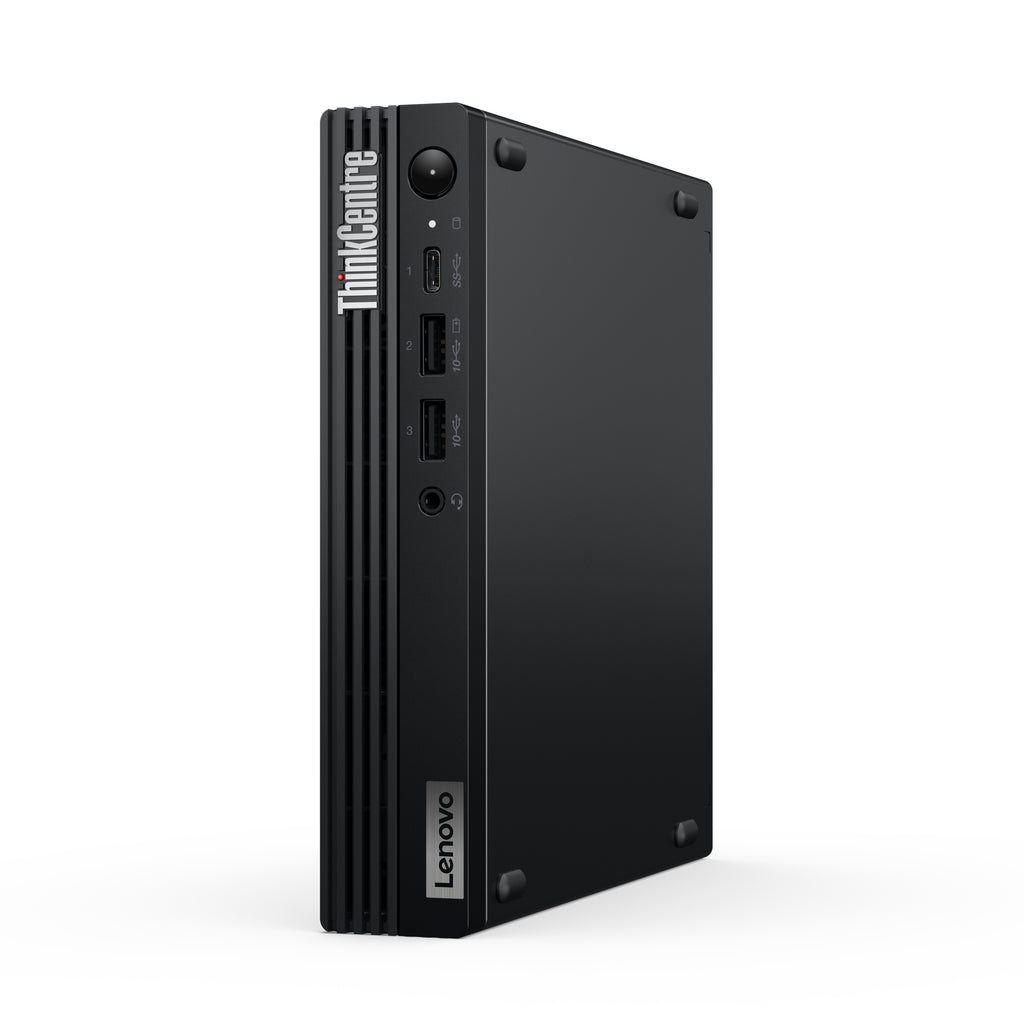

Lenovo ThinkCentre M70q Gen 5, Intel® Core™ i5, i5-14400T, 16 GB, 512 GB, Windows 11 Pro, 64-bit
| Processor | |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor model | i5-14400T |
| Processor generation | Intel Core i5-14xxx |
| Number of processor cores | 10 |
| Number of processor threads | 16 |
| Turbo processor frequency | 4.5 GHz |
| Performance cores | 6 |
| Efficient Hearts | 4 |
| Maximum Turbo Frequency of Performance Cores | 4.5 GHz |
| Maximum Turbo Frequency of Efficient Cores | 3.2 GHz |
| Base frequency of high-performance cores | 1.5 GHz |
| Baseline frequency of effective hearts | 1.1 GHz |
| Processor cache memory | 20 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Base processor power | 35 W |
| Maximum turbo power | 82 W |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory configuration (slot x size) | 1 x 16 GB |
| Memory locations | 2x DIMM |
| Memory frequency | 4800 MHz |
| ECC | No |
| Non-ECC | Yes |
| Memory channels | Dual channel |
| storage media | |
| Total storage capacity | 512 GB |
| Optical reader | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Solid State Drive (SSD) capacity | 512 GB |
| Solid State Drive (SSD) interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD Size | 2280 (22 x 80 mm) |
| Integrated memory card reader | No |
| Chart | |
| Separate graphics card adapter | No |
| Integrated graphics card | Yes |
| Separate graphics adapter model | Unavailable |
| Graphics adapter model included | Intel UHD Graphics 730 |
| Integrated GPU manufacturer | Intel |
| Integrated graphics adapter family | Intel® UHD Graphics |
| Network | |
| Ethernet/LAN | Yes |
| Wi-Fi | Yes |
| Ethernet LAN: data transfer rate | 100, 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth model | 5.3 |
| Connectivity | |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 4 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 0 |
| Number of Thunderbolt 3 ports | 0 |
| Number of HDMI ports | 1 |
| HDMI version | 2.1 |
| Number of DisplayPort interfaces | 1 |
| DisplayPort version | 1.4a |
| Number of LAN ethernet ports (RJ-45) | 1 |
| Combo headset/microphone port | Yes |
| M.2 card slot (wireless) | 1 |
| M.2 card slot (storage) | 2 |

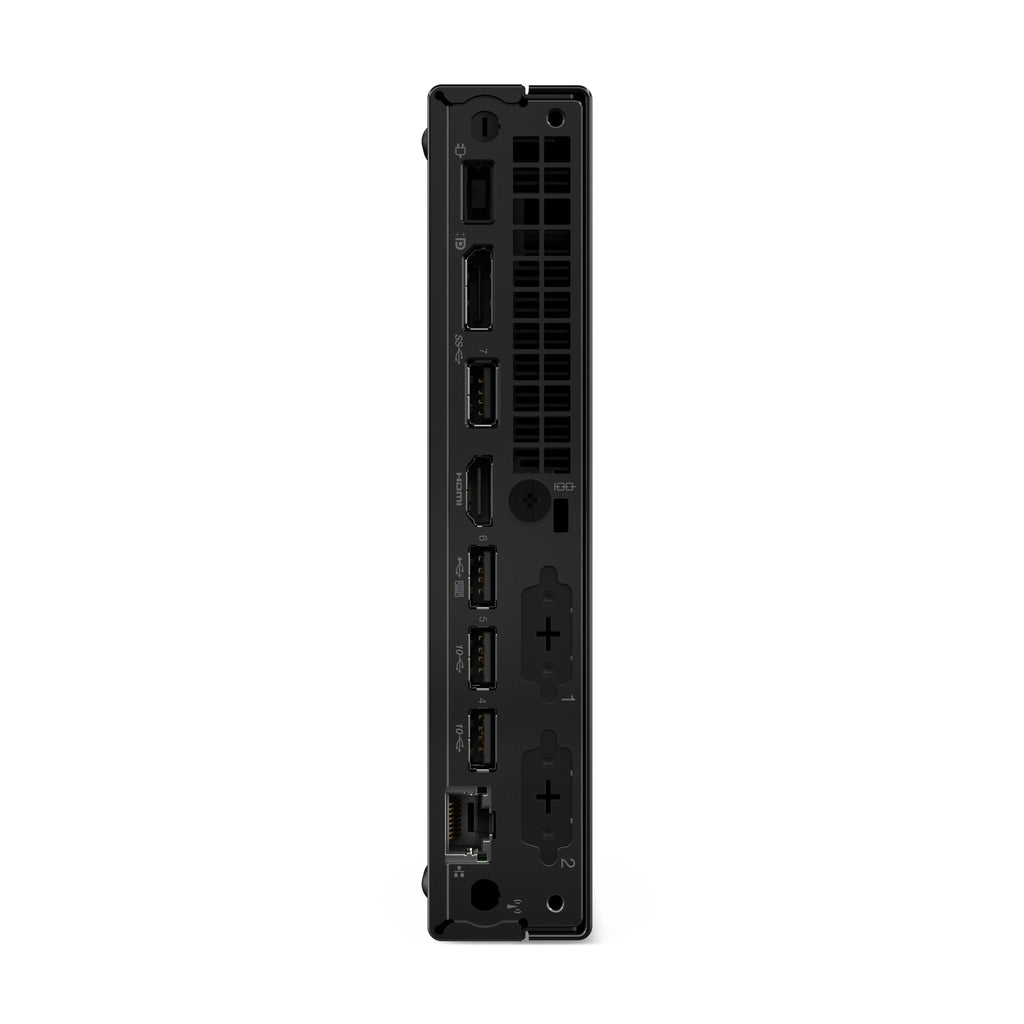

| Number of rear USB ports | 4 |
| Number of front USB ports | 3 |
| Number of front audio ports | 1 |
| Design | |
| Chassis type | Mini PC |
| Product color | Black |
| Color name | Black |
| Volume | 1 L |
| VESA mount | Yes |
| Anti-theft cable port | Yes |
| Cable lock location type | Kensington |
| representation / realization | |
| Product type | Mini PC |
| Motherboard chipset | Intel Q670 |
| Audio chip | Realtek ALC233VB |
| Audio system | High-resolution audio |
| Built-in speakers | Yes |
| Number of speakers | 1 |
| Password protection | Yes |
| Password protection | BIOS, HDD, Power button, Administrator |
| TPM (Trusted Platform Module) chip | Yes |
| TPM (Trusted Platform Module) chip version | 2.0 |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | German, Dutch, English, French, Italian |
| Power | |
| Power supply | 90 W |
| Power supply input voltage | 100-240V |
| Power supply input frequency | 50/60 Hz |
| Environmental conditions | |
| Operating temperature | 5 - 35 °C |
| Off-temperature | -40 - 60 °C |
| Operating relative humidity (HH) | 20-80% |
| Relative humidity level (storage) | 10-90% |
| Operating altitude | 0 - 3048 m |
| Non-operational altitude | 0 - 12192 m |
| Certificate | |
| Certificates of conformity | RoHS |
| Certification | ENERGY STAR,TCO,EPEAT Silver,RoHS |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO |
| Weight and dimensions | |
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.25 kg |
| Package width | 490 mm |
| Package depth | 128 mm |
| Package height | 250 mm |
| Package weight | 3.2 kg |
| Package contents | |
| Mouse included | Yes |
| Mouse connectivity | With wire |
| Keyboard included | Yes |
| Keyboard connectivity | With wire |
| Screen | |
| Screen included | No |
