Description

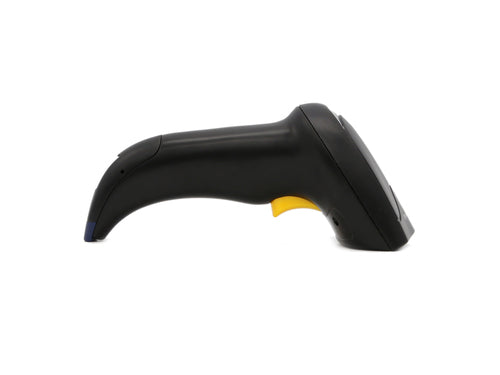

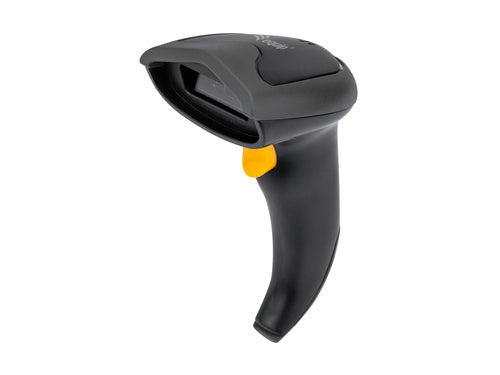

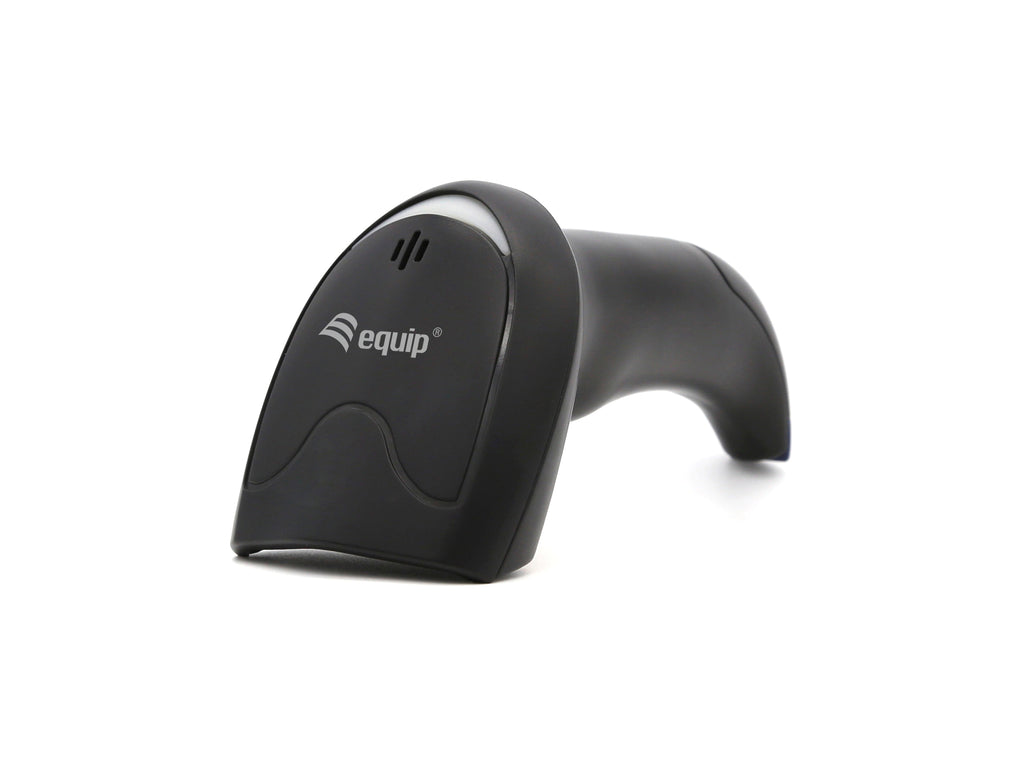

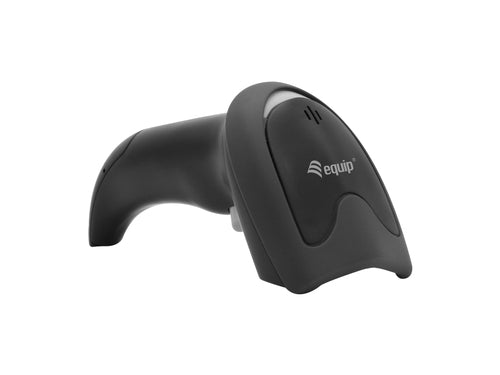

Equip 351021, Portable barcode scanner, 1D/2D, LED, Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN,..., Reads Data Matrix codes, PDF417, QR Codes, Auto-induction, Continuous, Manual
| Digitization | |
| Kind | Portable barcode scanner |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes accepted | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E |
| Matrix (2D) barcodes accepted | Reading datamatrix code, PDF417, QR Code |
| Triggering mode | Auto-induction, Continuous, Manual |
| Scanner resolution | 5 mm |
| Reading distance | 150 cm |
| Reading speed (max) | 220 readings/second |
| Reading angle: Tilt | 0 - 360° |
| Horizontal Reading Angle (Pitch) | -30 - 30° |
| Vertical reading angle (Yaw) | -35 - 35° |
| Connectivity | |
| Connectivity technology | With wire |
| Standard interfaces | USB |
| Cable length | 1.8 m |
| representation / realization | |
| Product color | Black |
| Case/body material | Acrylonitrile-Butadiene-Styrene (ABS) |
| Code (IP) International Protection | IP54 |
| Protective functions | Drip-free, Water-resistant |
| Country of origin | China |
| Power | |
| Power source type | USB |
| AC adapter output voltage | 5V |
| Weight and dimensions | |
| Weight | 102 g |
| Width | 70 mm |
| Depth | 79 mm |
| Height | 173 mm |
| Packaging information | |

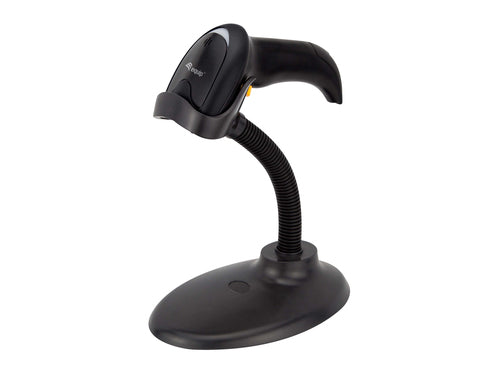

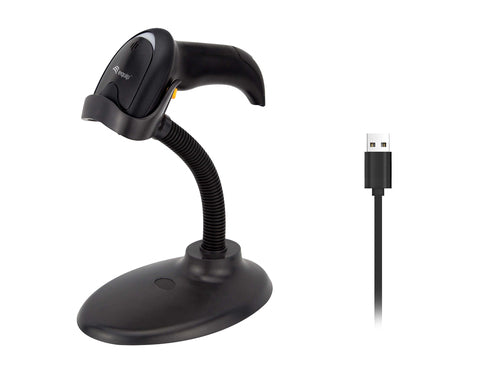

| Stand included | Yes |
| Package width | 150 mm |
| Package depth | 207 mm |
| Package height | 100 mm |
| Package weight | 460 g |
| Environmental conditions | |
| Operating temperature | -10 - 50 °C |
| Off-temperature | -20 - 70 °C |
| Operating relative humidity (HH) | 5 - 95% |
| Technical details | |
| Certificates of conformity | CE, RoHS |
| Compliance with sustainability | Yes |
| Logistics data | |
| Produced by main (external) locker | 30 piece(s) |
| Gross weight of the main (external) locker | 15.5 kg |
| Length of the main (external) locker | 485 mm |
| Width of the main (external) locker | 440 mm |
| Height of the main (external) locker | 525 mm |
| Harmonized System Code | 8471900090 |
| Other features | |
| Windows operating system support | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mobile system supported | Android, iOS |
| Linux operating system support | Yes |
| Quick Start Guide | Yes |
