Description

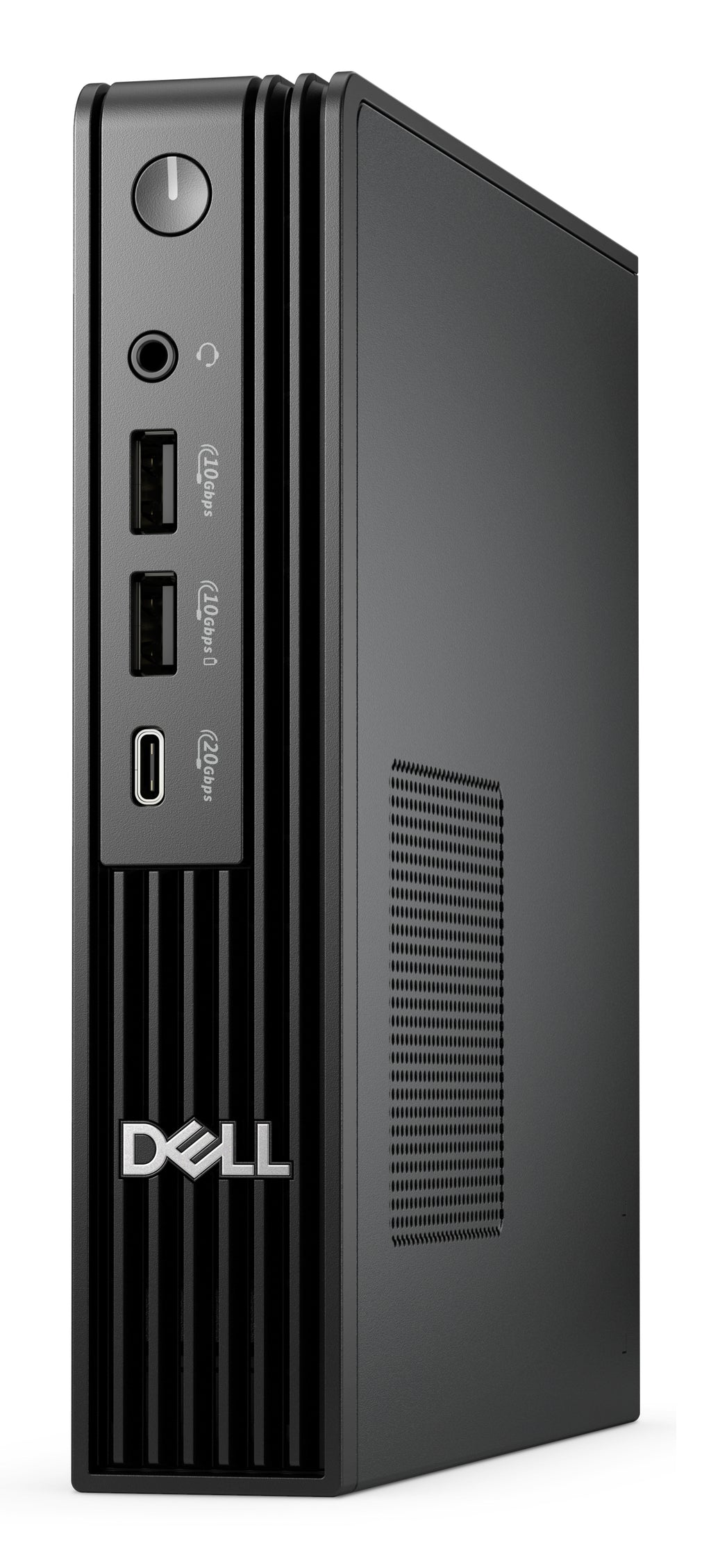

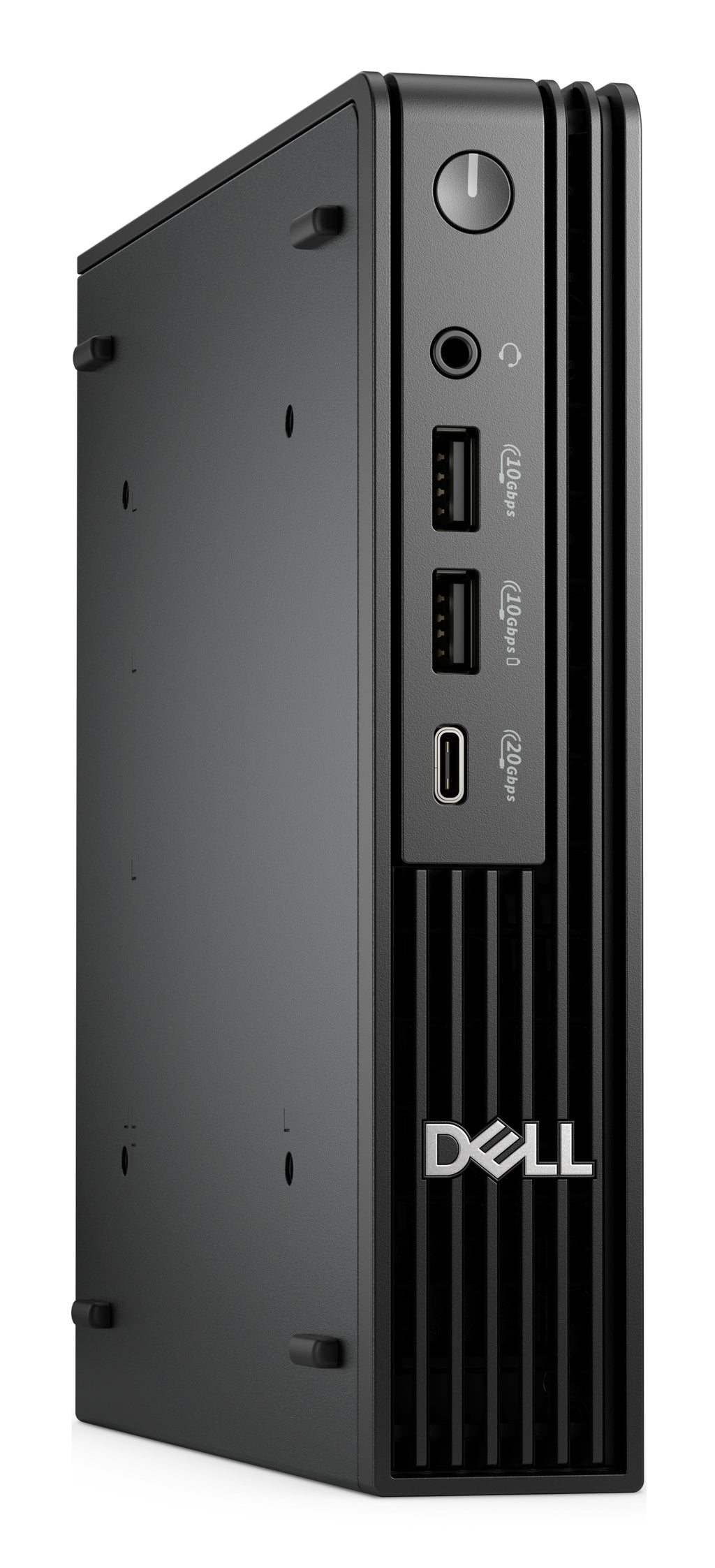

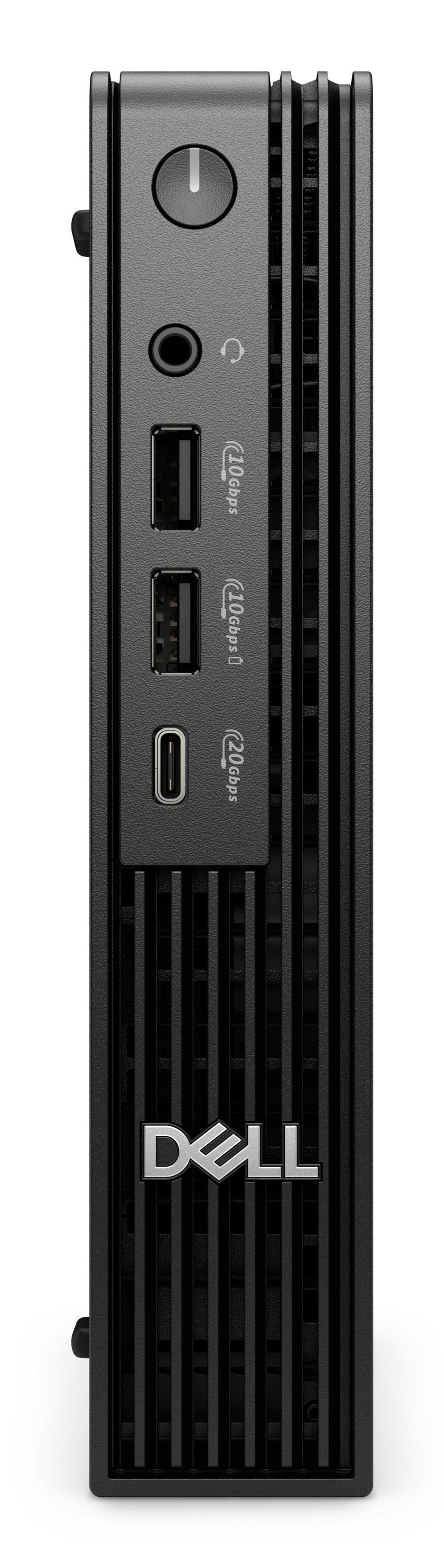

Increased power. Small footprint.
An ultra-compact desktop PC offering superior performance, speed, and connectivity thanks to Intel© Core™ Ultra (Series 2) desktop processors (up to U9).
An ultra-compact desktop PC offering superior performance, speed, and connectivity thanks to Intel© Core™ Ultra (Series 2) desktop processors (up to U9).
| Processor | |
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Processor model | 265 |
| Processor generation | Intel Core Ultra (Series 2) |
| Number of processor cores | 20 |
| Number of processor threads | 20 |
| Turbo processor frequency | 5.3 GHz |
| Performance cores | 8 |
| Efficient Hearts | 12 |
| Maximum Turbo Frequency of Performance Cores | 5.2 GHz |
| Maximum Turbo Frequency of Efficient Cores | 4.6 GHz |
| Base frequency of high-performance cores | 2.4 GHz |
| Baseline frequency of effective hearts | 1.8 GHz |
| Processor cache memory | 30 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Base processor power | 65 W |
| Maximum turbo power | 182 W |
| Neural Processing Unit (NPU) | |
| Neural Processing Unit (NPU) | Intel AI Boost |
| Rarity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by the NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 33 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory configuration (slot x size) | 1 x 16 GB |
| Memory locations | 2x SO-DIMM |
| Non-ECC | Yes |
| Memory channels | Single-channel |
| Memory data transfer rate | 5600 MT/s |
| storage media | |
| Total storage capacity | 512 GB |
| Optical reader | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Solid State Drive (SSD) capacity | 512 GB |
| SSID memory type | TLC |
| Solid State Drive (SSD) interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Chart | |
| Separate graphics card adapter | No |
| Integrated graphics card | Yes |
| Separate graphics adapter model | Unavailable |
| Graphics adapter model included | Intel Graphics |
| Integrated GPU manufacturer | Intel |
| Integrated graphics adapter family | Intel Graphics |
| Network | |
| Ethernet/LAN | Yes |
| Wi-Fi | Yes |
| Ethernet LAN: data transfer rate | 10, 100, 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Local Area Network (LAN) Controller | Intel WGI219LM |
| Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Antenna design | Internal |
| Bluetooth | Yes |

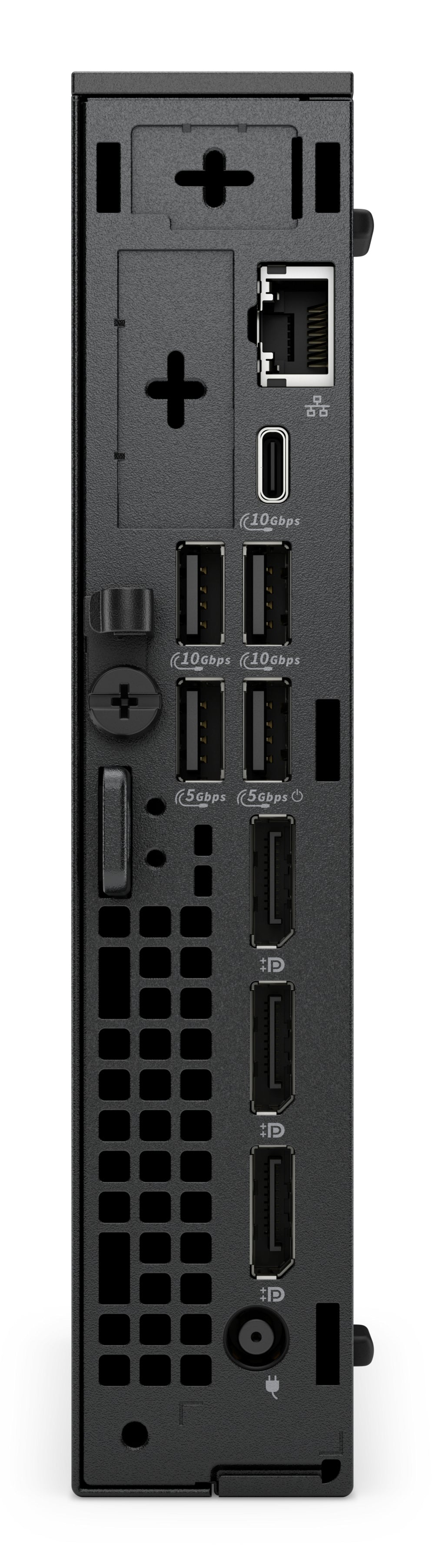

| Connectivity | |
| Number of USB 2.0 Ports | 0 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports | 0 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 4 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of Thunderbolt 3 ports | 0 |
| Number of HDMI ports | 0 |
| Number of USB 3.2 Gen. 2x2 Type-C ports | 1 |
| Number of DisplayPort interfaces | 3 |
| DisplayPort version | 1.4a |
| Number of LAN ethernet ports (RJ-45) | 1 |
| Headset/Microphone Combo Port | Yes |
| DC Input | Yes |
| Number of rear USB ports | 5 |
| Number of front USB ports | 3 |
| Number of front audio ports | 1 |
| Design | |
| Chassis type | Micro PC |
| Product color | Black |
| Installation included | horizontal/vertical |
| Anti-theft cable port | Yes |
| Cable lock location type | Kensington |
| representation / realization | |
| Product type | Mini PC |
| market position | Professional |
| Motherboard chipset | Intel Q870 |
| Audio chip | Realtek ALC3204 |
| Audio system | High-resolution audio |
| TPM (Trusted Platform Module) chip | Yes |
| TPM (Trusted Platform Module) chip version | 2.0 |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Testing software | Activate Your Microsoft 365 For A 30 Day Trial |
| Power | |
| Power supply | 180 W |
| Power supply input voltage | 100-240V |
| Power supply input frequency | 50/60 Hz |
| Environmental conditions | |
| Operating temperature | 10 - 35 °C |
| Off-temperature | -40 - 65 °C |
| Operating relative humidity (HH) | 20-80% |
| Relative humidity level (storage) | 5 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operational altitude | -15.2 - 10668 m |
| Vibrations during operation | 0.26 G |
| Vibrations not functioning | 1.37 G |
| Shock during operation | 40 G |
| Shock, out of order | 105 G |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Does not contain | PVC/BFR |
| Weight and dimensions | |
| Width | 36 mm |
| Depth | 178 mm |
| Height | 182 mm |
| Weight | 1.43 kg |
| Package contents | |
| Input device model | Dell Pro Keyboard and Mouse - KM5221W - French (AZERTY) - Black |
| Screen | |
| Screen included | No |
