Description

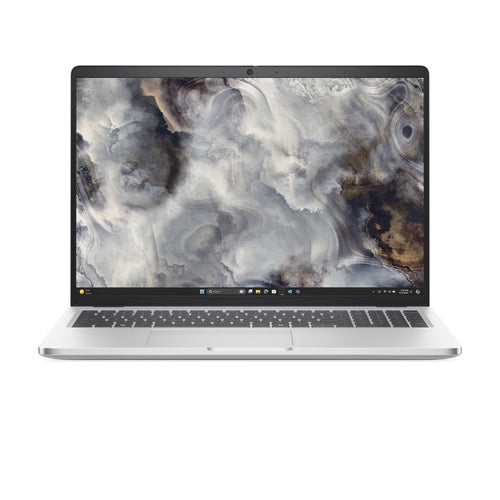

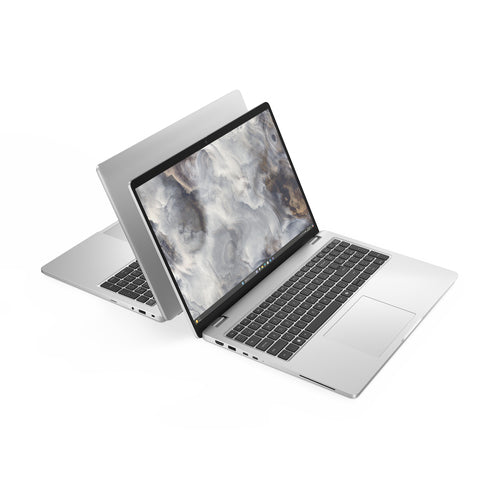

Scalable AI performance, unprecedented levels of collaboration, and a completely redesigned connectivity experience, all within a sleek, durable aluminum design. Configurable to adapt to the unique needs of every professional.
| Design | |
| Product type | Laptop |
| Product color | Aluminum |
| Format | Flap |
| Case/body material | Aluminum |
| Intel® vPro™ Platform Eligibility | Yes |
| Screen | |
| Screen size | 40.6 cm (16") |
| Screen resolution | 1920 x 1200 pixels |
| Touch screen | No |
| Type HD | Full HD+ |
| Panel type | IPS |
| Image format | 16:10 |
| Anti-glare screen | Yes |
| Screen brightness | 300 cd/m² |
| Pixel density | 142 pixels per inch |
| RGB color space | NTSC |
| Color palette | 45% |
| Maximum discount rate | 60 Hz |
| Contrast ratio | 1000:1 |
| Processor | |
| Processor family | Intel Core Ultra 5 |
| Processor manufacturer | Intel |
| Processor model | 235U |
| Processor generation | Intel Core Ultra (Series 2) |
| Number of processor cores | 12 |
| Number of processor threads | 14 |
| Turbo processor frequency | 4.9 GHz |
| Performance cores | 2 |
| Efficient Hearts | 8 |
| Low-energy cores | 2 |
| Maximum Turbo Frequency of Performance Cores | 4.9 GHz |
| Maximum Turbo Frequency of Efficient Cores | 4.1 GHz |
| Low-power core, Max Turbo Frequency | 2.4 GHz |
| Base frequency of high-performance cores | 2 GHz |
| Baseline frequency of effective hearts | 1.6 GHz |
| Low-power core Base frequency | 700 MHz |
| Processor cache memory | 12 MB |
| Base processor power | 15 W |
| Maximum turbo power | 57 W |
| Neural Processing Unit (NPU) | |
| Neural Processing Unit (NPU) | Intel AI Boost |
| Rarity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by the NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| NPU performance up to | 12 TOPs |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory support | SO-DIMM |
| Memory configuration (slot x size) | 1 x 16 GB |
| Memory locations | 2x SO-DIMM |
| Memory data transfer rate | 5600 MT/s |
| Storage media | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical reader | No |
| Total SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Solid State Drive (SSD) capacity | 512 GB |
| Solid State Drive (SSD) interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Integrated memory card reader | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Chart | |
| Integrated graphics card | Yes |
| Separate graphics card adapter | No |
| Separate graphics adapter model | Unavailable |
| Graphics adapter model included | Intel Graphics |
| Integrated GPU manufacturer | Intel |
| Integrated graphics adapter family | Intel Graphics |
| Audio | |
| Audio chip | Cirrus Logic CS42L43 |
| Number of built-in speakers | 2 |
| Speaker power | 2.5 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Front camera resolution (digital) | 2.07 MP |
| Front camera resolution | 1920 x 1080 pixels |
| HD front camera | Full HD |
| Video capture speed | 30 fps |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Type of confidentiality | Private vertical panel |
| Network | |
| Mobile network connection | No |
| Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Maximum data transfer rate via wireless local area network | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet/LAN | Yes |
| Ethernet LAN: data transfer rate | 10, 100, 1000 Mbit/s |
| Bluetooth | Yes |
| Contactless payment | Yes |
| Connectivity | |
| Number of USB 2.0 Ports | 0 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports | 0 |
| Number of HDMI ports | 1 |
| Number of LAN ethernet ports (RJ-45) | 1 |
| HDMI version | 2.1 |
| Number of Thunderbolt 4 ports | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headset/microphone port | Yes |
| DisplayPort USB Type-C Alternate Mode | Yes |
| PowerShare | Yes |
| Number of PowerShare USB ports | 1 |

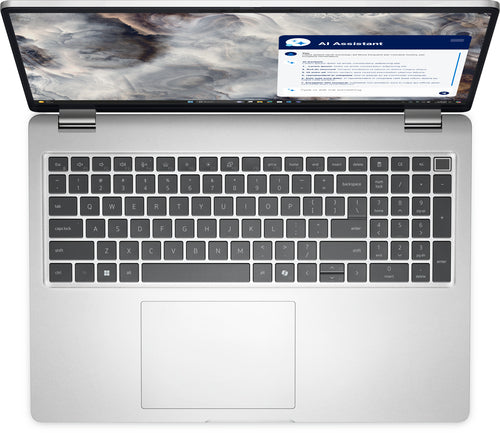

| Keyboard | |
| Numeric keypad | Yes |
| Pointing device | Touchpad |
| Backlit keyboard | Yes |
| Keyboard language | Belgian |
| Copilot button | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Testing software | Activate Your Microsoft 365 For A 30 Day Trial |
| Special features | |
| Brand-specific technologies | Control Vault 3+, Express Charge Boost capable, TNR |
| Battery | |
| Battery capacity | 55 Wh |
| Number of battery cells | 3 |
| Battery voltage | 11.7 V |
| Fast charging | Yes |
| Loading indicator | Yes |
| Battery weight | 220 g |
| Power | |
| USB Type-C charging port | Yes |
| Charging power required (min) | 27 W |
| Maximum charging power required | 100 W |
| AC power adapter | 65 W |
| AC adapter frequency | 50-60 Hz |
| AC adapter input voltage | 100-240V |
| USB power capacity | Yes |
| USB charging voltage | 5, 9, 15, 20 V |
| Security | |
| Anti-theft cable port | Yes |
| Cable lock location type | Wedge |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Facial recognition | Yes |
| TPM (Trusted Platform Module) chip | Yes |
| TPM (Trusted Platform Module) chip version | 2.0 |
| Environmental conditions | |
| Operating temperature | 0 - 35 °C |
| Off-temperature | -40 - 65 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operational altitude | -15.2 - 10668 m |
| Shock during operation | 110 G |
| Shock, out of order | 160 G |
| Vibrations during operation | 0.66 G |
| Vibrations not functioning | 1.3 G |
| Weight and dimensions | |
| Weight | 1.84 kg |
| Width | 358 mm |
| Depth | 251.4 mm |
| Height | 21.4 mm |
| Height (front) | 1.99 cm |
| Height (rear) | 2.06 cm |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 97.9 |
| Carbon emissions, manufacturing (kg of CO2e) | 70,488 |
| Carbon emissions, logistics (kg CO2e) | 5.4824 |
| Carbon emissions, energy use (kg of CO2e) | 19.3842 |
| End-of-life carbon emissions (kg CO2e) | 2.6433 |
| Total carbon emissions, excluding the use phase (kg CO2e) | 78.5158 |
| PAIA version | GaBi version 1, 2024 |
| Package contents | |
| AC adapter included | Yes |
