Description
Processing performance, graphics processor support

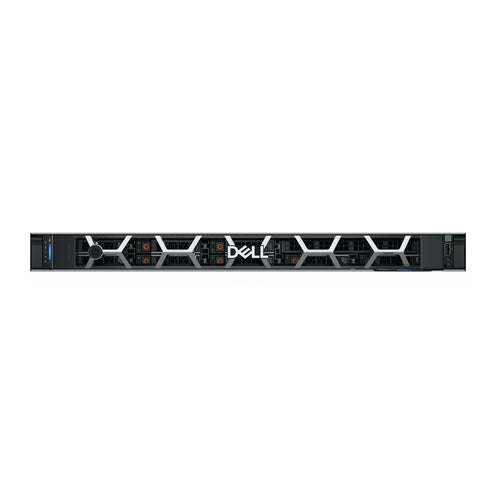

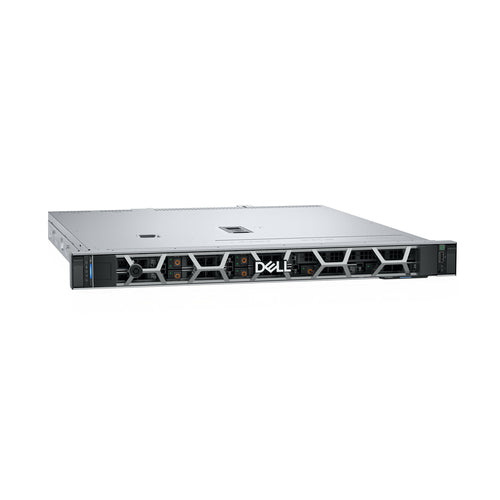

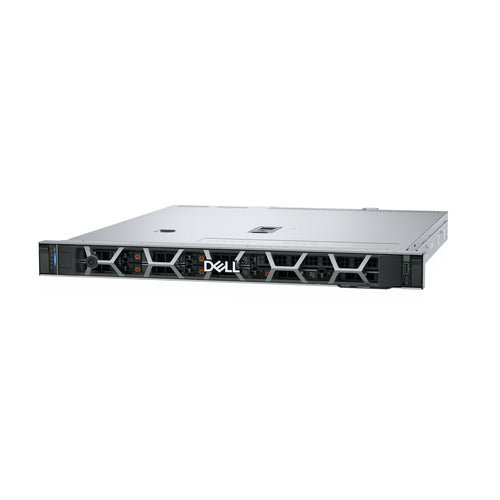

The PowerEdge R360 is an entry-level, single-socket, 1U rack-mountable server designed for customers seeking versatility and processing power at an affordable price.
The PowerEdge R360 is an entry-level, single-socket, 1U rack-mountable server designed for customers seeking versatility and processing power at an affordable price.
| Processor | |
| Processor family | Intel Xeon E |
| Processor manufacturer | Intel |
| Processor model | E-2434 |
| Processor frequency | 3.4 GHz |
| Turbo processor frequency | 5 GHz |
| Performance cores | 4 |
| Number of processor cores | 4 |
| Processor cache memory | 12 MB |
| Motherboard chipset | Intel C262 |
| Number of processors installed | 1 |
| Thermal envelope (TDP, Thermal Design Power) | 55 W |
| Number of processor threads | 8 |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 128 GB |
| Cache memory type | Unregistered (unbuffered) |
| ECC | Yes |
| Memory configuration (slot x size) | 1 x 16 GB |
| Memory data transfer rate | 5600 MT/s |
| Storage media | |
| Total storage capacity | 480 GB |
| RAID support | Yes |
| Optical reader | No |
| Number of SSDs installed | 1 |
| Solid State Drive (SSD) capacity | 480 GB |
| Solid State Drive (SSD) interface | SATA III |
| SSD dimensions | 2.5" |
| Supported RAID controllers | PERC H755 |
| Hot-plug support | Yes |
| Internal bays | 8 |
| Disk recordings per day (DWPD) | 1 |
| Network | |
| Local Area Network (LAN) Controller | Broadcom 5720 |
| Ethernet/LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Connectivity | |
| Number of LAN ethernet ports (RJ-45) | 2 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of VGA (D-Sub) ports | 1 |
| Number of serial ports | 1 |
| Design | |
| chassis type | Rack (1U) |
| Product color | Black, Silver |
| Rack rails | Yes |
| Bezel | Yes |
| representation / realization | |
| Remote administration | iDRAC9, Enterprise 16G |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Power | |
| Redundant Power Supply (RPS) | No |
| Power supply | 700 W |
| Number of redundant power supplies supported | 1 |
| Power supply input voltage | 200-240 V |
| Power supply input frequency | 50/60 Hz |
| Power cord length | 2 m |
| Power cable connector 1 | C13 Coupler |
| Power cable connector 2 | C14 Coupler |
| Power cord current | 10 A |
| Environmental conditions | |
| Off-temperature | -40 - 65 °C |
| Relative humidity level (storage) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operational altitude | 0 - 12000 m |
| Certificate | |
| 80 PLUS Certification | 80 PLUS Titanium |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 1140 |
| Total carbon emissions, standard deviation (kg CO2e) | 943 |
| Carbon emissions, manufacturing (kg CO2e) | 307.8 |
| Carbon emissions, logistics (kg CO2e) | 102.6 |
| Carbon emissions, energy use (kg of CO2e) | 718.2 |
| End-of-life carbon emissions (kg CO2e) | 11.4 |
| Total carbon emissions, excluding the use phase (kg CO2e) | 421.8 |
| PAIA version | 1.4.0, 2024 |
| Weight and dimensions | |
| Width | 482 mm |
| Height | 42.8 mm |
| Other features | |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512 |
| Target workload | Read Intensive (RI) |
| Technical details | |
| Supported storage drive form factor (internal) | 2.5" |
