Description

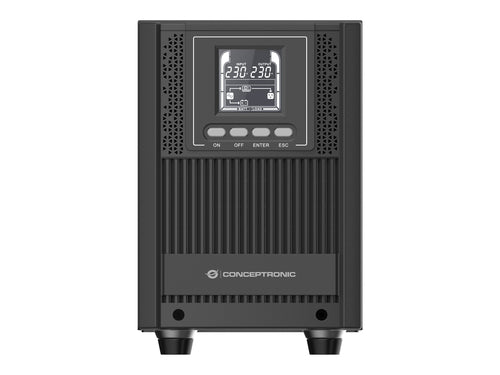

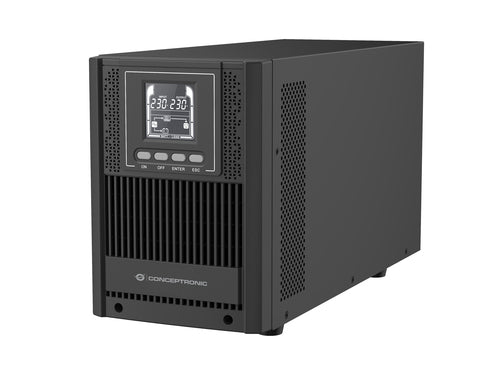

Conceptronic ZEUS52ES2K, Double-conversion (online), 2 kVA, 1800 W, Sinus, 220 V, 240 V
| Features | |
| UPS Topology | Double conversion (online) |
| output power capacity | 2 kVA |
| Output power | 1800 W |
| Waveform | Sinus |
| Input voltage (min) | 220 V |
| Input voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| output voltage (min) | 220 V |
| Output voltage (max) | 240 V |
| Intensity (max.) | 10 A |
| Efficiency (ECO Mode) | 95% |
| Input power factor | 0.99 |
| Output power factor | 0.9 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) Button | Yes |
| Electrical protection devices | Overload, Short circuit |
| Audible alarms | Yes |
| Audible alarm modes | Battery mode alarm, Battery replacement, Malfunction, Low battery alarm, Overload alarm |
| Connectivity | |

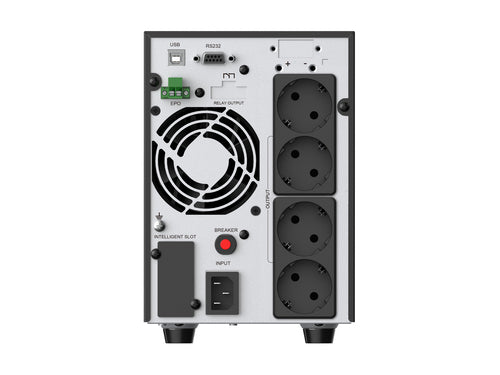

| AC Output Types | Type F |
| Number of outlets | 4 CA outputs |
| USB port | Yes |
| Number of USB 2.0 Ports | 1 |
| USB port type | USB Type-B |
| RS-232 port | 1 |
| Emergency power cutoff connector | Yes |
| Battery | |
| Battery capacity | 9 Ah |
| Battery voltage | 12V |
| Battery charging time | 4 a.m. |
| Cold start | Yes |
| Battery capacity | 108 Wh |
| Design | |
| Format | Tower |
| Product color | Black |
| Cooling type | Active |
| Built-in fan | Yes |
| Screen type | LCD |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Operating relative humidity (HH) | 20-90% |
| Certificate | |
| Certificates of conformity | CE, RoHS |
| Package contents | |
| Cables included | Input cable, RS-232, USB cable |
| Quick Installation Guide | Yes |
| Weight and dimensions | |
| Width | 151 mm |
| Depth | 394 mm |
| Height | 225 mm |
| Weight | 17.1 kg |
| Packaging information | |
| Packaging type | Box |
| Logistics data | |
| Gross pallet length | 100 cm |
| Gross width of the pallet | 120 cm |
| Gross height of the pallet | 126 cm |
| Harmonized System Code | 8504406090 |
| Width of the main (external) locker | 241 mm |
| Length of the main (external) locker | 510 mm |
| Height of the main (external) locker | 313 mm |
| Gross weight of the main (external) locker | 17.6 kg |
| Produced by main (external) locker | 1 piece(s) |
| Country of origin | China |
