Description

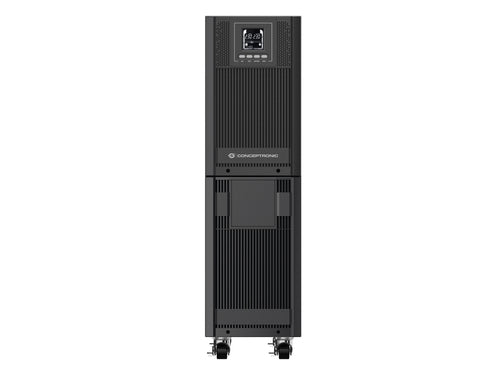

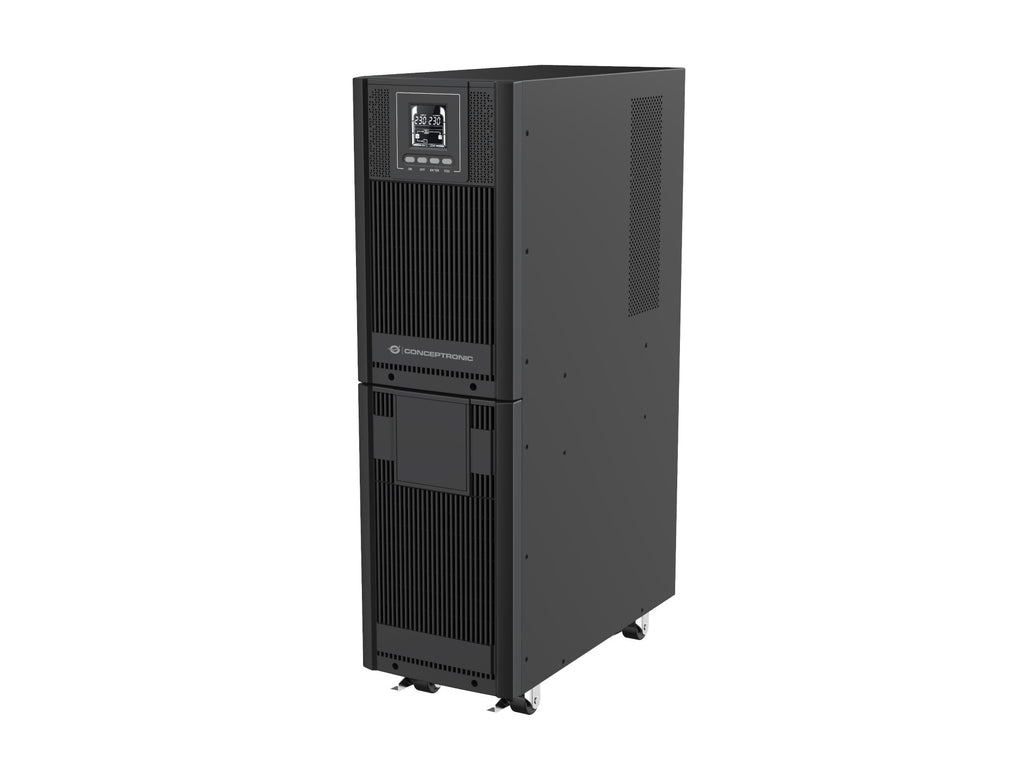

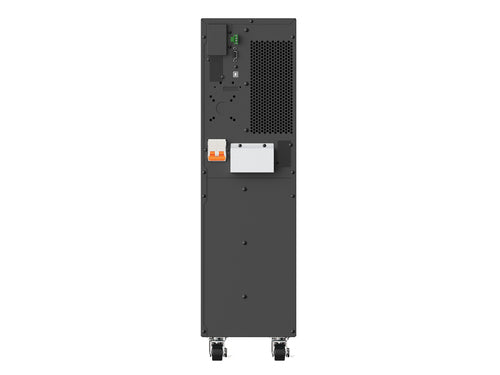

Conceptronic ZEUS52E6K, Double-conversion (online), 6 kVA, 5400 W, Sinus, 110 V, 300 V
| Features | |
| UPS Topology | Double conversion (online) |
| output power capacity | 6 kVA |
| Output power | 5400 W |
| Waveform | Sinus |
| Input voltage (min) | 110 V |
| Input voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| output voltage (min) | 208 V |
| Output voltage (max) | 240 V |
| Output power factor | 0.9 |
| ECO mode | Yes |
| THD input current | 5% |
| Audible alarms | Yes |
| Audible alarm modes | Battery mode alarm, Battery replacement, Malfunction, Low battery alarm, Overload alarm |
| Connectivity | |
| USB port | Yes |
| Number of USB 2.0 Ports | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Number of serial ports | 1 |
| Emergency power cutoff connector | Yes |
| Battery | |
| Battery capacity | 7 Ah |
| Battery voltage | 192 V |
| Number of batteries supported | 16 |
| Battery charging time | 4 a.m. |
| Battery capacity | 84 Wh |
| Design | |
| Format | Tower |
| Product color | Black |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Off-temperature | -15 - 50 °C |
| Operating relative humidity (HH) | 0 - 90% |
| Certificate | |
| Certificates of conformity | CE, RoHS |
| Weight and dimensions | |
| Width | 196 mm |
| Depth | 412 mm |
| Height | 702 mm |
| Weight | 54 kg |
| Packaging information | |
| Packaging type | Box |
| Logistics data | |
| Gross pallet length | 76 cm |
| Gross width of the pallet | 110 cm |
| Gross height of the pallet | 126 cm |
| Customs product code (TARIC) | 8504406090 |
| Harmonized System Code | 850440 |
| Width of the main (external) locker | 348 mm |
| Length of the main (external) locker | 568 mm |
| Height of the main (external) locker | 810 mm |
| Gross weight of the main (external) locker | 55.6 kg |
| Produced by main (external) locker | 1 piece(s) |
| Country of origin | China |
