Description

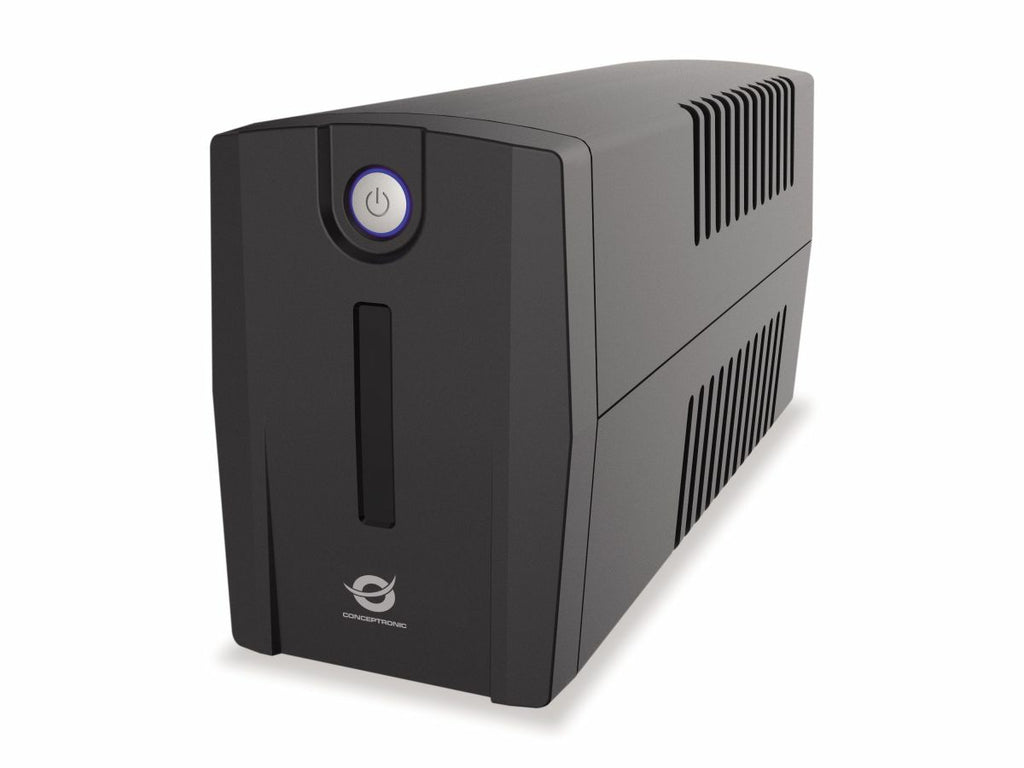

Conceptronic ZEUS07E, Line Interactivity, 1 kVA, 600 W, Sine Wave, 220 V, 240 V
| Features | |
| UPS Topology | Line interactivity |
| output power capacity | 1 kVA |
| Output power | 600 W |
| Waveform | Sinus |
| Input voltage (min) | 220 V |
| Input voltage (max) | 240 V |
| output voltage (min) | 220 V |
| Output voltage (max) | 240 V |
| Automatic Voltage Regulator (AVR) | Yes |
| Electrical protection devices | Short circuit |
| Audible alarm modes | Battery mode alarm, Failure, Low battery alarm, Overload alarm |
| Automatic restart | Yes |
| Connectivity | |

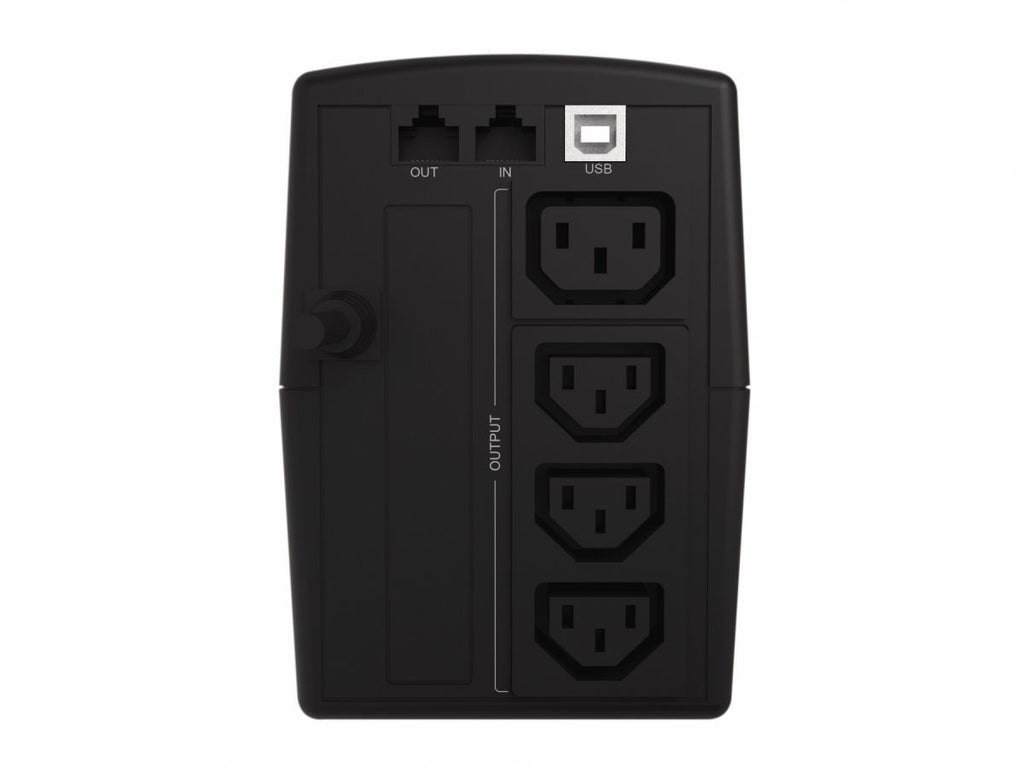

| AC Output Types | C13 Coupler |
| Number of outlets | 4 CA outputs |
| USB port | Yes |
| Number of USB 2.0 Ports | 1 |
| USB port type | USB Type-B |
| Number of LAN ethernet ports (RJ-45) | 2 |
| Battery | |
| Battery capacity | 7 Ah |
| Battery voltage | 12V |
| Battery charging time (90%) | 8 a.m. |
| Battery capacity | 84 Wh |
| Design | |
| Format | Compact |
| Product color | Black |
| Code (IP) International Protection | IP20 |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Operating relative humidity (HH) | 0 - 90% |
| Certificate | |
| Certificates of conformity | CE, RoHS |
| Package contents | |
| Cables included | Output cable, USB cable |
| Quick Installation Guide | Yes |
| Weight and dimensions | |
| Width | 96 mm |
| Depth | 286 mm |
| Height | 138 mm |
| Weight | 5.19 kg |
| Packaging information | |
| Package width | 161 mm |
| Package depth | 357 mm |
| Package height | 215 mm |
| Package weight | 5.5 kg |
| Logistics data | |
| Products per pallet | 48 piece(s) |
| Gross pallet length | 80 cm |
| Gross width of the pallet | 120 cm |
| Gross height of the pallet | 2.21 m |
| Harmonized System Code | 8504402000 |
| Width of the main (external) locker | 179 mm |
| Length of the main (external) locker | 377 mm |
| Height of the main (external) locker | 240 mm |
| Gross weight of the main (external) locker | 5.8 kg |
| Produced by main (external) locker | 1 piece(s) |
| Country of origin | China |
