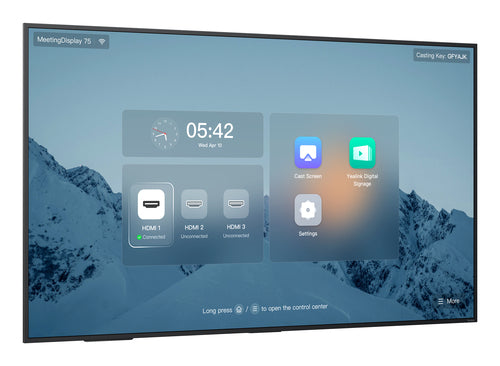

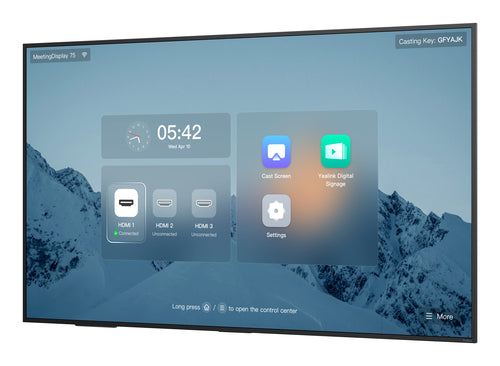

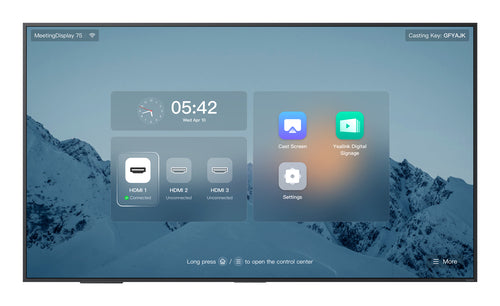

The Yealink MeetingDisplay is specifically designed for the Yealink MTR system and can be combined with the MTR bar, UVC camera, and MCore to provide a complete meeting solution. Available in 65", 75", and 86" sizes, the MeetingDisplay meets the needs of small, medium, and large meeting rooms. The MeetingDisplay and MTR devices can be deployed, managed, and integrated seamlessly. Thanks to our specially designed mounting bracket, you can attach these devices to the MeetingDisplay without drilling or damaging walls. Installation is simple and convenient. Furthermore, the MTR-based meeting solution can be centrally managed via YMCS/YDMP. Finally, this solution enables synchronization between the MeetingDisplay and MTR devices, including sleep/wake-up, power on/off, and digital signage modes.
| Screen
|
| Screen size |
165.1 cm (65") |
| Screen resolution |
3840 x 2160 pixels |
| Display technology |
IPS |
| Image format |
16:9 |
| Maximum discount rate |
60 Hz |
| Viewing angle |
178° |
| Screen brightness |
500 cd/m² |
| Contrast ratio |
1200:1 |
| Touch screen |
Yes |
| Anti-reflective surface |
Yes |
| Design
|
| Case color |
Black |
| VESA mount |
Yes |
| VESA standard |
600 x 400 mm |
| representation / realization
|
| RAM capacity |
4GB |
| Storage capacity |
32000 MB |
| Operating system installed |
Android 13.0 |
| Audio
|
| Built-in speakers |
Yes |
| Number of speakers |
2 |
| Speaker power |
12 W |
| Network
|
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Bluetooth |
Yes |
| Ethernet/LAN |
Yes |
| Bluetooth model |
5.1 |
| Ethernet LAN: data transfer rate |
10, 100, 1000 Mbit/s |
| Connectivity
|
| USB port |
Yes |
| Number of HDMI input ports |
3 |
| RJ-45 Number of ports |
2 |
| Number of USB 2.0 Type-A ports |
2 |
| Power
|
| Power source type |
Sector |
| Input voltage |
100-240V |
| Power consumption (idle) |
0.5 W |
| Weight and dimensions
|
| Width |
1680 mm |
| Depth |
57 mm |
| Height |
959 mm |
| Weight |
28.4 kg |
| Packaging information
|
| Package width |
1815 mm |
| Package depth |
185 mm |
| Package height |
1055 mm |
| Package weight |
38.7 kg |
| Packaging type |
Box |
| Environmental conditions
|
| Operating relative humidity (HH) |
10 - 95% |
| Operating temperature |
0 - 40 °C |
| Off-temperature |
-20 - 60 °C |
