Description

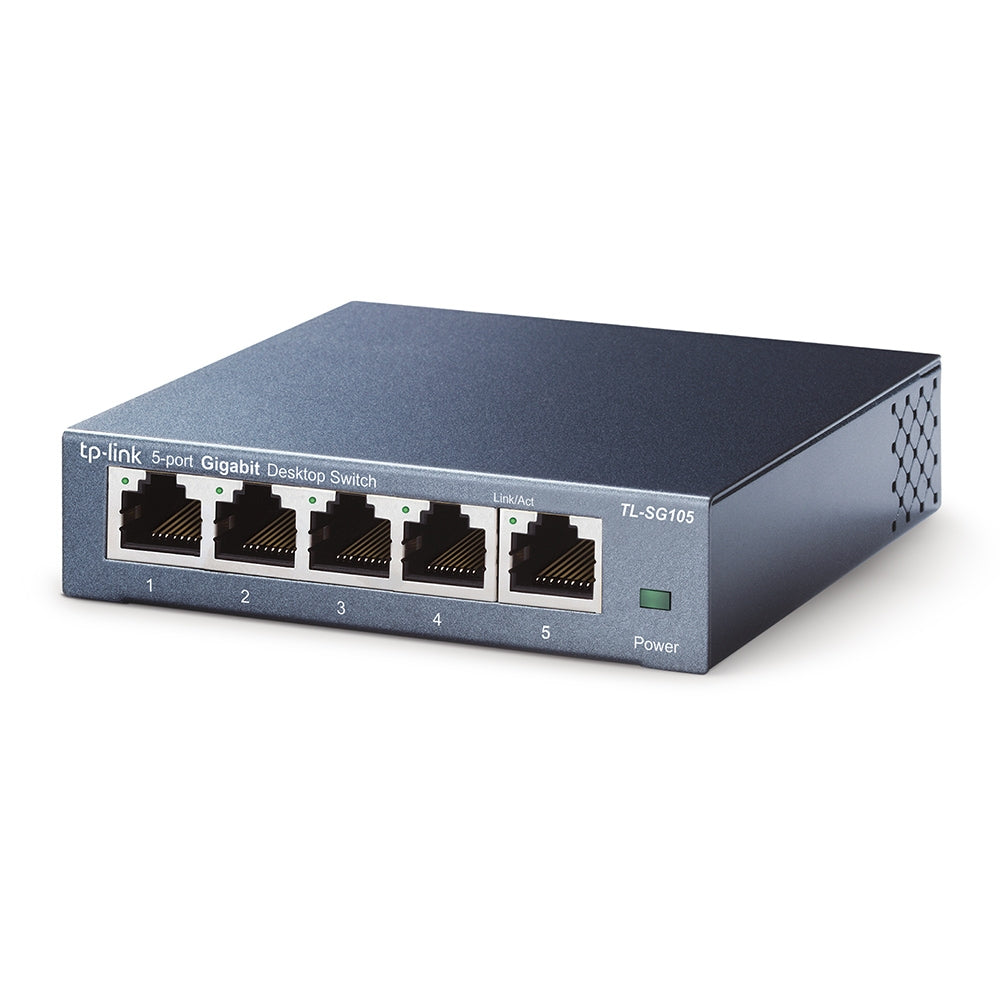

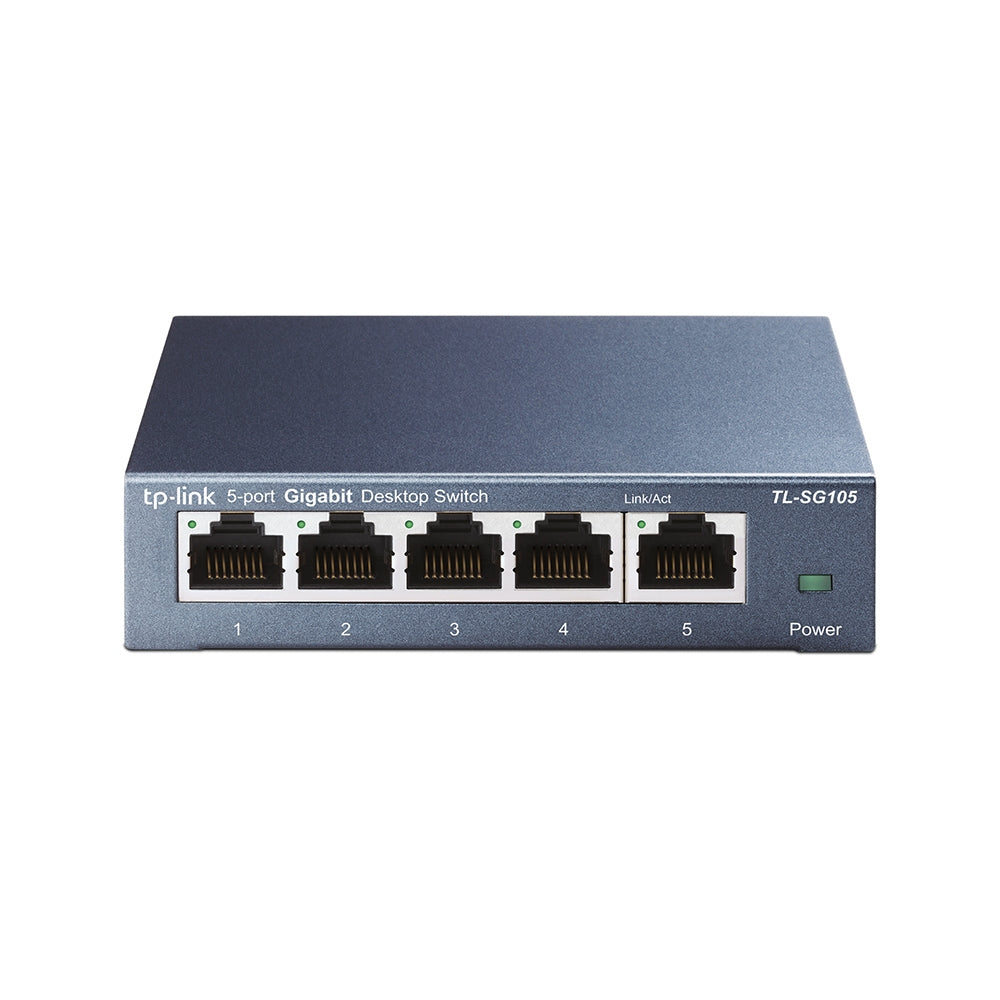

TP-Link TL-SG105, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mount
| Management characteristics | |
| Switch type | Unmanaged |
| Switch bank | L2 |
| Quality of Service (QoS) | Yes |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 5 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Number of SFP modules installed | 0 |
| Number of SFP+ modules installed | 0 |
| Number of Gigabit Ethernet ports (copper) | 5 |
| Power connector | DC-in jack |
| Network | |
| Network standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper Ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Supported cable types | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control assistance | Yes |
| Auto MDI/MDI-X | Yes |
| Automatic negotiation | Yes |
| MAC address machine learning supported | Yes |
| Automatic MAC address update | Yes |
| Data transmission | |
| MAC address book | 2048 entries |
| Switching capacity | 10 Gbit/s |
| Transfer rate | 7.4 MPPS |
| Recording and retransmission | Yes |
| Support for Jumbo Frames | Yes |
| Giant frames | 16000 |
| Packet cache memory | 1 MB |
| Security | |
| IGMP filtering | Yes |
| Multicasting features | |
| Support for multi-channel distribution | Yes |
| Design | |
| Mounting grid | No |
| Product color | Black |
| Case/body material | Steel |
| Psychics | Yes |
| Wall mount | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Input current | 0.6 A |
| Consumption (max) | 2.3 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | No |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 90% |
| Heat dissipation | 7.83 BTU/h |
| Weight and dimensions | |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Package contents | |
| Cables included | Sector |
| User guide | Yes |
| Packaging information | |
| Packaging type | Box |
| Certificate | |
| Certification | CE, FCC, RoHS |
| Logistics data | |
| Harmonized System Code | 85176990 |
