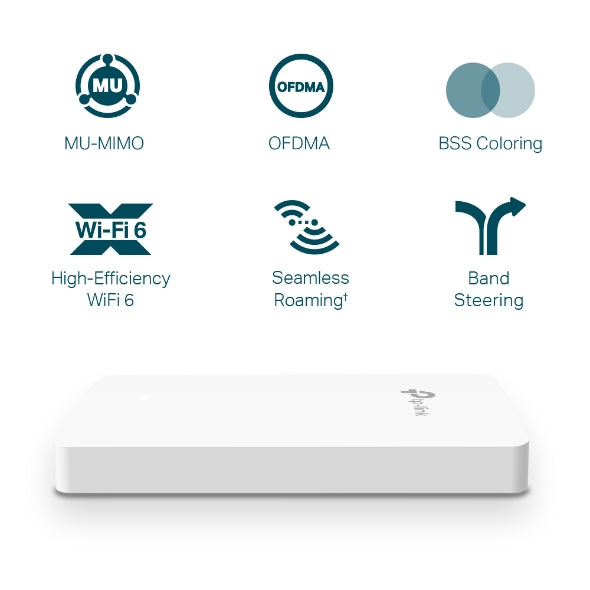

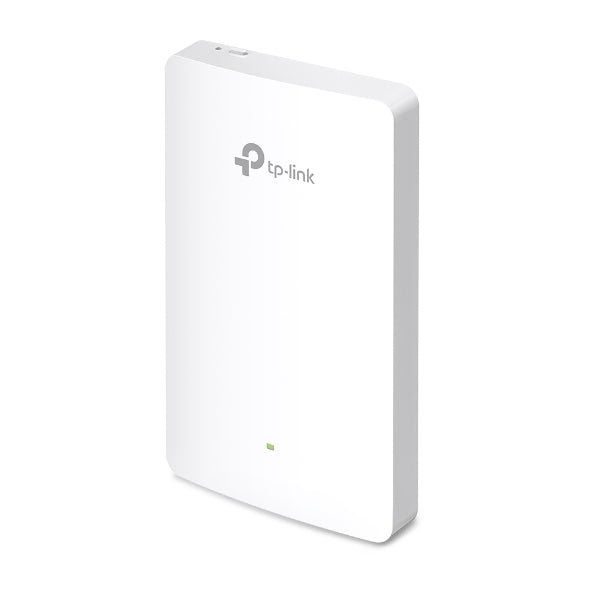

Description
TP-Link Omada EAP615-WALL, 2.4 GHz, 5 GHz, 1774 Mbps, WPA, WPA2, WPA3, 10,100,1000 Mbps
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1774 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN: data transfer rate | 10, 100, 1000 Mbit/s |
| Network standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO (multiple inputs, multiple outputs) | Yes |
| MIMO type | Multi-User MIMO |
| VLAN support | Yes |
| Flow rate limitation | Yes |
| Wireless isolation | Yes |
| Band direction | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) | Yes |
| Beamforming | Yes |
| Transmission power (CE) | 20 dBm |
| Transmission power (FCC) | 21 dBm |
| Security | |
| Supported security algorithm | WPA, WPA2, WPA3 |
| Functions of the Service Set Identifier (SSID) | Multiple SSIDs |
| Number of SSID support | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
| Management characteristics | |
| Syslog | Yes |
| Upgradeable firmware | Yes |
| Connectivity | |
| Number of LAN ethernet ports (RJ-45) | 4 |
| Number of USB 2.0 Ports | 0 |
| Power | |
| Ethernet connection, supporting power delivery via this port (PoE) | Yes |
| Design | |
| Positioning | Wall |
| Product color | White |
| Integrated on/off button | Yes |
| Reset button | Yes |
| Psychics | Energy |
| Antenna | |
| Antenna type | Internal |
| Antenna quantity | 4 |
| Antenna gain level (max) | 4 dBi |
| Certificate | |
| Certification | CE, FCC, RoHS |
| Weight and dimensions | |
| Width | 143 mm |
| Depth | 86 mm |
| Height | 20 mm |
| Packaging information | |
| Package width | 385 mm |
| Package depth | 495 mm |
| Package height | 210 mm |
| Package weight | 330 g |
| Environmental conditions | |
| Operating relative humidity (HH) | 10-90% |
| Operating temperature | 0 - 40 °C |
| Off-temperature | -40 - 70 °C |
| Relative humidity level (storage) | 5 - 90% |
| Logistics data | |
| Harmonized System Code | 85176990 |
