Description

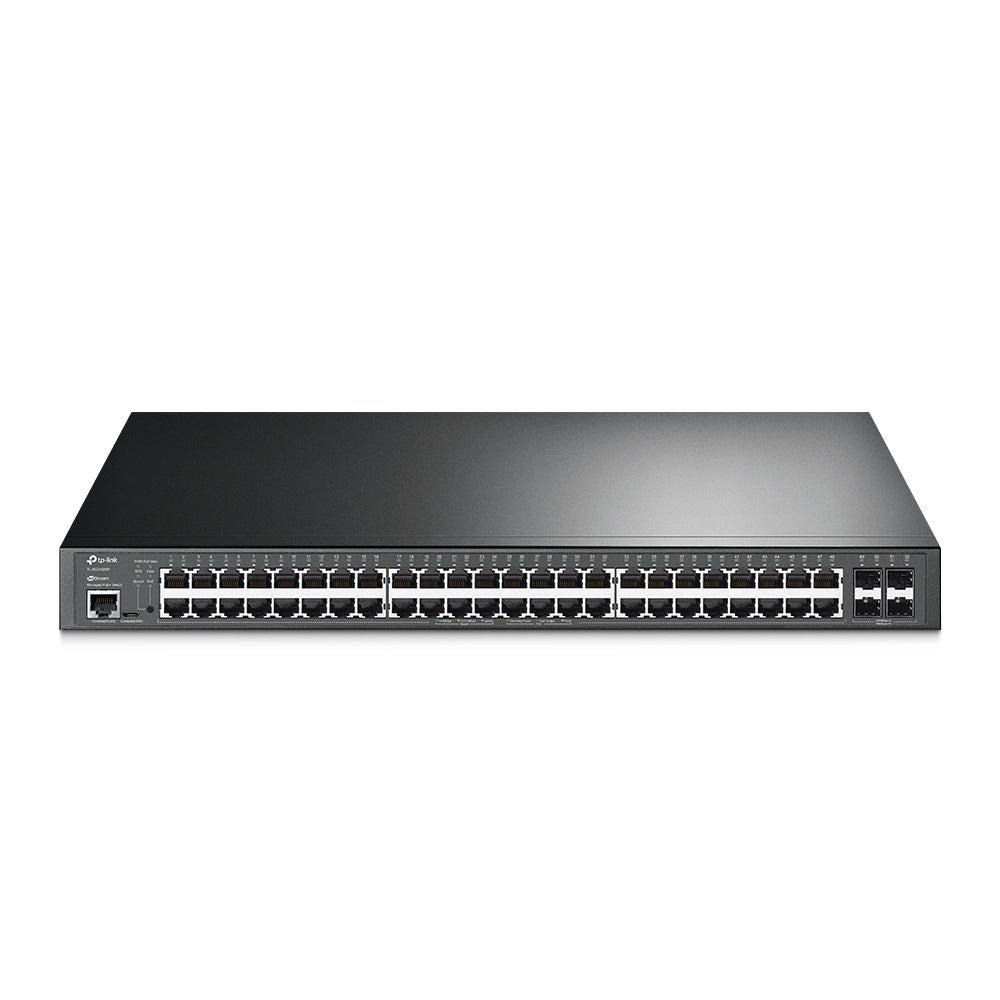

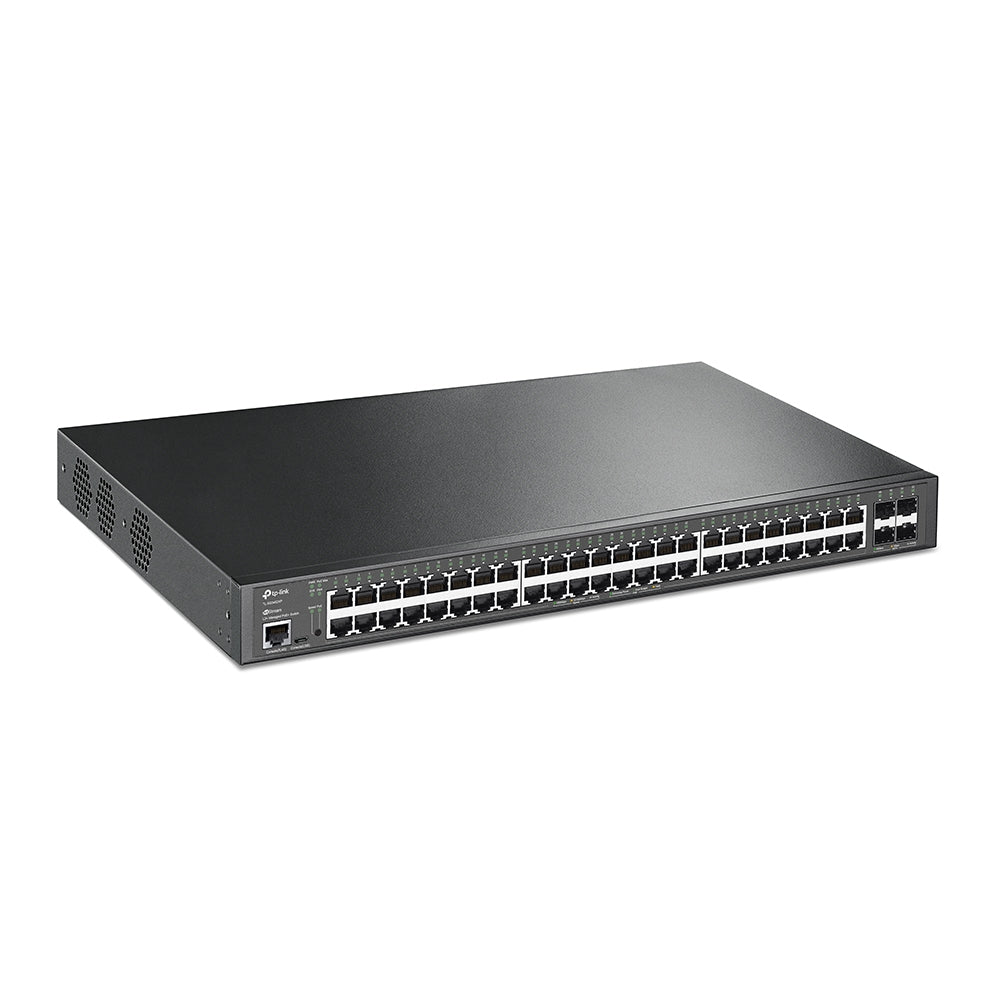

TP-Link JetStream TL-SG3452XP, Managed, L2+, Gigabit Ethernet (10/100/1000), Ethernet connection, supports Power over Ethernet (PoE), Rack mount, 1U
| Management characteristics | |
| Switch type | Managed |
| Switch bank | L2+ |
| Quality of Service (QoS) | Yes |
| Web-based management | Yes |
| Managed in the Cloud | Yes |
| ARP Inspection | Yes |
| Configuring location settings (CLI) | Yes |
| System event log | Yes |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 48 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Number of SFP+ module slots | 4 |
| console port | RJ-45/Micro-USB |
| Power connector | AC input socket |
| Network | |
| Network standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control assistance | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Flow rate limitation | Yes |
| Spanning Tree Protocols (STP) | Yes |
| HOL function to combat queue header saturation | Yes |
| VLAN support | Yes |
| Data transmission | |
| MAC address book | 16,000 entries |
| Switching capacity | 176 Gbit/s |
| Transfer rate | 130.9 MPPS |
| Recording and retransmission | Yes |
| Support for Jumbo Frames | Yes |
| Giant frames | 9000 |
| Packet cache memory | 12 MB |
| Security | |
| DHCP Functions | DHCP client, DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP filtering | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC port binding | Yes |
| Authentication | Auto VLAN, Guest VLAN |
| Multicasting features | |
| Support for multi-channel distribution | Yes |
| Design | |
| Mounting grid | Yes |
| Format | 1U |
| Product color | Black |
| Reset button | Yes |
| Psychics | Yes |
| Number of fans | 3 fan(s) |
| Power | |
| Power source | Sector |
| Power supply included | Yes |
| AC input voltage | 100-240V |
| AC input frequency | 50/60 Hz |
| Consumption (max) | 635.7 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | Yes |
| Number of Power Over Ethernet plus (PoE+) ports | 48 |
| Port powered by PoE (Power over Ethernet) | 30 W |
| Total Power over Ethernet (PoE) Budget | 500 W |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 90% |
| Heat dissipation | 2169.2 BTU/h |
| Weight and dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Package contents | |
| Cables included | Sector |
| Quick Start Guide | Yes |
| Packaging information | |
| Package width | 440 mm |
| Package depth | 528 mm |
| Package height | 100 mm |
| Package weight | 6.48 kg |
| Certificate | |
| Certification | CE, FCC, RoHS |
| Logistics data | |
| Harmonized System Code | 85176990 |
