Description

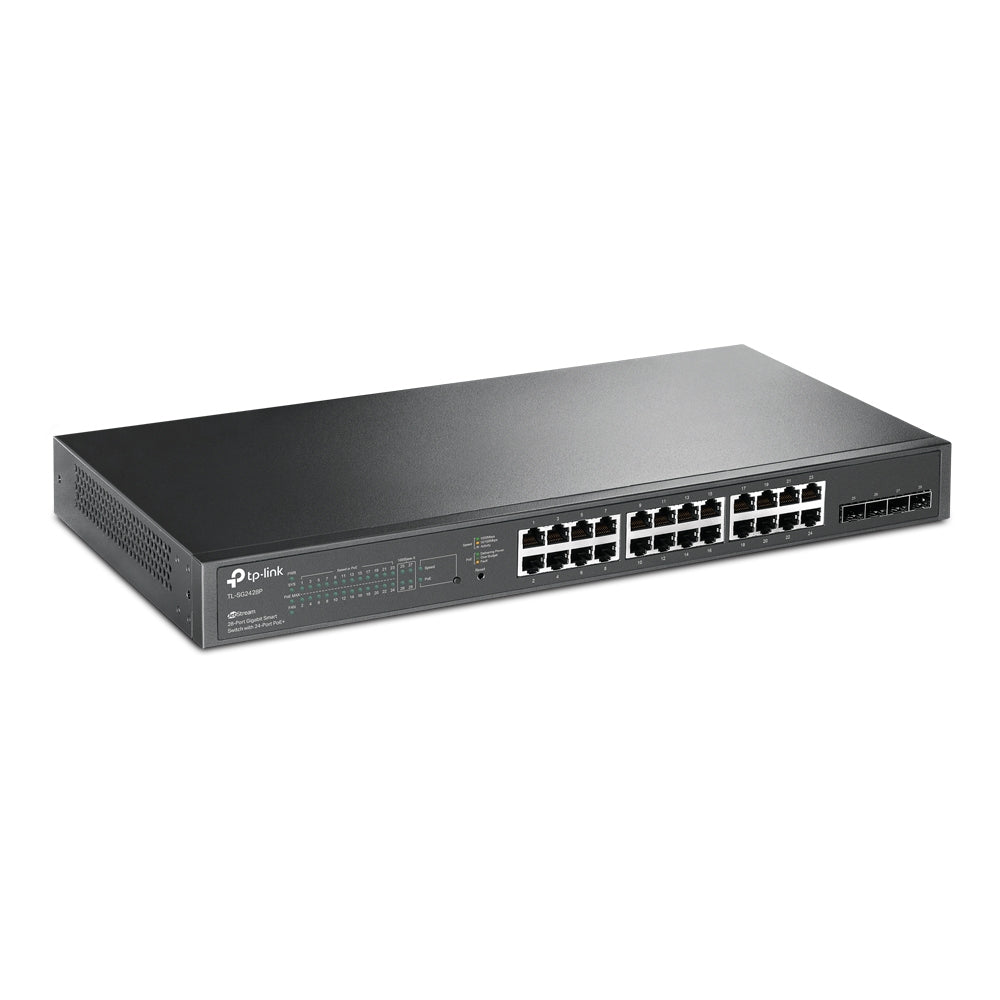

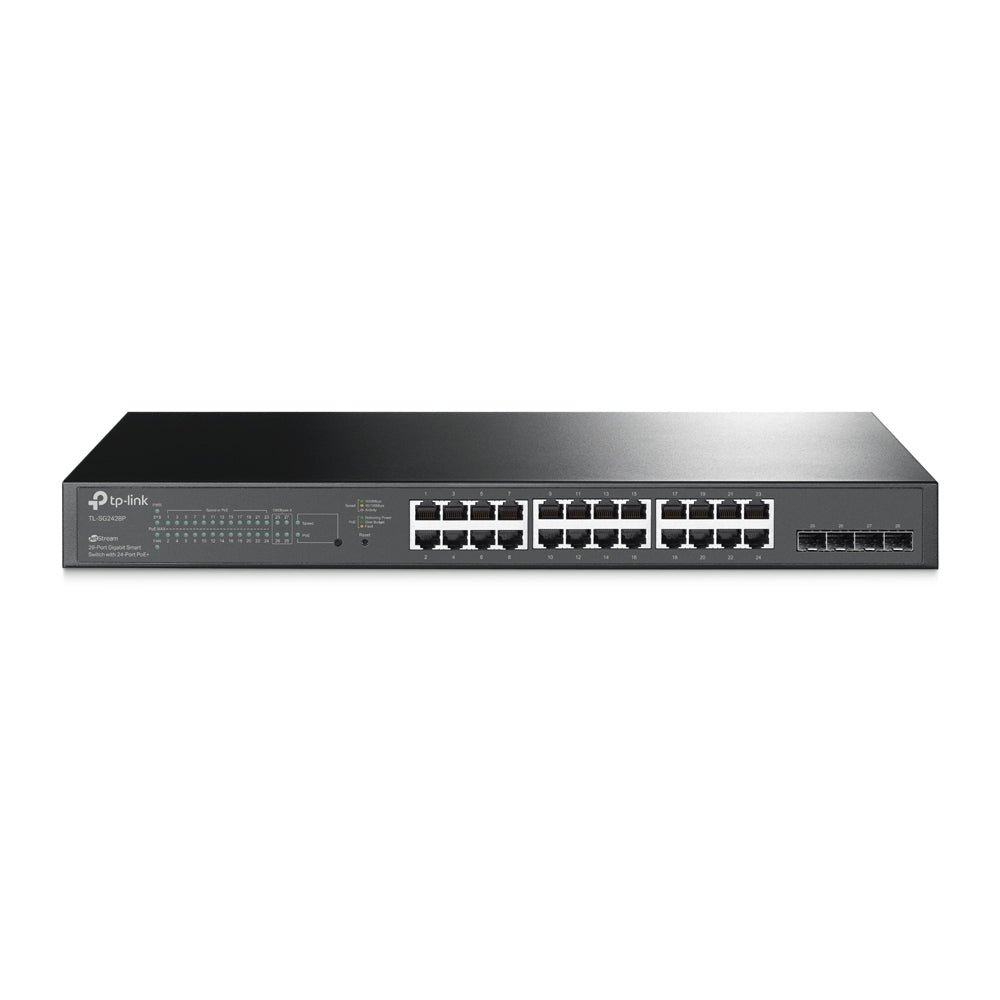

TP-Link JetStream TL-SG2428P, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Ethernet connection, supports Power over Ethernet (PoE), Rack mount, 1U
| Management characteristics | |
| Switch type | Managed |
| Switch bank | L2/L2+ |
| Quality of Service (QoS) | Yes |
| Web-based management | Yes |
| ARP Inspection | Yes |
| System event log | Yes |
| MIB Support | Y |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 24 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Number of SFP modules installed | 0 |
| Number of SFP+ modules installed | 0 |
| Number of Gigabit Ethernet ports (copper) | 24 |
| Number of SFP module slots | 4 |
| Network | |
| Network standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper Ethernet cabling technology | 10BASE-T, 1000BASE-T |
| Supported cable types | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Yes |
| Flow control assistance | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Flow rate limitation | Yes |
| Spanning Tree Protocols (STP) | Yes |
| VLAN support | Yes |
| Virtual LAN functions | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Fiber optic | |
| Ethernet over fiber cabling technology | 1000BASE-X |
| Data transmission | |
| MAC address book | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Transfer rate | 41.7 MPPS |
| Number of queues | 8 |
| Support for Jumbo Frames | Yes |
| Giant frames | 9000 |
| Packet cache memory | 4.1 MB |
| Security | |
| DHCP Functions | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| Access Control List (ACL) | Yes |
| IGMP filtering | Yes |
| Supported security algorithm | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC port binding | Yes |
| Authentication type | RADIUS |
| Queue scheduling algorithms | ES, WRR+SP, Weighted Round Robin (WRR) |
| Multicasting features | |
| Support for multi-channel distribution | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Design | |
| Mounting grid | Yes |
| Format | 1U |
| Product color | Black |
| Number of fans | 2 fan(s) |
| representation / realization | |
| Upgradeable firmware | Yes |
| Power | |
| Power source | Sector |
| Power supply included | Yes |
| AC input voltage | 100-240V |
| AC input frequency | 50/60 Hz |
| Consumption (max) | 306.9 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | Yes |
| Number of Power Over Ethernet plus (PoE+) ports | 24 |
| Port powered by PoE (Power over Ethernet) | 30 W |
| Total Power over Ethernet (PoE) Budget | 250 W |
| Environmental conditions | |
| Operating temperature | 0 - 50 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 90% |
| Heat dissipation | 1047.3 BTU/h |
| Weight and dimensions | |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Package contents | |
| Cables included | Sector |
| User guide | Yes |
| Rack mounting kit | Yes |
| Packaging information | |
| Package width | 336 mm |
| Package depth | 528 mm |
| Package height | 100 mm |
| Package weight | 3.98 kg |
| Certificate | |
| Certification | CE, FCC, RoHS |
| Logistics data | |
| Harmonized System Code | 85176990 |
