Description

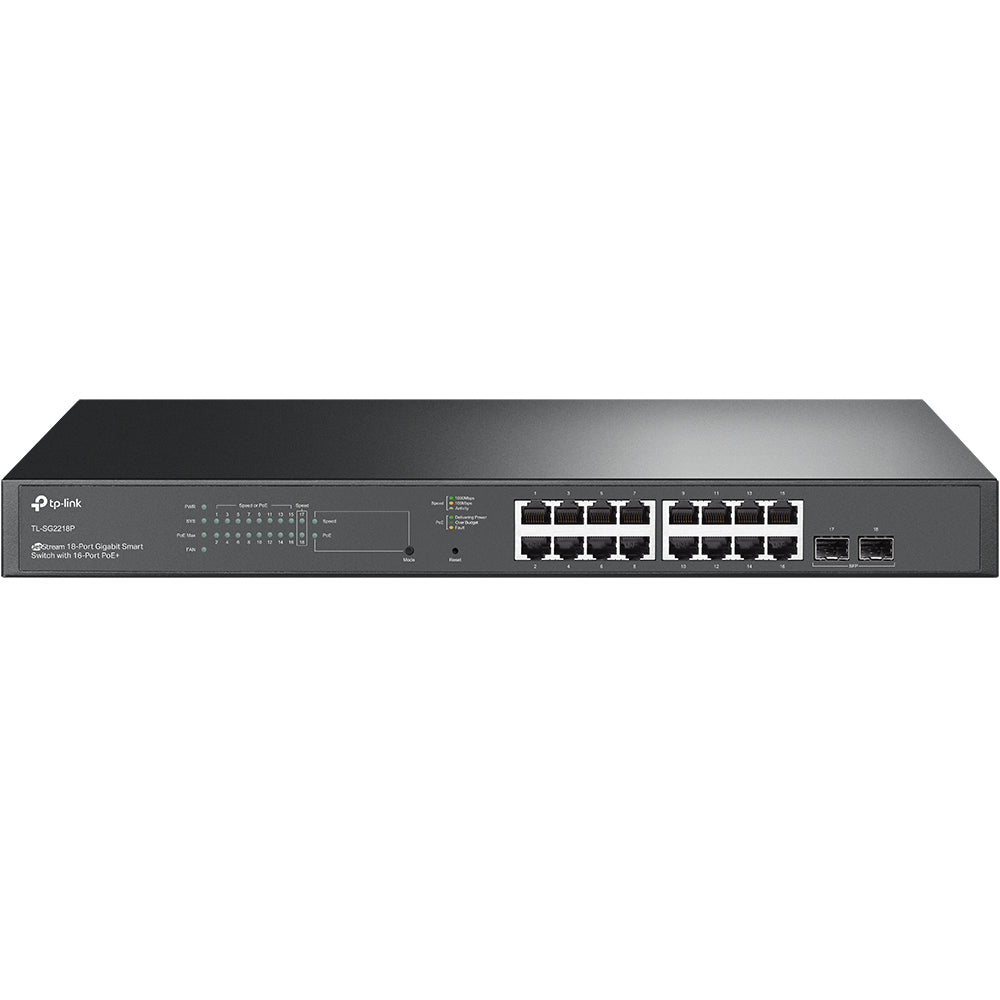

TP-Link JetStream TL-SG2218P, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Ethernet connection, supports Power over Ethernet (PoE), Rack mount, 1U
| Management characteristics | |
| Switch type | Managed |
| Switch bank | L2/L2+ |
| Quality of Service (QoS) | Yes |
| Web-based management | Yes |
| Managed in the Cloud | Yes |
| ARP Inspection | Yes |
| Configuring location settings (CLI) | Yes |
| System event log | Yes |
| MIB Support | MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9) |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 16 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Number of SFP modules installed | 0 |
| Number of SFP+ modules installed | 0 |
| Number of SFP module slots | 2 |
| Network | |
| Network standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| IP Routing | Yes |
| Policy routing | Yes |
| Flow control assistance | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Flow rate limitation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning Tree Protocols (STP) | Yes |
| Ethernet LAN: data transfer rate | 10, 100, 1000 Mbit/s |
| Automatic negotiation | Yes |
| VLAN support | Yes |
| Data transmission | |
| MAC address book | 8000 entries |
| Switching capacity | 26.78 Gbit/s |
| Transfer rate | 26.78 Mpps |
| Support for Jumbo Frames | Yes |
| Giant frames | 9 |
| Packet cache memory | 4.1 MB |
| Security | |
| DHCP Functions | DHCP client, DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC address authentication, Port authentication |
| Multicasting features | |
| Support for multi-channel distribution | Yes |
| Multicasting functions | Multicast transfer |
| Design | |
| Mounting grid | Yes |
| Format | 1U |
| Product color | Black |
| Psychics | Yes |
| Power | |
| Power source | DC/PoE |
| Power supply included | Yes |
| AC input voltage | 100-240V |
| AC input frequency | 50/60 Hz |
| Consumption (max) | 181.4 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 150 W |
| Environmental conditions | |
| Operating temperature | 0 - 50 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 90% |
| Heat dissipation | 619.06 BTU/h |
| Weight and dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Package contents | |
| Cables included | LAN (RJ-45) |
| User guide | Yes |
| Packaging information | |
| Packaging type | Box |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 2.76 kg |
| Certificate | |
| Certification | CE, FCC, RoHS |
