Description
Allows you to share a keyboard and a mouse, as well as a VGA screen and a DVI screen between 2 multimedia systems
The 2-Port Dual Display KVM Switch (DVI+VGA), part number SV231DDVDUA, offers a complete multimedia switching solution, allowing users to control two dual-monitor computers using a single set of USB peripherals (mouse and keyboard) .
With support for high-resolution video interfaces, this dual monitor KVM switch provides computer connection via VGA (analog) and DVI-I port, as well as audio switching capability between connected computers.
Ensuring versatility for virtually any application, the DVI/VGA KVM Switch features a built-in 2-port USB hub, allowing sharing of connected USB 2.0 devices between connected computers; thus it removes the need to purchase additional peripherals.
Suitable for any workspace, the Dual Display KVM Switch offers a compact desktop KVM design and includes a sturdy metal chassis that ensures long-lasting performance.
Backed by StarTech.com's 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-resolution DVI and VGA ports support virtually all dual-screen scenarios. An adapter can also be used with this KVM to support a configuration with a DVI+VGA PC and a dual DVI PC.
- Built-in USB 2.0 hub and mic/audio ports allow the user to have full multimedia control over two computers and share USB devices, avoiding the expense of purchasing duplicate devices
- No software or drivers are required, providing an operating system independent KVM solution.
The 2-Port Dual Display KVM Switch (DVI+VGA), part number SV231DDVDUA, offers a complete multimedia switching solution, allowing users to control two dual-monitor computers using a single set of USB peripherals (mouse and keyboard) .
With support for high-resolution video interfaces, this dual monitor KVM switch provides computer connection via VGA (analog) and DVI-I port, as well as audio switching capability between connected computers.
Ensuring versatility for virtually any application, the DVI/VGA KVM Switch features a built-in 2-port USB hub, allowing sharing of connected USB 2.0 devices between connected computers; thus it removes the need to purchase additional peripherals.
Suitable for any workspace, the Dual Display KVM Switch offers a compact desktop KVM design and includes a sturdy metal chassis that ensures long-lasting performance.
Backed by StarTech.com's 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-resolution DVI and VGA ports support virtually all dual-screen scenarios. An adapter can also be used with this KVM to support a configuration with a DVI+VGA PC and a dual DVI PC.
- Built-in USB 2.0 hub and mic/audio ports allow the user to have full multimedia control over two computers and share USB devices, avoiding the expense of purchasing duplicate devices
- No software or drivers are required, providing an operating system independent KVM solution.
| Connectivity | |
| Number of computers monitored | 2 |
| Keyboard port | USB |
| Mouse port | USB |
| Video port | VGA/DVI-I |

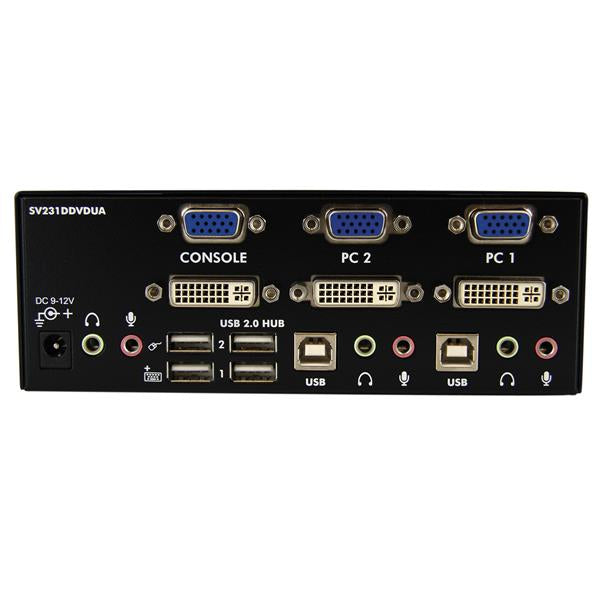

| Console ports | 3.5mm headset, DVI-I, VGA (D-Sub) |
| Quantity of USB 2.0 Ports | 4 |
| USB connector | USB Type-A |
| Audio Connections | Yes |
| Headphone output | 3 |
| Number of microphone inputs | 3 |
| representation / production | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Resolution (maximum digital) | 1920 x 1200 pixels |
| DDC2B support | Yes |
| HDCP | Yes |
| Daisy chaining | No |
| Number of users | 1 user(s) |
| Design | |
| Mounting grid | No |
| Product color | Black |
| Housing/Body Material | Steel |
| LEDs | Energy |
| Mean time between failures | 64691 h |
| Certification | CE, FCC |
| Screen | |
| Integrated screen | No |
| Power | |
| AC input voltage | 100-240V |
| Input current | 0.8A |
| Output voltage | 12V |
| Output current | 1.5A |
| Typical power consumption | 18W |
| External power adapter | Yes |
| Plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Sustainability certificates | RoHS |
| Environmental conditions | |
| Operating temperature | 0 - 40°C |
| Non-operating temperature | -20 - 60°C |
| Relative operating humidity (HH) | 0 - 80% |
| Weight and dimensions | |
| Width | 160mm |
| Depth | 163mm |
| Height | 57mm |
| Weight | 750g |
| Packaging information | |
| Package width | 295mm |
| Package depth | 199mm |
| Package height | 72mm |
| Package weight | 1.29kg |

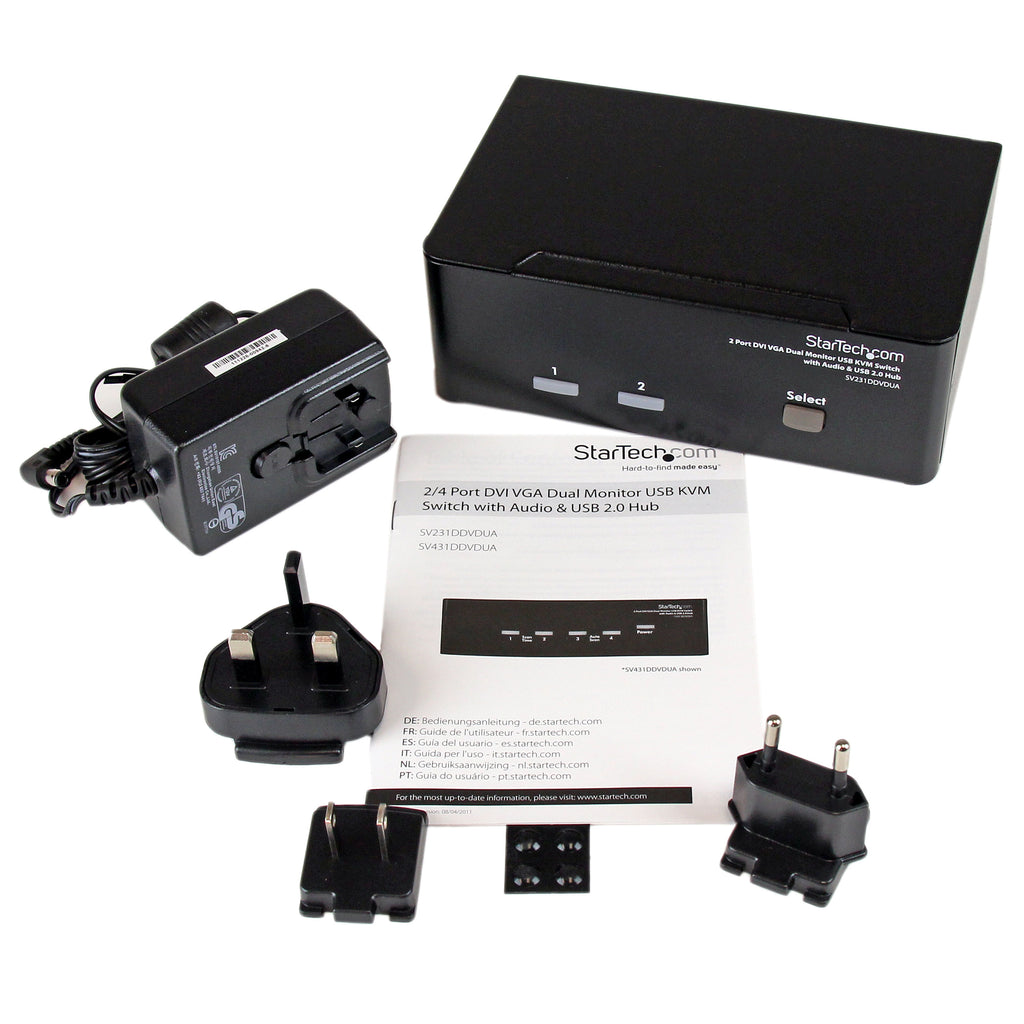

| Package Contents | |
| User Manual | Yes |
| AC adapter provided | Yes |
| Rubber feet | Yes |
| Logistics data | |
| Harmonized System Code | 85176200 |
| Other features | |
| Audio support | Yes |
| IP control | No |
