Description
Dual display stand | Multidirectional | For 32" to 75" screens

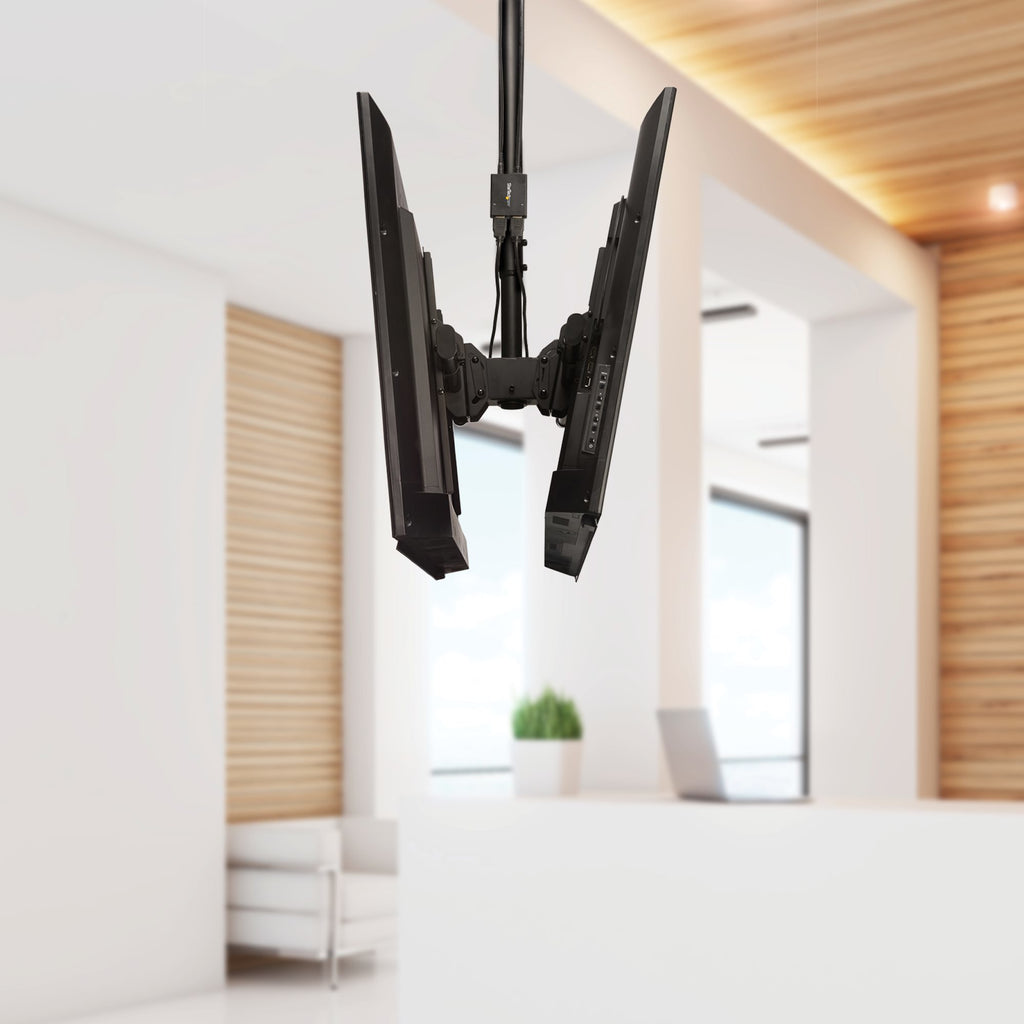

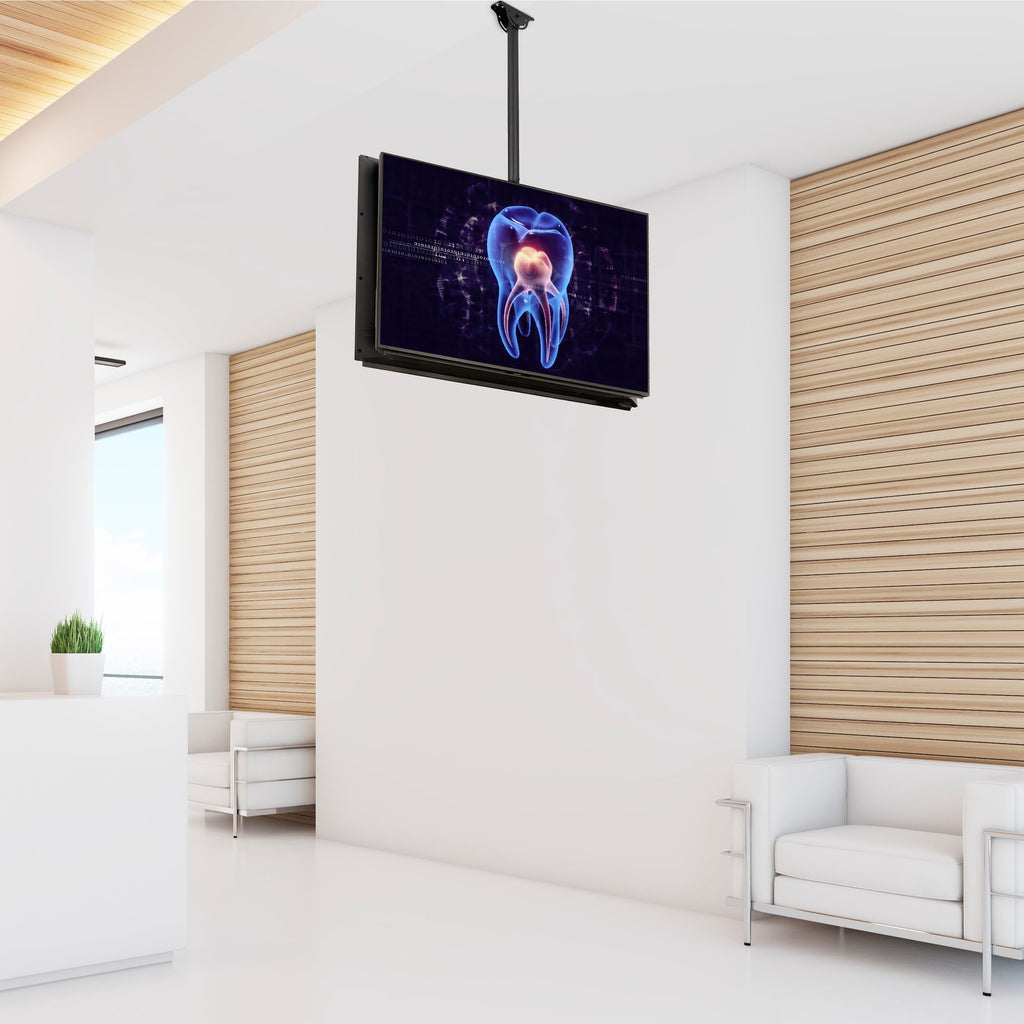

Create an impressive and effective digital display with this ceiling-mounted TV bracket that suspends two 32" to 75" TVs back-to-back. Ideal for open spaces in retail, hospitality, restaurants, and many other sectors, the dual-screen mount offers a versatile way to inform customers and double the audience viewing your content.
Back-to-back TV stand

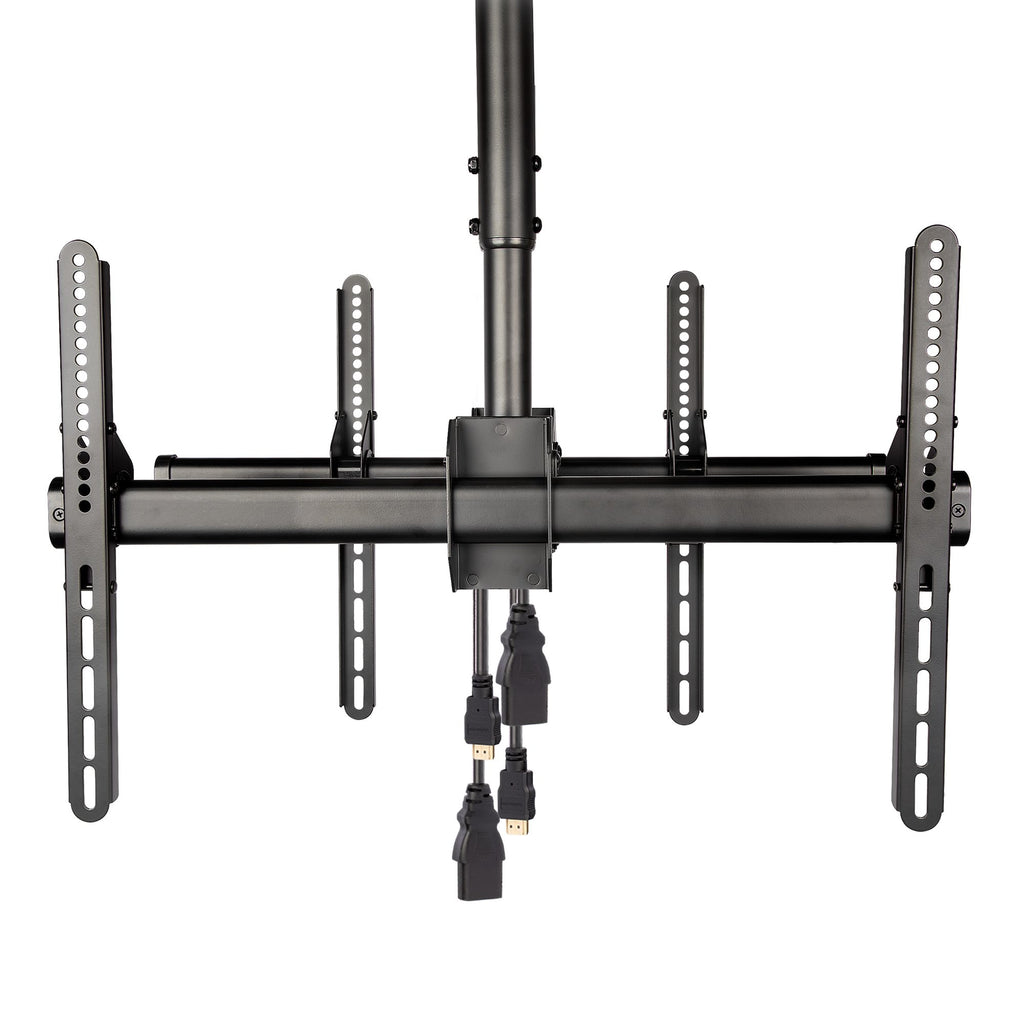

The dual-screen mount allows you to mount two flat-screen TVs back-to-back in landscape orientation. The steel bracket supports VESA-compatible screens up to 600 x 400 mm with a weight capacity of 45 kg per screen.
Adjustable height
With its telescopic pole, this ceiling-mounted TV bracket allows you to suspend two screens at the desired distance from the ceiling, while also being compatible with various ceiling heights. The pole-mounted TV bracket extends from 1.06 m to 1.56 m, with a total upward extension of 500 mm.
Easy screen adjustment

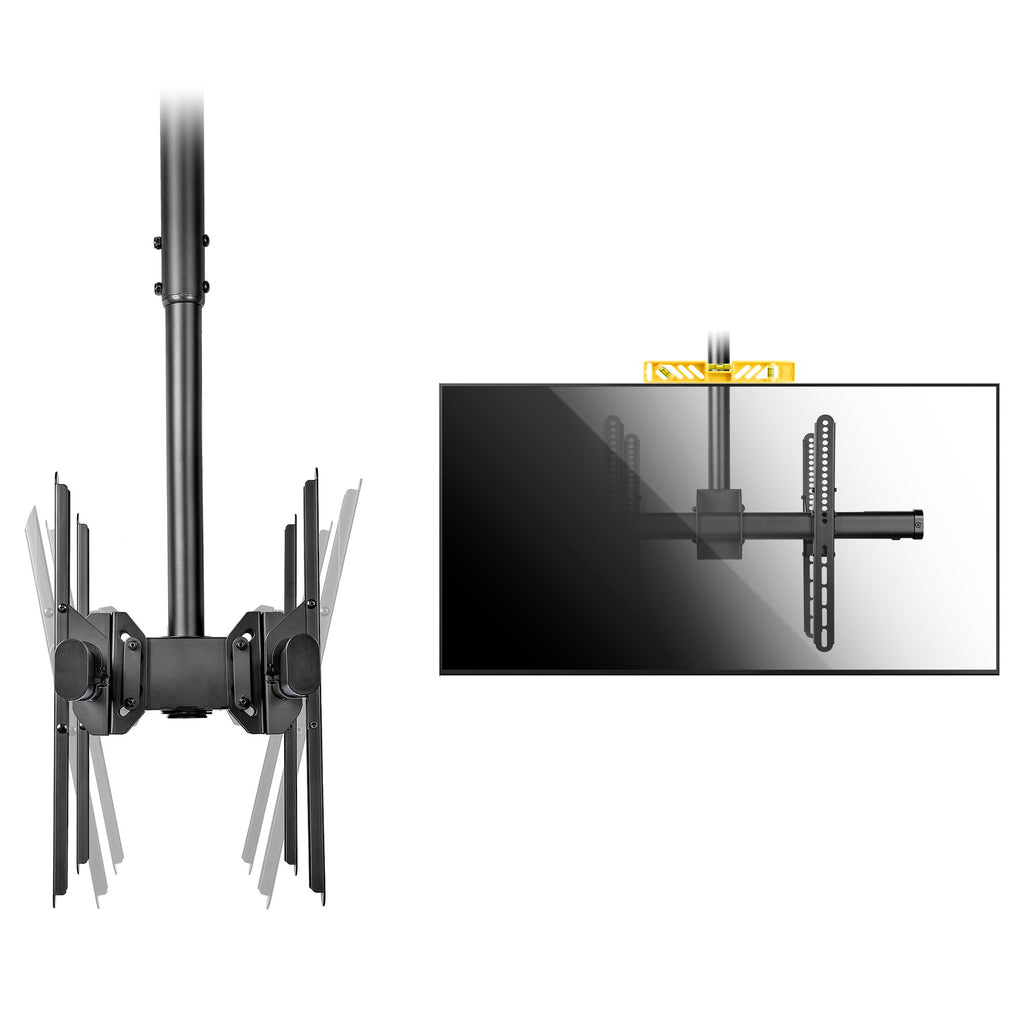

For optimal visibility, the mount allows you to rotate the screen +/-180 degrees around the pole. Its free tilt allows you to adjust the tilt angle from +5 to -20 degrees.
It pivots to adapt to your ceiling
The dual screen ceiling mount is designed to fit a variety of ceilings. Rotate the TV mount to adapt the installation to virtually any type of ceiling, including sloped ceilings (with a maximum incline of 60°) and horizontal (flat) ceilings.
Simplified cable installation and management
The ceiling mount allows for easy installation thanks to its hook suspension system. You can conceal the cables using the integrated channels.
The StarTech.com Advantage
Create an impressive and effective digital display with this ceiling-mounted TV bracket that suspends two 32" to 75" TVs back-to-back. Ideal for open spaces in retail, hospitality, restaurants, and many other sectors, the dual-screen mount offers a versatile way to inform customers and double the audience viewing your content.
Back-to-back TV stand
The dual-screen mount allows you to mount two flat-screen TVs back-to-back in landscape orientation. The steel bracket supports VESA-compatible screens up to 600 x 400 mm with a weight capacity of 45 kg per screen.
Adjustable height
With its telescopic pole, this ceiling-mounted TV bracket allows you to suspend two screens at the desired distance from the ceiling, while also being compatible with various ceiling heights. The pole-mounted TV bracket extends from 1.06 m to 1.56 m, with a total upward extension of 500 mm.
Easy screen adjustment
For optimal visibility, the mount allows you to rotate the screen +/-180 degrees around the pole. Its free tilt allows you to adjust the tilt angle from +5 to -20 degrees.
It pivots to adapt to your ceiling
The dual screen ceiling mount is designed to fit a variety of ceilings. Rotate the TV mount to adapt the installation to virtually any type of ceiling, including sloped ceilings (with a maximum incline of 60°) and horizontal (flat) ceilings.
Simplified cable installation and management
The ceiling mount allows for easy installation thanks to its hook suspension system. You can conceal the cables using the integrated channels.
The StarTech.com Advantage
| Assembly | |
| Number of displays supported | 2 |
| Maximum weight capacity (per screen) | 45 kg |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Ceiling |
| Maximum load capacity | 90 kg |
| Mounting interface compatibility (min) | 200 x 200 mm |
| Mounting interface compatibility (max) | 600 x 400 mm |
| Minimum screen size | 81.3 cm (32") |
| VESA standard | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment | 1060 - 1560 mm |
| Angle of inclination | -20 - 5° |
| Oscillation angle range | -180 - 180° |
| Rotation angle | 360° |
| Adjustable | Yes |
| Design | |
| Product color | Black |
| Case/body material | Steel |
| Anti-theft function | No |
| Weight and dimensions | |
| Width | 165 mm |
| Depth | 680 mm |
| Depth (max) | 68 cm |
| Height | 835 mm |
| Weight | 9.8 kg |
| Packaging information | |
| Package width | 310 mm |
| Package depth | 935 mm |
| Package height | 145 mm |
| Package weight | 10.8 kg |

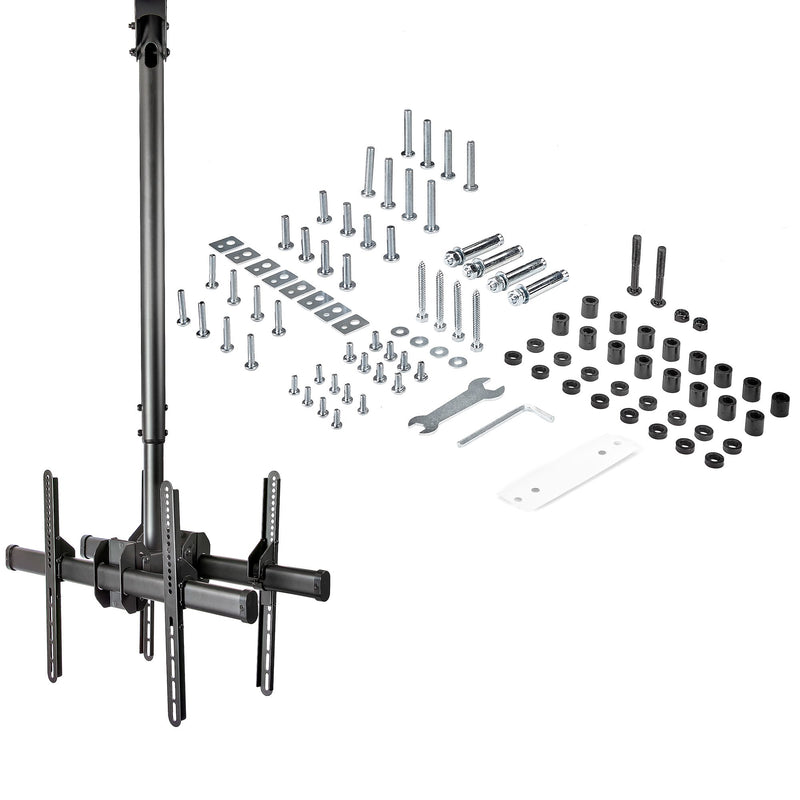

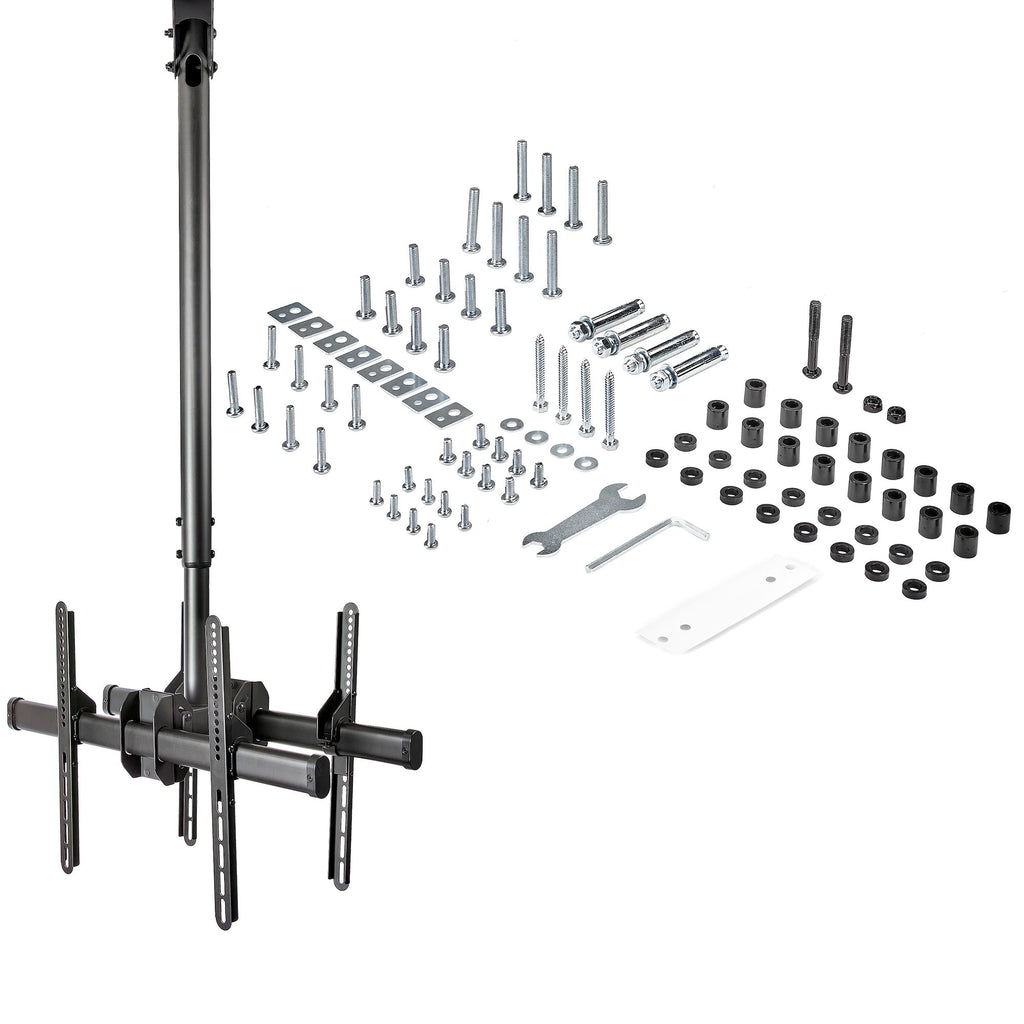

| Package contents | |
| User manual | Yes |
| Screws included | Yes |
| Number of screws | 46 |
| Key included | Yes |
| Nuts supplied | Yes |
| Number of nuts | 2 |
| Washers included | Yes |
| Number of washers included | 12 |
| Separators included | Yes |
| Number of spacers included | 32 |
| Technical details | |
| Certificates of conformity | CE, RoHS |
| Compliance with sustainability | Yes |
| Logistics data | |
| Harmonized System Code | 85299097 |
| Width of the main (external) locker | 340 mm |
| Length of the main (external) locker | 965 mm |
| Height of the main (external) locker | 310 mm |
| Produced by main (external) locker | 2 piece(s) |
