Description

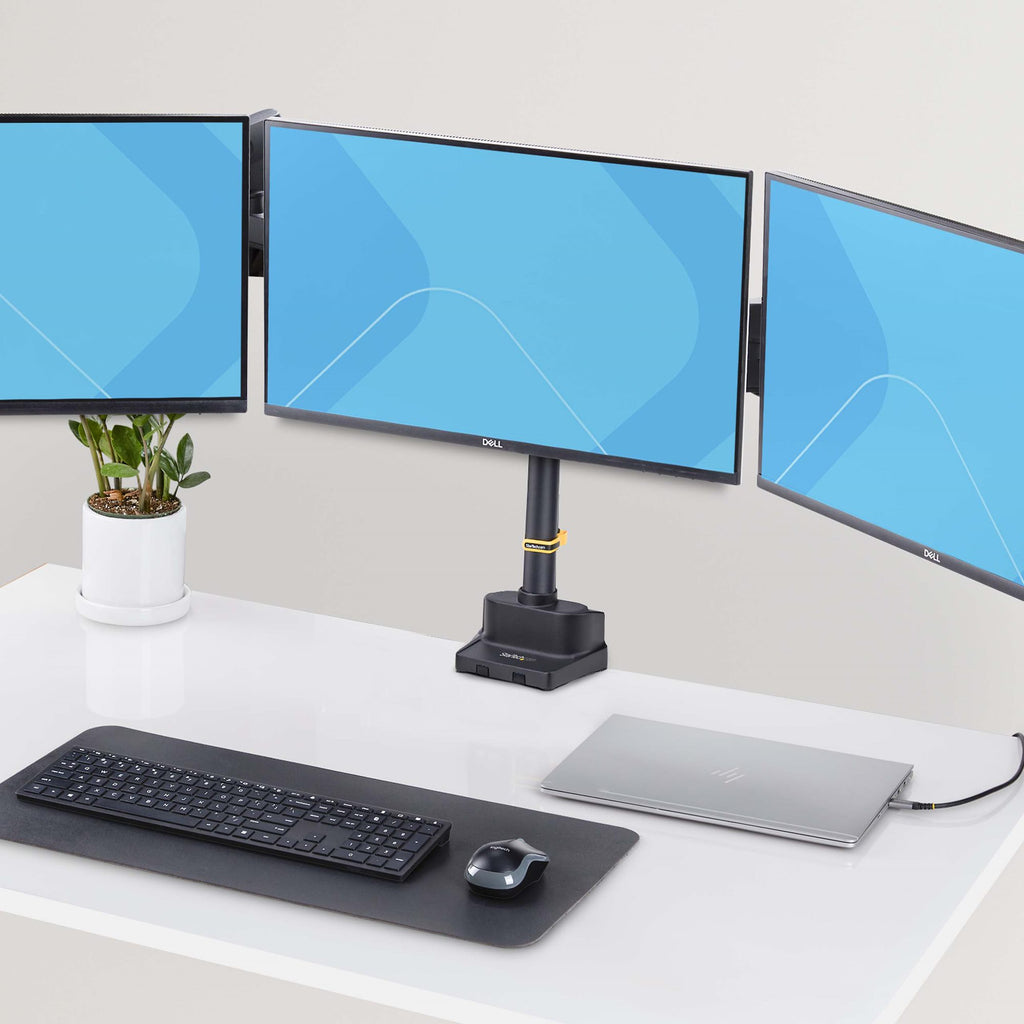

Desk mount for three monitors supporting up to 27" with height-adjustable articulating arms
This monitor desk mount is designed to support up to three 27-inch screens, creating an ergonomic multi-monitor setup that provides a large viewing area for increased productivity. The mechanically spring-assisted arms allow for multiple adjustments to accommodate various ergonomic needs.
Top installation
The unique top-screw desk clamp simplifies installation by allowing users to tighten the clamp manually from above using a hex key or drill, eliminating the need to reach under the desk. Furthermore, the desk clamp is designed with an interchangeable C-bracket and eyelet mounting to accommodate desks up to 50 mm thick, providing flexibility for various desk configurations.
Height adjustment with a smooth movement
The central monitor mount allows for height adjustments along the 483 mm column, enabling users to customize screen placement for maximum productivity and comfort. The side arms allow for tool-free height adjustment up to 255 mm with smooth, one-touch movement. For further adjustments, reposition the side arms along the column for different height ranges. The arms can extend up to 722 mm from the column.
Range of motion
The articulating arms allow for tool-free horizontal swivel adjustments of +/-180° and screen rotation of +/-90° on the VESA plates for portrait or landscape orientations. The VESA mounting plates allow for screen tilt of +/-90° to provide an ideal viewing angle.
Cable management
To maintain an organized workspace, the adjustable arms feature cable management channels underneath to keep cables out of sight, reducing clutter and contributing to a clean workspace. A cable clip on the column also helps keep the workspace tidy.
The StarTech.com Advantage
This monitor desk mount is designed to support up to three 27-inch screens, creating an ergonomic multi-monitor setup that provides a large viewing area for increased productivity. The mechanically spring-assisted arms allow for multiple adjustments to accommodate various ergonomic needs.
Top installation
The unique top-screw desk clamp simplifies installation by allowing users to tighten the clamp manually from above using a hex key or drill, eliminating the need to reach under the desk. Furthermore, the desk clamp is designed with an interchangeable C-bracket and eyelet mounting to accommodate desks up to 50 mm thick, providing flexibility for various desk configurations.
Height adjustment with a smooth movement
The central monitor mount allows for height adjustments along the 483 mm column, enabling users to customize screen placement for maximum productivity and comfort. The side arms allow for tool-free height adjustment up to 255 mm with smooth, one-touch movement. For further adjustments, reposition the side arms along the column for different height ranges. The arms can extend up to 722 mm from the column.
Range of motion
The articulating arms allow for tool-free horizontal swivel adjustments of +/-180° and screen rotation of +/-90° on the VESA plates for portrait or landscape orientations. The VESA mounting plates allow for screen tilt of +/-90° to provide an ideal viewing angle.
Cable management
To maintain an organized workspace, the adjustable arms feature cable management channels underneath to keep cables out of sight, reducing clutter and contributing to a clean workspace. A cable clip on the column also helps keep the workspace tidy.
The StarTech.com Advantage
| Assembly | |
| Number of displays supported | 3 |
| Maximum weight capacity (per screen) | 7 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting type | Desk |
| Maximum load capacity | 21 kg |
| Mounting interface compatibility (min) | 75 x 75 mm |
| Mounting interface compatibility (max) | 100 x 100 mm |
| Assembly | Cable tie/cable grommet |
| Extension arm (max) | 72.2 cm |
| Desk thickness (max) | 5 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment | 225 - 562 mm |
| Angle of inclination | -90 - 90° |
| Rotation | Yes |
| Rotation angle | 90° |
| Rotation angle | -180 - 180° |
| Optimized cable management | Yes |
| Design | |
| Product color | Black |
| Case/body material | Aluminum, Plastic, Steel |
| Anti-theft function | No |
| Weight and dimensions | |
| Width | 176 mm |
| Depth | 1400 mm |
| Height | 649 mm |
| Weight | 1 kg |
| Packaging information | |
| Package width | 555 mm |
| Package depth | 395 mm |
| Package height | 115 mm |
| Package weight | 8.9 kg |
| Package contents | |
| Key included | Yes |
| Key type | Allen key |
| Mounting system included | Yes |
| VESA mount included | Yes |
| Number of cable clips | 1 |
| Screws included | Yes |
| Number of screws | 49 |
| Number of washers included | 12 |
| Number of spacers included | 12 |
| Cable grommet plate included | Yes |
| User manual | Yes |
| Logistics data | |
| Width of the main (external) locker | 570 mm |
| Length of the main (external) locker | 405 mm |
| Height of the main (external) locker | 250 mm |
| Produced by main (external) locker | 2 piece(s) |
