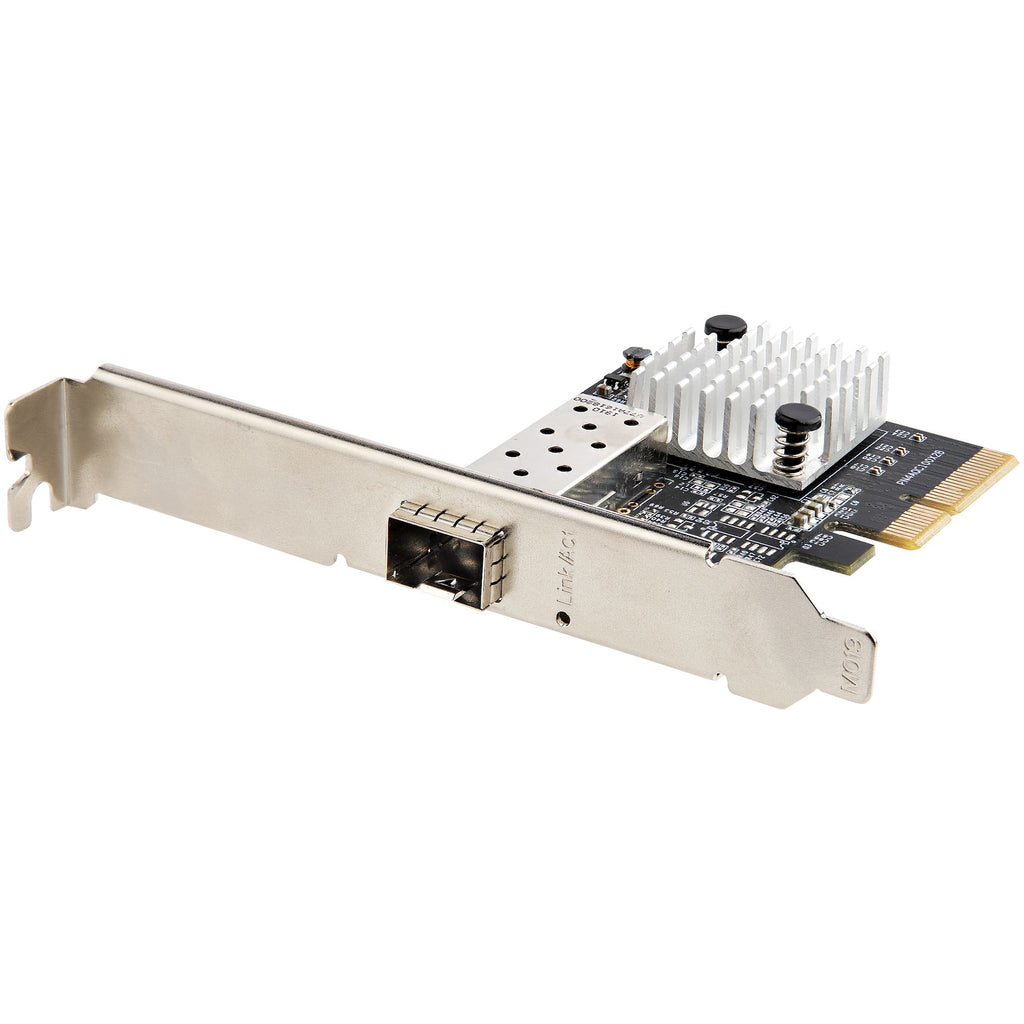

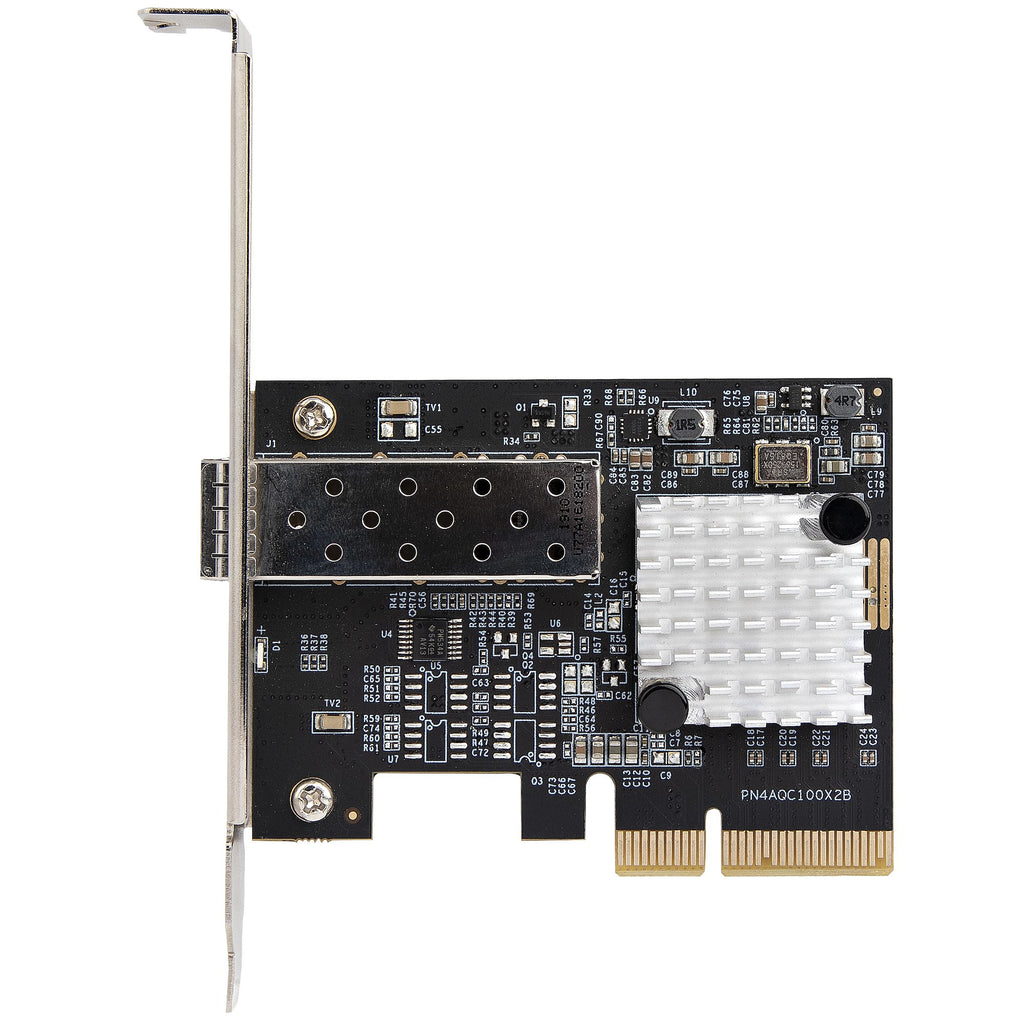

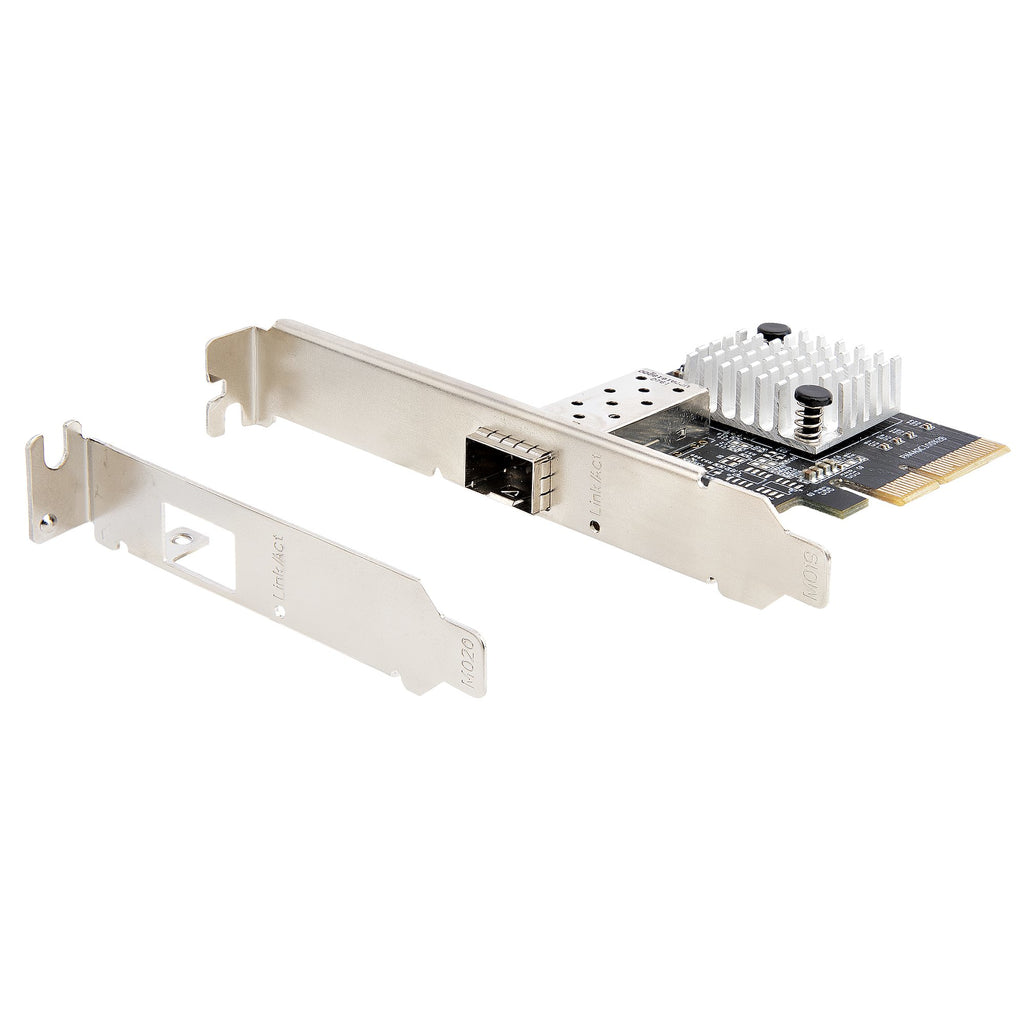

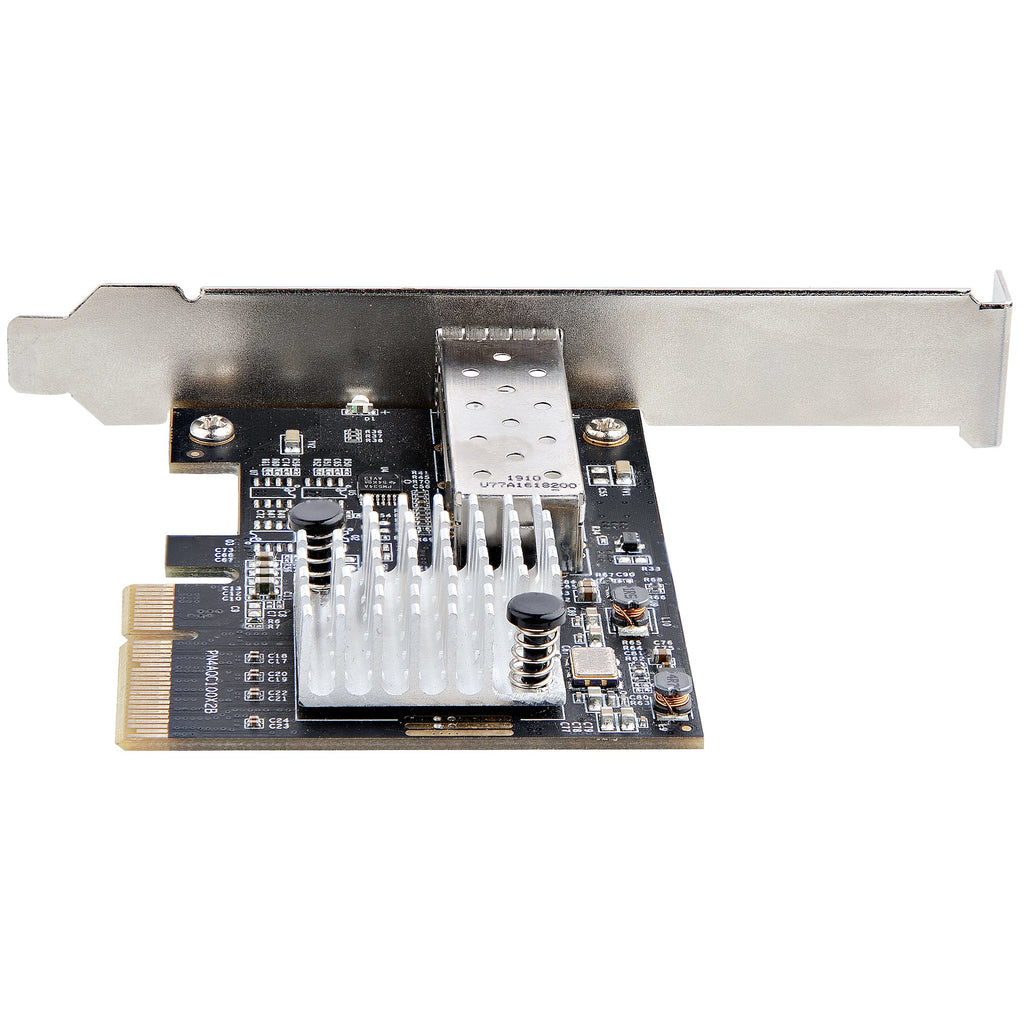

PCI Express SFP+ Card | 10Gbps | Open SFP+ slot | Fiber, copper and DAC | PCIe 3.0 x4Increase your network speedThis PCIe network card lets you enjoy enhanced bandwidth in data-intensive applications such as media streaming and large file transfers. This fiber network card delivers data transfer rates of up to 10Gbps, helping to improve speeds and reduce loading times. Scalable network connection With an open SFP+ slot, you have the flexibility to make changes as needed, simply by swapping the module used, whether fiber, copper or direct attach cables (DAC). The card is MSA compliant, allowing it to be used with modules from StarTech.com or third parties that support the MSA standard. Enhance your existing hardware The 10Gb network card easily connects via an expansion slot PCI Express 3.0 x4 available. The card comes with a standard profile bracket and includes a low profile bracket for installation in various types of computer chassis. It supports a wide variety of operating systems; including Windows, macOS and Linux.The PEX10GSFP is backed for 2 years by StarTech.com, including free 24/5 lifetime multilingual technical support.The StarTech.com Advantage
| Connectivity |
| Connectivity technology |
With wire |
| Host interface |
PCIExpress |
| Interface |
Fiber |
| Optical fiber connector |
SFP+ |
| PCI version |
3.0 |
| Network
|
| Maximum data transfer rate |
20000 Mbps |
| Network standards |
IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x |
| Full duplex |
Yes |
| Jumbo Frames support |
Yes |
| Giant frames |
9000 |
| VLAN tagging |
Yes |
| Fiber mode structure |
Multimode, Singlemode |
| Design
|
| Internal |
Yes |
| component for |
PC |
| Product color |
Black |
| Component set |
Aquantia AQC100S |
| Minimum system requirements
|
| Windows operating system support |
Yes |
| Mac operating system support |
Yes |
| Linux operating system support |
Yes |
| Environmental conditions
|
| Operating temperature |
5 - 50°C |
| Non-operating temperature |
-20 - 60°C |
| Relative operating humidity (HH) |
20 - 80% |
| Sustainability
|
| Sustainability certificates |
CE, RoHS |
| Weight and dimensions
|
| Width |
18mm |
| Depth |
94mm |
| Height |
121mm |
| Weight |
55g |
| Packaging information
|
| Package width |
210mm |
| Package depth |
145mm |
| Package height |
35mm |
| Package weight |
145g |
| Package Contents
|
| elevation hooks included |
Yes |
| Quick Installation Guide |
Yes |
| Logistics data
|
| Harmonized System Code |
85176990 |
| Width of main locker (external) |
310mm |
| Length of main locker (external) |
355mm |
| Height of main (external) locker |
235mm |
| Produced by main (external) locker |
20 piece(s) |
| Other features
|
| Flow control assistance |
Yes |
