Description

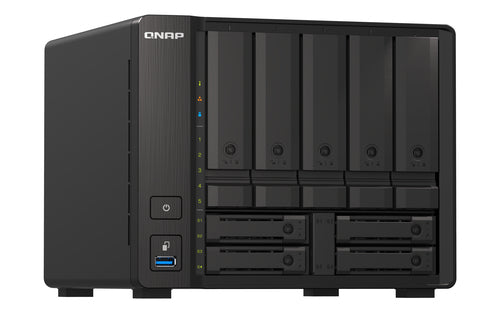

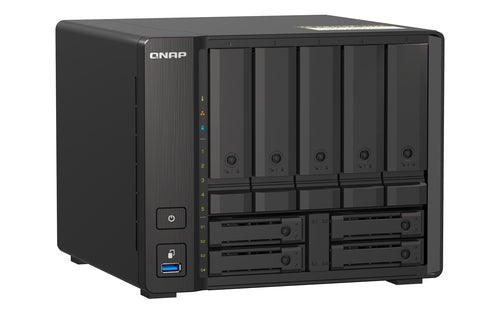

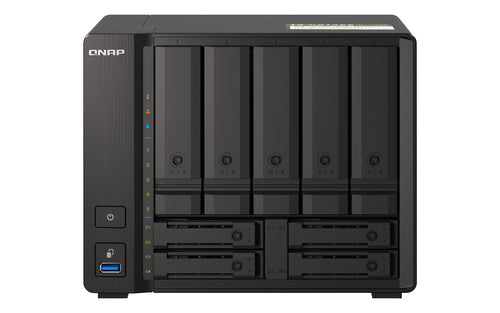

Boost business productivity with the QuTS hero quad-core 9-bay NAS that supports U.2 NVMe SSDs and 10GbE/2.5GbE connectivity
Powered by a quad-core AMD Ryzen™ V1500B processor from the V1000 series and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX delivers a high-capacity hybrid storage infrastructure in a compact physical footprint. With five 3.5-inch SATA 6Gb/s drive bays, two 2.5-inch U.2 NVMe SSD slots (slots 1 and 2 support both U.2 NVMe and SATA SSDs), and two 2.5-inch SATA 6Gb/s SSD slots, the TS-h973AX can leverage SSD caching to boost IOPS-intensive applications. Running the QuTS hero operating system on ZFS, the TS-h973AX ensures data integrity and supports inline block-level data deduplication and compression, near-unlimited snapshots, and real-time SnapSync. Thus, it can satisfy business-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and restoration with professional performance, task reliability, and reduced overall cost.
Optimized SSD performance and endurance
Install high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or SATA 6 Gb/s SSDs in the dedicated SSD slots for cache acceleration and improved random I/O.
10GbE/2.5GbE connectivity
A Multi-Gig 10GBASE-T network port and two 2.5GbE network ports accelerate virtualization, intensive file access, large backup/restore tasks, and multimedia content transfer.
SaaS Backup and Recovery
Experience a professional backup center that supports backup/restore of cloud data and VMs (including Google™ Workspace, Microsoft 365©, VMware© and Hyper-V).
Virtualization applications
Host multiple virtual machines and containers to run a wide range of applications on the TS-h973AX.
Cloud storage gateway
Cloud storage gateways enable hybrid cloud applications by working with the cache space reserved on the NAS to ensure low-latency data access to the cloud.
Flexible storage expansion
Make your total storage capacity flexible to meet your business growth by connecting USB expansion enclosures (TR series JBOD).
Absolute performance with AMD Ryzen™ and up to 64GB of RAM
Powered by an AMD Ryzen™ Embedded V1500B V1000 Series 4-core/8-thread 2.2 GHz processor with up to 64 GB of DDR4 RAM (ECC memory supported)*, the TS-h973AX delivers aggressive performance tailored to your budget and power consumption for computationally intensive applications. Support for AES-NI encryption boosts encryption performance while maintaining the security of your NAS data. You can flexibly install SSDs for cache acceleration to maximize network performance and handle large amounts of data.
Dual U.2 NVMe PCIe Gen 3 x4 SSD slots for optimal I/O and low latency
The TS-h973AX features four 2.5-inch SSD slots – with slots 1 and 2 supporting either high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or cost-effective SATA 6Gb/s SSDs. For latency-sensitive applications, you can take advantage of U.2 NVMe PCIe Gen 3 x4 SSDs, which provide up to 32Gb/s of bandwidth for optimized performance and efficiency. Alternatively, you can use QNAP's QDA adapter to replace the U.2 NVMe SSDs with M.2 NVMe SSDs to maintain high performance levels while saving money.
SSD cache acceleration
Increases IOPS performance and reduces latency for storage volumes - ideal for IOPS-intensive applications including virtualization and databases.
Coalesc writing
Transforms all random writes into sequential writes with reduced I/O, effectively increasing SSD write performance.
Overprovisioning of the pool
Flexiblely reserves dedicated space in an SSD storage pool so that new data can be written in a full block even if the pool is nearly full, improving the performance of fragmented pools.
Take advantage of the M.2 NVMe PCIe to U.2 SSD adapter
Install one or more QDA adapters in the TS-h973AX (slots 1 and 2) to cost-effectively maximize PCIe bandwidth by using an M.2 NVMe PCIe SSD instead of the U.2 SSD. This optimizes data-intensive applications and can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager. The M.2 SSD installed in the QDA adapter is hot-swappable.
Simplify large file transfers and video editing with 10GbE and 2.5GbE
The TS-h973AX features one 10GBASE-T Multi-Gig port (10G/5G/2.5G/1G/100M) and two 2.5GbE RJ45 ports (2.5G/1G/100M), providing direct support for high-speed networking and supporting Port Aggregation and Failover to strengthen your network infrastructure. In addition, QNAP offers a wide range of other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches, 2.5GbE/5GbE/10GbE PCIe cards, and 5GbE USB adapters for Windows©/Linux© workstations. This allows you to establish a high-speed network environment at an affordable price for productive team collaboration.
The QuTS hero operating system under ZFS improves NAS performance and data integrity
QuTS hero combines QTS sub-apps with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance; thus, it can handle the complexity and performance demands of modern computing. From storage management and virtualization to collaborative multimedia workflows, QuTS hero simplifies your business-critical tasks.
Data integrity is paramount.
QuTS hero's automatic repair ensures data integrity and reliability. WORM (write one, read multiple) is also supported.
Reducing data improves storage efficiency and performance
Online data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance.
Multi-level caching technology
The main memory read cache (L1 ARC), the SSD second level read cache (L2 ARC) and the ZFS Intent Log (ZIL) for synchronizing transactions with protection against power failures are supported simultaneously to boost performance and security.
RAID Z offers robust data protection
Multiple RAID levels allow for flexible use of capacity. Triple Parity and Triple Mirror RAID provide superior levels of data protection.
QSAL (QNAP SSD Wear Leveling) improves data protection
The lifespan of the SSD at the RAID level is regularly and automatically detected to prevent simultaneous failure of the SSDs, which strengthens the protection of your data and the reliability of the system.
The App Center ecosystem extends the functionality of the NAS
Applications for backup/synchronization, virtual machines/containers, content management, productivity and more features can be used to increase the application potential of the TS-h973AX.
Online data deduplication, compression, and compaction make big data storage efficient
QuTS hero supports advanced block-based data reduction technologies (including deduplication*, compression, and inline data compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same model, the storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether used as primary or backup storage, the TS-h973AX optimizes storage utilization to deliver a game-changer in the Big Data era.
Real-time SnapSync ensures minimal PDMA with real-time disaster recovery
Real-time SnapSync ensures that the primary and secondary NAS maintain identical data. If data is written to the source, it is immediately written to the destination. If the primary NAS is offline, IT staff simply need to adjust the privilege settings on the secondary NAS to ensure business continuity. SnapSync provides optimal support for uninterrupted business operations and helps users minimize the risk of data loss.
Snapshots multiply the protection provided by backups.
Gain peace of mind with virtually unlimited snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restore, and synchronization to facilitate data transfer from the TS-h973AX to another QNAP NAS, remote server, or cloud storage. HBS supports QuDedup technology, which eliminates redundant data at the source and accelerates multi-version backups.
All-in-one virtual machine and container hosting solution
You can rely on Virtualization Station and Container Station for comprehensive virtualization support. Combined with the Network & Virtual Switch app, which enhances interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows©, Linux©, UNIX©, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without requiring additional physical servers.
Container Station
Experience lightweight virtualization technologies LXC and Docker©, download apps from the built-in Docker Hub Registry©, import and export containers, and create microservices in abundance.
Unlicensed backup appliance for VMware© and Hyper-V
Thanks to Hyper Data Protector, the TS-h973AX becomes an agentless backup tool for unlimited VMware© vSphere and Microsoft© Hyper-V VM backups. Hyper Data Protector includes incremental backup, global deduplication, backup scheduling, and restore compression. Hyper Data Protector also backs up multiple VMs simultaneously, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
More productivity apps
Ubuntu and Linux Station
Run Ubuntu© applications (including apps from the Ubuntu Software Center) directly on the TS-h973AX and remotely access the Ubuntu© desktop from a web browser.
Security Counselor
A security portal to check for vulnerabilities and receive recommendations to improve NAS security. It also includes antivirus and anti-malware scanning software.
Boxafe
Protect company cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft© Office 365© to the TS-h973AX.
Qsirch
QNAP's powerful search tool, similar to Google, helps you quickly find specific images, music, videos, documents, and emails by keywords, color, and more search criteria. It also supports Qfiling to perform one-time or automatic archiving tasks based on your search criteria.
QuMagie
An AI-powered photo management app, supporting automated photo sorting with AI albums, iOS© Live Photo display and powerful search tool for the ultimate photo management and sharing solution.
HybridMount
Seamlessly integrates the NAS with leading cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can fully utilize the cloud for data storage, backup, and restoration with low-latency access.
Flexible and economical storage expansion
The storage capacity of the TS-h973AX can be expanded using USB expansion enclosures. Two TR RAID expansions (4-bay TR-004, 2-bay TR-002) can be easily connected and managed using the Storage & Snapshots Manager application.
Subscribe to the QVR Elite surveillance solution for 24/7 security
QVR Elite is QNAP's intelligent subscription-based surveillance solution that allows you to easily deploy a surveillance system with a lower total cost of ownership and greater scalability. You can allocate dedicated, independent storage space for surveillance data on the TS-h973AX and benefit from simplified camera management, storage allocation, live camera viewing, and playback. Recordings are saved as MP4 files, making them playable on virtually any device. Furthermore, QVR Elite integrates QNAP's AI solutions to establish intelligent facial recognition for retail and door access systems with the QNAP NAS. With the QVR Pro Client software installed on Windows©/Mac© or your mobile devices, taking complete control of monitored areas becomes more convenient and easy.
Powered by a quad-core AMD Ryzen™ V1500B processor from the V1000 series and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX delivers a high-capacity hybrid storage infrastructure in a compact physical footprint. With five 3.5-inch SATA 6Gb/s drive bays, two 2.5-inch U.2 NVMe SSD slots (slots 1 and 2 support both U.2 NVMe and SATA SSDs), and two 2.5-inch SATA 6Gb/s SSD slots, the TS-h973AX can leverage SSD caching to boost IOPS-intensive applications. Running the QuTS hero operating system on ZFS, the TS-h973AX ensures data integrity and supports inline block-level data deduplication and compression, near-unlimited snapshots, and real-time SnapSync. Thus, it can satisfy business-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and restoration with professional performance, task reliability, and reduced overall cost.
Optimized SSD performance and endurance
Install high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or SATA 6 Gb/s SSDs in the dedicated SSD slots for cache acceleration and improved random I/O.
10GbE/2.5GbE connectivity
A Multi-Gig 10GBASE-T network port and two 2.5GbE network ports accelerate virtualization, intensive file access, large backup/restore tasks, and multimedia content transfer.
SaaS Backup and Recovery
Experience a professional backup center that supports backup/restore of cloud data and VMs (including Google™ Workspace, Microsoft 365©, VMware© and Hyper-V).
Virtualization applications
Host multiple virtual machines and containers to run a wide range of applications on the TS-h973AX.
Cloud storage gateway
Cloud storage gateways enable hybrid cloud applications by working with the cache space reserved on the NAS to ensure low-latency data access to the cloud.
Flexible storage expansion
Make your total storage capacity flexible to meet your business growth by connecting USB expansion enclosures (TR series JBOD).
Absolute performance with AMD Ryzen™ and up to 64GB of RAM
Powered by an AMD Ryzen™ Embedded V1500B V1000 Series 4-core/8-thread 2.2 GHz processor with up to 64 GB of DDR4 RAM (ECC memory supported)*, the TS-h973AX delivers aggressive performance tailored to your budget and power consumption for computationally intensive applications. Support for AES-NI encryption boosts encryption performance while maintaining the security of your NAS data. You can flexibly install SSDs for cache acceleration to maximize network performance and handle large amounts of data.
Dual U.2 NVMe PCIe Gen 3 x4 SSD slots for optimal I/O and low latency
The TS-h973AX features four 2.5-inch SSD slots – with slots 1 and 2 supporting either high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or cost-effective SATA 6Gb/s SSDs. For latency-sensitive applications, you can take advantage of U.2 NVMe PCIe Gen 3 x4 SSDs, which provide up to 32Gb/s of bandwidth for optimized performance and efficiency. Alternatively, you can use QNAP's QDA adapter to replace the U.2 NVMe SSDs with M.2 NVMe SSDs to maintain high performance levels while saving money.
SSD cache acceleration
Increases IOPS performance and reduces latency for storage volumes - ideal for IOPS-intensive applications including virtualization and databases.
Coalesc writing
Transforms all random writes into sequential writes with reduced I/O, effectively increasing SSD write performance.
Overprovisioning of the pool
Flexiblely reserves dedicated space in an SSD storage pool so that new data can be written in a full block even if the pool is nearly full, improving the performance of fragmented pools.
Take advantage of the M.2 NVMe PCIe to U.2 SSD adapter
Install one or more QDA adapters in the TS-h973AX (slots 1 and 2) to cost-effectively maximize PCIe bandwidth by using an M.2 NVMe PCIe SSD instead of the U.2 SSD. This optimizes data-intensive applications and can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager. The M.2 SSD installed in the QDA adapter is hot-swappable.
Simplify large file transfers and video editing with 10GbE and 2.5GbE
The TS-h973AX features one 10GBASE-T Multi-Gig port (10G/5G/2.5G/1G/100M) and two 2.5GbE RJ45 ports (2.5G/1G/100M), providing direct support for high-speed networking and supporting Port Aggregation and Failover to strengthen your network infrastructure. In addition, QNAP offers a wide range of other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches, 2.5GbE/5GbE/10GbE PCIe cards, and 5GbE USB adapters for Windows©/Linux© workstations. This allows you to establish a high-speed network environment at an affordable price for productive team collaboration.
The QuTS hero operating system under ZFS improves NAS performance and data integrity
QuTS hero combines QTS sub-apps with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance; thus, it can handle the complexity and performance demands of modern computing. From storage management and virtualization to collaborative multimedia workflows, QuTS hero simplifies your business-critical tasks.
Data integrity is paramount.
QuTS hero's automatic repair ensures data integrity and reliability. WORM (write one, read multiple) is also supported.
Reducing data improves storage efficiency and performance
Online data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance.
Multi-level caching technology
The main memory read cache (L1 ARC), the SSD second level read cache (L2 ARC) and the ZFS Intent Log (ZIL) for synchronizing transactions with protection against power failures are supported simultaneously to boost performance and security.
RAID Z offers robust data protection
Multiple RAID levels allow for flexible use of capacity. Triple Parity and Triple Mirror RAID provide superior levels of data protection.
QSAL (QNAP SSD Wear Leveling) improves data protection
The lifespan of the SSD at the RAID level is regularly and automatically detected to prevent simultaneous failure of the SSDs, which strengthens the protection of your data and the reliability of the system.
The App Center ecosystem extends the functionality of the NAS
Applications for backup/synchronization, virtual machines/containers, content management, productivity and more features can be used to increase the application potential of the TS-h973AX.
Online data deduplication, compression, and compaction make big data storage efficient
QuTS hero supports advanced block-based data reduction technologies (including deduplication*, compression, and inline data compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same model, the storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether used as primary or backup storage, the TS-h973AX optimizes storage utilization to deliver a game-changer in the Big Data era.
Real-time SnapSync ensures minimal PDMA with real-time disaster recovery
Real-time SnapSync ensures that the primary and secondary NAS maintain identical data. If data is written to the source, it is immediately written to the destination. If the primary NAS is offline, IT staff simply need to adjust the privilege settings on the secondary NAS to ensure business continuity. SnapSync provides optimal support for uninterrupted business operations and helps users minimize the risk of data loss.
Snapshots multiply the protection provided by backups.
Gain peace of mind with virtually unlimited snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restore, and synchronization to facilitate data transfer from the TS-h973AX to another QNAP NAS, remote server, or cloud storage. HBS supports QuDedup technology, which eliminates redundant data at the source and accelerates multi-version backups.
All-in-one virtual machine and container hosting solution
You can rely on Virtualization Station and Container Station for comprehensive virtualization support. Combined with the Network & Virtual Switch app, which enhances interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows©, Linux©, UNIX©, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without requiring additional physical servers.
Container Station
Experience lightweight virtualization technologies LXC and Docker©, download apps from the built-in Docker Hub Registry©, import and export containers, and create microservices in abundance.
Unlicensed backup appliance for VMware© and Hyper-V
Thanks to Hyper Data Protector, the TS-h973AX becomes an agentless backup tool for unlimited VMware© vSphere and Microsoft© Hyper-V VM backups. Hyper Data Protector includes incremental backup, global deduplication, backup scheduling, and restore compression. Hyper Data Protector also backs up multiple VMs simultaneously, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
More productivity apps
Ubuntu and Linux Station
Run Ubuntu© applications (including apps from the Ubuntu Software Center) directly on the TS-h973AX and remotely access the Ubuntu© desktop from a web browser.
Security Counselor
A security portal to check for vulnerabilities and receive recommendations to improve NAS security. It also includes antivirus and anti-malware scanning software.
Boxafe
Protect company cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft© Office 365© to the TS-h973AX.
Qsirch
QNAP's powerful search tool, similar to Google, helps you quickly find specific images, music, videos, documents, and emails by keywords, color, and more search criteria. It also supports Qfiling to perform one-time or automatic archiving tasks based on your search criteria.
QuMagie
An AI-powered photo management app, supporting automated photo sorting with AI albums, iOS© Live Photo display and powerful search tool for the ultimate photo management and sharing solution.
HybridMount
Seamlessly integrates the NAS with leading cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can fully utilize the cloud for data storage, backup, and restoration with low-latency access.
Flexible and economical storage expansion
The storage capacity of the TS-h973AX can be expanded using USB expansion enclosures. Two TR RAID expansions (4-bay TR-004, 2-bay TR-002) can be easily connected and managed using the Storage & Snapshots Manager application.
Subscribe to the QVR Elite surveillance solution for 24/7 security
QVR Elite is QNAP's intelligent subscription-based surveillance solution that allows you to easily deploy a surveillance system with a lower total cost of ownership and greater scalability. You can allocate dedicated, independent storage space for surveillance data on the TS-h973AX and benefit from simplified camera management, storage allocation, live camera viewing, and playback. Recordings are saved as MP4 files, making them playable on virtually any device. Furthermore, QVR Elite integrates QNAP's AI solutions to establish intelligent facial recognition for retail and door access systems with the QNAP NAS. With the QVR Pro Client software installed on Windows©/Mac© or your mobile devices, taking complete control of monitored areas becomes more convenient and easy.
| Storage media | |
| Installed storage drives | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage units supported | 9 |
| Type of storage drive installed | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| RAID support | Yes |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III, U.2 |
| Supported storage disk sizes | 2.5, 3.5" |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID expansion | Yes |
| RAID Reconstruction | Yes |
| Hot-swappable enclosure bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4 |
| Disk roaming | Yes |
| Processor | |
| Processor family | Ryzen Embedded |
| Processor manufacturer | AMD |
| Processor model | V1500B |
| Processor frequency | 2.2 GHz |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Number of processor cores | 4 |
| Number of processor threads | 8 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory locations | 2 |
| Memory support | SO-DIMM |
| Flash memory | 5000 MB |
| Network | |
| Ethernet/LAN | Yes |
| Ethernet LAN: data transfer rate | 100,1000,2500,5000,10000 Mbit/s |
| Supported Ethernet LAN transmission speed (max.) | 10000 Mbit/s |
| Copper Ethernet cabling technology | 10GBASE-T |
| DHCP Client | Yes |
| DHCP Server | Yes |
| Support for Jumbo Frames | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Supported network protocols | IPv4, IPv6 |
| Link aggregation | Yes |
| Load balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
| Connectivity | |
| Number of LAN ethernet ports (RJ-45) | 3 |
| USB port | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 3 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Simultaneous connections | 2000 |
| Design | |
| Chassis type | Tower |
| Cooling type | Active |
| Product color | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 14 cm |
| Locking mechanism | Yes |
| Psychics | HDD, LAN, Power, SSD, Status, USB |
| Anti-theft cable port | Yes |
| Cable lock location type | Kensington |
| representation / realization | |
| Kind | NAS |
| Device class | SMEs |
| Backup function | Yes |
| Backup functions | Cloud, iSCSI LUN |
| Audible alarm | Yes |
| Multilingual support | Yes |
| Noise level | 22.9 dB |
| Third-party support | Yes |
| Image capture | Yes |
| Supported security algorithm | 256-bit AES, HTTPS, SSH |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| Integrated on/off button | Yes |
| Integrated FTP server | Yes |
| Supported browsers | Apple Safari, Google Chrome, Microsoft Internet Explorer, Mozilla Firefox |
| System journal | Yes |
| Hot exchange | Yes |
| Password authentication | Yes |
| Disk analysis | Yes |
| SMART Support | Yes |
| Shared folder | AFP, CIFS/SMB, FTP, WebDAV |
| USB copy function | Yes |
| Software | |
| Operating system installed | QuTS hero |
| Operating system version | h5.0.0 |
| Windows operating system support | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Linux operating system support | CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
| Mac operating system support | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Server operating system support | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Support for other operating systems | IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11 |
| Power | |
| Power supply location | External |
| Power supply unit (PSU) capacity | 120 W |
| Number of power supplies | 1 |
| Typical electricity consumption | 55.41 W |
| Power consumption (HDD standby) | 41.2 W |
| AC input voltage | 100-240V |
| Fan voltage | 12V |
| Weight and dimensions | |
| Width | 224.6 mm |
| Depth | 224.1 mm |
| Height | 182.7 mm |
| Weight | 3.52 kg |
| Package weight | 5.12 kg |
| Package contents | |
| External power adapter | Yes |
| Cables included | Sector, LAN (RJ-45) |
| Quantity of power cables | 1 |
| Quick Installation Guide | Yes |
| Number of screws | 56 |
| Training board key included | Yes |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Operating relative humidity (HH) | 5 - 95% |
| Off-temperature | -20 - 70 °C |
| Relative humidity level (storage) | 5 - 95% |
| Logistics data | |
| Harmonized System Code | 84714100 |
