Description

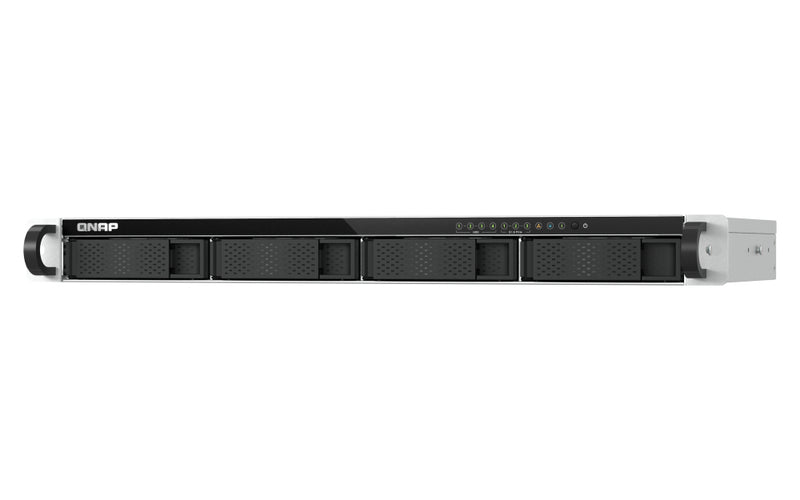

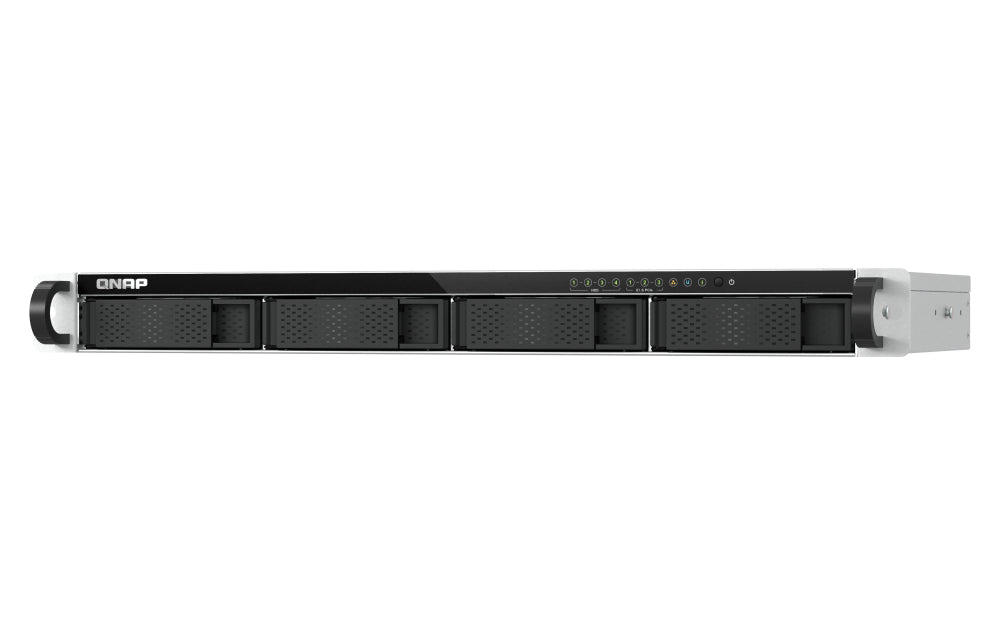

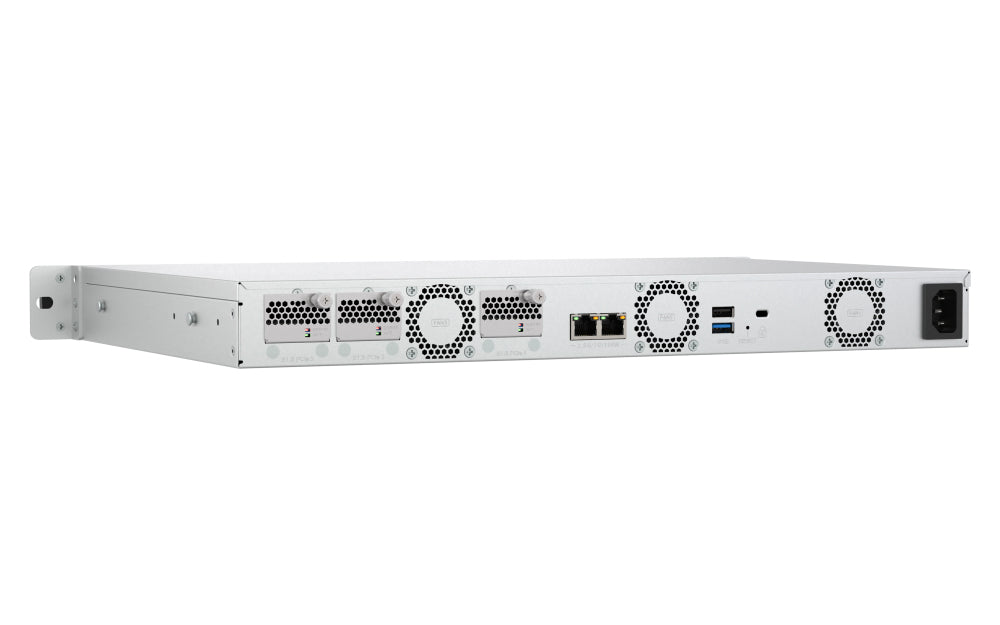

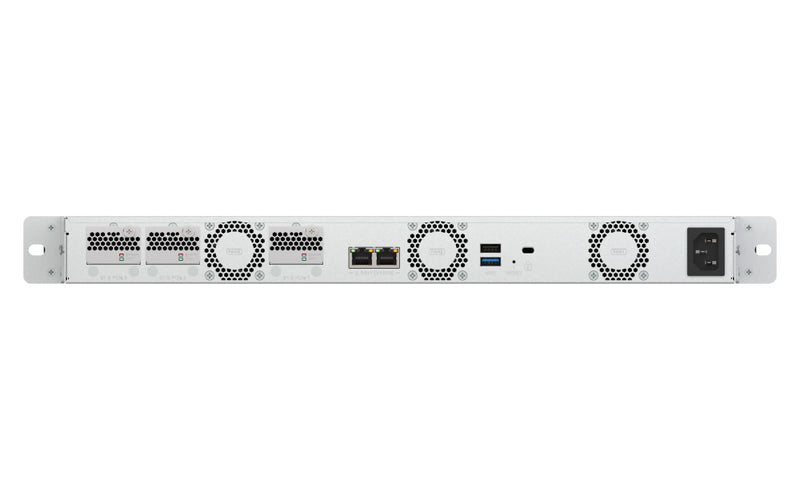

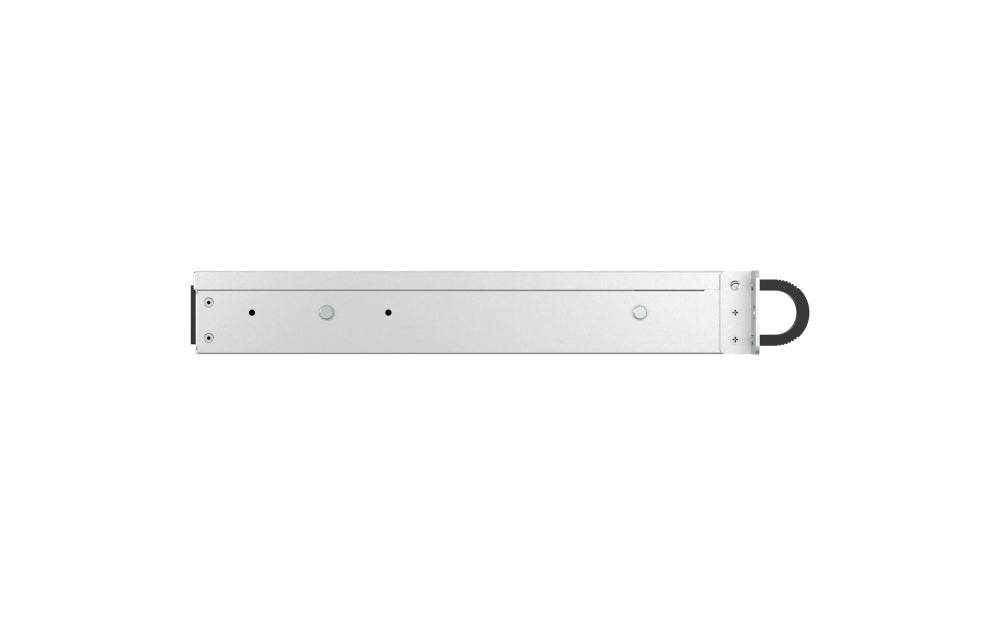

TS-h765eU
Compact 1U rackmount NAS with shallow depth, featuring E1.S/M.2 PCIe NVMe slots and 10GbE expansion capability
The TS-h765eU 1U shallow-depth rackmount NAS is designed for space-constrained environments, offering an efficient and reliable storage solution for a variety of needs. Equipped with the latest Intel® Atom x7000C Series processor, the TS-h765eU features four 3.5-inch drive bays and three PCIe NVMe E1.S/M.2 slots for exceptional scalability, making it an ideal NAS for high-performance and multitasking requirements. The TS-h765eU uses the ZFS-based QuTS hero operating system, which ensures data integrity and WORM protection for data immutability.
Compact 1U rackmount NAS with shallow depth, featuring E1.S/M.2 PCIe NVMe slots and 10GbE expansion capability
The TS-h765eU 1U shallow-depth rackmount NAS is designed for space-constrained environments, offering an efficient and reliable storage solution for a variety of needs. Equipped with the latest Intel® Atom x7000C Series processor, the TS-h765eU features four 3.5-inch drive bays and three PCIe NVMe E1.S/M.2 slots for exceptional scalability, making it an ideal NAS for high-performance and multitasking requirements. The TS-h765eU uses the ZFS-based QuTS hero operating system, which ensures data integrity and WORM protection for data immutability.
| Storage media | |
| Installed storage drives | No |
| Number of storage units supported | 4 |
| Type of storage drive installed | No |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | ATA Series II, ATA Series III |
| Supported storage disk sizes | 3.5, E1.S |
| RAID Levels | 0, 1, 5, 6, 10, 50, JBOD |
| Online RAID Migration | Yes |
| Online RAID expansion | Yes |
| RAID Reconstruction | Yes |
| Hot-swappable enclosure bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Auto Reconstruction | Yes |
| Faulty block scan | Yes |
| Disk roaming | Yes |
| Processor | |
| Processor family | Intel Atom® |
| Processor manufacturer | Intel |
| Turbo processor frequency | 3.4 GHz |
| Number of processor cores | 4 |
| Number of processors supported | 1 |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 16 GB |
| Memory locations | 1 |
| Memory support | SO-DIMM |
| Flash memory | 8000 MB |
| Network | |
| Ethernet/LAN | Yes |
| Ethernet LAN: data transfer rate | 100, 1000, 2500 Mbit/s |
| DHCP Server | Yes |
| iSCSI support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Connectivity | |
| Number of LAN ethernet ports (RJ-45) | 2 |
| USB port | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 1 |
| Simultaneous connections | 1500 |
| Design | |
| chassis type | Rack (1U) |
| Cooling type | Active |
| Product color | Black, Grey |
| Number of fans | 3 fan(s) |
| Fan diameter | 4 cm |
| Psychics | Yes |
| representation / realization | |
| Kind | NAS |
| Device class | SMEs |
| Backup function | Yes |
| Audible alarm | Yes |
| Image capture | Yes |
| Reset button | Yes |
| Integrated on/off button | Yes |
| Supported browsers | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Password authentication | Yes |
| Disk analysis | Yes |
| SMART Support | Yes |
| Remote | Yes |
| Software | |
| Operating system installed | QuTS hero |
| Operating system version | h5.2.3 |
| Windows operating system support | Windows 10, Windows 11, Windows 7, Windows 8 |
| Linux operating system support | Yes |
| Mac operating system support | Yes |
| Server operating system support | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Support for other operating systems | IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11 |
| Power | |
| Power supply location | Integrated |
| Power supply unit (PSU) capacity | 150 W |
| Number of power supplies | 1 |
| AC input voltage | 100-240V |
| AC input frequency | 50/60 Hz |
| Weight and dimensions | |
| Width | 430 mm |
| Depth | 292.1 mm |
| Height | 43 mm |
| Weight | 4.51 kg |
| Package contents | |
| Cables included | Sector |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Operating relative humidity (HH) | 5 - 95% |
| Off-temperature | 20 - 70 °C |
