Description

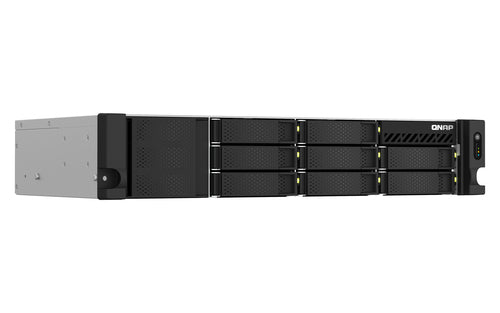

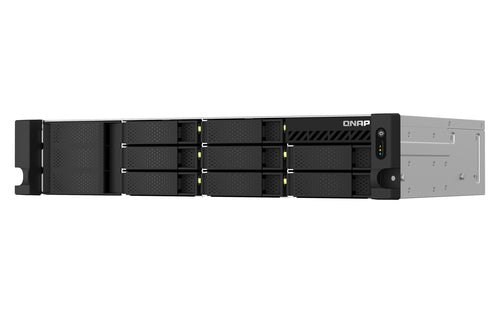

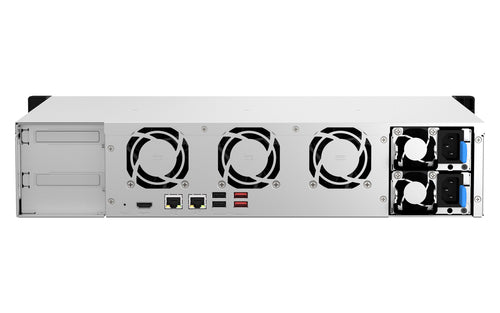

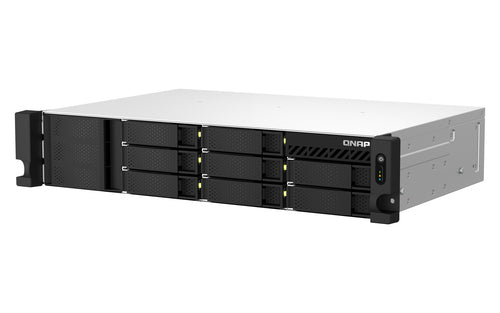

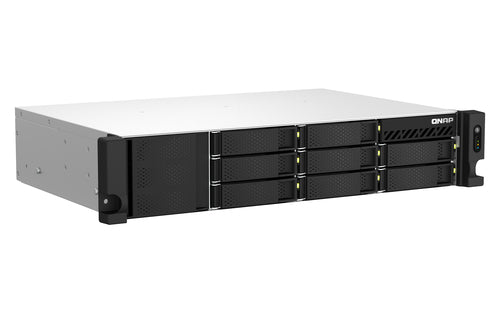

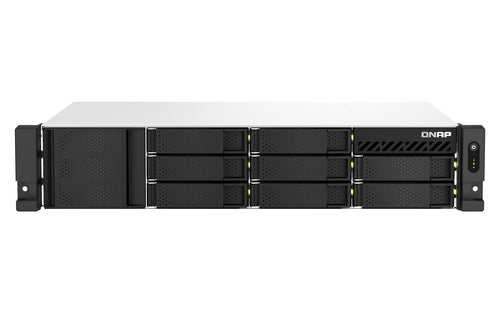

QNAP TS-864EU-RP-8G, NAS, Rack (2 U), Intel® Celeron®, N5095, 8 GB, DDR4
| storage media | |
| Installed storage drives | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage units supported | 8 |
| Type of storage drive installed | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Interface for storage unit | ATA Series III |
| RAID support | Yes |
| Supported storage drive interfaces | ATA Series II, ATA Series III |
| Supported storage disk sizes | 2.5, 3.5" |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID Migration | Yes |
| Online RAID expansion | Yes |
| RAID Reconstruction | Yes |
| Hot-swappable enclosure bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| Disk roaming | Yes |
| Processor | |
| Processor family | Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor model | N5095 |
| Turbo processor frequency | 2.9 GHz |
| Number of processor cores | 4 |
| Number of processor threads | 4 |
| Number of processors supported | 1 |
| Graphics adapter model included | Intel® UHD Graphics |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 16 GB |
| Memory locations | 2 |
| Memory support | SO-DIMM |
| Flash memory | 4000 MB |
| Network | |
| Ethernet/LAN | Yes |
| Ethernet LAN: data transfer rate | 100, 1000, 2500 Mbit/s |
| DHCP Server | Yes |
| Support for Jumbo Frames | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Connectivity | |
| Number of LAN ethernet ports (RJ-45) | 2 |
| USB port | Yes |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Number of HDMI ports | 1 |
| HDMI version | 1.4b |
| Simultaneous connections | 1500 |
| Design | |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product color | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 8 cm |
| Psychics | HDD, LAN, Power, Status |
| representation / realization | |
| Kind | NAS |
| Device class | SMEs |
| Backup function | Yes |
| Backup functions | Cloud, iSCSI LUN |
| Audible alarm | Yes |
| Multilingual support | Yes |
| Image capture | Yes |
| Management protocols | SNMP v2/3 |
| Web-based management | Yes |
| Supported security algorithm | 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3 |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| Integrated on/off button | Yes |
| Integrated FTP server | Yes |
| Supported browsers | Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari |
| System journal | Yes |
| Hot exchange | Yes |
| SMART Support | Yes |
| Software | |
| Operating system installed | QNAP Turbo System |
| Operating system version | 5,0,0 |
| Windows operating system support | Windows 10, Windows 11, Windows 7, Windows 8 |
| Linux operating system support | Yes |
| Mac operating system support | Yes |
| Server operating system support | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Support for other operating systems | Android, iOS |
| Power | |
| Power supply location | Integrated |
| Power supply unit (PSU) capacity | 300 W |
| Number of power supplies | 2 |
| Redundant Power Supply (RPS) | Yes |
| Typical electricity consumption | 55.83 W |
| Energy consumption (in standby mode) | 31,742 W |
| AC input voltage | 100-240V |
| Fan voltage | 12V |
| Weight and dimensions | |
| Width | 482.1 mm |
| Depth | 346.4 mm |
| Height | 88.6 mm |
| Weight | 7.9 kg |
| Package weight | 10.5 kg |
| Package contents | |
| External power adapter | No |
| Cables included | Sector, LAN (RJ-45) |
| Quantity of power cables | 1 |
| Rack mounting kit | Yes |
| Number of screws | 56 |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Operating relative humidity (HH) | 5 - 95% |
| Off-temperature | -20 - 70 °C |
| Relative humidity level (storage) | 5 - 95% |
| Logistics data | |
| Harmonized System Code | 84714100 |
