Description

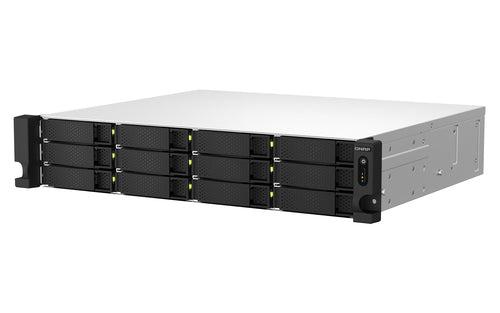

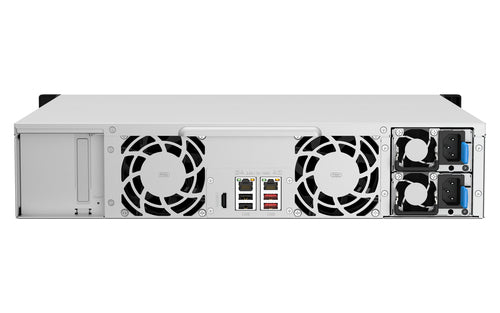

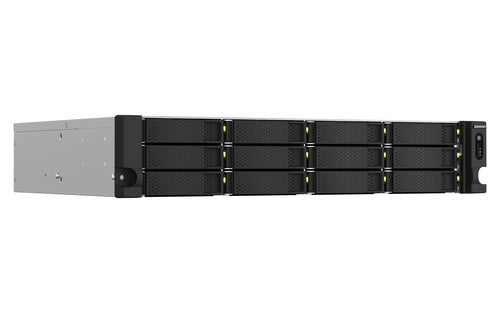

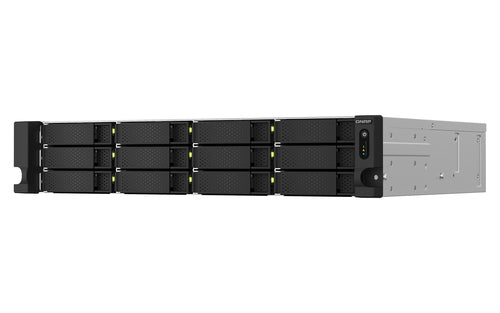

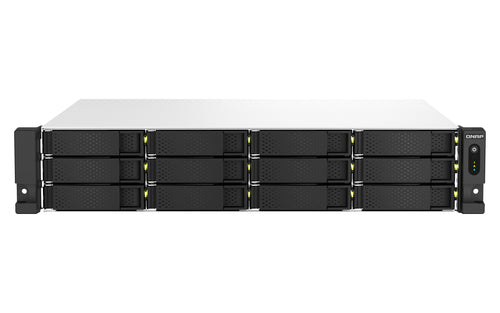

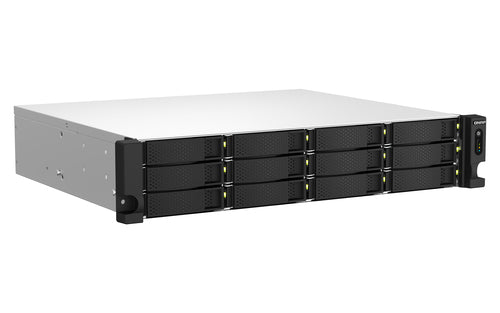

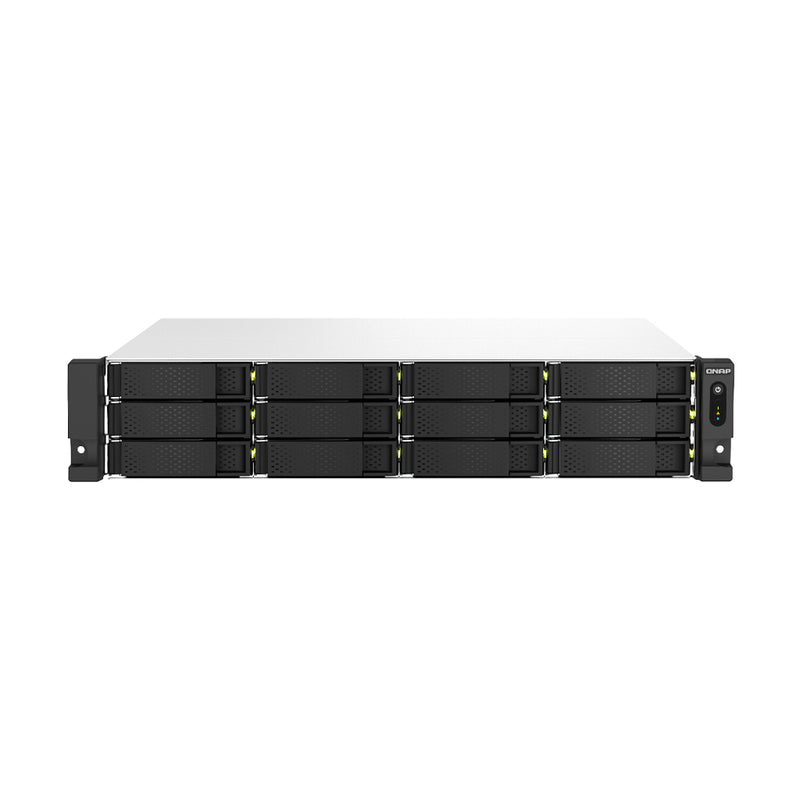

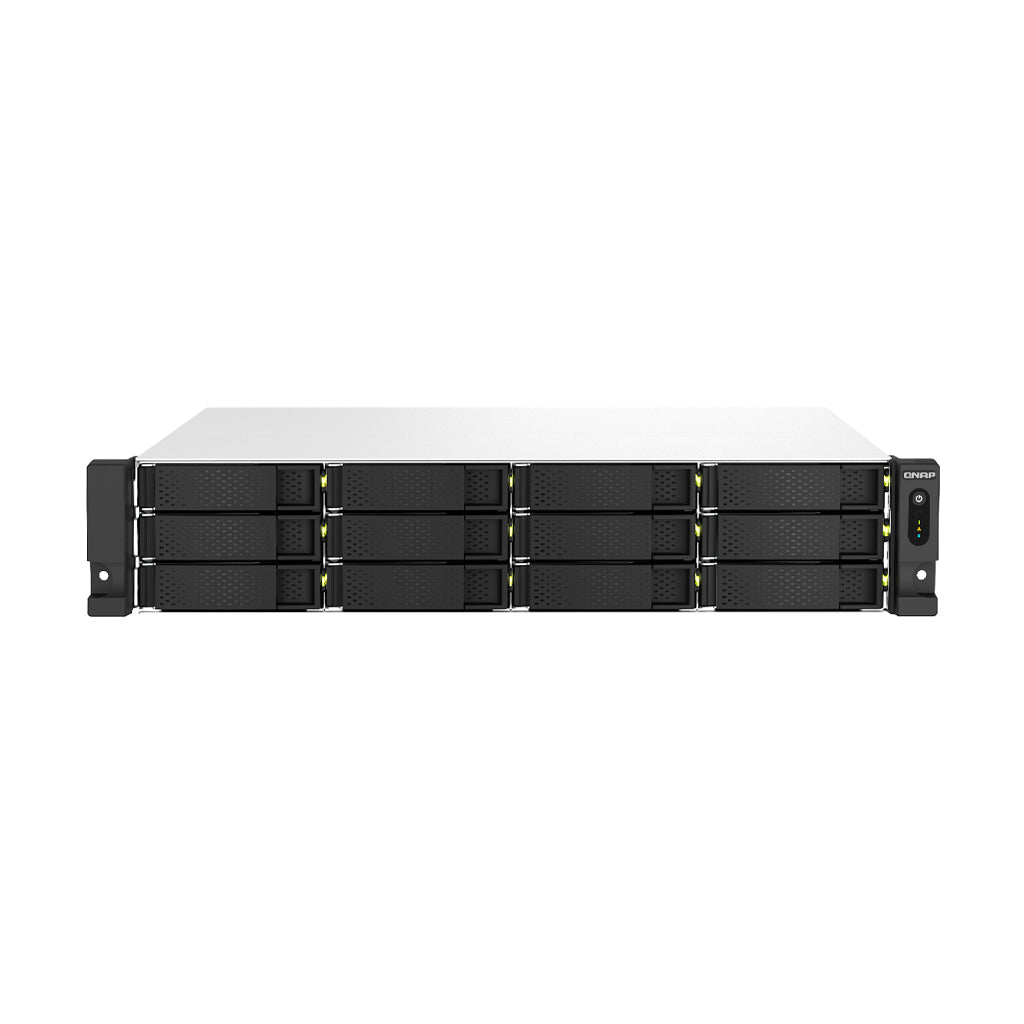

QNAP TS-1264U-RP, NAS, Rack (2 U), Intel® Celeron®, 8 GB, DDR4, 0 TB
| Storage media | |
| Installed storage drives | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage units supported | 12 |
| Type of storage drive installed | No |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | ATA Series II, ATA Series III |
| Supported storage disk sizes | 2.5, 3.5" |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID Migration | Yes |
| Online RAID expansion | Yes |
| RAID Reconstruction | Yes |
| Hot-swappable enclosure bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Faulty block scan | Yes |
| Disk roaming | Yes |
| Processor | |
| Processor family | Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor frequency | 2 GHz |
| Turbo processor frequency | 2.9 GHz |
| Number of processor cores | 4 |
| Number of processor threads | 4 |
| Graphics adapter model included | Intel® UHD Graphics |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 16 GB |
| Memory locations | 2 |
| Memory support | SO-DIMM |
| Flash memory | 4000 MB |
| Network | |
| Ethernet/LAN | Yes |
| Ethernet LAN: data transfer rate | 10, 100, 1000, 2500 Mbit/s |
| DHCP Client | Yes |
| DHCP Server | Yes |
| Support for Jumbo Frames | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Supported network protocols | PPTP, L2TP/IPSec, OpenVPN, QBelt |
| Link aggregation | Yes |
| Load balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
| WLAN adapter supported | Yes |
| Connectivity | |
| Number of LAN ethernet ports (RJ-45) | 2 |
| USB port | Yes |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Number of HDMI ports | 1 |
| HDMI version | 1.4b |
| Design | |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product color | Aluminum, Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 8 cm |
| Fan diameter 2 | 8 cm |
| Psychics | LAN, Energy, Status |
| representation / realization | |
| Kind | NAS |
| Device class | SMEs |
| Backup function | Yes |
| Backup functions | Cloud, iSCSI LUN |
| Audible alarm | Yes |
| Multilingual support | Yes |
| Image capture | Yes |
| Management protocols | SNMP |
| Web-based management | Yes |
| Managing access rights for the shared folder | Yes |
| Supported security algorithm | 256-bit AES, FIPS 140-2, HTTPS, SNMP |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| Integrated on/off button | Yes |
| Integrated FTP server | Yes |
| Supported browsers | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| System journal | Yes |
| Hot exchange | Yes |
| Disk analysis | Yes |
| SMART Support | Yes |
| Shared folder | CIFS/SMB |
| Automatic recognition of computer components | Yes |
| USB copy function | Yes |
| Software | |
| Operating system installed | QNAP QTS |
| Operating system version | 5,0,0 |
| Windows operating system support | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Linux operating system support | Ubuntu 14.04 |
| Mac operating system support | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS |
| Server operating system support | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Support for other operating systems | Solaris 10 |
| Power | |
| Power supply location | Integrated |
| Power supply unit (PSU) capacity | 300 W |
| Number of power supplies | 2 |
| Redundant Power Supply (RPS) | Yes |
| Typical electricity consumption | 70,913 W |
| Energy consumption (in standby mode) | 37.854 W |
| AC input voltage | 100-240V |
| AC input frequency | 50-60 Hz |
| Fan voltage | 12V |
| Weight and dimensions | |
| Width | 482.2 mm |
| Depth | 423.8 mm |
| Height | 88.7 mm |
| Weight | 9.43 kg |
| Package weight | 14.1 kg |
| Package contents | |
| Cables included | Sector, LAN (RJ-45) |
| Number of screws | 48 |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Operating relative humidity (HH) | 5 - 95% |
| Off-temperature | -20 - 70 °C |
| Logistics data | |
| Harmonized System Code | 84714100 |
