Description

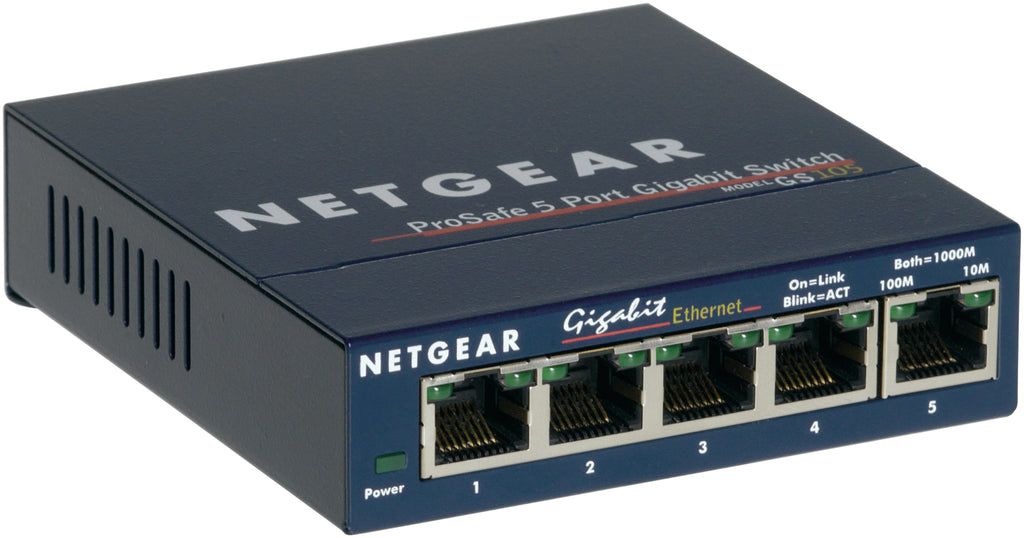

Metal casing. 5-port Gigabit Mini Switch 10/100/1000
Auto-uplink (automatic port crossing)
No need for a crossed cord for the waterfall
Robust, non-slip metal chassis for professionals
Automatic detection of speed (10, 100, or 1000 Mbps) and Half or Full Duplex mode
Network ports with integrated status indicators
Wire-speed switching performance: 10 Gigabit/second non-blocking backplane
External power supply
Free and unlimited telephone support 6 days a week
Auto-uplink (automatic port crossing)
No need for a crossed cord for the waterfall
Robust, non-slip metal chassis for professionals
Automatic detection of speed (10, 100, or 1000 Mbps) and Half or Full Duplex mode
Network ports with integrated status indicators
Wire-speed switching performance: 10 Gigabit/second non-blocking backplane
External power supply
Free and unlimited telephone support 6 days a week
| Management characteristics | |
| Switch type | Unmanaged |
| Quality of Service (QoS) | Yes |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 5 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Number of SFP modules installed | 0 |
| Number of SFP+ modules installed | 0 |
| Power connector | DC-in jack |
| Network | |
| Network standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Copper Ethernet cabling technology | 1000Base-T, 100Base-TX, 10Base-T |
| Full duplex | Yes |
| Flow control assistance | Yes |
| Data transmission | |
| MAC address book | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Recording and retransmission | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Support for Jumbo Frames | Yes |
| Design | |
| Stackable | No |
| Product color | Blue |
| Psychics | Yes |
| representation / realization | |
| Compatible operating systems | Windows, Linux, Mac OS |
| Buffer size | 128 KB |
| Average time between breakdowns | 3197945 h |
| Power | |
| Power source | CC |
| Power supply included | Yes |
| DC input voltage | 12V |
| Input current | 1 A |
| Typical electricity consumption | 3.5 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | No |
| Environmental conditions | |
| Operating temperature | 0 - 50 °C |
| Off-temperature | -20 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 10 - 95% |
| Weight and dimensions | |
| Width | 94 mm |
| Depth | 100 mm |
| Height | 27 mm |
| Weight | 261 g |
| Packaging information | |
| Types of power plugs supplied | EU |
| Logistics data | |
| Harmonized System Code | 85176990 |
| Other features | |
| Dimensions (L x W x H) | 94 x 104.1 x 27.9mm (3.7 x 4.1 x 1.1") |
