Description

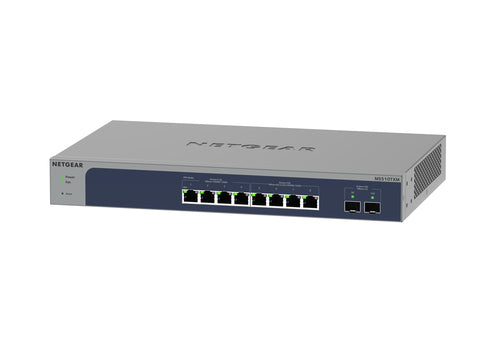

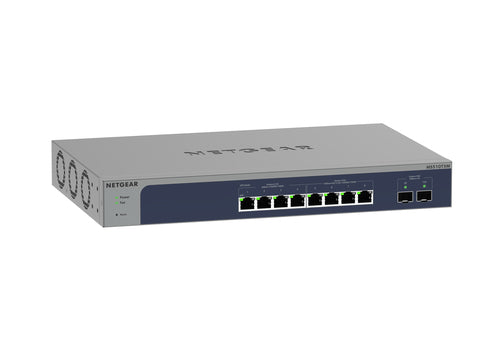

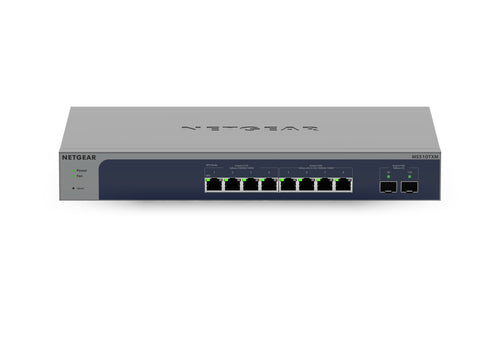

NETGEAR 8-Port Multi-Gigabit/10G Ethernet Smart Switch with 2 SFP+ Ports (MS510TXM), Managed, L2+, 10G Ethernet (100/1000/10000), Grid Mount
| Management characteristics | |
| Switch type | Managed |
| Switch bank | L2+ |
| Quality of Service (QoS) | Yes |
| Web-based management | Yes |
| Managed in the Cloud | Yes |
| System event log | Yes |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 8 |
| Basic switching RJ-45 Ethernet port type | 10G Ethernet (100/1000/10000) |
| Number of SFP+ module slots | 2 |
| Network | |
| Network standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| MAC address book | 32,000 entries |
| Switching capacity | 140 Gbit/s |
| Number of queues | 8 |
| Support for Jumbo Frames | Yes |
| Giant frames | 10000 |
| Packet cache memory | 2 MB |
| Security | |
| DHCP Functions | DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP filtering | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | WRR+SP |
| Multicasting features | |
| Support for multi-channel distribution | Yes |
| Number of filtered multicast groups | 256 |
| Design | |
| Mounting grid | Yes |
| Product color | Gray |
| Psychics | Activity, Fan failure, Connection, Energy, Speed |
| Number of fans | 2 fan(s) |
| representation / realization | |
| Integrated into the processor | Yes |
| Processor frequency | 1000 MHz |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 25 dB |
| Upgradeable firmware | Yes |
| Average time between breakdowns | 1059519 h |
| Power | |
| Power source | Sector |
| Power supply included | Yes |
| Consumption (max) | 47 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | No |
| Environmental conditions | |
| Operating temperature | 0 - 50 °C |
| Off-temperature | -20 - 70 °C |
| Operating relative humidity (HH) | 0 - 95% |
| Relative humidity level (storage) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operational altitude | 0 - 3000 m |
| Heat dissipation | 160,458 BTU/h |
| Weight and dimensions | |
| Width | 330 mm |
| Depth | 206 mm |
| Height | 43 mm |
| Weight | 2.08 kg |
| Package contents | |
| Cables included | Sector |
| User guide | Yes |
| Packaging information | |
| Rack rails | Yes |
| Logistics data | |
| Harmonized System Code | 85176990 |
