Description

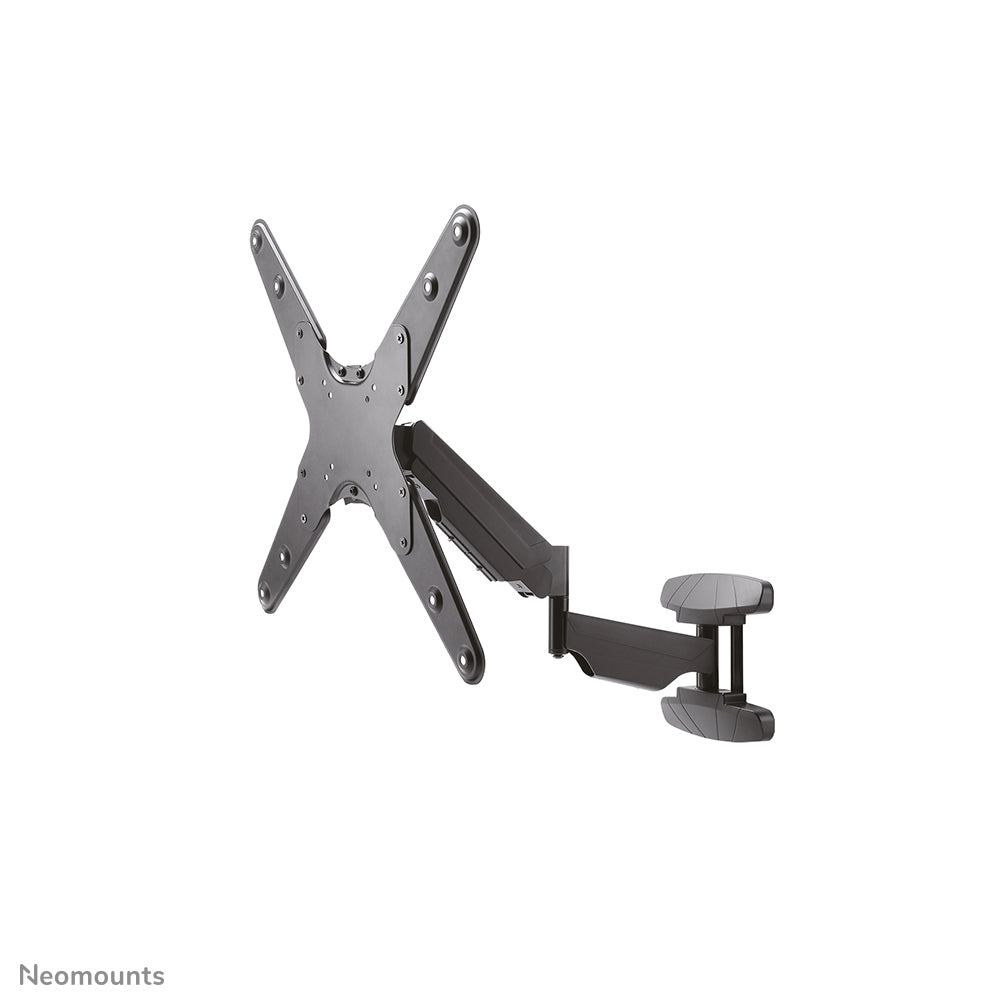

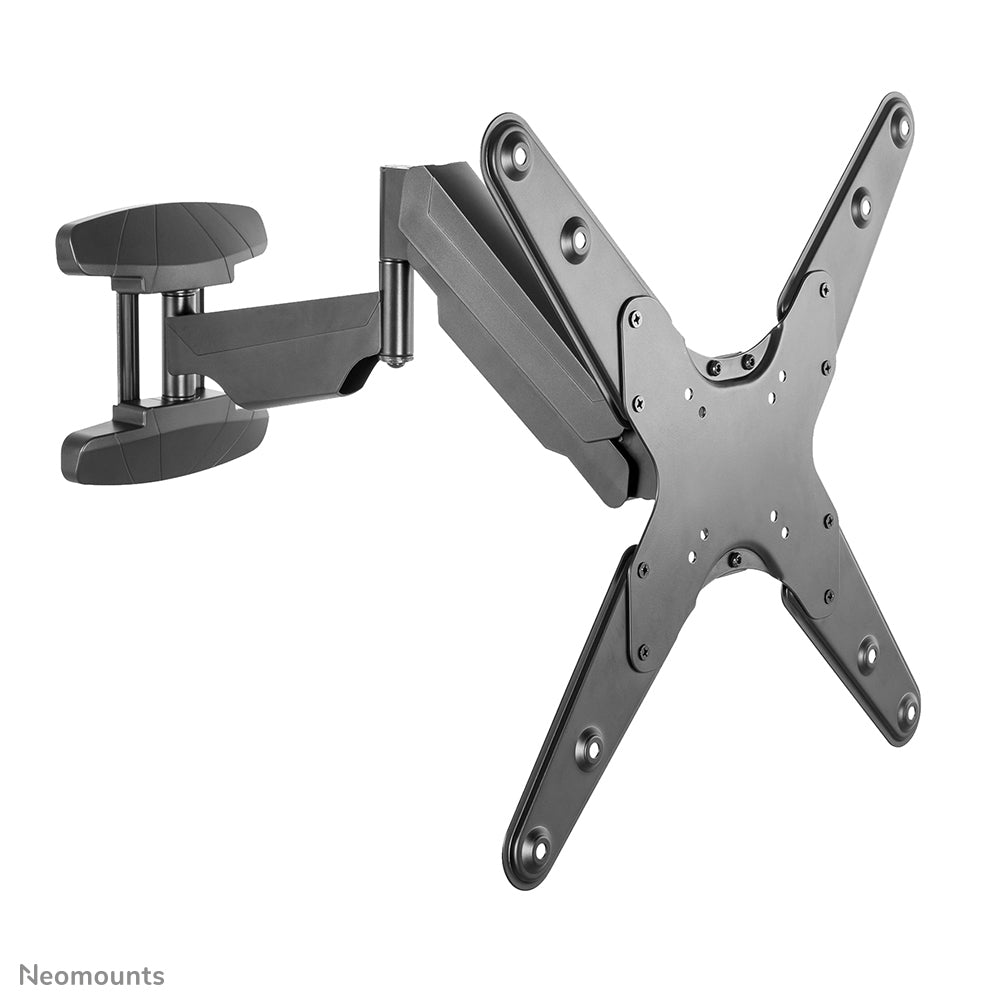

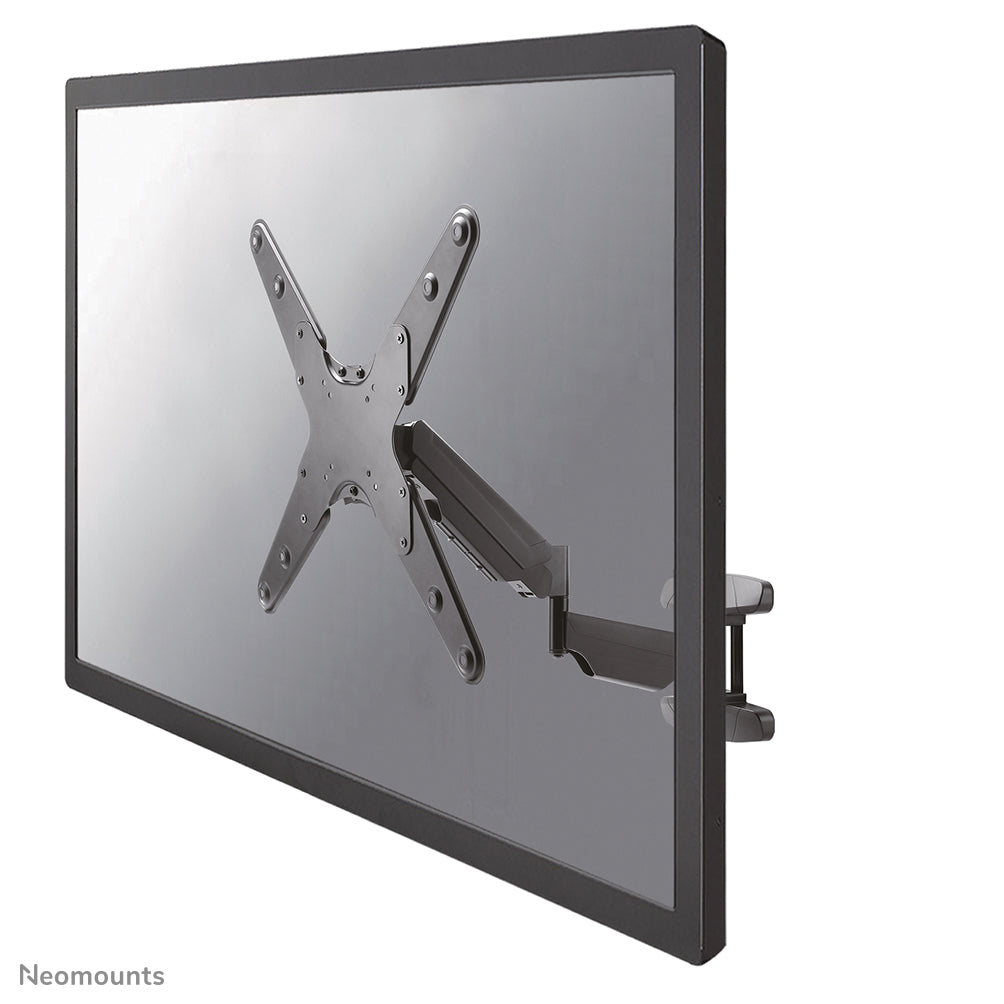

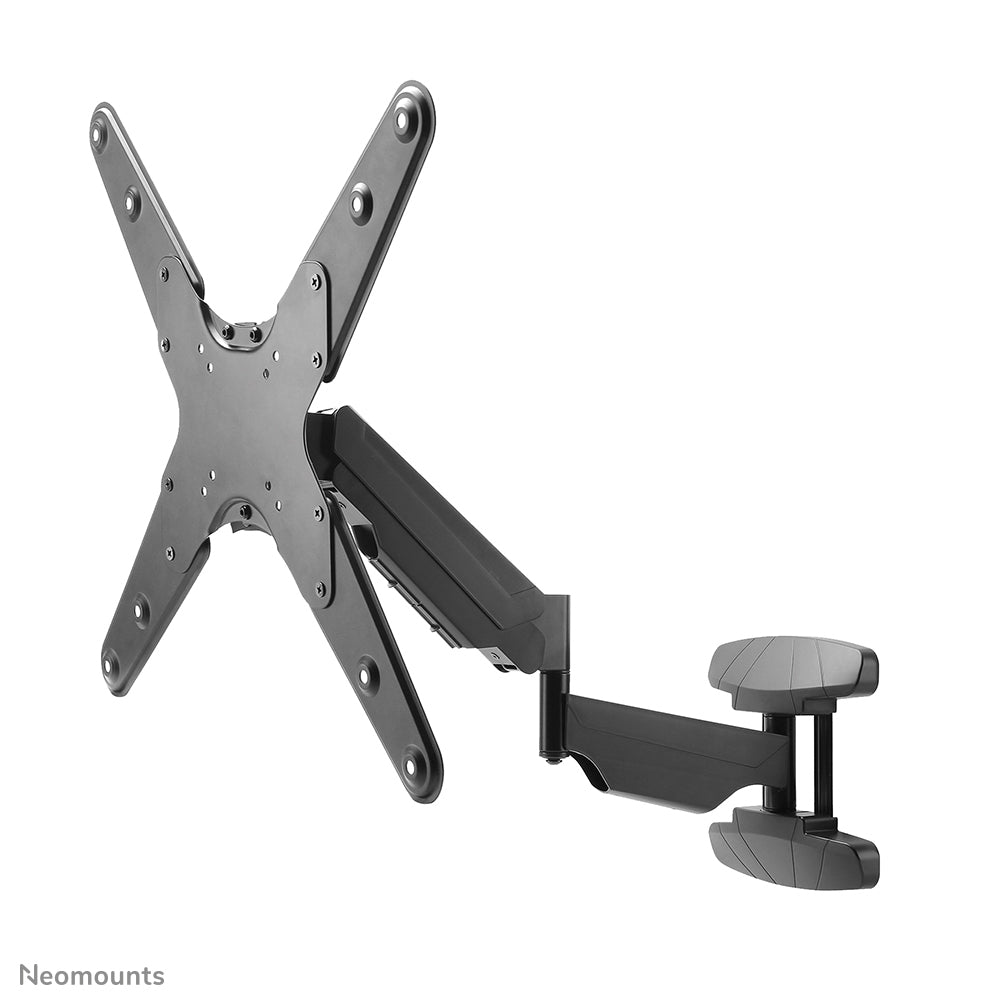

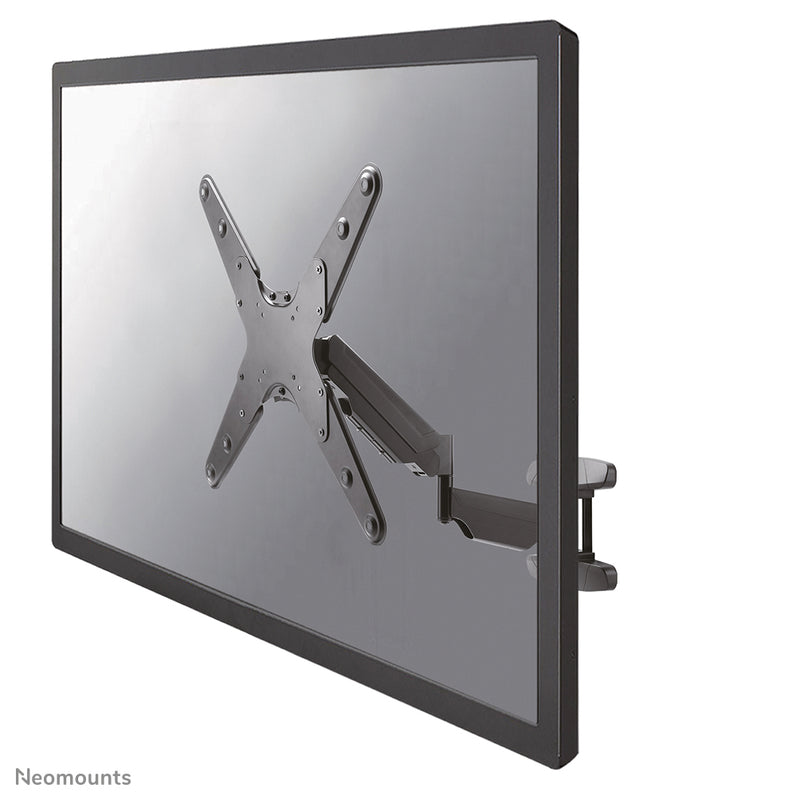

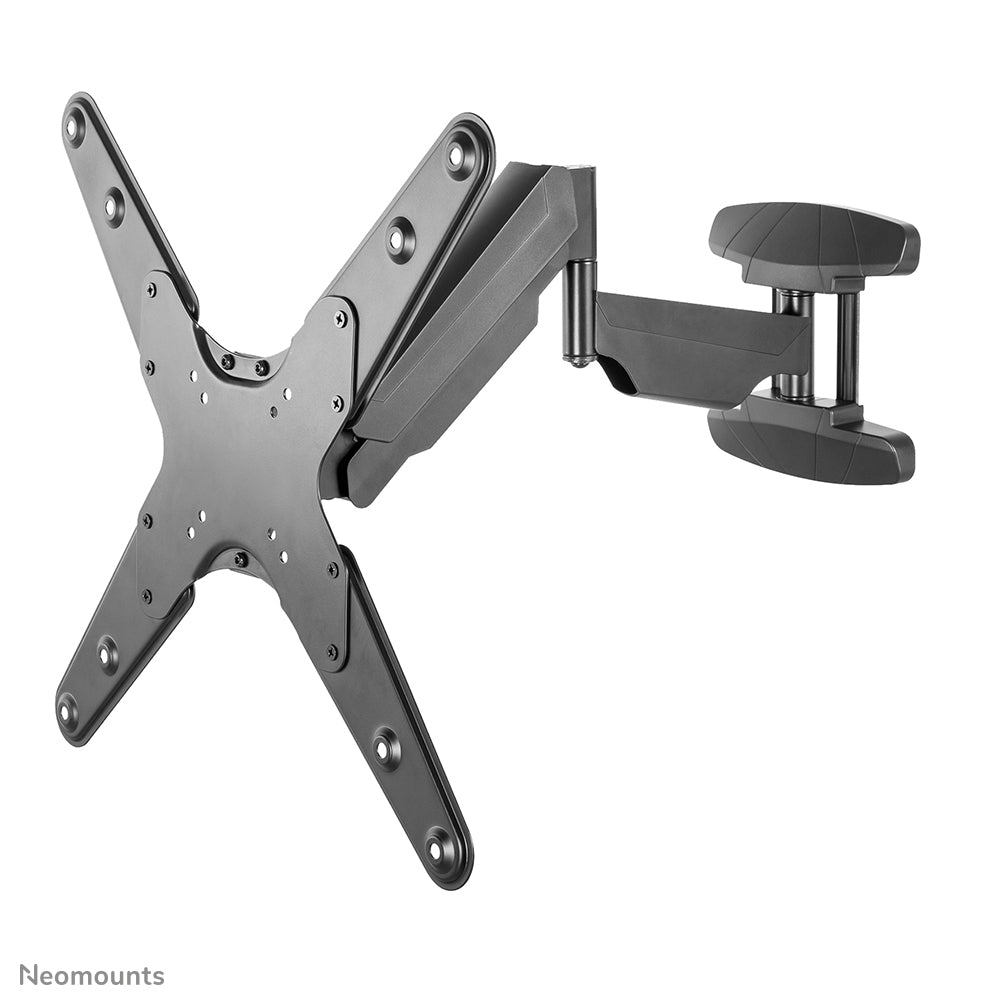

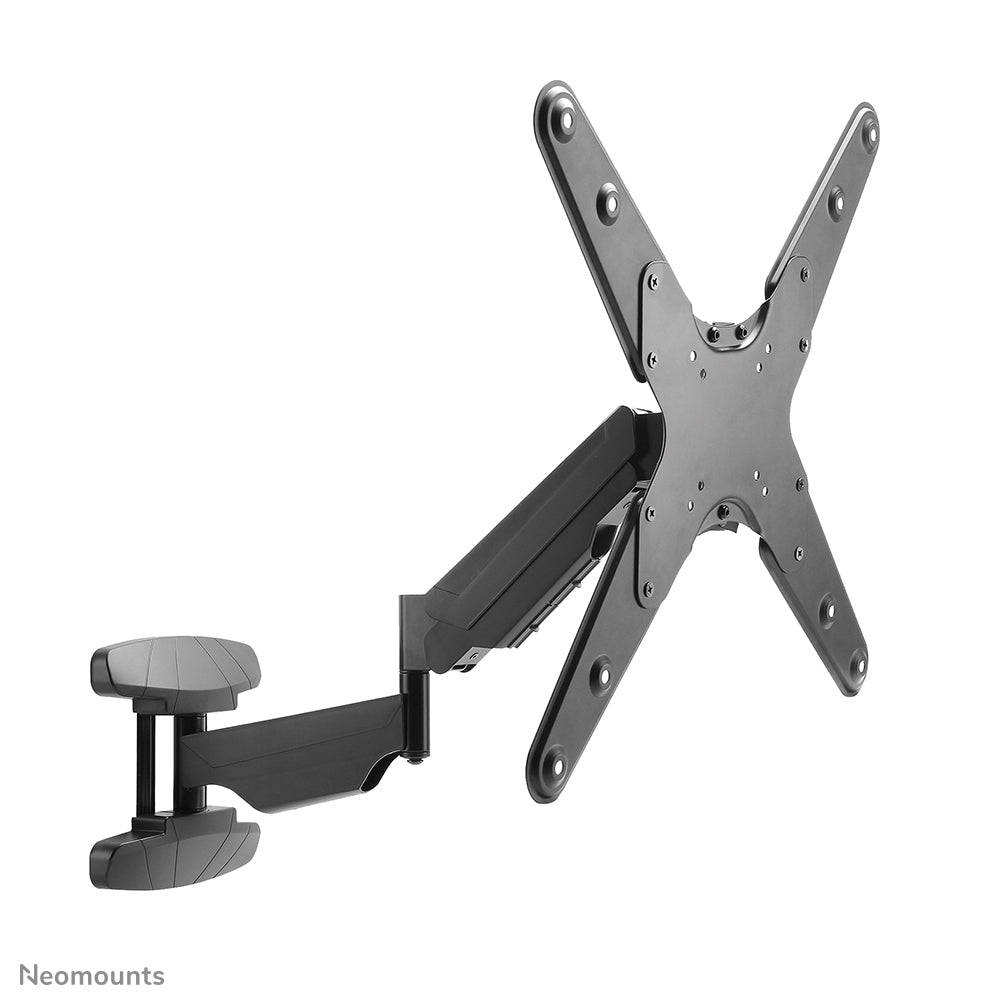

The Neomounts WL70-550BL14 is a tilting wall mount for flat screens up to 55" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimal viewing angle. The mount can be leveled for a perfect installation.
The WL70-550BL14 has a depth of 6.1-56.5 cm and is suitable for displays conforming to VESA hole pattern 75x75 to 400x400 mm.

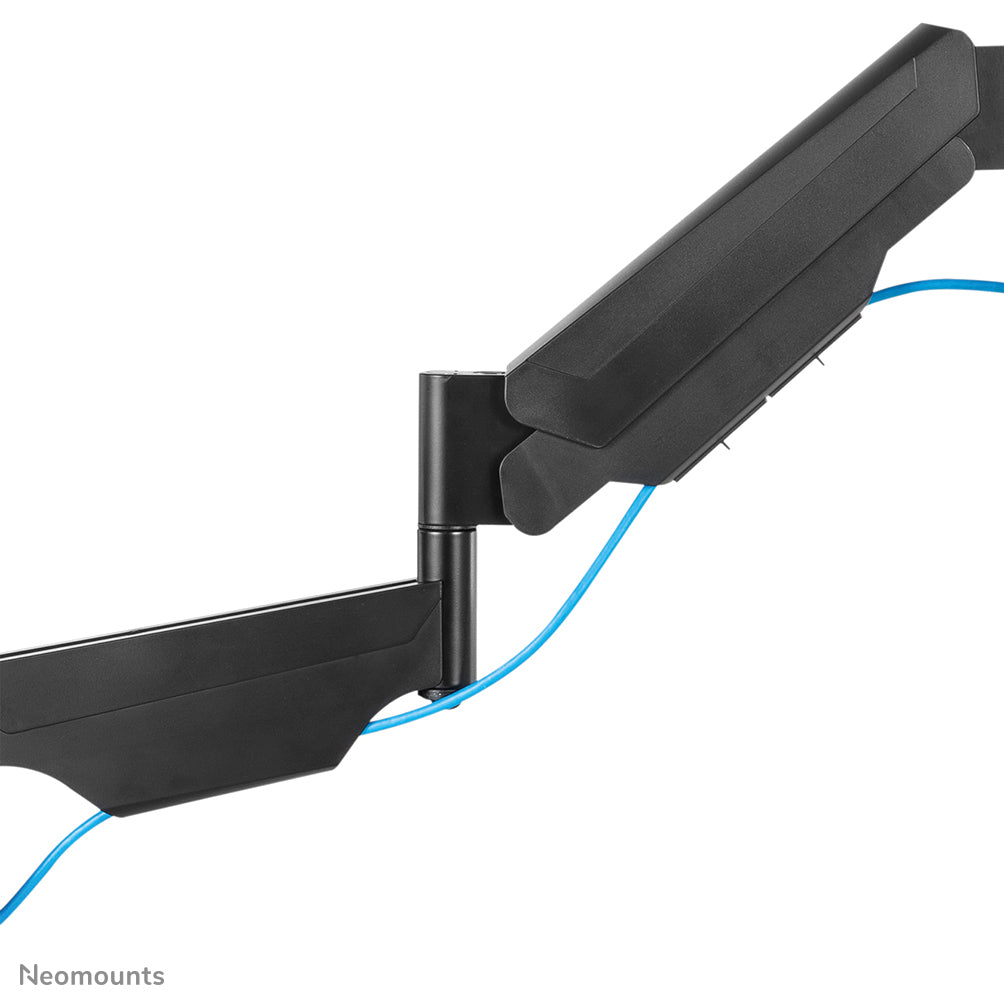

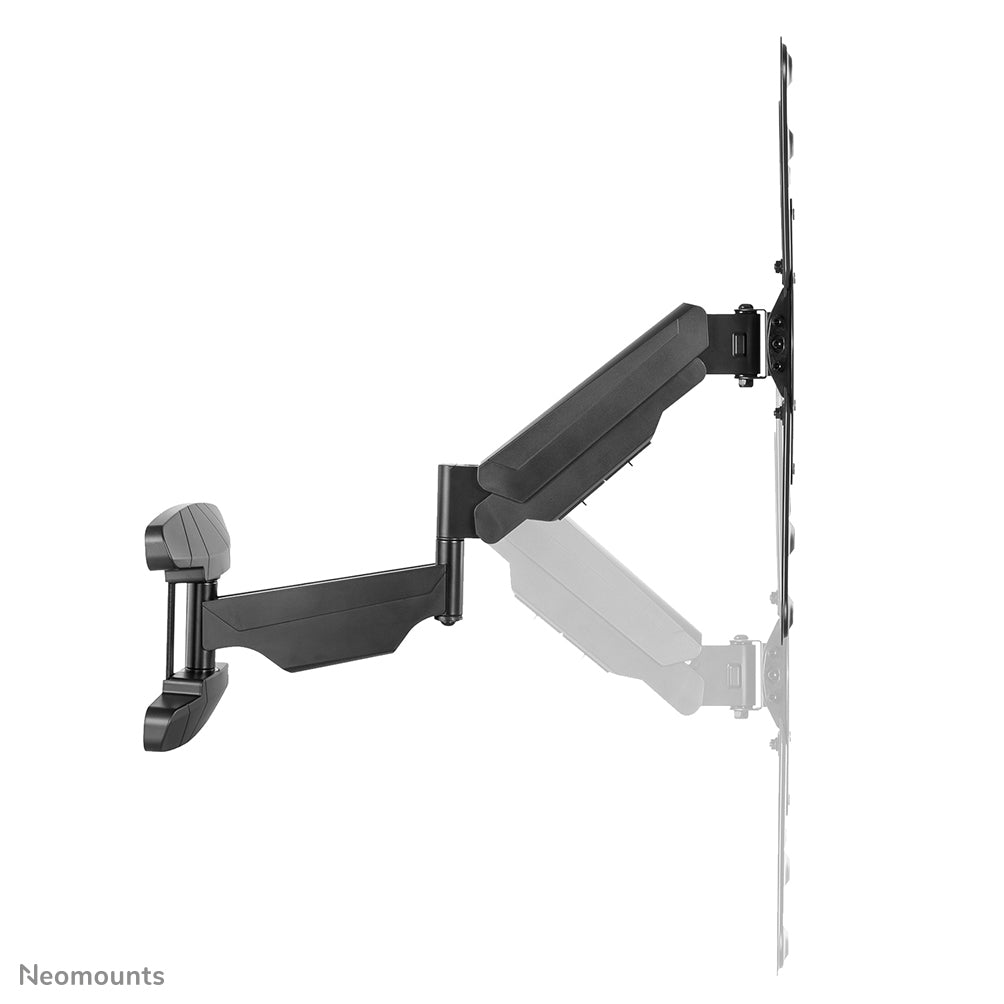

Thanks to the gas spring, the support can be easily adjusted in height. The cable management system ensures that any loose cables can be routed and secured behind the display. In addition, the wall mount is equipped with a VESA Easy-release, with which you can (un)mount the TV in the blink of an eye.
The WL70-550BL14 has a depth of 6.1-56.5 cm and is suitable for displays conforming to VESA hole pattern 75x75 to 400x400 mm.
Thanks to the gas spring, the support can be easily adjusted in height. The cable management system ensures that any loose cables can be routed and secured behind the display. In addition, the wall mount is equipped with a VESA Easy-release, with which you can (un)mount the TV in the blink of an eye.
| Assembly | |
| Maximum load capacity | 30kg |
| Maximum screen size | 139.7cm (55") |
| Mounting type | Wall |
| Minimum screen size | 81.3 cm (32") |
| Mounting interface compatibility (min) | 75 x 75mm |
| Mounting interface compatibility (max) | 400 x 400mm |
| Number of supported displays | 1 |
| Assembly | Screw |
| VESA standard | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,400 x 300 |
| Distance from wall (min) | 6.1cm |
| Distance from wall (max) | 56.5cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment | 0 - 282mm |

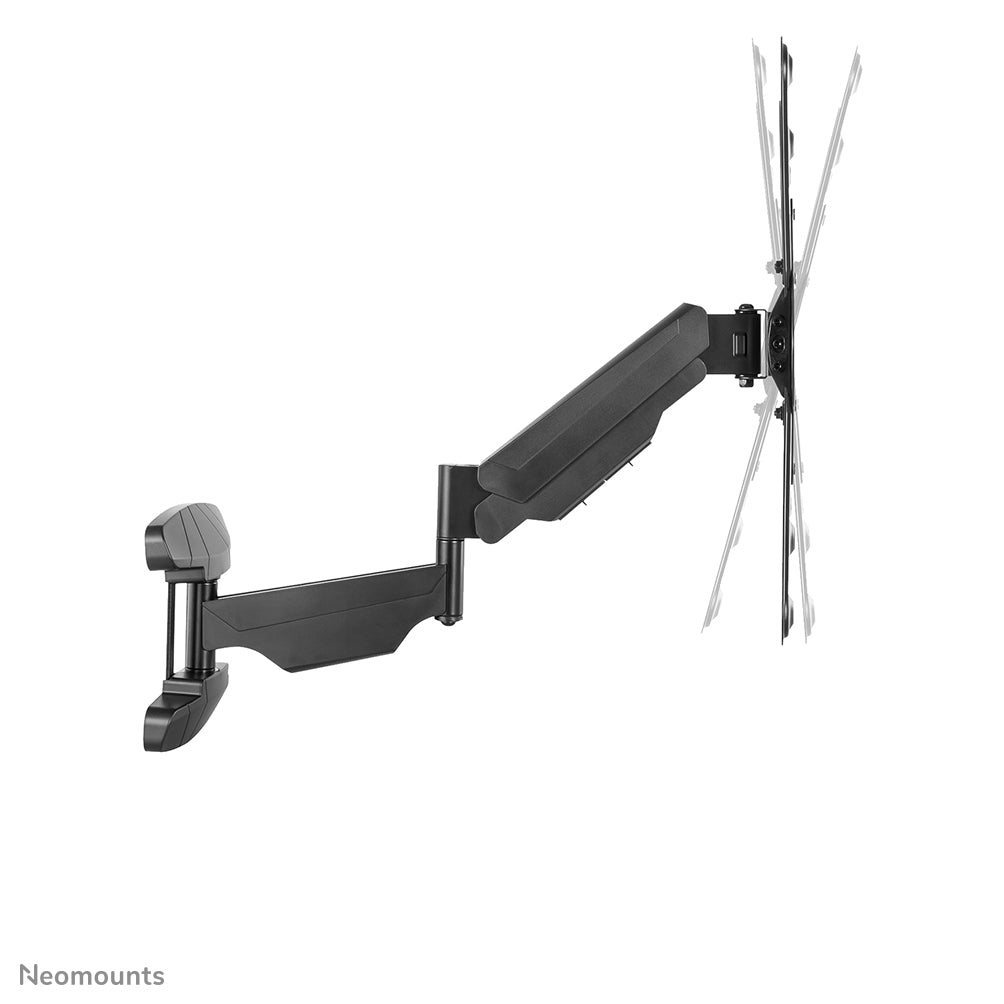

| Angle of inclination | -15 - 5° |
| Swivel angle | 180° |
| Rotation angle | 3° |
| Optimized cable management | Yes |
| Tilt adjustment | Yes |
| Design | |
| Product color | Black |
| Weight and dimensions | |
| Width | 450mm |
| Depth | 565mm |
| Height | 450mm |
| Package width | 365mm |
| Package depth | 505mm |
| Package height | 75mm |
| Net weight of packaging | 5.5kg |
| Packaging information | |
| Quantity | 1 piece(s) |
| Logistics data | |
| Width of main locker (external) | 380mm |
| Length of main locker (external) | 520mm |
| Height of main (external) locker | 345mm |
| Produced by main (external) locker | 3 pieces) |
| Net weight of master carton | 13.8 kg |
| Harmonized System Code | 7326909890 |
| Products per pallet (EU) | 72 piece(s) |
| Other features | |
| Native country | China |
