Description

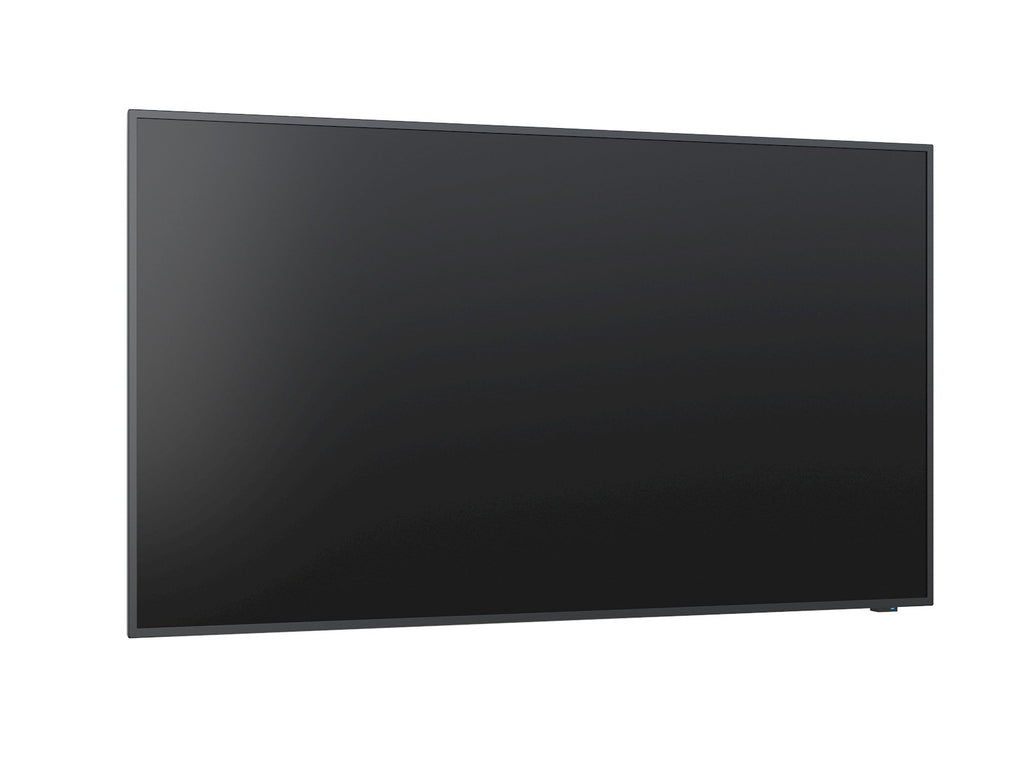

NEC MultiSync E328-2, Digital Signage Flat Panel Display, 81.3 cm (32"), LCD, 1920 x 1080 pixels, 16:7
| Screen | |
| Screen size | 81.3 cm (32") |
| Display technology | LCD |
| Screen resolution | 1920 x 1080 pixels |
| Screen brightness | 400 cd/m² |
| Type HD | Full HD |
| Touch screen | No |
| Panel type | IPS |
| LED Backlight | Yes |
| LED Backlight | Direct LED |
| Image format | 16:9 |
| Response time | 9 ms |
| Contrast ratio | 1100:1 |
| Horizontal viewing angle | 178° |
| Vertical viewing angle | 178° |
| Number of colors displayed | 16.7 million colors |
| No pixel | 0.364 x 0.364 mm |
| Active display area (W x H) | 698 x 393 mm |
| Screen diagonal (cm) | 80 cm |
| Horizontal scanning domain | 15 - 136 kHz |
| Vertical scan frequency | 24 - 75 Hz |
| Native refresh rate | 60 Hz |
| Distribution rate | 28% |
| Connectivity | |
| Number of HDMI ports | 6 |
| USB port | Yes |
| Ethernet/LAN | Yes |
| Number of HDMI input ports | 3 |
| Number of HDMI output ports | 3 |
| VGA (D-Sub) input ports | 1 |
| Number of USB ports | 2 |
| USB version | 2.0 |
| USB connector | USB Type-C |
| Number of LAN ethernet ports (RJ-45) | 1 |
| Ethernet LAN: data transfer rate | 100 Mbit/s |
| Audio Output (Left, Right) | 1 |
| PC Audio Input | Yes |
| Speaker output | 1 |
| RS-232 Interface | Yes |
| Command (IR) input | 1 |
| Audio | |
| Built-in speakers | Yes |
| Number of built-in speakers | 2 |
| Rated RMS power | 10 W |
| Design | |
| Product design | Digital signage flat screen |
| Product color | Black |
| Installation included | Interior |
| VESA mount | Yes |
| Layout | horizontal |
| Screen shape | Flat |
| VESA standard | 100 x 100 mm |
| Frame width (at the bottom) | 1.39 cm |
| Frame width (side) | 1.25 cm |
| Frame width (at the top) | 1.25 cm |
| representation / realization | |
| Utility | Universal |
| Ambient light sensor | Yes |
| service hours (hours/days) | 16/7 |
| Power | |
| Typical electricity consumption | 33 W |
| Energy consumption (standby mode) | 2 W |
| Input voltage | 100-240 V |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | E |
| Energy consumption (SDR) for 1000 hours | 27 kWh |
| Energy consumption (HDR) for 1000 hours | 27 kWh |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency range | A to G |
| Computer system | |
| Supported video format | MP4, MPG, TS |
| Supported audio formats | MP3 |
| Supported image formats | JPG |
| Weight and dimensions | |
| Display width | 726.6 mm |
| Display depth | 67.1 mm |
| Display height | 422.3 mm |
| Display the weight | 5.3 kg |
| Package contents | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | Sector, HDMI |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Operating relative humidity (HH) | 10-80% |
| Off-temperature | -10 - 60 °C |
| Relative humidity level (storage) | 5 - 85% |
