Description

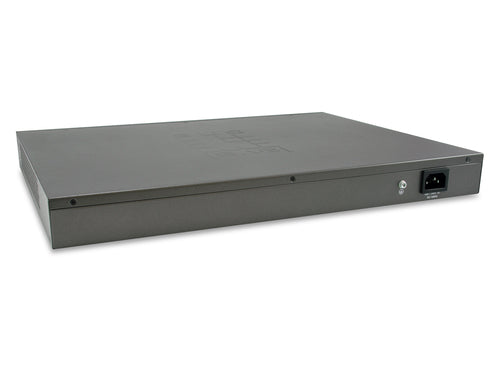

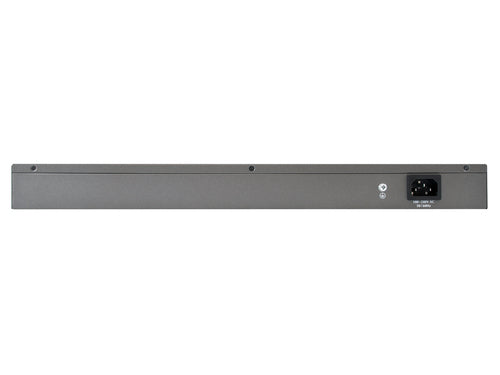

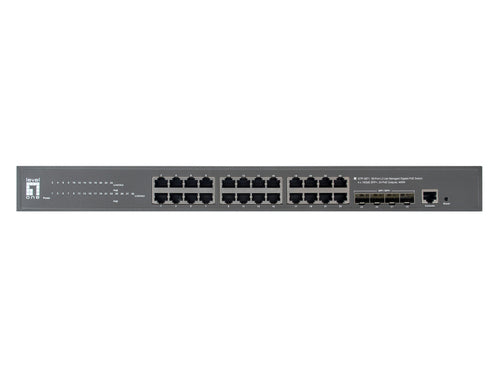

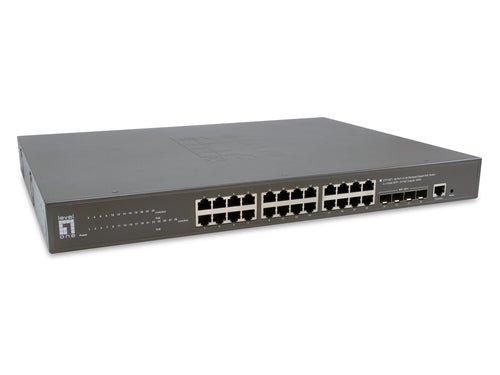

LevelOne GTP-2871, Managed, Layer 3, Gigabit Ethernet (10/100/1000), Full duplex, Ethernet connection, supporting Power over Ethernet (PoE), Mounting bracket
| Management characteristics | |
| Switch type | Managed |
| Switch bank | L3 |
| Quality of Service (QoS) | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| ARP Inspection | Yes |
| Configuring location settings (CLI) | Yes |
| System event log | Yes |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 24 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Number of Gigabit Ethernet ports (copper) | 24 |
| Number of SFP+ module slots | 4 |
| Fibre Channel Ports | 4 |
| Fiber optic connector | SFP+ |
| Power connector | AC input socket |
| Network | |
| Network standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Flow rate limitation | Yes |
| Spanning Tree Protocols (STP) | Yes |
| Ethernet LAN: data transfer rate | 10, 100, 1000 Mbit/s |
| Data transmission | |
| MAC address book | 16,000 entries |
| Switching capacity | 128 Gbit/s |
| Transfer rate | 95,232 Mpps |
| Recording and retransmission | Yes |
| Static route | Yes |
| Maximum data transfer rate | 10 Gbit/s |
| Support for Jumbo Frames | Yes |
| Giant frames | 12000 |
| Packet cache memory | 1.5 MB |
| Security | |
| DHCP Functions | DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP filtering | Yes |
| IGMP Proxy | Yes |
| Authentication | MAC address authentication |
| Authentication type | RADIUS |
| Queue scheduling algorithms | Priority queuing (PQ), Weighted Round Robin (WRR) |
| Multicasting features | |
| Support for multi-channel distribution | Yes |
| Design | |
| Mounting grid | Yes |
| Product color | Gray |
| Case/body material | Metal |
| Reset button | Yes |
| Psychics | Yes |
| representation / realization | |
| Virtual stacking (units) | 4 |
| Internal memory | 512 MB |
| Flash memory | 32 MB |
| Upgradeable firmware | Yes |
| Plug and Play | Yes |
| Average time between breakdowns | 150,000 h |
| Power | |
| AC input voltage | 100-240V |
| AC input frequency | 50-60 Hz |
| Input current | 6 A |
| Typical electricity consumption | 468.2 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | Yes |
| Port powered by PoE (Power over Ethernet) | 30 W |
| Total Power over Ethernet (PoE) budget | 400 W |
| Environmental conditions | |
| Operating temperature | 0 - 45 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 95% |
| Weight and dimensions | |
| Width | 330 mm |
| Depth | 440 mm |
| Height | 44.5 mm |
| Weight | 4.48 kg |
| Package contents | |
| Cables included | Sector |
| Quick Start Guide | Yes |
| Rack mounting kit | Yes |
| Packaging information | |
| Rubber feet | Yes |
| Resource CD | Yes |
| Package width | 390 mm |
| Package depth | 596 mm |
| Package height | 80 mm |
| Package weight | 6 kg |
| Certificate | |
| Certificates of conformity | RoHS |
| Certification | THIS |
| Logistics data | |
| Country of origin | China |
| Harmonized System Code | 85176990 |
