Description
Gigabit speeds: Take your data to the next level

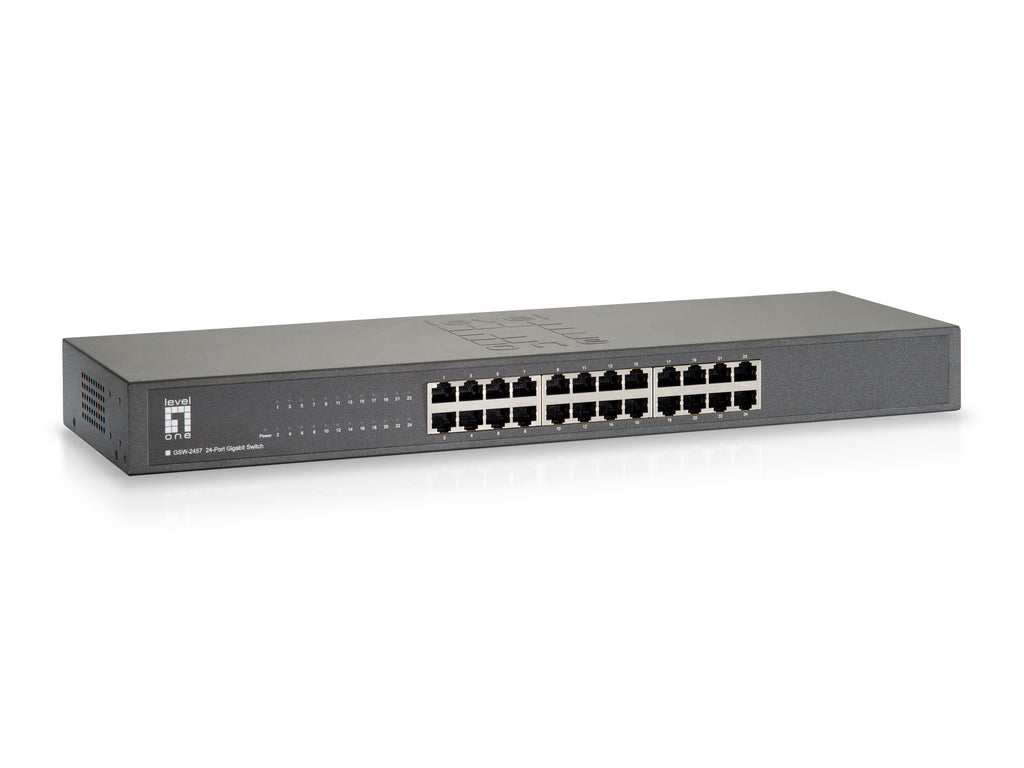

The GSW-2457 is a 24-port Gigabit Ethernet switch that offers a high-performance, cost-effective, and easy-to-use upgrade to boost your network speeds up to 1000Mbps. Increase your backbone network speed to a blazing 48Gbps and bring all your computers up to Gigabit speeds.
Need high bandwidth? No problem.
What happens if you have multiple users connecting to multimedia applications simultaneously? Don't worry, the GSW-2457 allows you to transfer large files faster and more easily. Transfer your CGI, CAD, video, or other large multimedia files instantly over the network without lag.
Based on standards
The GSW-2457 features a non-blocking switching architecture that transmits and filters packets at maximum wire speed for maximum throughput. With automatic MAC address learning and aging, IEEE 802.3x flow control for full-duplex mode, and backpressure for half-duplex mode, you have powerful features for sending your data across the network.
Plug and Play, flexible and easy
The GSW-2457 is plug-and-play and requires no configuration. Equipped with automatic MDI/MDI-X cable detection on all ports, it eliminates the need for crossover cables or uplink ports. Each port can be used as a general port or uplink port, and each port simply connects to a server, hub, router, or switch using a straight or crossover cable. Diagnostic LEDs display link status and activity, allowing you to quickly detect and correct problems on your network.
Key Features
- 24 Gigabit Ethernet ports
- Cable transmission and reception at speeds of 10/100/1000Mbps
- Jumbo frame transfer rate of 10K to increase data
- Supports 8K MACs with self-learning and self-aging capabilities
- QoS control for traffic prioritization and bandwidth management
- IEEE 802.3x flow control protects against packet loss for reliable data transmission
- 60cm mounting kit included
- Quick and easy installation
The GSW-2457 is a 24-port Gigabit Ethernet switch that offers a high-performance, cost-effective, and easy-to-use upgrade to boost your network speeds up to 1000Mbps. Increase your backbone network speed to a blazing 48Gbps and bring all your computers up to Gigabit speeds.
Need high bandwidth? No problem.
What happens if you have multiple users connecting to multimedia applications simultaneously? Don't worry, the GSW-2457 allows you to transfer large files faster and more easily. Transfer your CGI, CAD, video, or other large multimedia files instantly over the network without lag.
Based on standards
The GSW-2457 features a non-blocking switching architecture that transmits and filters packets at maximum wire speed for maximum throughput. With automatic MAC address learning and aging, IEEE 802.3x flow control for full-duplex mode, and backpressure for half-duplex mode, you have powerful features for sending your data across the network.
Plug and Play, flexible and easy
The GSW-2457 is plug-and-play and requires no configuration. Equipped with automatic MDI/MDI-X cable detection on all ports, it eliminates the need for crossover cables or uplink ports. Each port can be used as a general port or uplink port, and each port simply connects to a server, hub, router, or switch using a straight or crossover cable. Diagnostic LEDs display link status and activity, allowing you to quickly detect and correct problems on your network.
Key Features
- 24 Gigabit Ethernet ports
- Cable transmission and reception at speeds of 10/100/1000Mbps
- Jumbo frame transfer rate of 10K to increase data
- Supports 8K MACs with self-learning and self-aging capabilities
- QoS control for traffic prioritization and bandwidth management
- IEEE 802.3x flow control protects against packet loss for reliable data transmission
- 60cm mounting kit included
- Quick and easy installation
| Management characteristics | |
| Switch type | Unmanaged |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 24 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Number of SFP modules installed | 0 |
| Number of SFP+ modules installed | 0 |
| Number of Gigabit Ethernet ports (copper) | 24 |
| Network | |
| Network standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| MAC address machine learning supported | Yes |
| Automatic MAC address update | Yes |
| Data transmission | |
| MAC address book | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Transfer rate | 1.488 Mpps |
| Recording and retransmission | Yes |
| Support for Jumbo Frames | Yes |
| Giant frames | 9000 |
| Design | |
| Mounting grid | Yes |
| Product color | Black |
| Case/body material | Metal |
| Psychics | Activity, Connection, Energy, Speed |
| representation / realization | |
| Integrated into the processor | Yes |
| Flash memory | 4 MB |
| Power | |
| AC input voltage | 100-240V |
| AC input frequency | 50 Hz |
| Typical electricity consumption | 15 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | No |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 90% |
| Weight and dimensions | |
| Width | 44 mm |
| Depth | 220 mm |
| Height | 440 mm |
| Weight | 2.65 kg |
| Package contents | |
| Cables included | Sector |
| Quick Start Guide | Yes |
| Rack mounting kit | Yes |
| Packaging information | |
| Packaging type | Box |
| Package width | 224 mm |
| Package depth | 486 mm |
| Package height | 77 mm |
| Package weight | 2.2 kg |
| Technical details | |
| Main (external) lockers per pallet | 22 piece(s) |
| Gross pallet length | 80 cm |
| Gross width of the pallet | 120 cm |
| Pallet height (air) | 155.5 cm |
| Logistics data | |
| Country of origin | China |
| Width of the main (external) locker | 405 mm |
| Length of the main (external) locker | 500 mm |
| Height of the main (external) locker | 240 mm |
| Harmonized System Code | 85176990 |
| Gross weight of the main (external) locker | 12 kg |
| Produced by main (external) locker | 5 piece(s) |
