Description

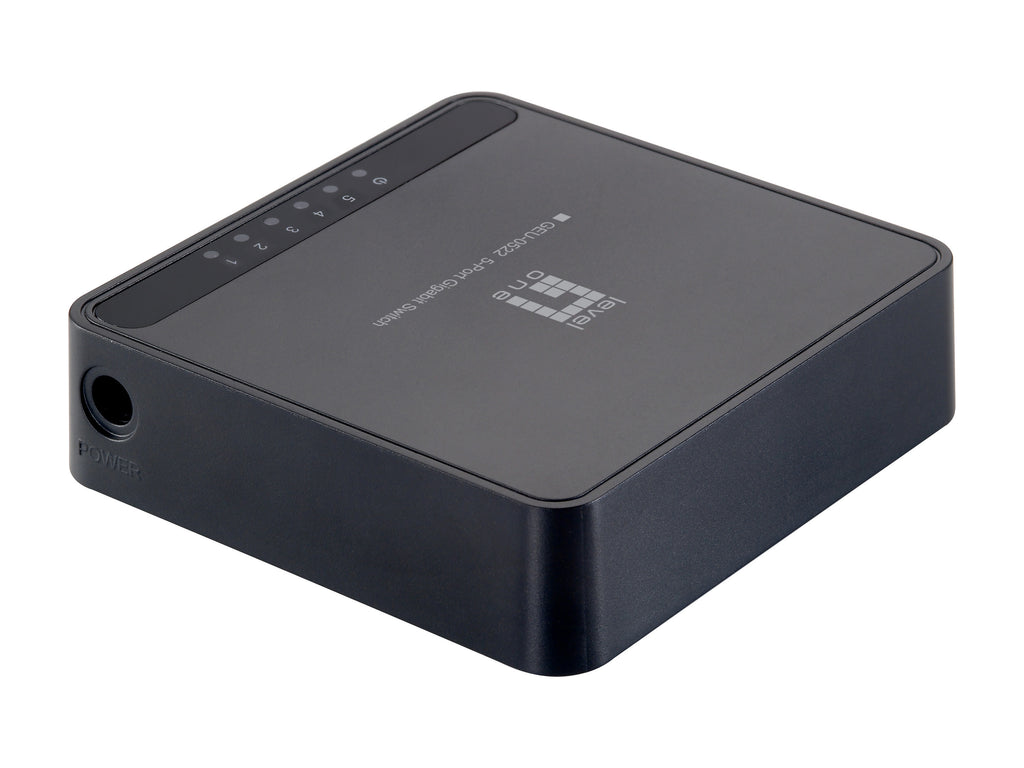

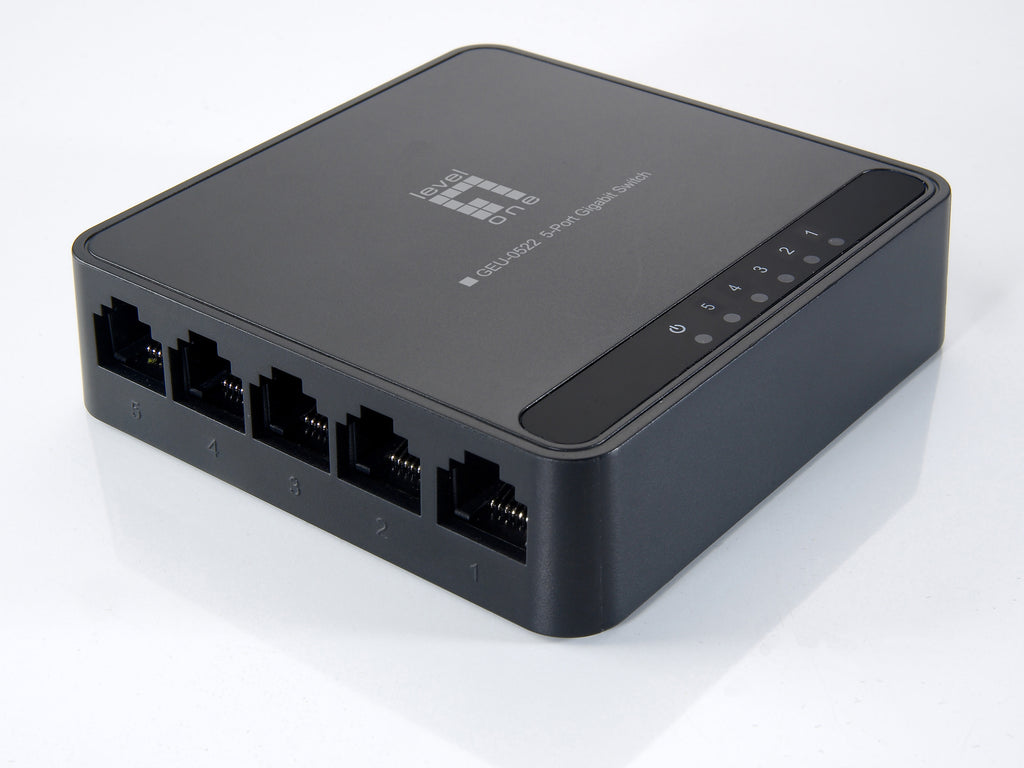

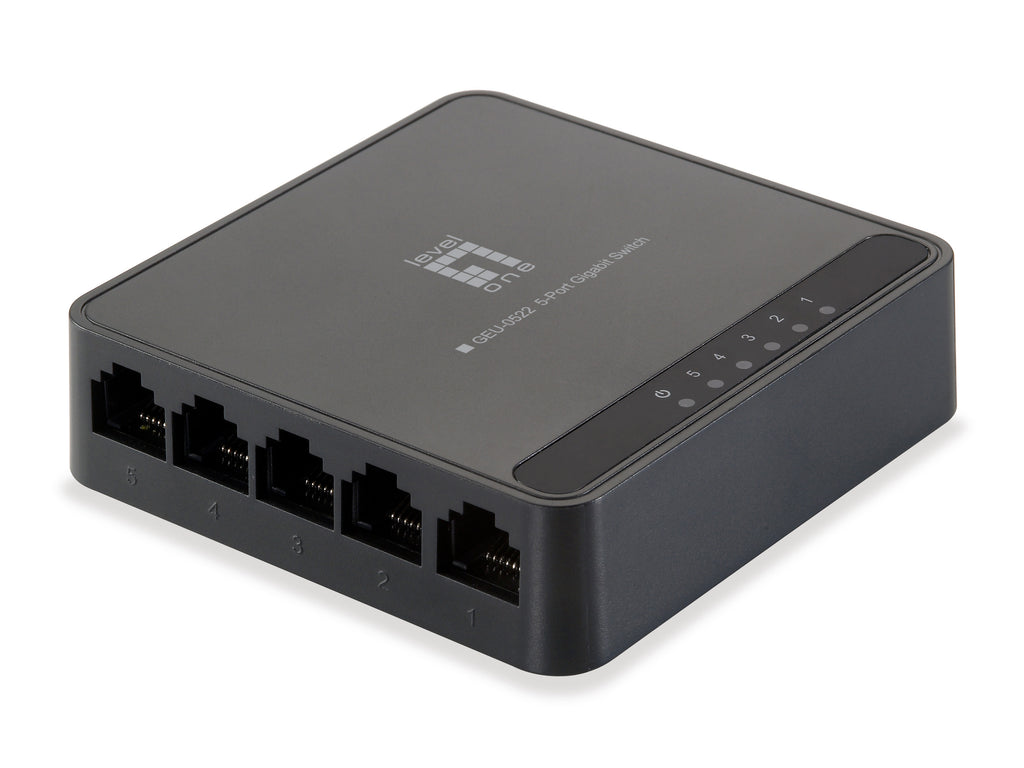

LevelOne GEU-0522, Gigabit Ethernet (10/100/1000), Full duplex
| Connectivity | |

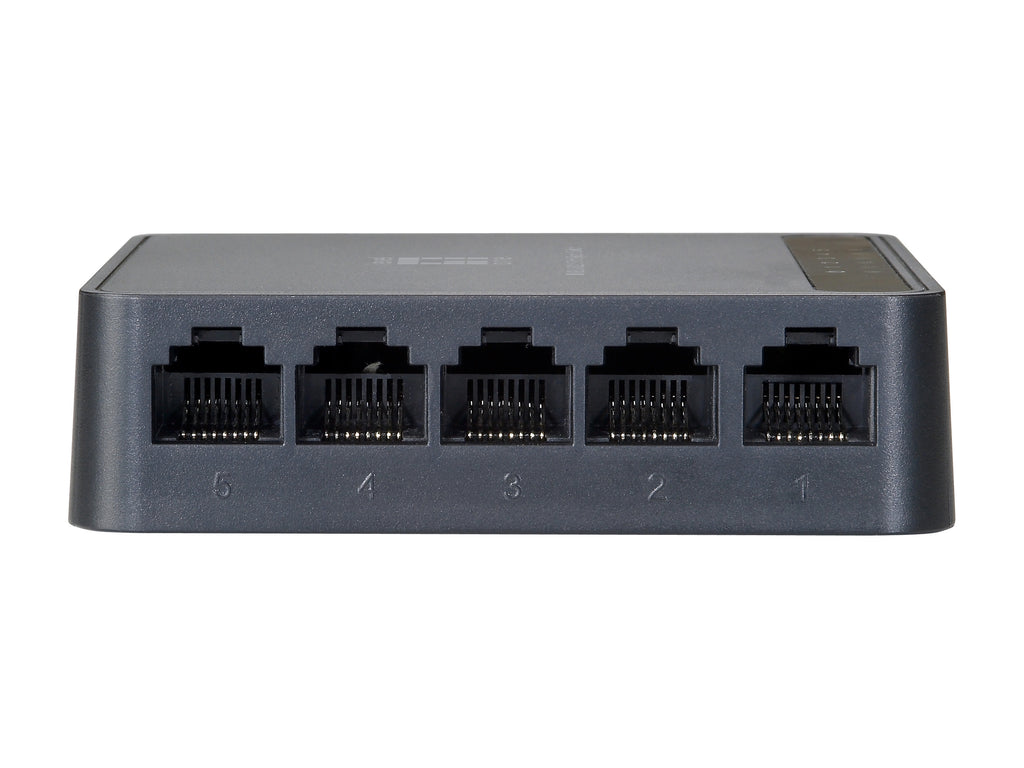

| Number of basic switching RJ-45 Ethernet ports | 5 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Number of SFP modules installed | 0 |
| Number of SFP+ modules installed | 0 |
| Network | |
| Network standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Copper Ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Automatic negotiation | Yes |
| MAC address machine learning supported | Yes |
| Automatic MAC address update | Yes |
| Data transmission | |
| MAC address book | 1000 entries |
| Switching capacity | 10 Gbit/s |
| Recording and retransmission | Yes |
| Support for Jumbo Frames | Yes |
| Giant frames | 9000 |
| Packet transfer rate (1 Gbps) | 1488100 pps |
| Packet transfer rate (100 Mbps) | 148810 pps |
| Packet transfer rate (10 Gbps) | 14880 pps |
| Design | |
| Stackable | No |
| Product color | Black |
| Psychics | Activity, Connection, Energy |
| representation / realization | |
| Buffer size | 64 KB |
| Power | |
| Input current | 0.6 A |
| Input voltage | 5V |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | No |
| Environmental conditions | |
| Operating temperature | 0 - 50 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 90% |
| Weight and dimensions | |
| Width | 86 mm |
| Depth | 23 mm |
| Height | 89 mm |
| Weight | 71.4 g |
| Package contents | |
| Quick Start Guide | Yes |
| Packaging information | |
| AC adapter included | Yes |
| Packaging type | Box |
| Package width | 95 mm |
| Package depth | 82 mm |
| Package height | 98 mm |
| Package weight | 184 g |
| Certificate | |
| Certification | CE, FCC |
| Logistics data | |
| Country of origin | China |
| Width of the main (external) locker | 495 mm |
| Length of the main (external) locker | 191 mm |
| Height of the main (external) locker | 516 mm |
| Harmonized System Code | 85176990 |
| Gross weight of the main (external) locker | 10.2 kg |
| Produced by main (external) locker | 50 piece(s) |
