Description

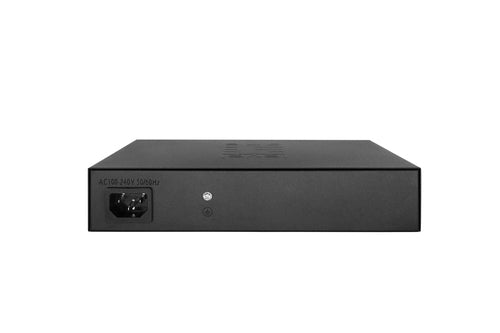

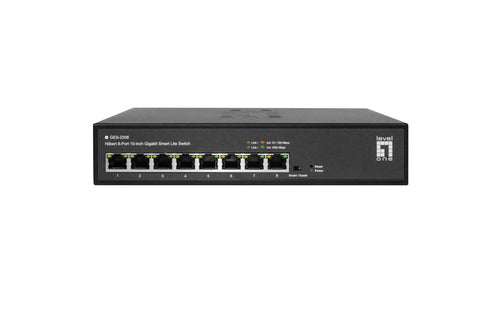

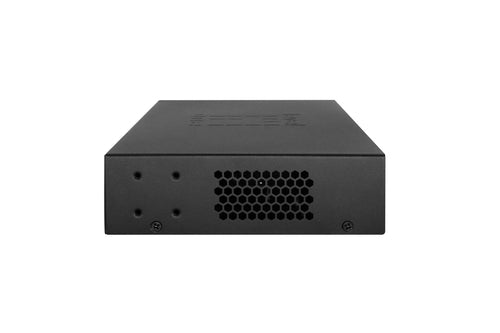

LevelOne GES-2208, Managed, Layer 2, Gigabit Ethernet (10/100/1000), Full duplex, Grid-mount
| Management characteristics | |
| Switch type | Managed |
| Switch bank | L2 |
| Quality of Service (QoS) | Yes |
| Web-based management | Yes |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 8 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Number of SFP modules installed | 0 |
| Number of SFP+ modules installed | 0 |
| Number of Gigabit Ethernet ports (copper) | 8 |
| Power connector | AC input socket |
| Network | |
| Network standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Semi-duplex | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Flow rate limitation | Yes |
| Auto MDI/MDI-X | Yes |
| Automatic negotiation | Yes |
| MAC address machine learning supported | Yes |
| Automatic MAC address update | Yes |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Data transmission | |
| MAC address book | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Transfer rate | 11.904 Mpps |
| Support for Jumbo Frames | Yes |
| Giant frames | 9000 |
| Packet cache memory | 1.5 MB |
| Security | |
| IGMP filtering | Yes |
| Design | |
| Mounting grid | Yes |
| Stackable | No |
| Product color | Black |
| Psychics | Activity, Connection, Energy |
| representation / realization | |
| Flash memory | 2 MB |
| Noise level | 0 dB |
| Fanless | Yes |
| Power | |
| Power source | Sector |
| Power supply included | Yes |
| AC input voltage | 100-240V |
| AC input frequency | 50/60 Hz |
| Typical electricity consumption | 6 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | No |
| Environmental conditions | |
| Operating temperature | 0 - 45 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 95% |
| Heat dissipation | 20.4 BTU/h |
| Weight and dimensions | |
| Width | 215 mm |
| Depth | 150 mm |
| Height | 44.5 mm |
| Weight | 720 g |
| Package contents | |
| Cables included | Sector |
| Quick Start Guide | Yes |
| Rack mounting kit | Yes |
| Packaging information | |
| Packaging type | Box |
| Package width | 285 mm |
| Package depth | 257 mm |
| Package height | 62 mm |
| Package weight | 1.19 kg |
| Certificate | |
| Certification | CE, UKCA, FCC Part 15, Subpart B Class B, RoHS |
| Logistics data | |
| Country of origin | China |
