Description

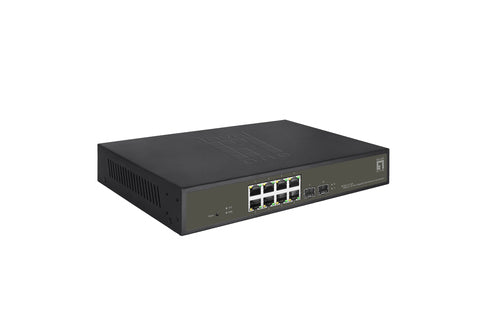

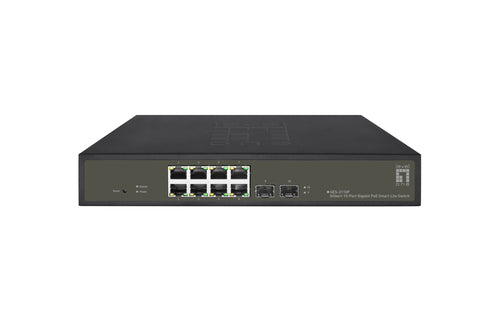

LevelOne GES-2110P, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Ethernet connection, supporting Power over Ethernet (PoE)
| Management characteristics | |
| Switch type | Managed |
| Switch bank | L2 |
| Quality of Service (QoS) | Yes |
| Web-based management | Yes |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 8 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Number of SFP modules installed | 0 |
| Number of SFP+ modules installed | 0 |
| Number of Gigabit Ethernet ports (copper) | 8 |
| Number of SFP module slots | 2 |
| Network | |
| Network standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper Ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control assistance | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Flow rate limitation | Yes |
| MAC address machine learning supported | Yes |
| Automatic MAC address update | Yes |
| VLAN support | Yes |
| Virtual LAN functions | Tagged VLAN |
| Number of VLANs | 32 |
| Data transmission | |
| MAC address book | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Number of queues | 4 |
| Support for Jumbo Frames | Yes |
| Giant frames | 9000 |
| Packet cache memory | 4.1 MB |
| Security | |
| IGMP filtering | Yes |
| Multicasting features | |
| Support for multi-channel distribution | Yes |
| Design | |
| Mounting grid | No |
| Product color | Black |
| Psychics | Activity, Link, PoE |
| representation / realization | |
| Flash memory | 2 MB |
| Noise level | 0 dB |
| Fanless | Yes |
| Average time between breakdowns | 43800 h |
| Power | |
| Power source | AC/PoE |
| AC input voltage | 100-240V |
| AC input frequency | 50-60 Hz |
| Consumption (max) | 150 W |
| Surge protection | Yes |
| Surge protection | 8 kV |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | Yes |
| Number of Power Over Ethernet plus (PoE+) ports | 8 |
| Port powered by PoE (Power over Ethernet) | 30 W |
| Total Power over Ethernet (PoE) Budget | 130 W |
| Environmental conditions | |
| Operating temperature | 0 - 45 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 95% |
| Heat dissipation | 40.94 BTU/h |
| Weight and dimensions | |
| Width | 271 mm |
| Depth | 181.5 mm |
| Height | 44.5 mm |
| Weight | 1.2 kg |
| Package contents | |
| Cables included | Sector |
| Quick Start Guide | Yes |
| Rack mounting kit | Yes |
| Packaging information | |
| Packaging type | Box |
| Package width | 350 mm |
| Package depth | 267 mm |
| Package height | 89 mm |
| Package weight | 1.75 kg |
| Technical details | |
| Main (external) lockers per pallet (air) | 12 piece(s) |
| Gross pallet length | 80 cm |
| Gross width of the pallet | 120 cm |
| Pallet height (air) | 182.4 cm |
| Certificate | |
| Certificates of conformity | CE, RoHS |
| Certification | UKCA, FCC Class A |
| Logistics data | |
| Net weight of the main carton | 1 kg |
| Country of origin | China |
| Width of the main (external) locker | 480 mm |
| Length of the main (external) locker | 370 mm |
| Height of the main (external) locker | 560 mm |
| Gross weight of the main (external) locker | 18.5 kg |
| Produced by main (external) locker | 10 piece(s) |
| Sustainability | |
| Compliance with sustainability | Yes |
