Description

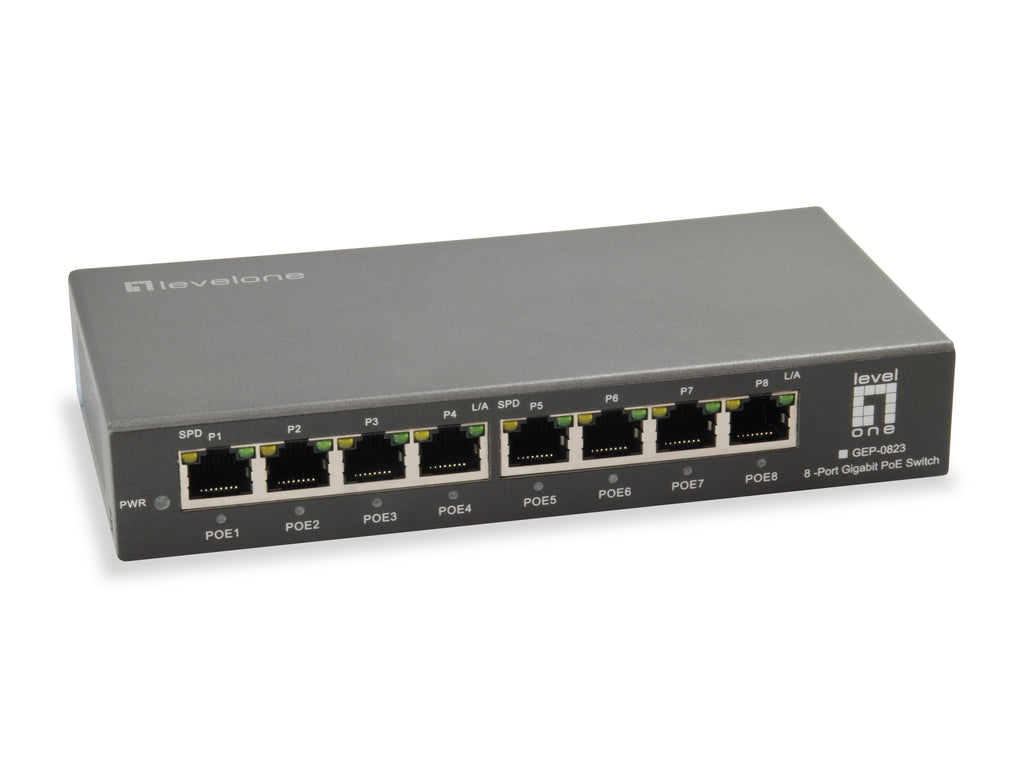

LevelOne GEP-0823, Gigabit Ethernet (10/100/1000), Full duplex, Ethernet connection, supporting Power over Ethernet (PoE)
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 8 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Number of SFP modules installed | 0 |
| Number of SFP+ modules installed | 0 |
| Power connector | DC-in jack |
| Network | |
| Network standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper Ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Data transmission | |
| MAC address book | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Recording and retransmission | Yes |
| Support for Jumbo Frames | Yes |
| Giant frames | 9126 |
| Design | |
| Stackable | No |
| Product color | Black |
| Case/body material | Metal |
| Psychics | Activity, LAN, Energy |
| representation / realization | |
| Internal memory | 1 MB |
| Buffer size | 8 KB |
| Average time between breakdowns | 30,000 h |
| Power | |
| Input current | 2.5 A |
| Input voltage | 52 V |
| Typical electricity consumption | 10 W |
| Electrical protection devices | Overcurrent, Short circuit |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | Yes |
| Power over Ethernet (PoE) Number of ports | 8 |
| Port powered by PoE (Power over Ethernet) | 30 W |
| Total Power over Ethernet (PoE) Budget | 120 W |
| Environmental conditions | |
| Operating temperature | -20 - 70 °C |
| Off-temperature | -20 - 70 °C |
| Operating relative humidity (HH) | 5 - 90% |
| Relative humidity level (storage) | 5 - 90% |
| Weight and dimensions | |
| Width | 86 mm |
| Depth | 30 mm |
| Height | 176 mm |
| Weight | 450 g |
| Package contents | |
| Quick Start Guide | Yes |
| Packaging information | |
| AC adapter included | Yes |
| Package width | 230 mm |
| Package depth | 60 mm |
| Package height | 290 mm |
| Package weight | 950 g |
| Certificate | |
| Certification | CE, FCC |
| Logistics data | |
| Country of origin | China |
| Harmonized System Code | 85176990 |
