Description
Versatility thanks to 24 10/100BASE-TX ports
10/100Mbps-Full/Half-duplex, auto-negotiation, auto-MDI/MDIX
Supports 8K MACs with self-learning and self-aging capabilities.
QoS control for traffic prioritization and bandwidth management
IEEE 802.3x flow control protects against packet loss for reliable data transmission
Internal power supply
60 cm metal case
Minimizes carbon footprint with its advanced energy-saving technology (IEEE 802.3az)
10/100Mbps-Full/Half-duplex, auto-negotiation, auto-MDI/MDIX
Supports 8K MACs with self-learning and self-aging capabilities.
QoS control for traffic prioritization and bandwidth management
IEEE 802.3x flow control protects against packet loss for reliable data transmission
Internal power supply
60 cm metal case
Minimizes carbon footprint with its advanced energy-saving technology (IEEE 802.3az)
| Management characteristics | |
| Switch type | Unmanaged |
| Quality of Service (QoS) | Yes |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 24 |
| Basic switching RJ-45 Ethernet port type | Fast Ethernet (10/100) |
| Number of SFP modules installed | 0 |
| Number of SFP+ modules installed | 0 |
| Power connector | DC-in jack |
| Network | |
| Network standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Copper Ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Supported cable types | Cat5 |
| Full duplex | Yes |
| Flow control assistance | Yes |
| Flow rate limitation | Yes |
| Auto MDI/MDI-X | Yes |
| Automatic negotiation | Yes |
| MAC address machine learning supported | Yes |
| Data transmission | |
| MAC address book | 8192 entries |
| Switching capacity | 4.8 Gbit/s |
| Recording and retransmission | Yes |
| Packet cache memory | 0.16 MB |
| Protocols | |
| Switching protocol | CSMA, CD |
| Design | |
| Mounting grid | Yes |
| Product color | Black |
| Psychics | Activity, Connection, Energy |
| representation / realization | |
| Maximum cable length | 100 m |
| Power | |
| AC input voltage | 100-240V |
| AC input frequency | 50-60 Hz |
| Typical electricity consumption | 10 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | No |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 95% |
| Weight and dimensions | |
| Width | 140 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 1.45 kg |

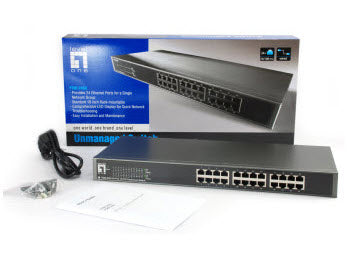

| Package contents | |
| Cables included | Sector |
| Quick Start Guide | Yes |
| Rack mounting kit | Yes |
| Packaging information | |
| Package width | 224 mm |
| Package depth | 486 mm |
| Package height | 77 mm |
| Package weight | 2.13 kg |
| Certificate | |
| Certification | FCC Class A, CE, RoHS |
| Logistics data | |
| Country of origin | China |
| Width of the main (external) locker | 405 mm |
| Length of the main (external) locker | 500 mm |
| Height of the main (external) locker | 240 mm |
| Harmonized System Code | 85176990 |
| Gross weight of the main (external) locker | 11.6 kg |
