Description

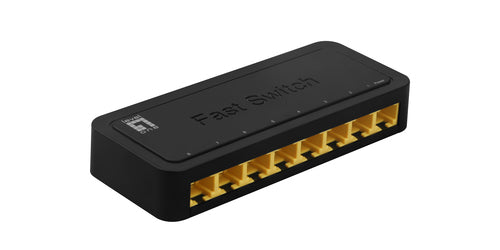

LevelOne FEU-0812, Unmanaged, Fast Ethernet (10/100), Full duplex
| Management characteristics | |
| Switch type | Unmanaged |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 8 |
| Basic switching RJ-45 Ethernet port type | Fast Ethernet (10/100) |
| Number of SFP modules installed | 0 |
| Number of SFP+ modules installed | 0 |
| Power connector | DC-in jack |
| Network | |
| Network standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Copper Ethernet cabling technology | 10BASE-T, 100BASE-T |
| Full duplex | Yes |
| Semi-duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Automatic negotiation | Yes |
| Data transmission | |
| MAC address book | 1000 entries |
| Packet cache memory | 1.19 MB |
| Design | |
| Mounting grid | No |
| Stackable | No |
| Product color | Black |
| Psychics | Activity, Connection, Energy |
| representation / realization | |
| Plug and Play | Yes |
| Fanless | Yes |
| Power | |
| Power source | CC |
| Power supply included | Yes |
| DC input voltage | 5V |
| Input current | 0.55 A |
| Typical electricity consumption | 1.7 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | No |
| Environmental conditions | |
| Operating temperature | 0 - 45 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 90% |
| Weight and dimensions | |
| Width | 130.7 mm |
| Depth | 52.3 mm |
| Height | 20 mm |
| Weight | 110 g |
| Packaging information | |
| AC adapter included | Yes |

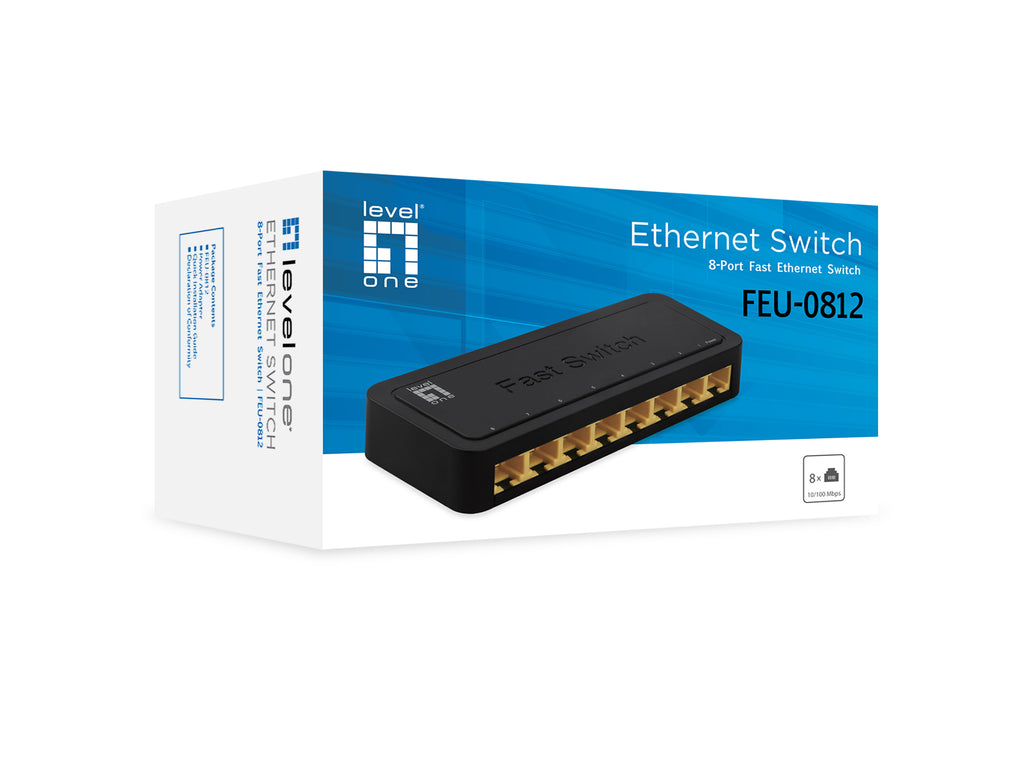

| Packaging type | Box |
| Package width | 145 mm |
| Package depth | 80 mm |
| Package height | 80 mm |
| Package weight | 214 g |
| Certificate | |
| Certification | THIS RoHS |
| Logistics data | |
| Country of origin | China |
| Harmonized System Code | 85176990 |
