Description

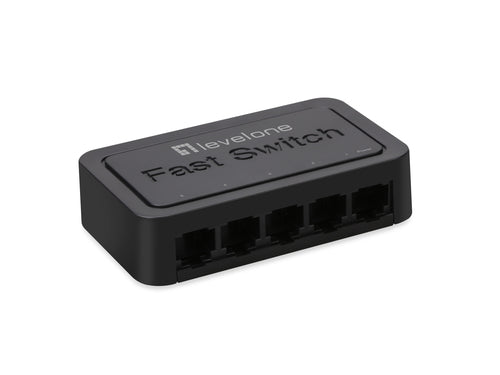

LevelOne FEU-0512, Unmanaged, Fast Ethernet (10/100), Full duplex
| Management characteristics | |
| Switch type | Unmanaged |
| Connectivity | |
| Number of basic switching RJ-45 Ethernet ports | 5 |
| Basic switching RJ-45 Ethernet port type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) Number of ports | 5 |
| Network | |
| Network standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Semi-duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Automatic negotiation | Yes |
| MAC address machine learning supported | Yes |
| Automatic MAC address update | Yes |
| Data transmission | |
| MAC address book | 1000 entries |
| Switching capacity | 1 Gbit/s |
| Packet cache memory | 0.744 MB |
| Design | |
| Product color | Black |
| Psychics | Activity, Connection, Energy |
| Wall mount | No |
| representation / realization | |
| Fanless | Yes |
| Power | |
| Power source | CC |
| Power supply included | Yes |
| DC input voltage | 5V |
| Input current | 0.55 A |
| Typical electricity consumption | 1.3 W |
| PoE (Power over Ethernet) | |
| Ethernet connection, supporting power delivery via this port (PoE) | No |
| Environmental conditions | |
| Operating temperature | 0 - 45 °C |
| Off-temperature | -40 - 70 °C |
| Operating relative humidity (HH) | 10-90% |
| Relative humidity level (storage) | 5 - 90% |
| Weight and dimensions | |
| Width | 88.2 mm |
| Depth | 52.7 mm |
| Height | 21.8 mm |
| Weight | 47 g |
| Package contents | |
| Quick Start Guide | Yes |
| Packaging information | |
| AC adapter included | Yes |
| Packaging type | Box |
| Package width | 123 mm |
| Package depth | 80 mm |
| Package height | 83 mm |
| Package weight | 140 g |
| Technical details | |
| Main (external) lockers per pallet (air) | 24 piece(s) |
| Gross pallet length | 80 cm |
| Gross width of the pallet | 120 cm |
| Pallet height (air) | 147 cm |
| Certificate | |
| Certificates of conformity | CE, RoHS, UKCA |
| Logistics data | |
| Country of origin | China |
| Width of the main (external) locker | 271 mm |
| Length of the main (external) locker | 430 mm |
| Height of the main (external) locker | 445 mm |
| Gross weight of the main (external) locker | 8 kg |
| Produced by main (external) locker | 50 piece(s) |
| Sustainability | |
| Compliance with sustainability | Yes |
