Description
Open frame monitor with 10-point touch, AG coating and high brightness function

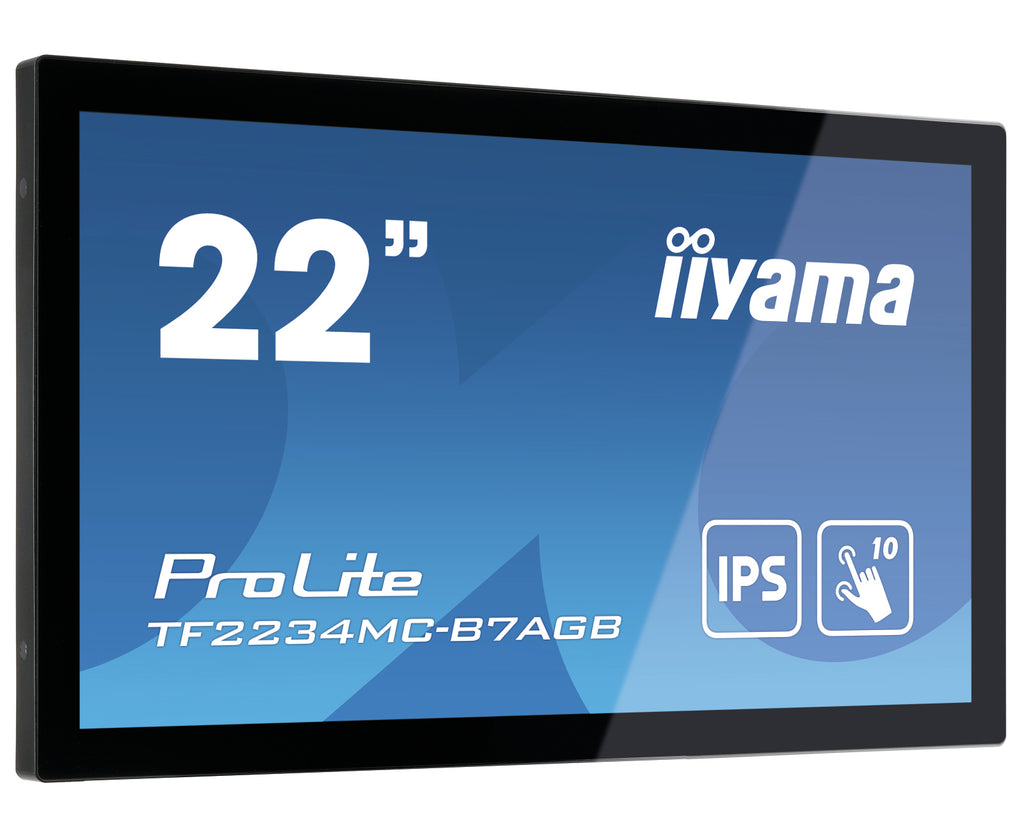

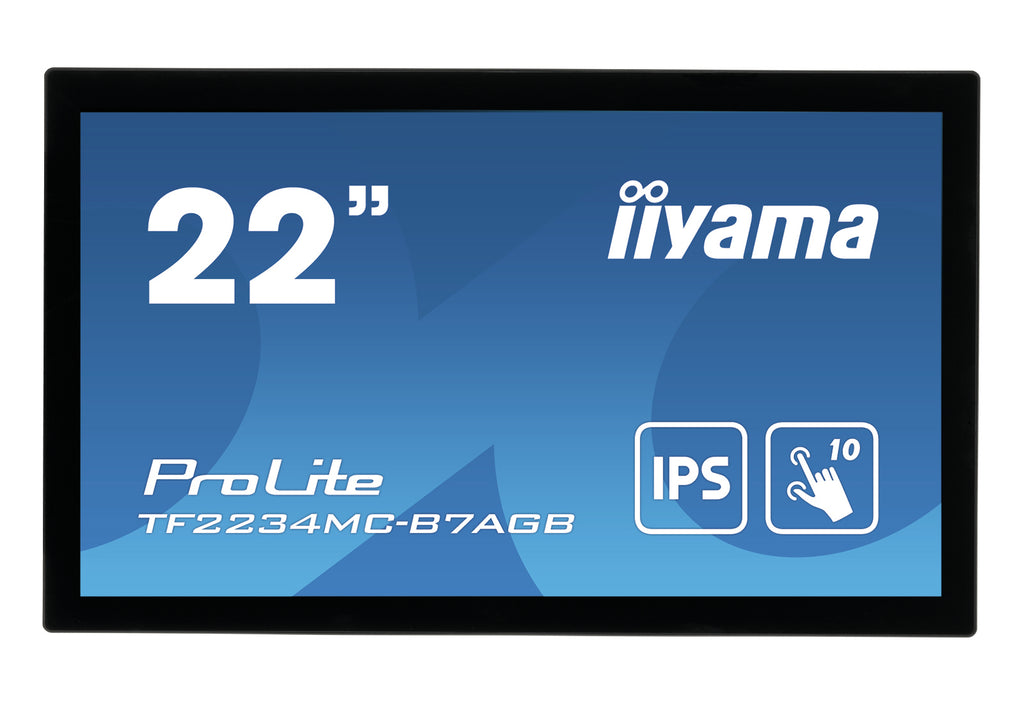

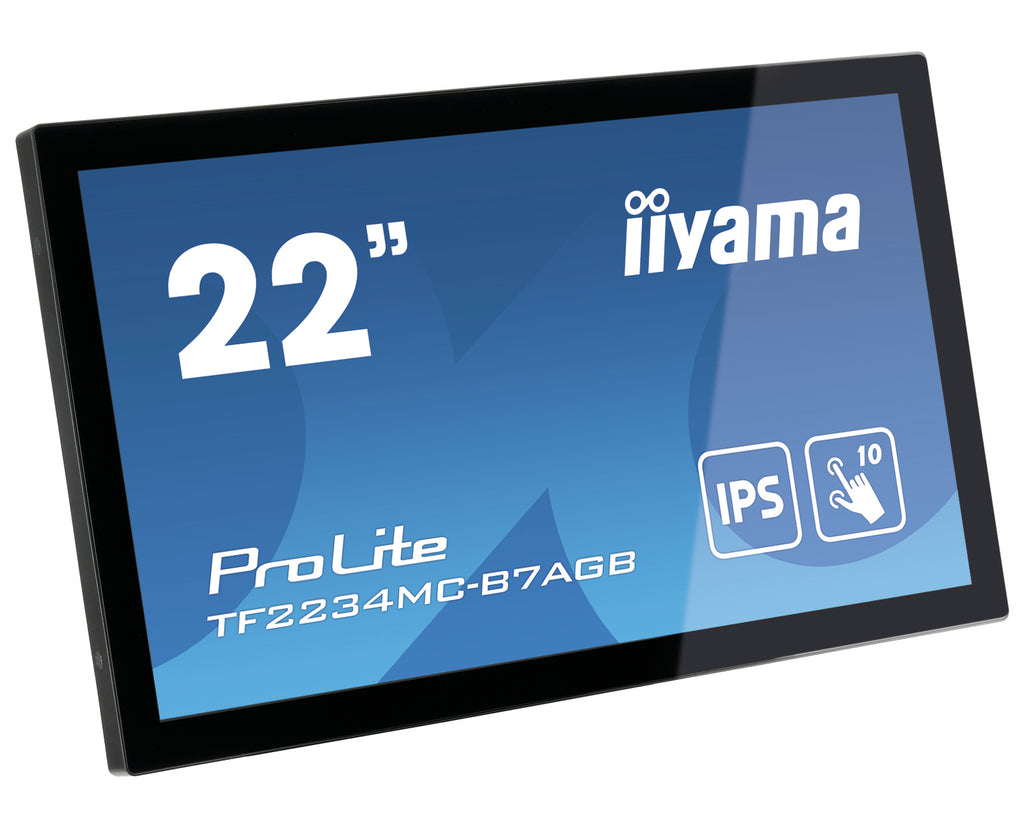

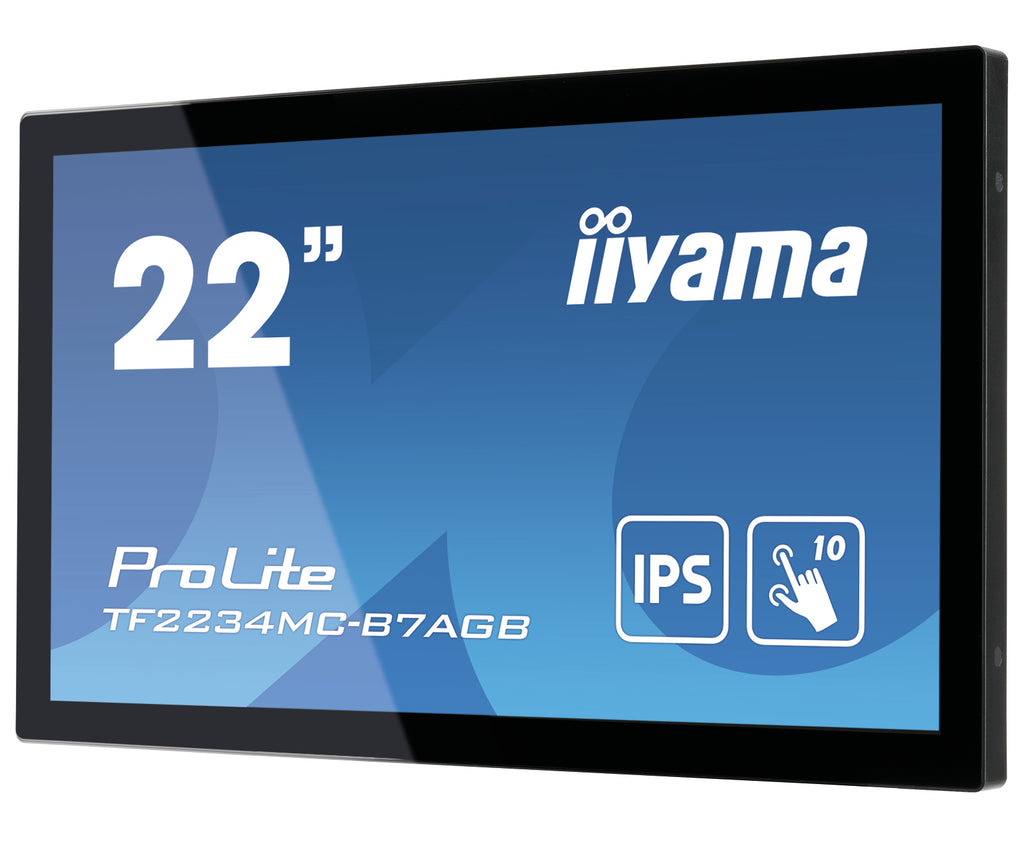

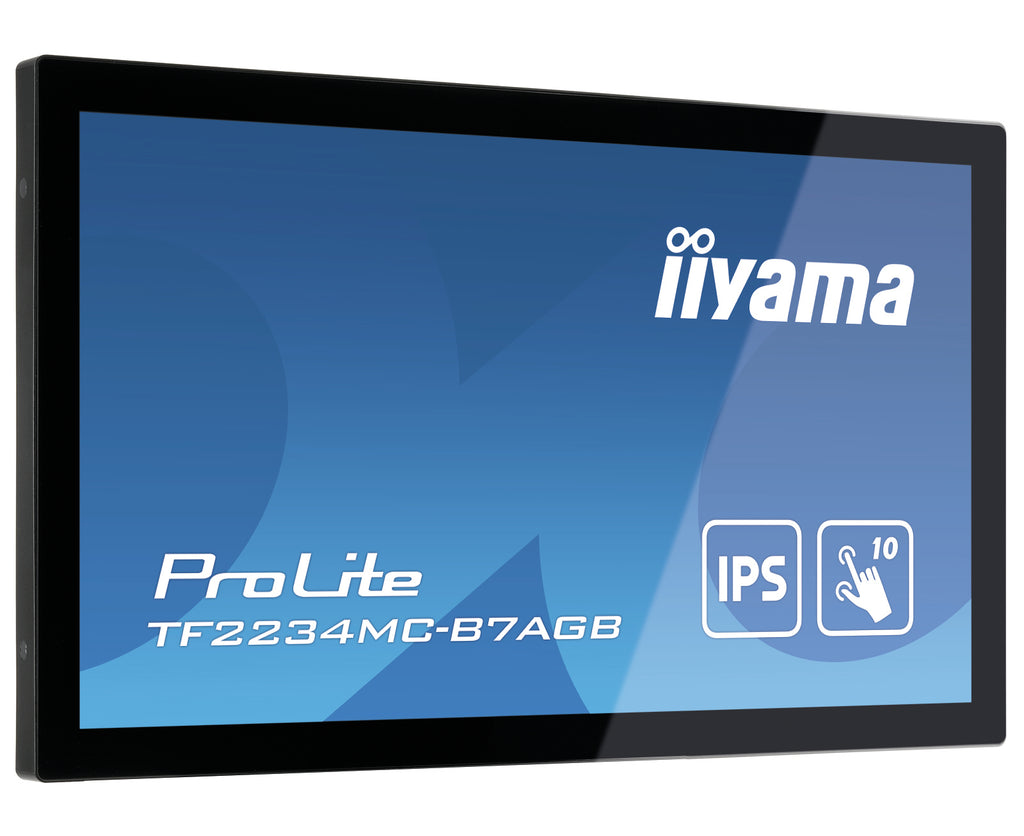

The ProLite TF2234MC-B7AGB built in a sleek edge-to-edge frame adopts projected capacitive touch technology. The monitor is equipped with an IPS LCD panel that guarantees exceptional color quality and wide viewing angles. Increased brightness settings ensure a sharp and clear image even in bright environments. With a durable frame and IP65-tested dust and moisture resistance of the front, the monitor will work in demanding environments. The anti-glare glass eliminates the problem of glare. The ProLite TF2234MC-B7AGB is a perfect display for kiosk integrators and also for interactive digital signage, in-store retail and interactive presentations. For easy integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).
IPS
IPS displays are best known for their wide viewing angles and highly accurate, natural colors. They are particularly suitable for color-critical applications.
TOUCH THROUGH GLASS
This touchscreen works directly through glass and can transform glass surfaces into an interactive touchscreen. Use it on shop windows, in real estate agencies, for in-store point of sale or restaurants.
TOUCH TECHNOLOGY - PROJECTED CAPACITIVE
This technology uses a sensor with micro-fine voltage wires integrated into the glass covering the monitor. The touch is detected thanks to the electrical characteristics of the sensor and therefore varies when the user's finger is moved on the glass. Thanks to this protective glass, this technology has a long service life, and the touch function is not impaired even in the event of scratches, for example. This allows for an image with perfect performance and quality and also allows use with a finger, directly, (also latex gloves) and a magnetic pointer.
THE ANTI-GLUCOSE COATING
Anti-glare coating is used in professional grade displays to prevent problems with reflections and external light sources affecting color reproduction, contrast and sharpness. In addition, it makes the screen less susceptible to dust, grease or dirt marks.
OPEN FRAME BRACKETS
This borderless monitor can be optionally equipped with external brackets. It guarantees easy installation and makes it an ideal solution for integrators and points of sale.
The ProLite TF2234MC-B7AGB built in a sleek edge-to-edge frame adopts projected capacitive touch technology. The monitor is equipped with an IPS LCD panel that guarantees exceptional color quality and wide viewing angles. Increased brightness settings ensure a sharp and clear image even in bright environments. With a durable frame and IP65-tested dust and moisture resistance of the front, the monitor will work in demanding environments. The anti-glare glass eliminates the problem of glare. The ProLite TF2234MC-B7AGB is a perfect display for kiosk integrators and also for interactive digital signage, in-store retail and interactive presentations. For easy integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).
IPS
IPS displays are best known for their wide viewing angles and highly accurate, natural colors. They are particularly suitable for color-critical applications.
TOUCH THROUGH GLASS
This touchscreen works directly through glass and can transform glass surfaces into an interactive touchscreen. Use it on shop windows, in real estate agencies, for in-store point of sale or restaurants.
TOUCH TECHNOLOGY - PROJECTED CAPACITIVE
This technology uses a sensor with micro-fine voltage wires integrated into the glass covering the monitor. The touch is detected thanks to the electrical characteristics of the sensor and therefore varies when the user's finger is moved on the glass. Thanks to this protective glass, this technology has a long service life, and the touch function is not impaired even in the event of scratches, for example. This allows for an image with perfect performance and quality and also allows use with a finger, directly, (also latex gloves) and a magnetic pointer.
THE ANTI-GLUCOSE COATING
Anti-glare coating is used in professional grade displays to prevent problems with reflections and external light sources affecting color reproduction, contrast and sharpness. In addition, it makes the screen less susceptible to dust, grease or dirt marks.
OPEN FRAME BRACKETS
This borderless monitor can be optionally equipped with external brackets. It guarantees easy installation and makes it an ideal solution for integrators and points of sale.
| Screen | |
| Screen size | 54.6 cm (21.5") |
| Screen resolution | 1920 x 1080 pixels |
| Image format | 16:9 |
| Display technology | LED |
| Touch screen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| Screen shape | Flat |
| Contrast ratio | 1000:1 |
| Number of colors displayed | 16.78 million colors |
| Touch screen type | Multi-user |
| Touch screen technology | Projected capacitive technology |
| Touch technology | Multiple pressures |
| Number of simultaneous contact points | 10 |
| Response time | 8 ms |
| Horizontal viewing angle | 178° |
| Vertical viewing angle | 178° |
| No pixel | 0.247 x 0.247 mm |
| Horizontal scanning range | 30 - 84 kHz |
| Screen diagonal (cm) | 56.4 cm |
| Screen Brightness | 350 cd/m² |
| representation / realization | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| multimedia | |
| Built-in camera | No |
| Built-in microphone | No |
| Design | |
| Product color | Black |
| Code (IP) International Protection | IP65 |
| Glass thickness | 1.5 mm |
| Connectivity | |
| HDMI | Yes |
| USB touch port | Yes |
| Number of VGA (D-Sub) ports | 1 |
| Quantity of HDMI ports | 1 |
| DisplayPorts interface quantity | 1 |
| HDCP | Yes |
| Ergonomics | |

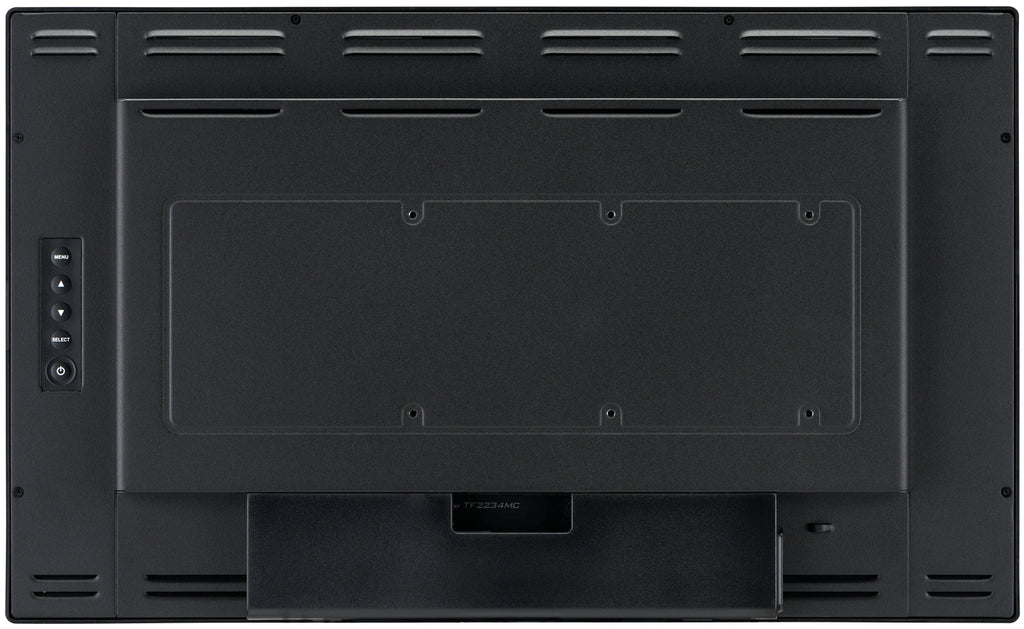

| VESA mounting | Yes |
| VESA standard | 100 x 100 mm |
| Wall mounting | Yes |

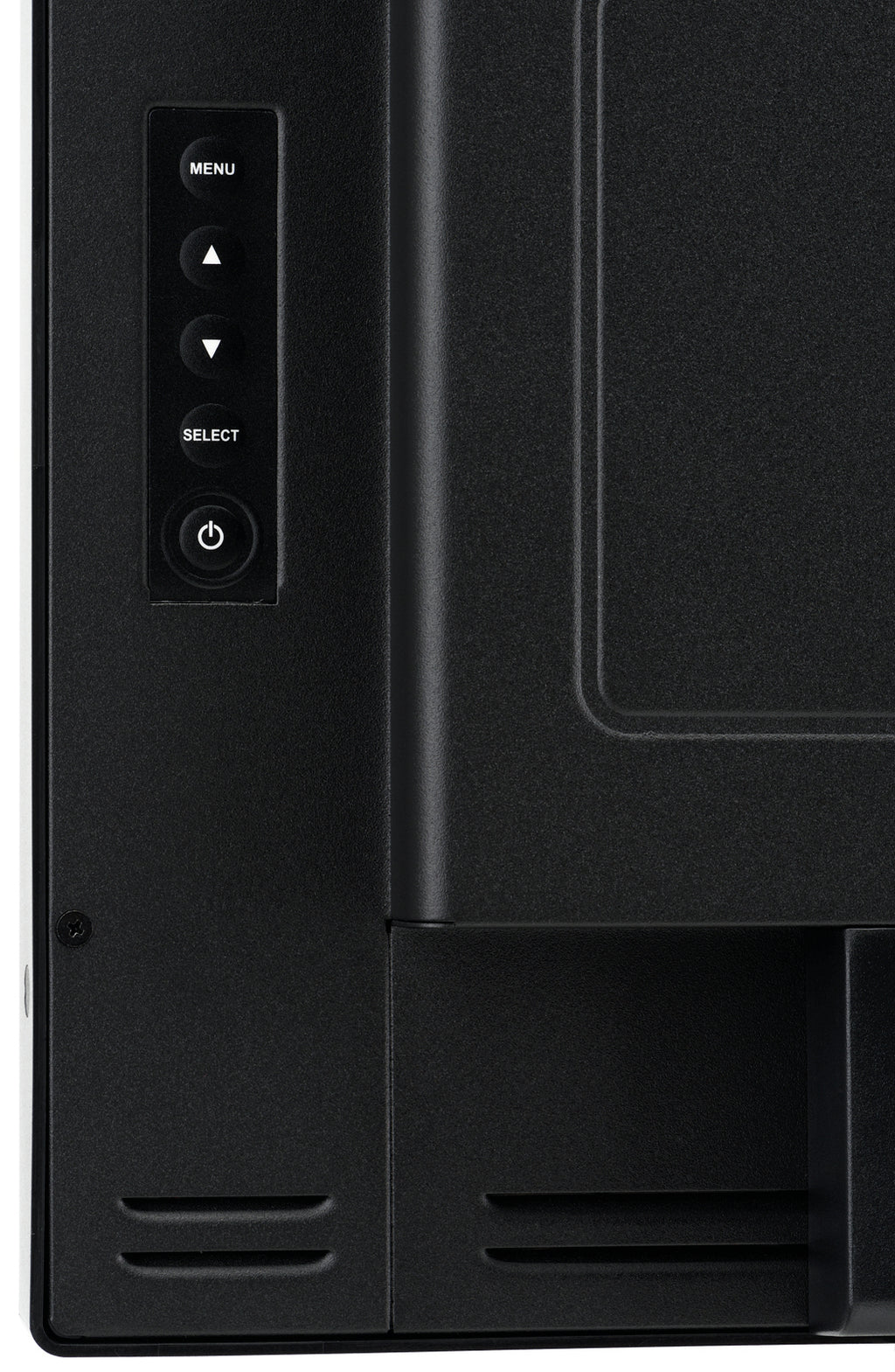

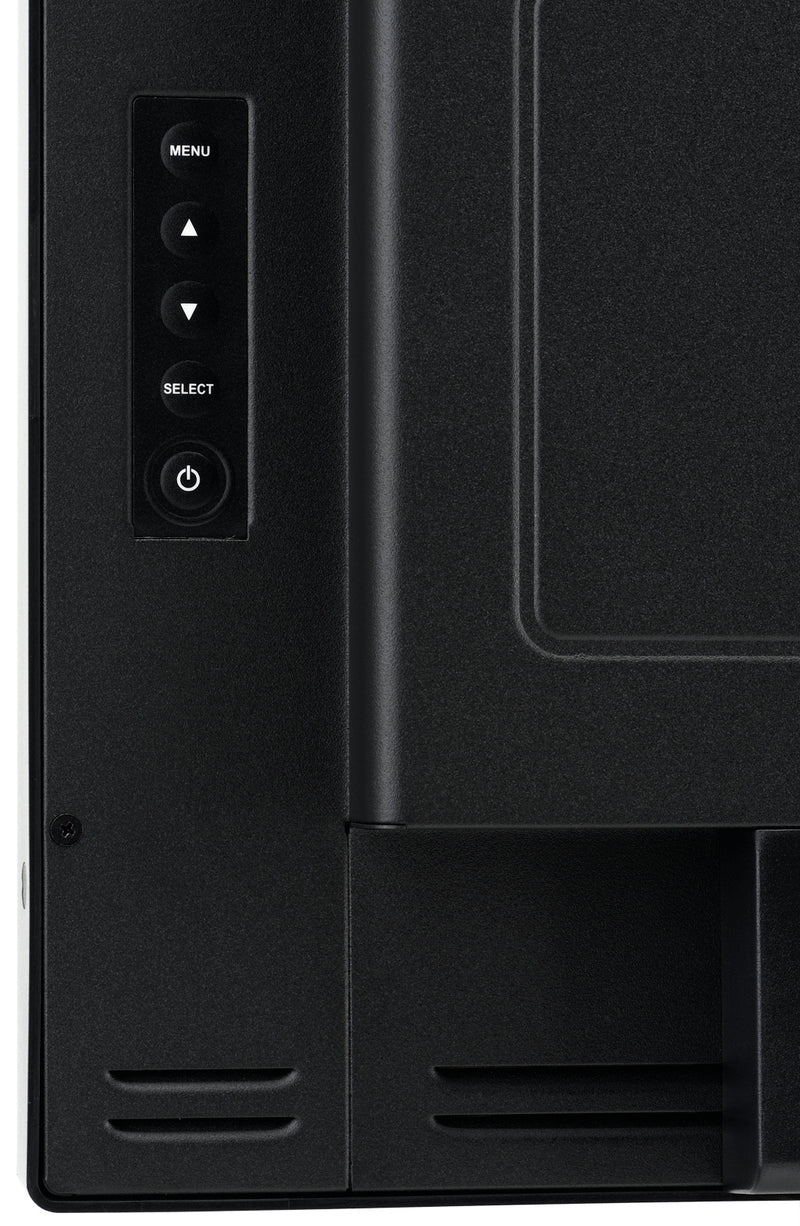

| On Screen Display (OSD) | Yes |
| Multilingual on-screen display | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Number of OSD languages | 9 |
| Power | |
| Energy efficiency class (SDR) | F |
| Power consumption (SDR) per 1000 hours | 19 kWh |
| Typical power consumption | 18 W |
| Power consumption (standby mode) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Power supply type | CC |
| Energy efficiency range | A to G |
| Package Contents | |
| Cables included | Mains, HDMI, USB |
| Weight and dimensions | |
| Width (without support) | 517.5 mm |
| Depth (without support) | 46 mm |
| Height (without support) | 313.5 mm |
| Weight (without support) | 4.4 kg |
| Packaging information | |
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
| Sustainability | |
| Sustainability certificates | CE, REACH, RoHS, WEEE |
| Logistics data | |
| Harmonized System Code | 85285210 |
| Other features | |
| HxV viewable region screen | 476 x 267.7 mm |

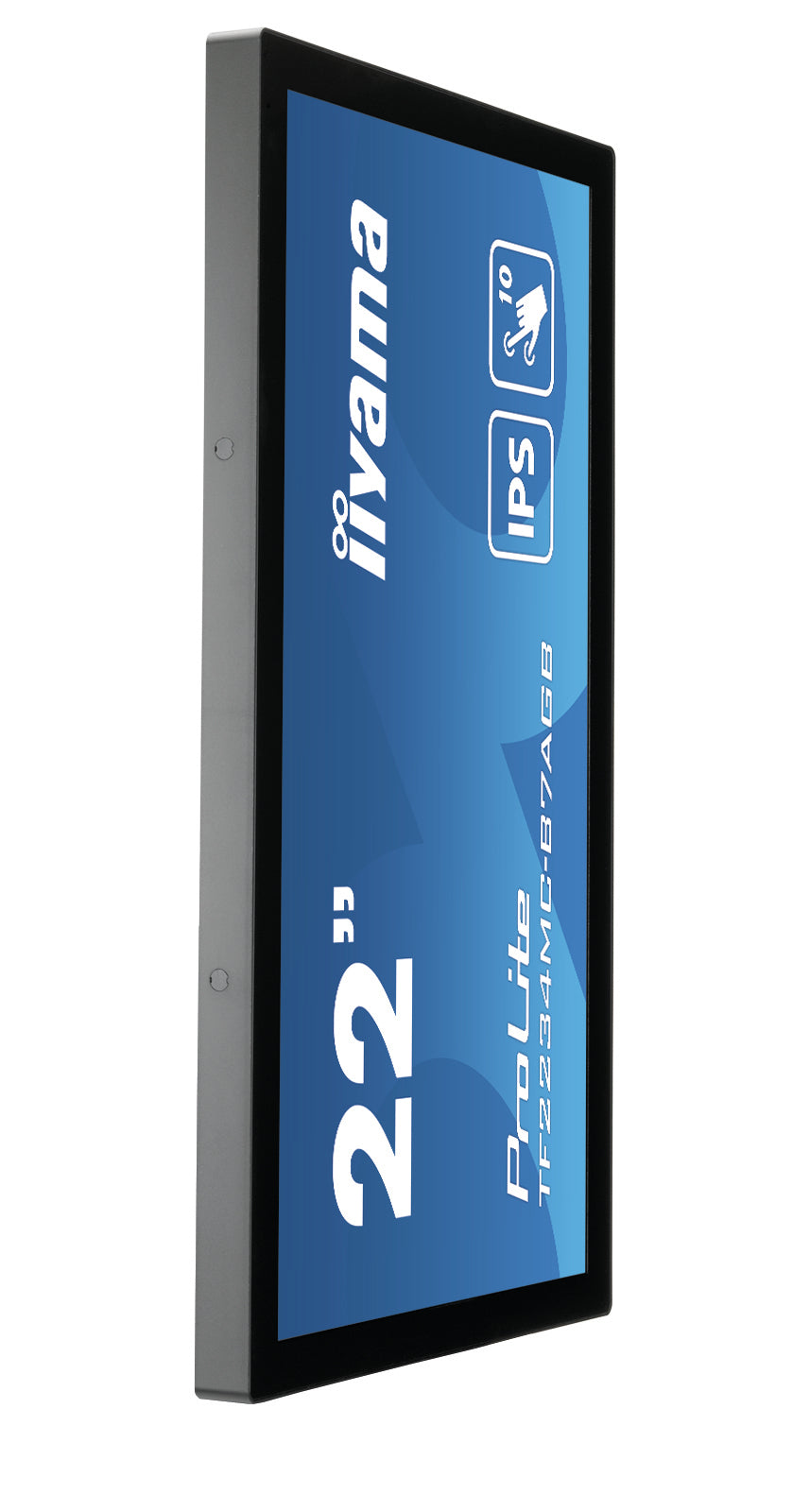

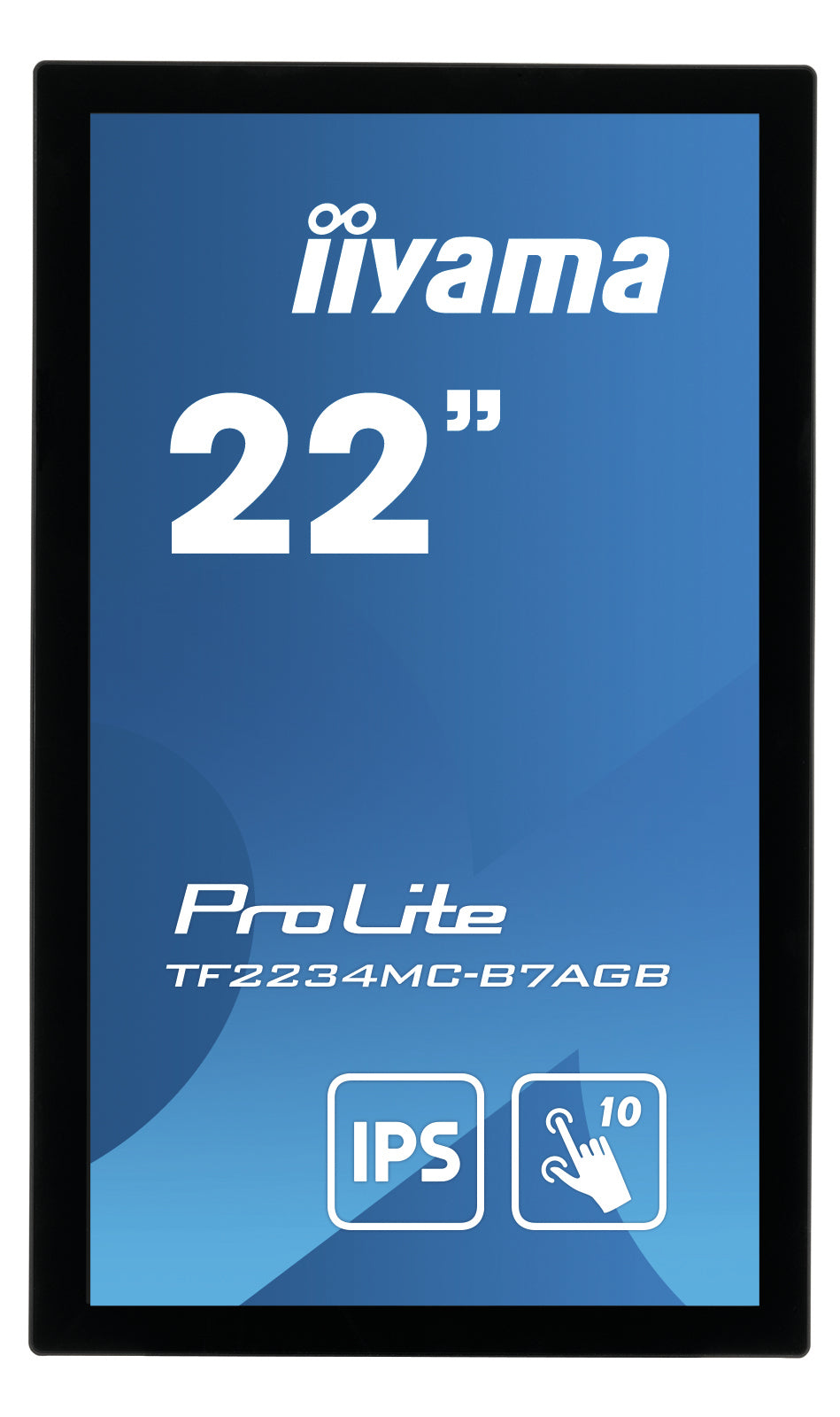

| Installation supported | horizontal/vertical |
