Description

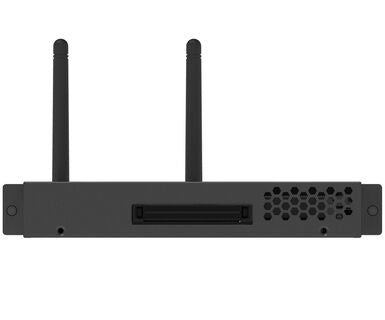

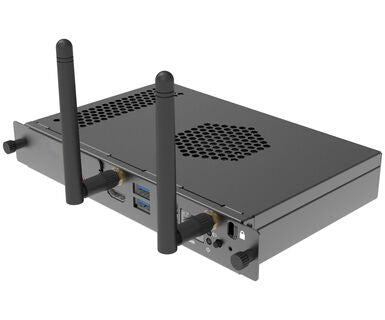

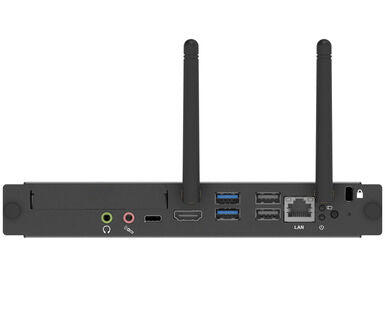

iiyama OPC5801BC, Intel® Core™ i5, i5-8265U, 8 GB, 256 GB, Windows 10 IoT Enterprise, 64-bit
| Processor | |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor model | i5-8265U |
| Processor Generation | 8th Generation Intel® Core™ i5 |
| Bus type | OPI |
| Configurable high thermal envelope frequency | 1.8 GHz |
| Configurable high thermal envelope | 25 W |
| Configurable TDP down | 10 W |
| Configurable low thermal envelope frequency | 0.8 GHz |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Storage support | |
| Total storage capacity | 256 GB |
| Optical reader | No |
| Chart | |
| Integrated graphics card | Yes |
| Graphics Adapter Model Included | Intel® UHD Graphics 620 |
| Integrated GPU Manufacturer | Intel |
| Network | |
| Ethernet/LAN | Yes |
| Wifi | Yes |
| Ethernet LAN: data transfer rate | 10,100,1000 Mbit/s |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Wifi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth model | 5.0 |
| Connectivity | |
| Quantity of USB 2.0 Ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity | 1 |
| Quantity of HDMI ports | 1 |
| USB Type-C DisplayPort Alternate Mode | No |
| Number of VGA (D-Sub) ports | 1 |
| DisplayPorts interface quantity | 1 |
| Number of LAN ethernet ports (RJ-45) | 1 |
| Microphone jack input | Yes |
| Headphone output | 1 |
| Design | |
| Chassis type | Mini PC |
| Product color | Black |
| representation / realization | |
| Product type | Mini PC |
| Software | |
| Installed operating system | Windows 10 IoT Enterprise |
| Operating system architecture | 64-bit |
| Special processor features | |
| Intel® 64 | Yes |
| Advanced Intel SpeedStep Technology | Yes |
| Built-in options available | No |
| Intel® Clear Video Technology | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® TSX-NI | No |
| Idle States | Yes |
| Intel® Stable Image Platform Program (SIPP) | No |
| Intel® Trusted Execution Technology | No |
| Lock Bit | Yes |
| Intel® Flex Memory Access | Yes |
| Intel® Enhanced Halt State | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes |
| CPU configuration (max) | 1 |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Identity Protection Technology version | 1.00 |
| SIPP (Intel® Stable Image Platform Program) version | 0.00 |
| Intel® Security Key Technology Version | 1.00 |
| Intel® Vitalization Technology (VT-x) | Yes |
| Intel® Intelligent Response Technology Version | 1.00 |
| Intel® TSX-NI version | 0.00 |
| Power | |
| Power supply | 60 W |
| Typical power consumption | 60 W |
| Power consumption (standby mode) | 1.2 W |
| Environmental conditions | |
| Operating temperature | 0 - 45 °C |
| Non-operating temperature | -20 - 60 °C |
| Operating relative humidity (HH) | 10 - 90% |
| Relative humidity level (storage) | 10 - 90% |
| Weight and dimensions | |
| Width | 202 mm |
| Depth | 133 mm |
| Height | 30 mm |
| Weight | 740 g |
| Package width | 267 mm |
| Package depth | 192 mm |
| Package height | 72 mm |
| Package Contents | |
| Screen included | No |
| Logistics data | |
| Harmonized System Code | 84715000 |
