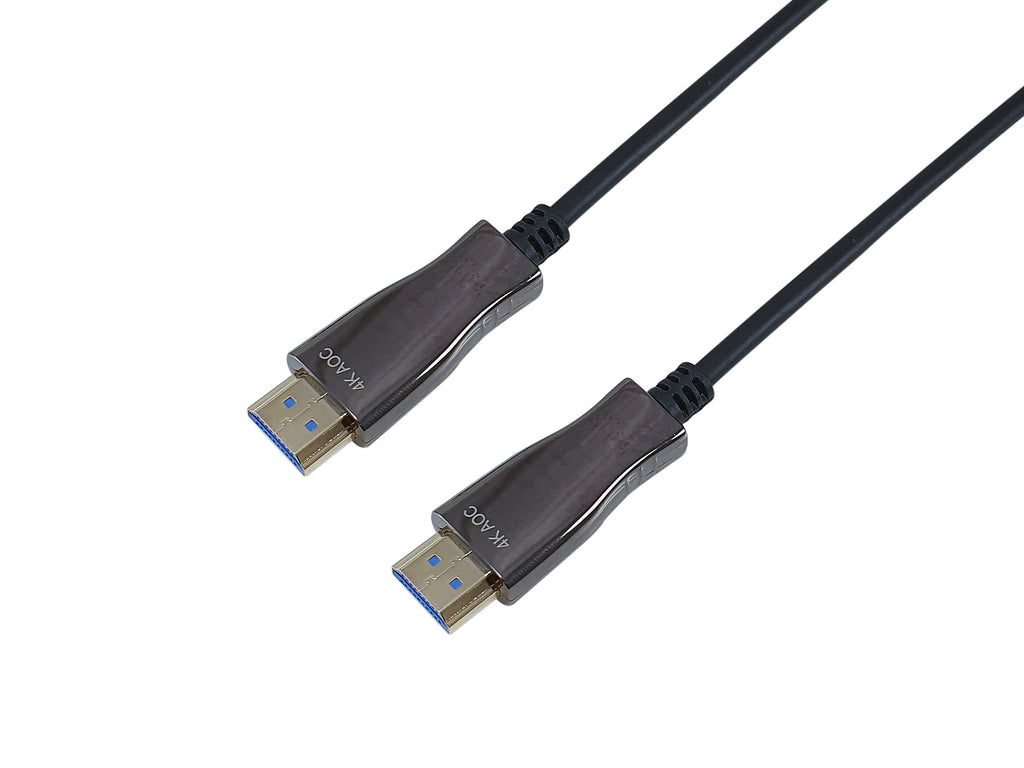

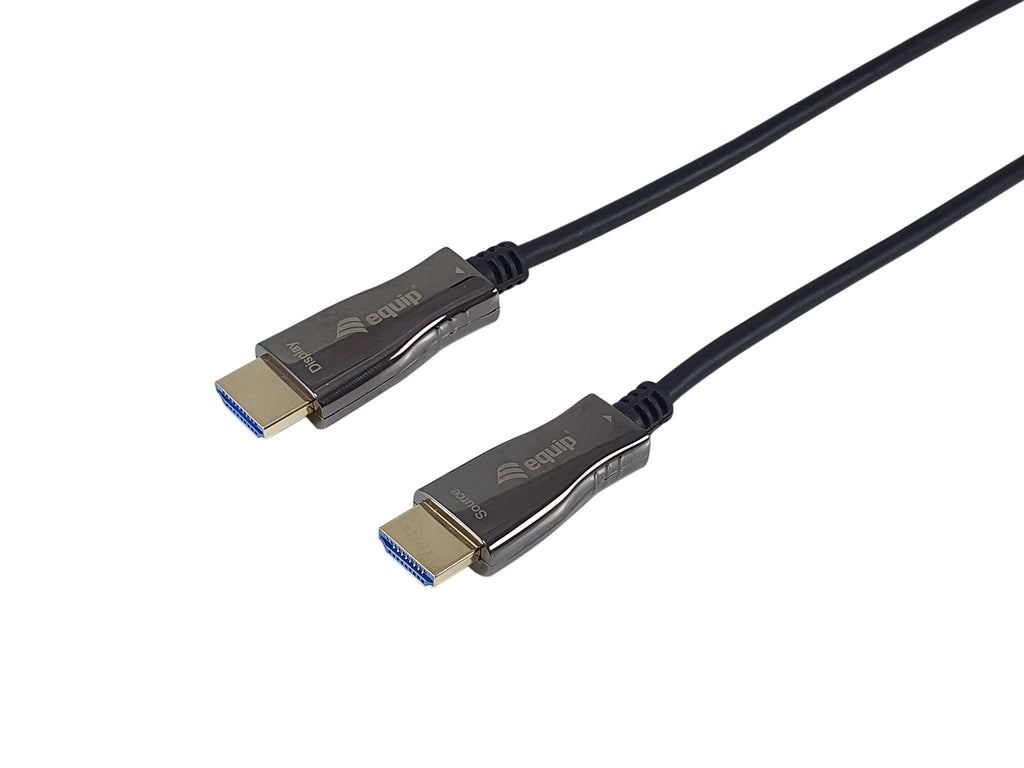

Equip's 11943x Series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable, but uses optical fiber between the connectors to extend HDMI signals without loss or latency. Our hybrid cable is composed of optical fibers and copper wires. High-speed TMDS signals are transmitted via the multimode optical fibers, while low-frequency control signals are transmitted via the copper wires. The range of active optical wires allows you to achieve distances of up to 100 meters without signal quality loss or the need for a separate power supply.
| Features
|
| Cable length |
100 m |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector type 1 |
Male |
| Connector type 2 |
Male |
| Product color |
Black |
| Plating connector contacts |
Gold |
| Connector form factor 1 |
Right |
| Connector form factor 2 |
Right |
| HDMI version |
2.0 |
| 3D compatibility |
Yes |
| Supported graphics resolutions |
1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160 |
| HDMI Ethernet Channel |
Yes |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Bandwidth |
18000 MB/s |
| HDR support |
Yes |
| Maximum discount rate |
240 Hz |
| Cable material |
Copper |
| Cable plug material |
Polyvinyl chloride (PVC) |
| Certificate
|
| Certificates of conformity |
CE, RoHS |
| Weight and dimensions
|
| Weight |
2.95 kg |
| Packaging information
|
| Quantity |
1 piece(s) |
| Package width |
270 mm |
| Package depth |
90 mm |
| Package height |
270 mm |
| Packaging type |
Box |
| Logistics data
|
| Country of origin |
China |
| Harmonized System Code |
8544421900 |
| Width of the main (external) locker |
370 mm |
| Length of the main (external) locker |
330 mm |
| Height of the main (external) locker |
480 mm |
| Gross weight of the main (external) locker |
15.8 kg |
| Produced by main (external) locker |
5 piece(s) |
