Description

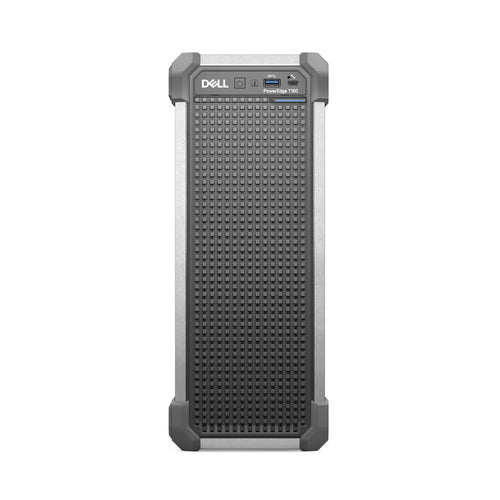

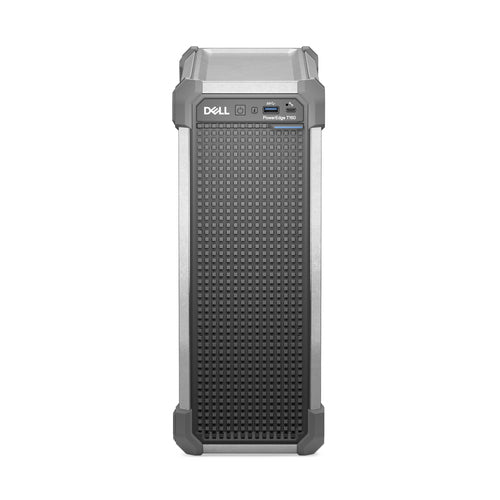

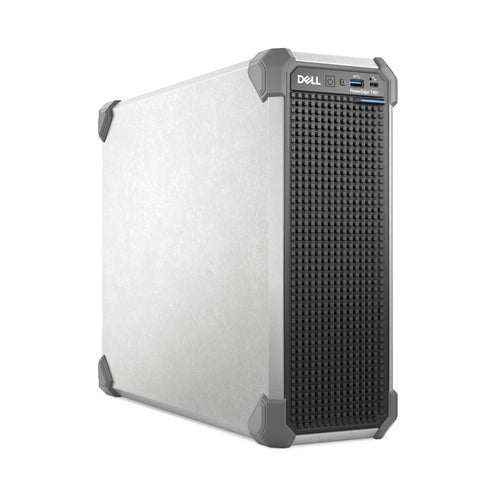

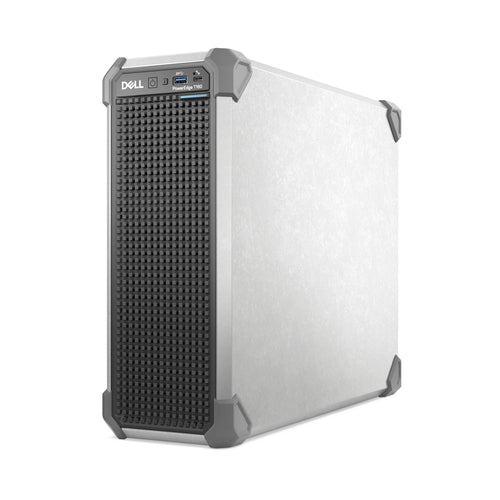

The single-socket PowerEdge T160 server offers a shallow form factor for customers seeking versatility and processing power at an affordable price.
| Processor | |
| Processor family | Intel Xeon E |
| Processor manufacturer | Intel |
| Processor model | E-2414 |
| Processor frequency | 2.6 GHz |
| Turbo processor frequency | 4.5 GHz |
| Performance cores | 4 |
| Number of processor cores | 4 |
| Processor cache memory | 12 MB |
| Motherboard chipset | Intel C262 |
| Number of processors installed | 1 |
| Number of processor threads | 4 |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 128 GB |
| Type of cached memory | Unregistered (unbuffered) |
| Memory locations | 4x DIMM |
| ECC | Yes |
| Memory configuration (slot x size) | 1 x 16 GB |
| Memory data transfer rate | 5600 MT/s |
| storage media | |
| Total storage capacity | 2 TB |
| RAID support | No |
| Optical reader | No |
| Number of hard drives installed | 1 |
| Hard drive capacity | 2 TB |
| Hard drive interface | SATA III |
| Hard drive rotation speed | 7200 rpm |
| Hard drive size | 3.5" |
| Internal bays | 3 |
| Supported storage drive interfaces | SATA |
| Network | |
| Local Area Network (LAN) Controller | Broadcom 5720 |
| Ethernet/LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Connectivity | |
| Number of LAN ethernet ports (RJ-45) | 2 |
| Number of USB 2.0 Ports | 3 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Number of VGA (D-Sub) ports | 1 |
| Number of serial ports | 1 |
| Design | |
| Chassis type | Tower (3U) |
| Product color | Black |
| Rack rails | No |
| Bezel | Yes |
| representation / realization | |
| Remote administration | iDRAC9 Enterprise 16G |
| TPM (Trusted Platform Module) chip | Yes |
| TPM (Trusted Platform Module) chip version | 2.0 |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Power | |
| Redundant Power Supply (RPS) | No |
| Power supply | 300 W |
| Environmental conditions | |
| Off-temperature | -40 - 65 °C |
| Relative humidity level (storage) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operational altitude | 0 - 12000 m |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 1182 |
| Total carbon emissions, standard deviation (kg CO2e) | 924 |
| Carbon emissions, manufacturing (kg CO2e) | 319.14 |
| Carbon emissions, logistics (kg CO2e) | 130.02 |
| Carbon emissions, energy use (kg of CO2e) | 709.2 |
| End-of-life carbon emissions (kg CO2e) | 23.64 |
| Total carbon emissions, excluding the use phase (kg CO2e) | 472.8 |
| Weight and dimensions | |
| Width | 132.5 mm |
| Height | 332.5 mm |
| Package contents | |
| Package contents | European Power Cord 220V |
| Other features | |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512n |
| Technical details | |
| Supported storage drive form factor (internal) | 3.5'' |
